Symetrix 80-0189 xIO Bluetooth RCA-3.5, White
Product Overview

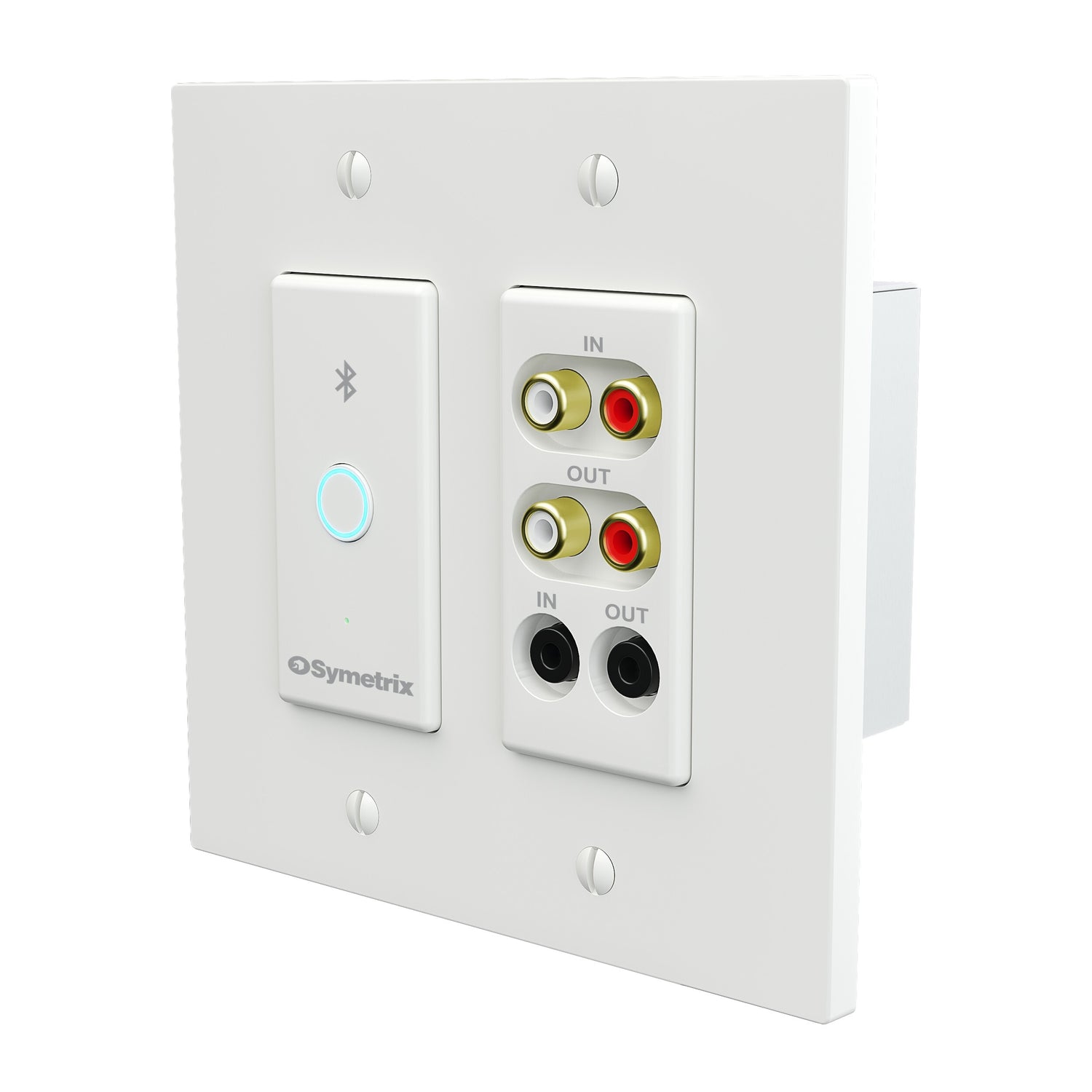

The Symetrix 80-0189 xIO Bluetooth RCA-3.5 is a multi-input Dante wall plate endpoint in white that combines Bluetooth 5.0 wireless audio with stereo RCA and 3.5mm analog inputs and outputs in a US dual-gang wall plate. It provides 4 Dante transmit and 4 Dante receive channels, powered over Ethernet via IEEE 802.3af PoE. The xIO Bluetooth RCA-3.5 is the richest-featured xIO Bluetooth variant, suited to meeting rooms and hospitality spaces where multiple source types — wireless Bluetooth, stereo RCA from a media player, and 3.5mm from a laptop — all need to connect at the same wall plate location.
Product Description

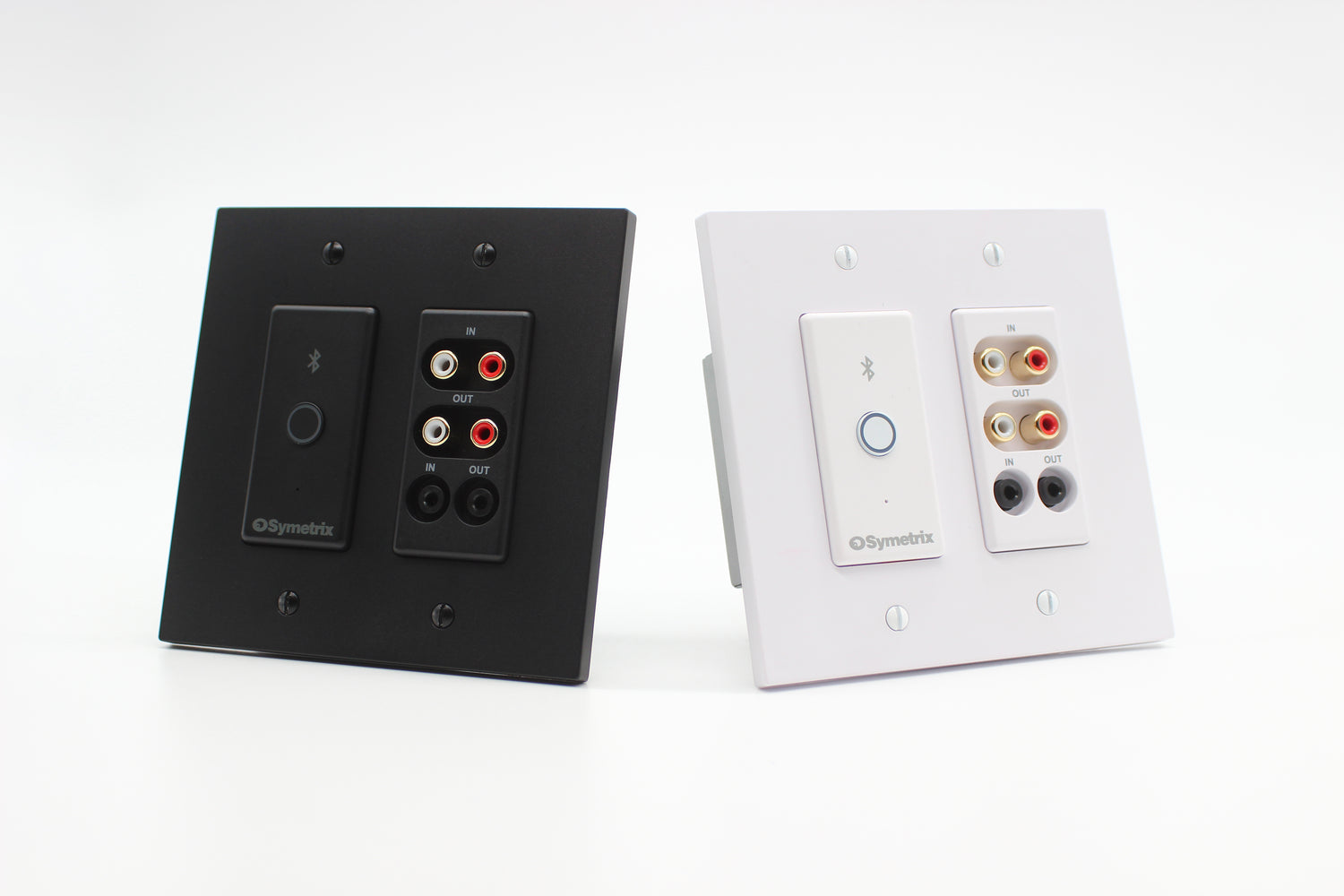

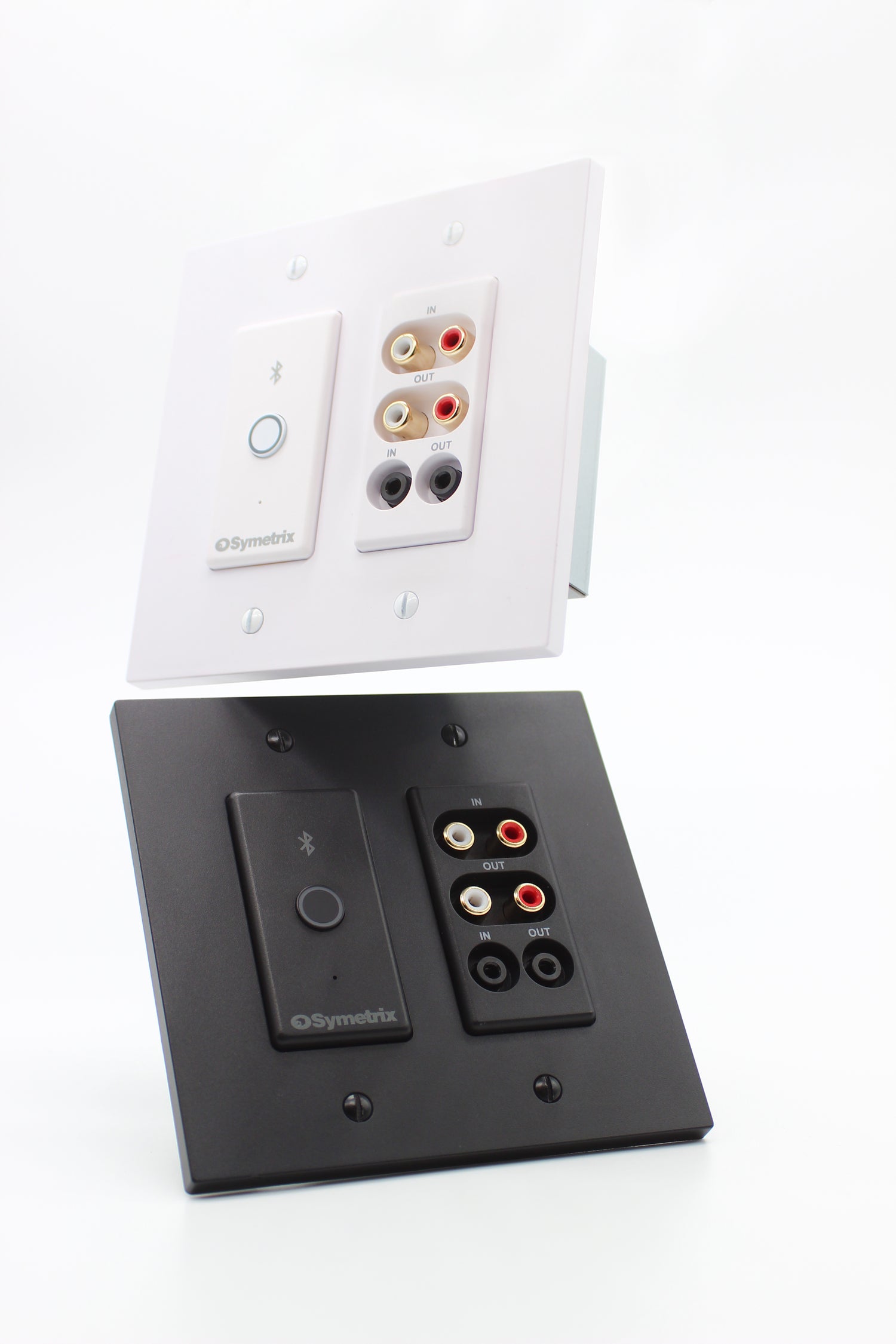

The Bluetooth 5.0 chipset delivers stable extended-range wireless pairing, with audio conversion at 24-bit, 48 kHz and SNR no lower than 95 dB. Stereo RCA inputs and outputs accept consumer-level sources and destinations (media players, sound bars), while the 3.5mm TRS connections serve laptops and mobile devices with headphone outputs. All analog and Bluetooth inputs are bridged to Dante via the PoE Cat cable and routed in Symetrix Composer. Maximum input level is +12 dBu and maximum output level is +12 dBu. The dual-gang Decora wall plate installs in US standard dual-gang electrical boxes. Also available in black (80-0191).
Key Features
- Bluetooth 5.0 + Stereo RCA + 3.5mm — Three source types on one dual-gang wall plate.
- 4 Dante Transmit + 4 Dante Receive Channels — Bidirectional Dante network audio; AES67 compatible.
- 24-bit, 48 kHz; SNR ≥95 dB — Professional audio conversion at all inputs and outputs.
- Max Level +12 dBu — Input and output headroom suited for both consumer and commercial sources.
- PoE IEEE 802.3af — Single Cat cable for power and network.
- US Dual-Gang, White — Standard US dual-gang Decora wall plate.
- Composer Programmable — All routing managed in Symetrix Composer.
Typical Applications
- Conference rooms and boardrooms with Bluetooth, laptop, and media player source connections at the table or wall
- Hospitality meeting rooms offering multiple connection options for guests
- Training rooms with BYOD Bluetooth plus wired 3.5mm and RCA inputs
- Multi-purpose rooms with a single wall plate serving diverse source types
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0189 |
| Bluetooth | 5.0 |
| Analog Inputs | Stereo RCA, 3.5mm TRS |
| Analog Outputs | Stereo RCA, 3.5mm TRS |
| Dante Channels | 4 transmit + 4 receive |
| AES67 | Supported |
| Audio Conversion | 24-bit, 48 kHz |
| SNR | ≥95 dB |
| Max Input/Output Level | +12 dBu |
| Power | PoE IEEE 802.3af Class 0 |
| Network | 100 Base-T RJ45 |
| Form Factor | US dual-gang Decora, white |
| Programming | Symetrix Composer |
