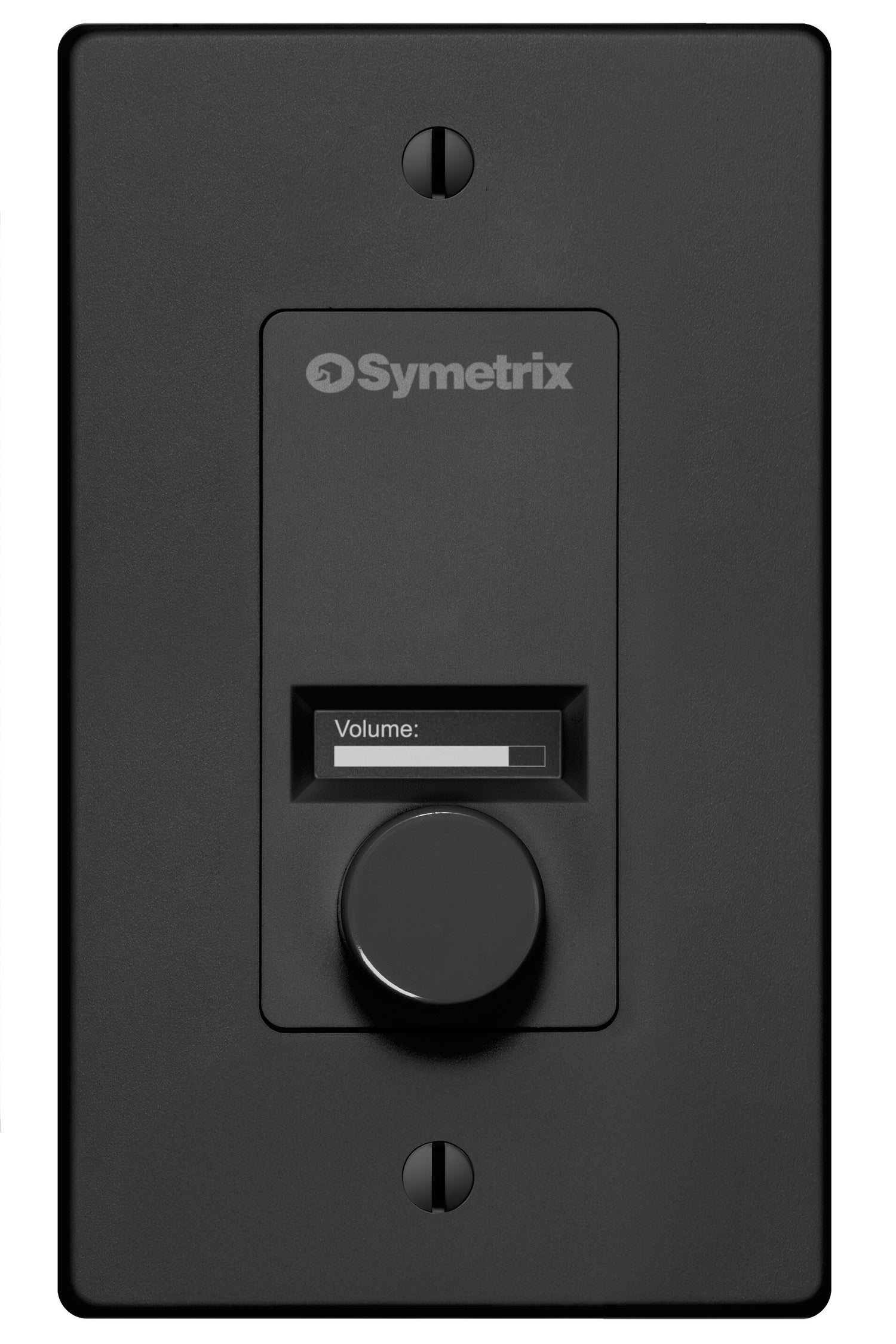

Symetrix 80-0174 W1, Black, US Standard
Product Overview
The Symetrix 80-0174 W1 is a single-function wall controller for Symetrix xIO wall plate Dante endpoints, providing a single rotary volume control knob in a single-gang US Decora form factor. Connects via Cat cable to the xIO endpoint and is configured in Symetrix Composer. Available in black finish.
Product Description
The W1 Black installs in a standard US single-gang Decora back box and presents a single volume knob on a black faceplate. Cat cable delivers power and control to the xIO endpoint. This is the most minimal W-Series option, appropriate for spaces where only volume control is required at the wall. For additional functions, see W2, W3, or W4.
Key Features
- Single Volume Control — One rotary knob for volume adjustment.
- xIO Endpoint Integration — Cat cable to Symetrix xIO endpoints.
- Decora Single-Gang US Form Factor — Standard US single-gang back box.
- Symetrix Composer Integration — Configured in Composer.
- Black Finish — Matches dark Decora wall plates.
Typical Applications
- Secondary zone volume-only wall control
- Overflow or waiting area volume knob
- Fixed-source room volume control point
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 80-0174 |
| Functions | Volume (single knob) |
| Connection | Cat cable to xIO endpoint |
| Form Factor | Decora-style, US single-gang |
| Finish | Black |
| Compatible Endpoints | Symetrix xIO wall plate series |
| Configuration Software | Symetrix Composer |
| Region | United States |
Frequently Asked Questions
Q: Can the W1 control source selection or mute?
A: No. Volume only. See W2, W3, or W4 for additional functions.
Q: Power supply needed?
A: No. Power via Cat cable to xIO endpoint.
