Symetrix 80-0175 W1, White, US Standard

Product Overview

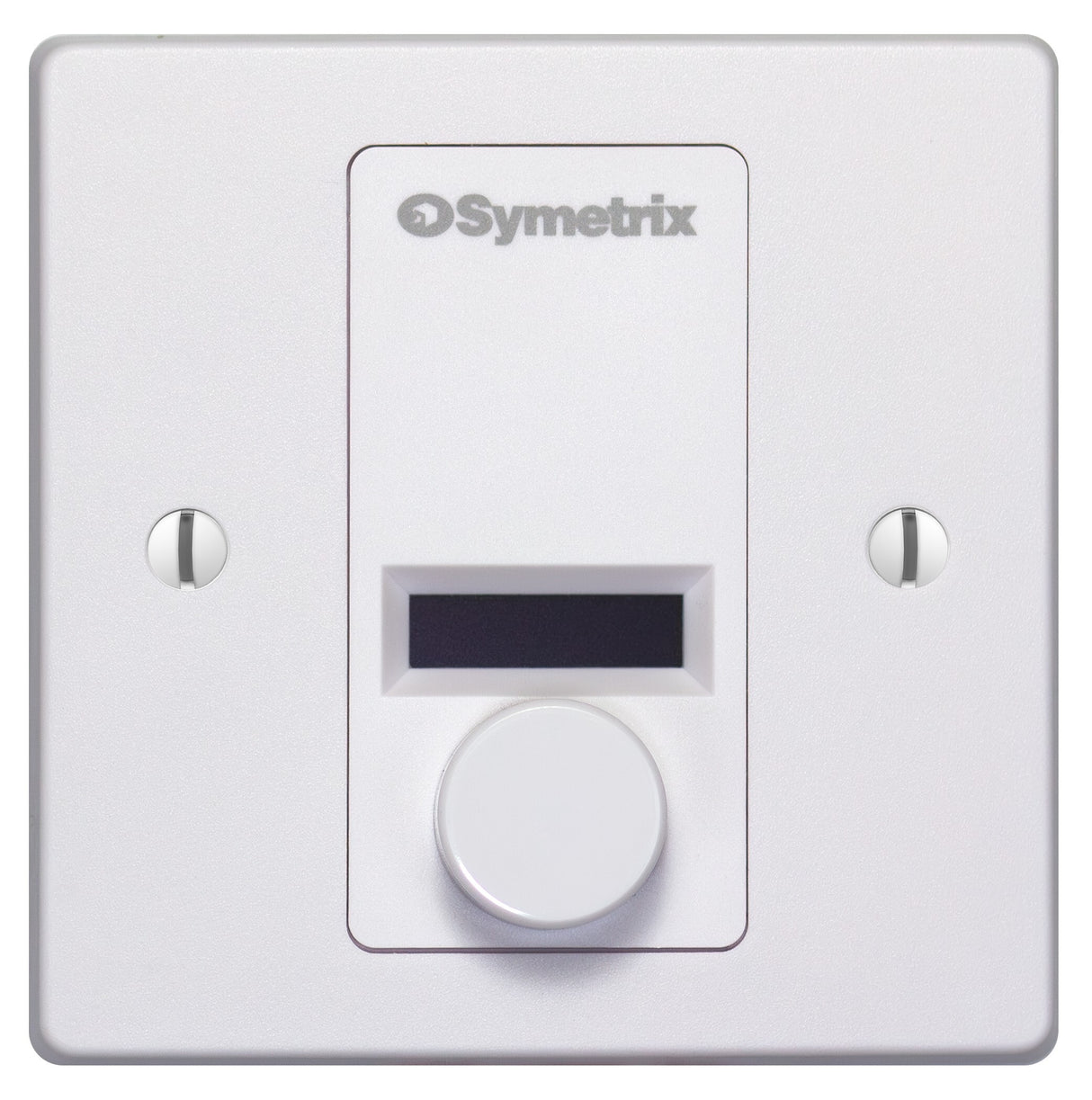

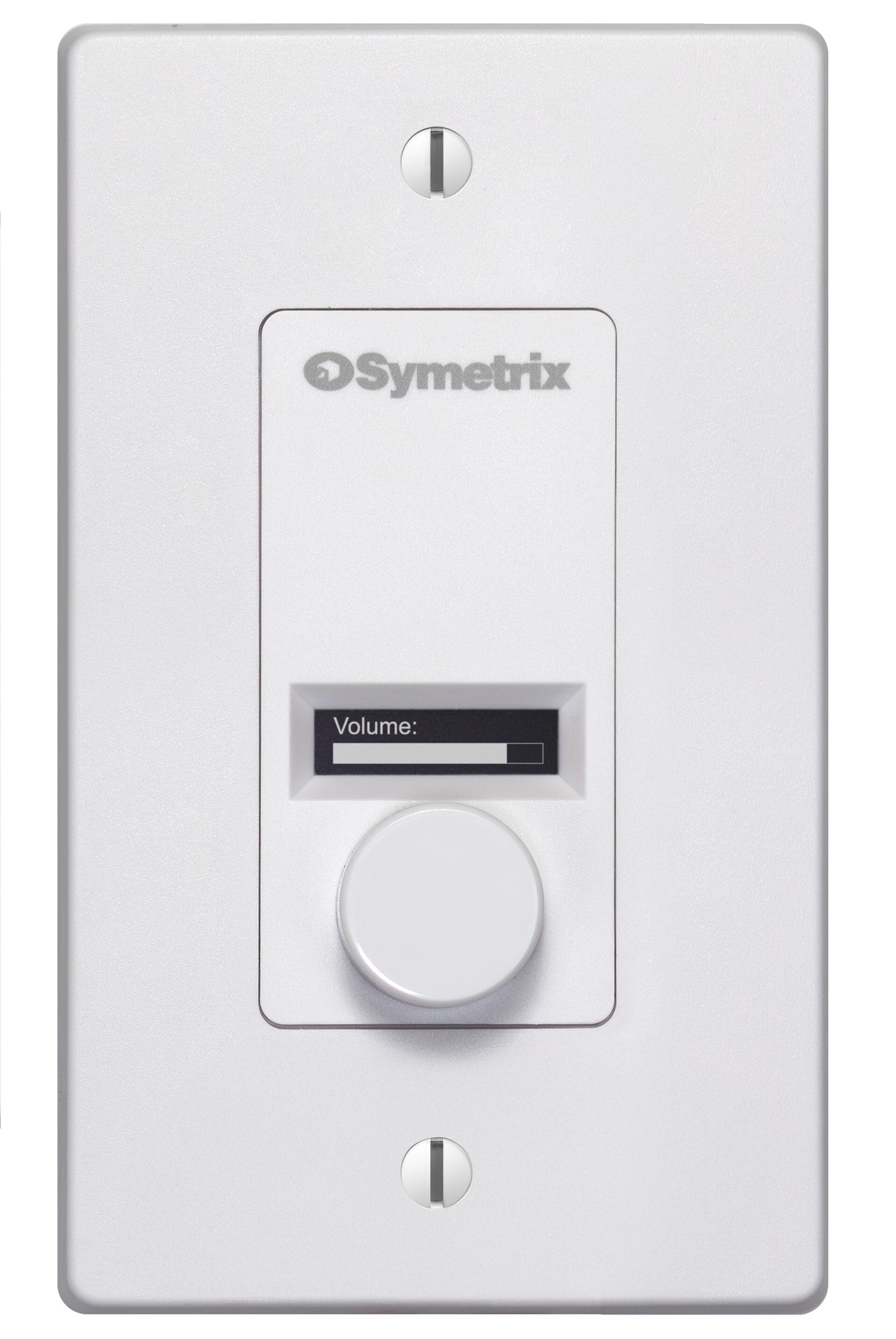

The Symetrix 80-0175 W1 is a single-function IP-networked wall controller in white for US single-gang electrical boxes, providing a push-button rotary encoder and display panel for direct control of Symetrix DSP volume and parameters over the network. Unlike the ARC RS-485 wall panels, the W-Series controllers communicate via IP — making them suitable for installations where network control is preferred over RS-485 wiring runs. Powered over Ethernet via PoE.

Product Description

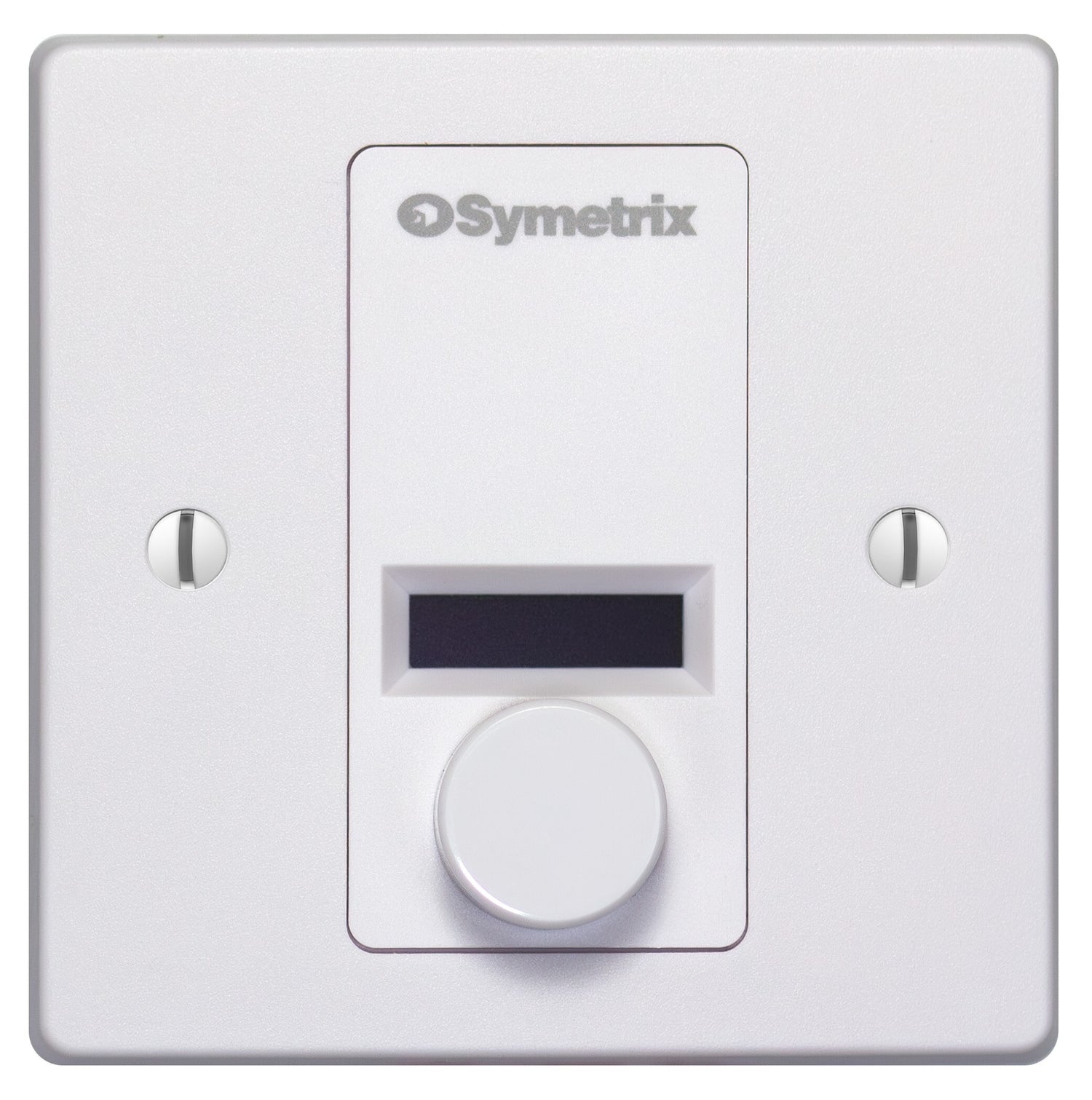

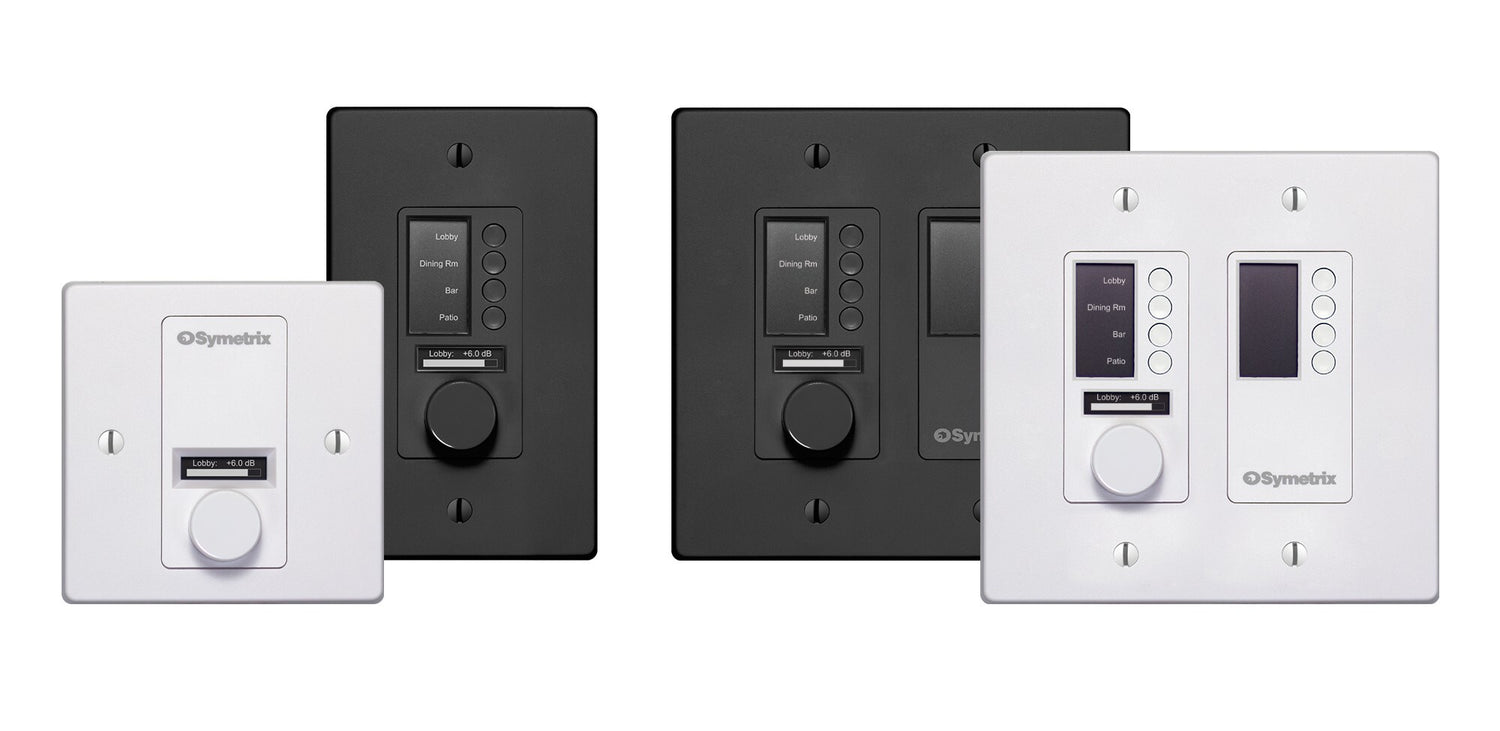

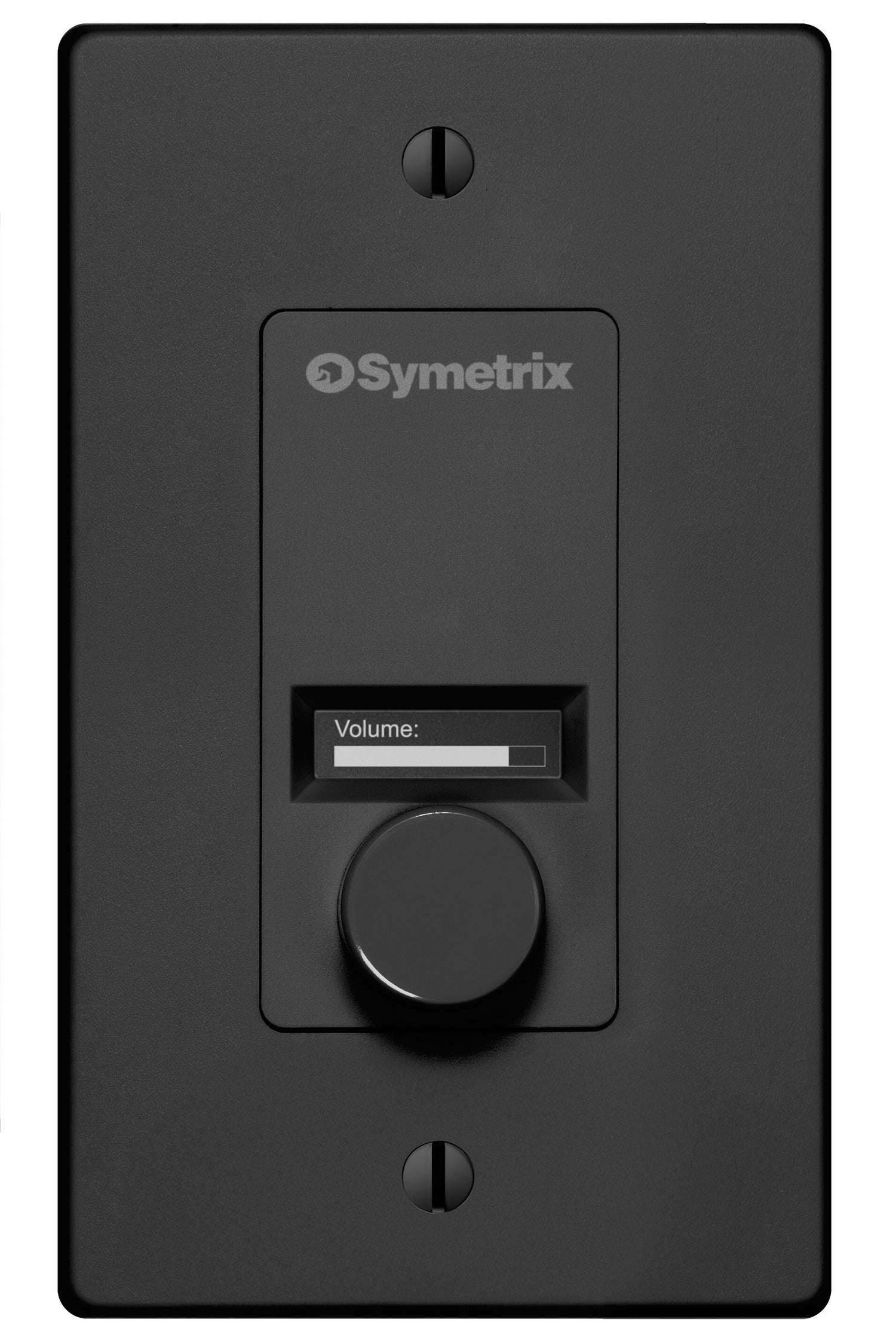

The W1 is the most compact controller in the W-Series range, offering a single rotary encoder function — volume control or a single DSP parameter — in a US single-gang form factor. The display panel provides visual feedback of the current parameter value. It is programmed in Symetrix Composer as part of the DSP site file, with the encoder function assigned to any parameter in the signal chain. The W-Series controllers are powered over Ethernet using a PoE injector or PoE-capable switch. Suited for houses of worship, hospitality, conference rooms, and any application requiring clean, wall-mounted room-level control of a Symetrix DSP parameter. Also available in black (80-0174) and Euro format (80-0184 white Euro / 80-0183 black Euro). For additional functions, see the W2, W3, and W4.

Key Features

• Single Rotary Encoder + Display — One push-button encoder function with visual feedback for single-parameter DSP control.
• IP Networked — Communicates with the Symetrix DSP over Ethernet; no RS-485 wiring required.
• PoE Powered — Powered by a PoE injector or PoE switch; single Cat cable at the wall.
• Composer Programmable — Encoder function assigned in Symetrix Composer; compatible with all current Symetrix DSPs.
• US Single-Gang, White — Standard US single-gang form factor; white finish.

Typical Applications

• Conference rooms requiring single-parameter volume control at the wall
• Houses of worship with zone volume or preset control at key locations
• Hospitality properties with clean, unobtrusive room audio control
• Training rooms and classrooms with simple encoder-based volume control
• Commercial meeting spaces replacing RS-485 wall panels with IP-networked controls

Technical Specifications

Frequently Asked Questions

What is the difference between the W-Series and the ARC wall panels?

The W-Series controllers communicate over IP (Ethernet), while ARC wall panels use RS-485. W-Series is preferred for IP-only installations or locations where running RS-485 cabling is impractical. Both series are fully programmed in Symetrix Composer.

Does the W1 require a separate PoE injector?

Yes. The W1 requires a PoE power source — either a PoE-capable network switch or a dedicated PoE injector such as the Symetrix PoE Kit 15W (60-0018).
