Symetrix 80-0080 ARC-EX4e
Product Overview

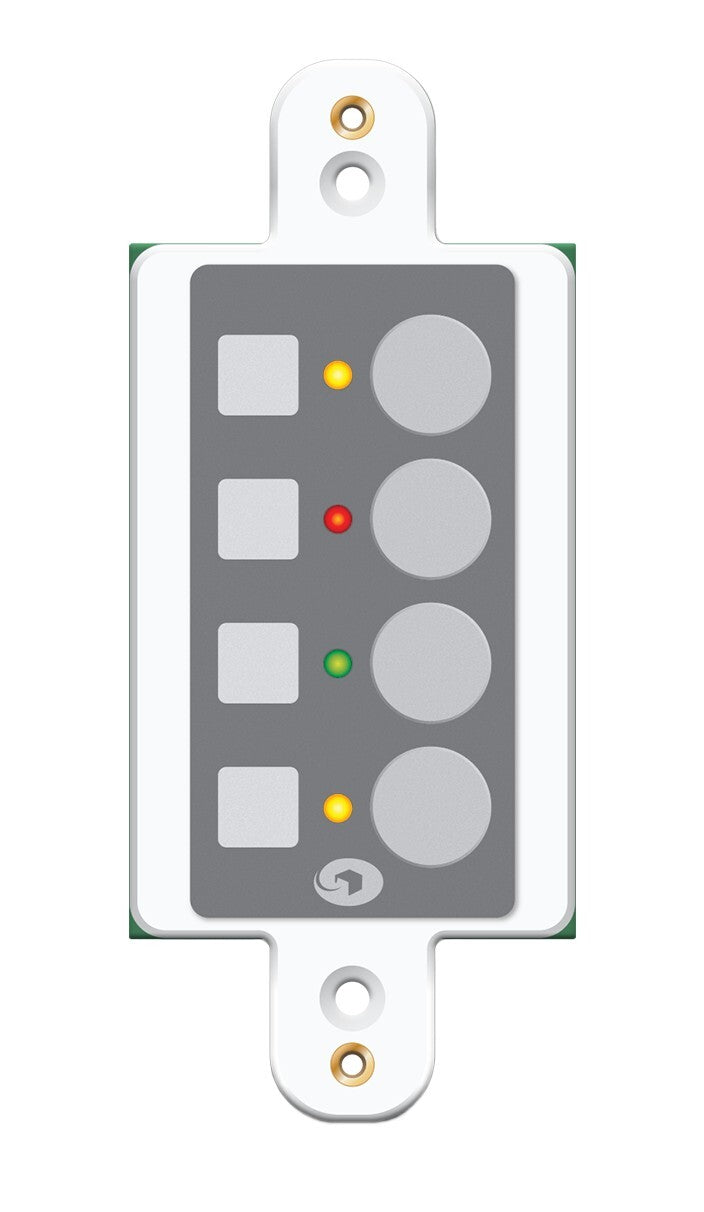

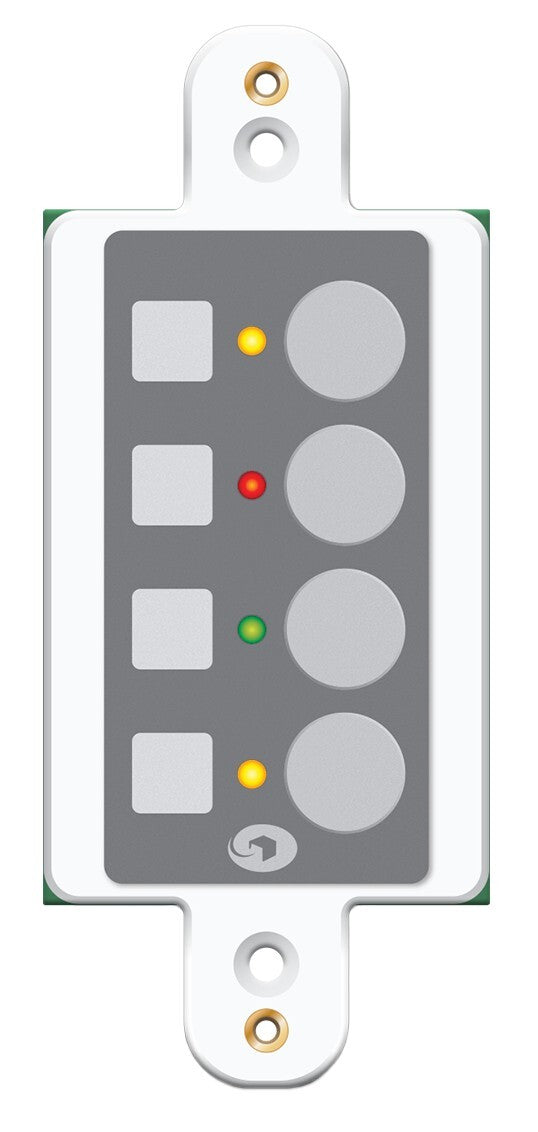

The Symetrix 80-0080 ARC-EX4e is an ARC expander panel that adds four additional backlit buttons to an existing ARC-2e or ARC-3 wall panel, expanding the button count of the base panel without adding a second RS-485 device. It installs adjacent to the ARC-2e or ARC-3 in a multi-gang wall box and draws power from the same RS-485 bus. The ARC-EX4e adds the ability to recall presets, select sources, or control additional DSP parameters at the same wall location as the primary ARC panel, all programmed in Symetrix Composer.
Product Description
The ARC-EX4e is designed for installations where the base ARC-2e or ARC-3 panel’s two or three button functions are not sufficient, and the operator needs additional source selection or preset recall buttons at the same wall plate location. It is not a standalone device — it must be used alongside an ARC-2e or ARC-3 panel. The four backlit buttons are each independently programmable in Symetrix Composer as momentary, latched, or radio button functions. Compatible with all Symetrix ARC-capable DSPs.
Key Features
- 4 Additional Backlit Buttons — Expands ARC-2e or ARC-3 with four more programmable DSP control buttons.
- RS-485 Bus Powered — Draws power from the ARC-2e or ARC-3; no separate wiring to the expander.

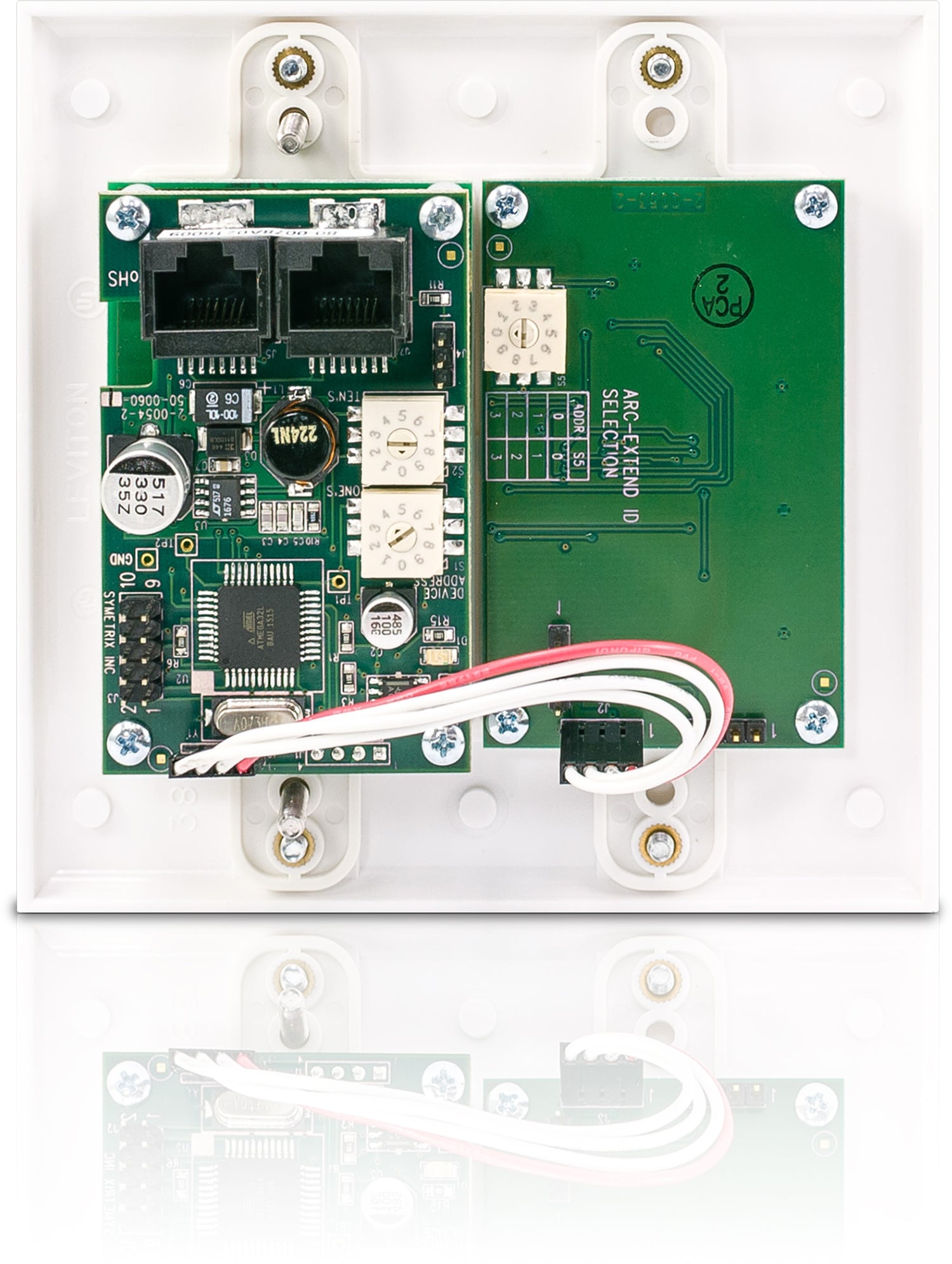

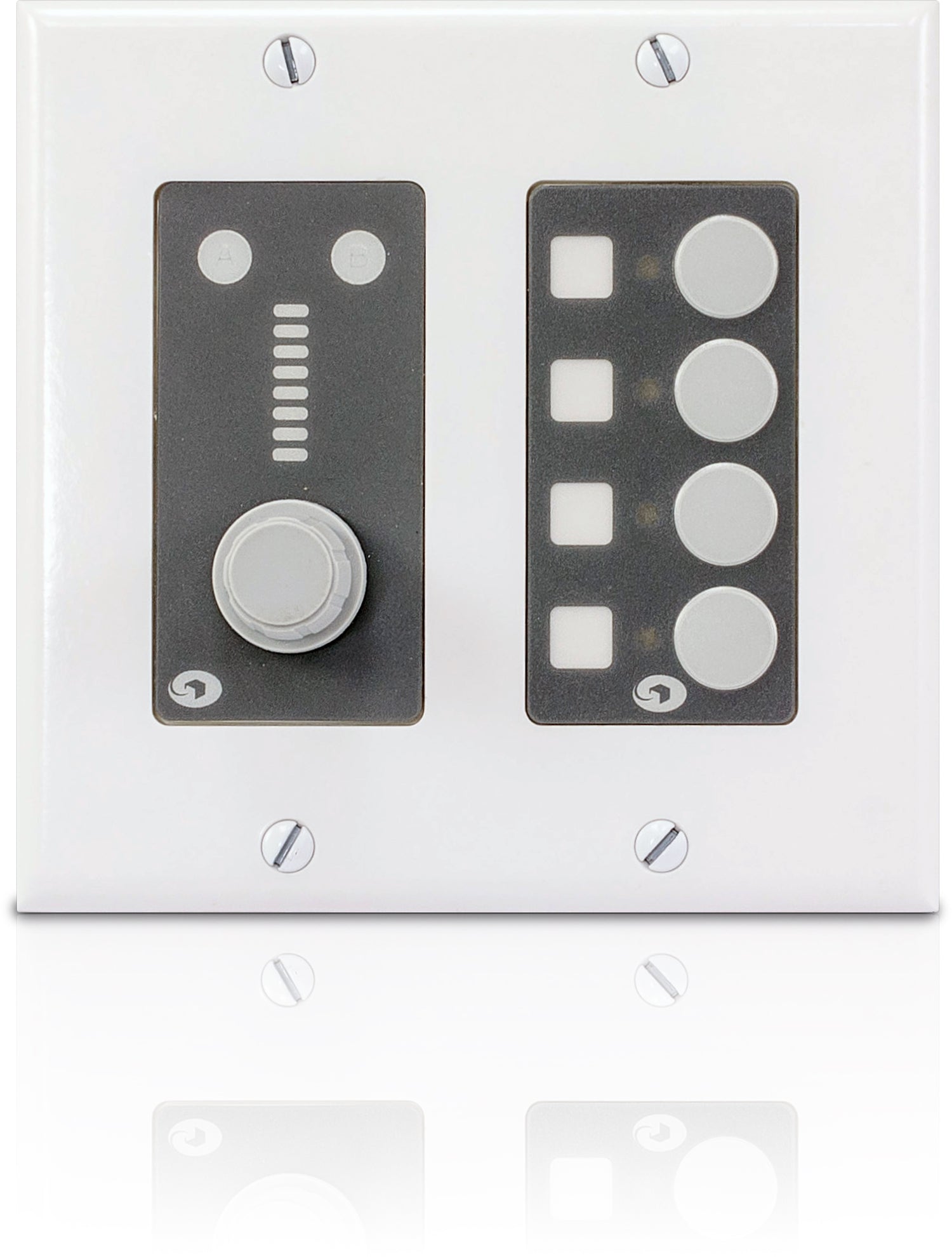

- Modular Expansion — Installs in an adjacent gang position alongside the primary ARC panel.
- Composer Programmable — All Symetrix ARC-capable DSPs.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0080 |
| Buttons | 4 backlit programmable |
| Compatible Base Panels | ARC-2e (80-0056/80-0155), ARC-3 (80-0103/80-0135) |
| Power | From RS-485 bus via base panel |
| Programming | Symetrix Composer |
Frequently Asked Questions
- Can the ARC-EX4e be used as a standalone panel?
- No. The ARC-EX4e requires a connected ARC-2e or ARC-3 panel for power and communication. It cannot be used independently on the RS-485 bus.
