Symetrix 80-0103 ARC-3 White

Product Overview

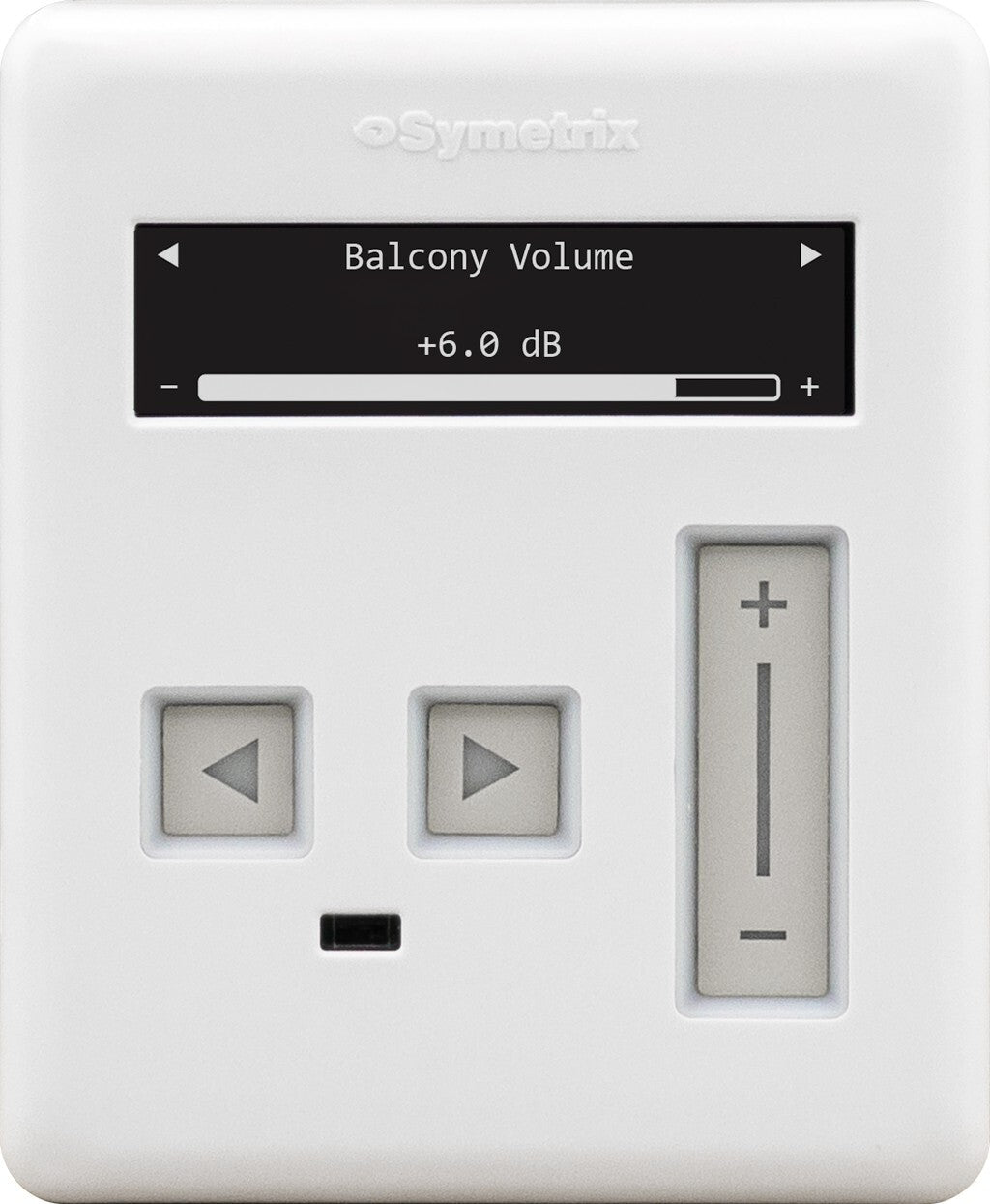

The Symetrix 80-0103 ARC-3 is a three-button Decora-style ARC wall panel in white that upgrades the ARC-2e display to a 256×64 pixel OLED. With three capacitive touch buttons and the high-contrast OLED display, the ARC-3 provides a premium room-control interface for Symetrix DSP systems. It mounts in a standard US single-gang electrical box or with an included surface-mount enclosure, with power and control connected via two RJ45 connectors over RS-485.

Product Description

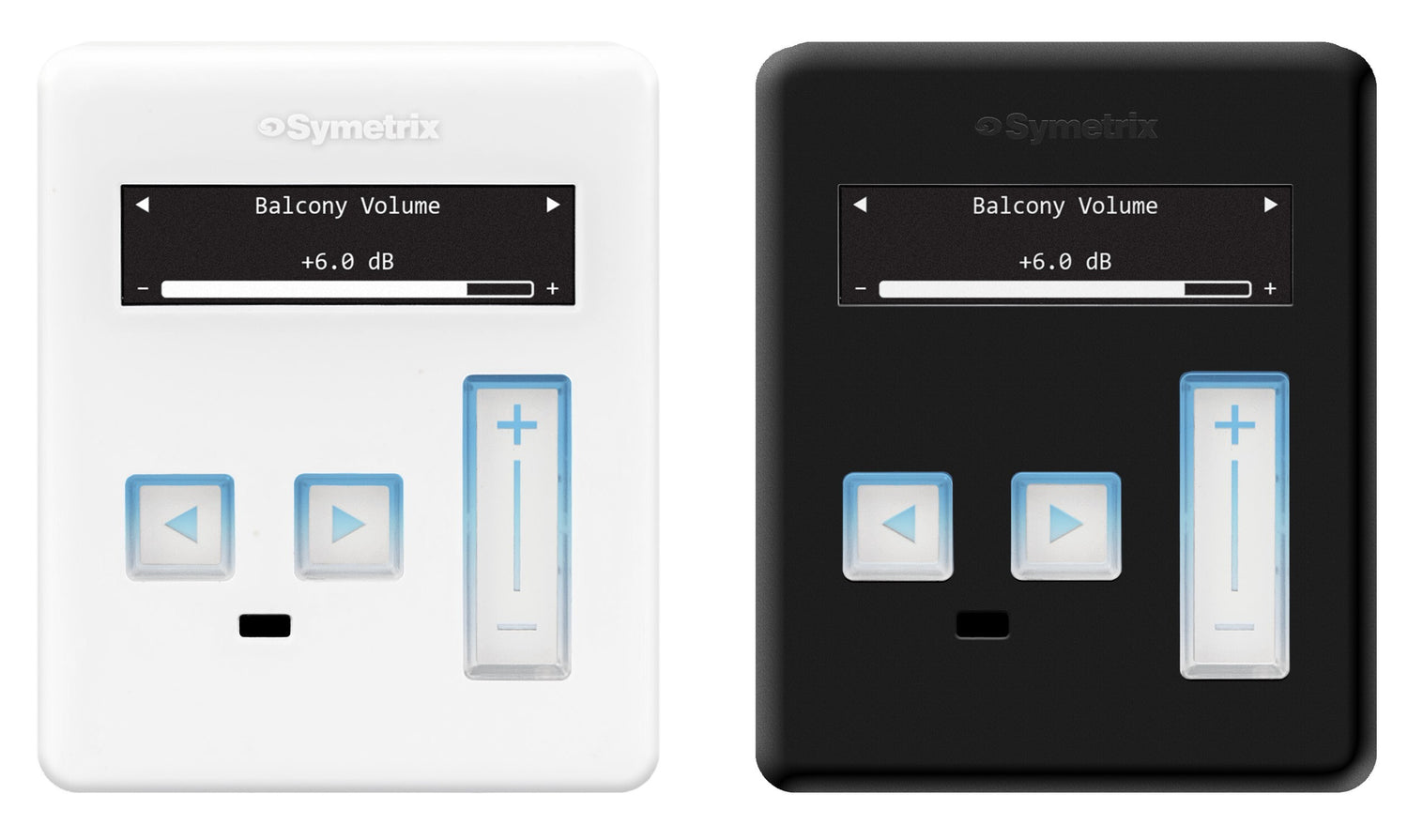

The ARC-3’s 256×64 pixel white-on-black OLED display is a significant visual upgrade over the ARC-2e’s alphanumeric display, providing clear readout of parameter names, values, and navigation menus in dimly lit environments such as conference rooms, boardrooms, and houses of worship. The three capacitive touch areas replace physical buttons for a more refined appearance. The included surface-mount enclosure makes installation flexible — the ARC-3 can be flush-mounted in a wall box or surface-mounted on a wall or furniture without electrical box rough-in. Compatible with all Symetrix ARC-capable DSPs and programmed in Symetrix Composer. Also available in black (80-0135).

Key Features

• 256×64 OLED Display — High-contrast white-on-black display for clear parameter readout.
• 3 Capacitive Touch Areas — Select, increment, and decrement with no moving buttons.

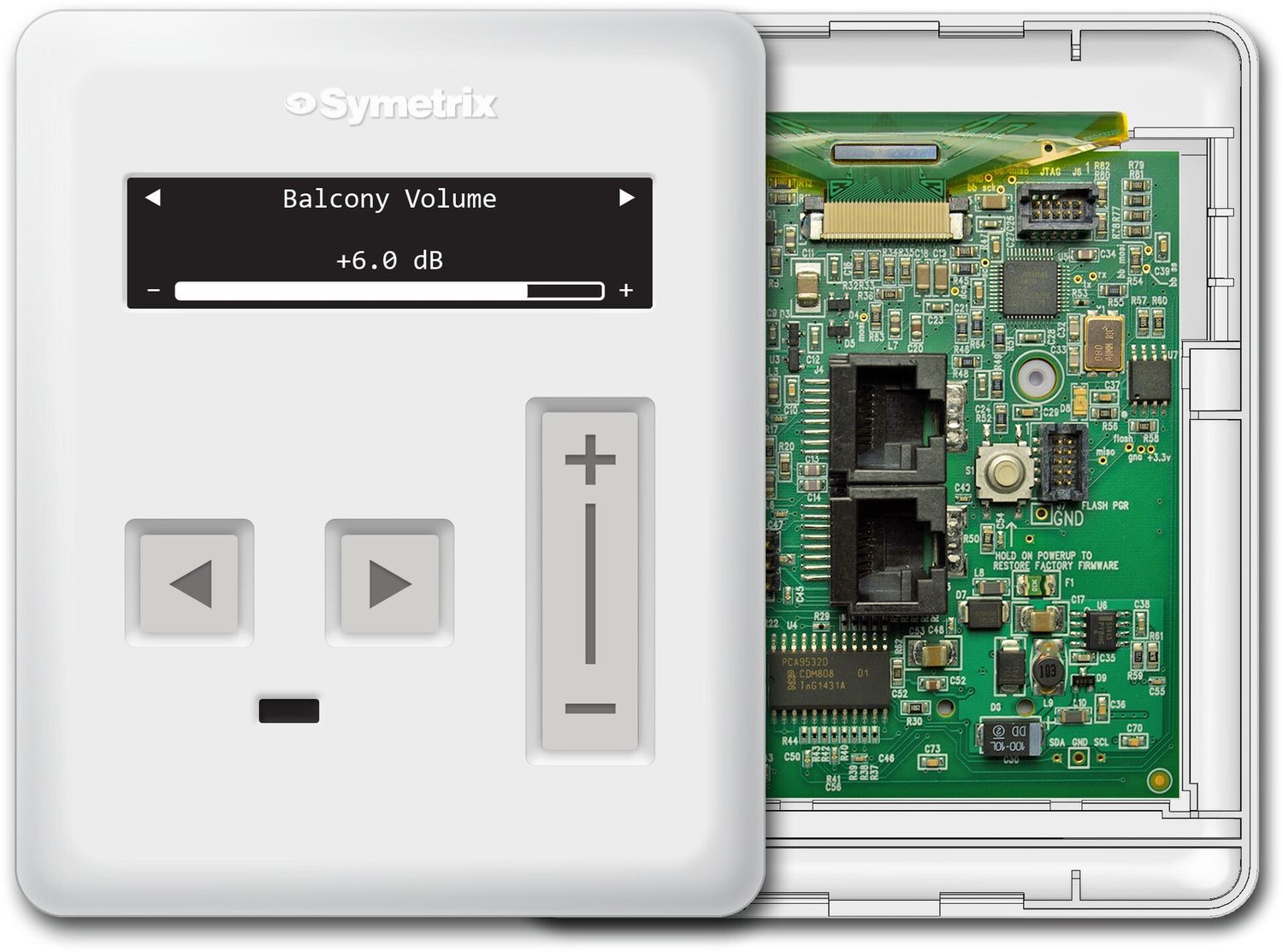

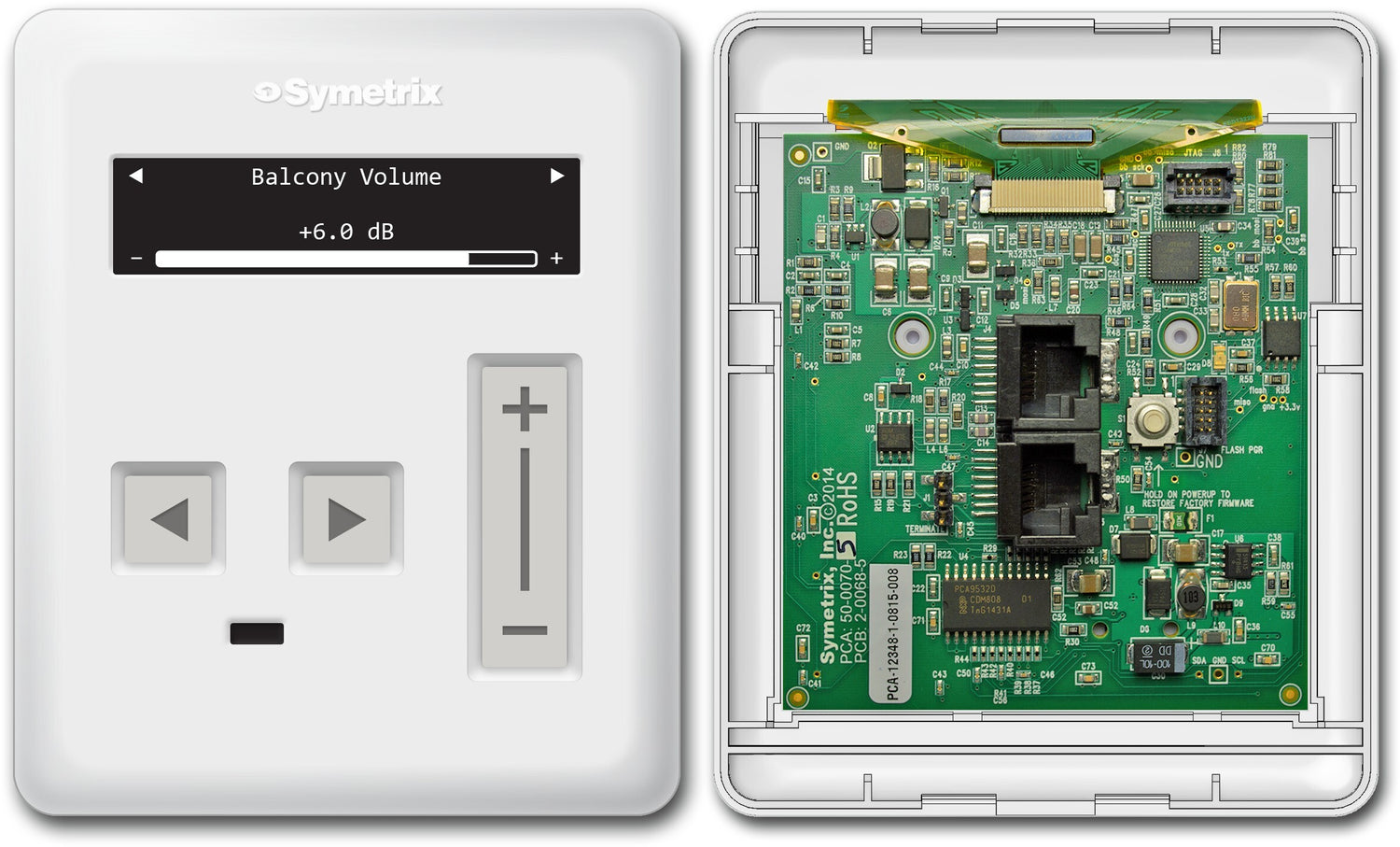

• Flush or Surface Mount — US/UK/EU single-gang box or included surface-mount enclosure.

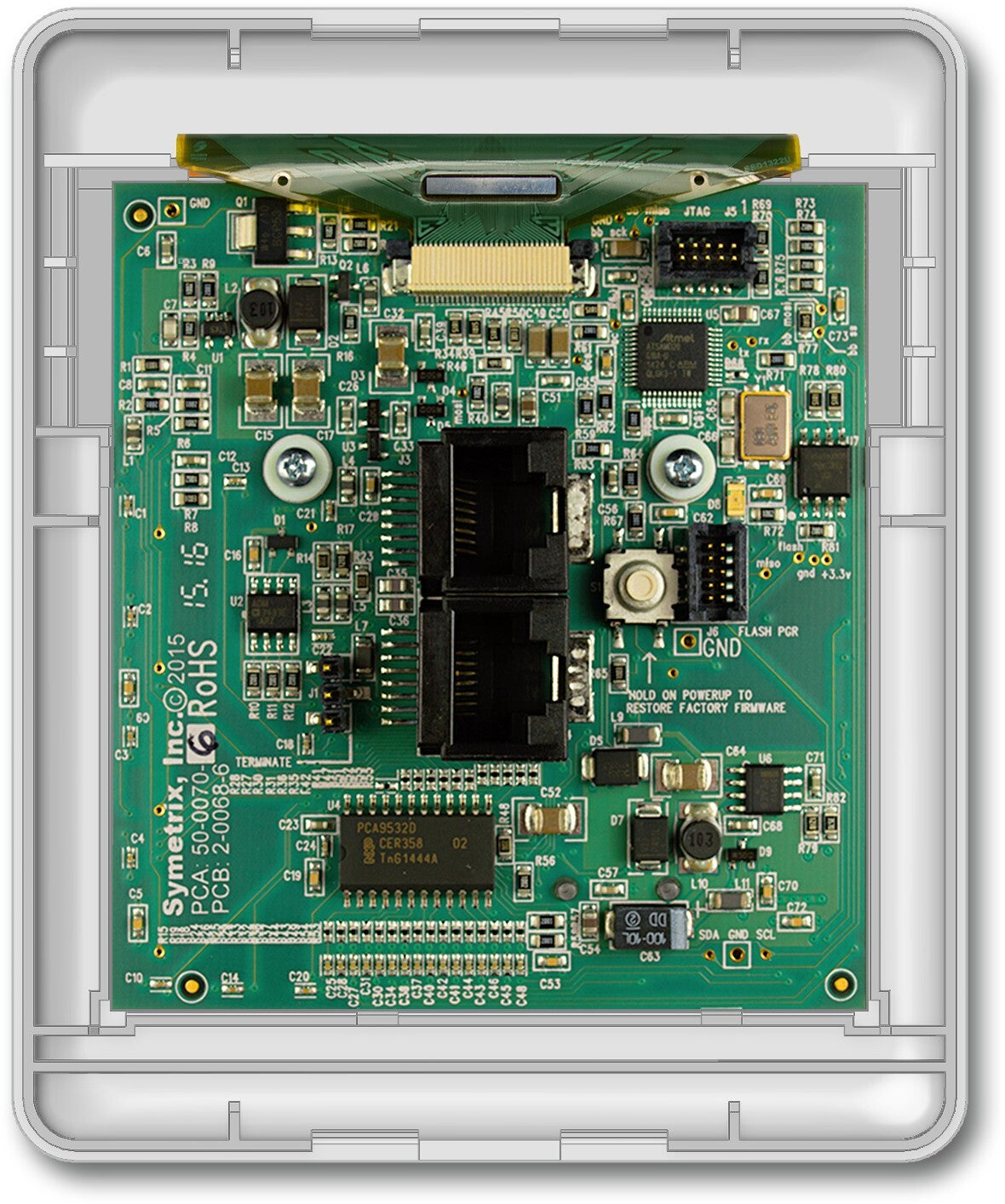

• RS-485 via RJ45 — Power and control over two RJ45 connectors.
• US Single-Gang, White — Decora-style form factor; white finish.

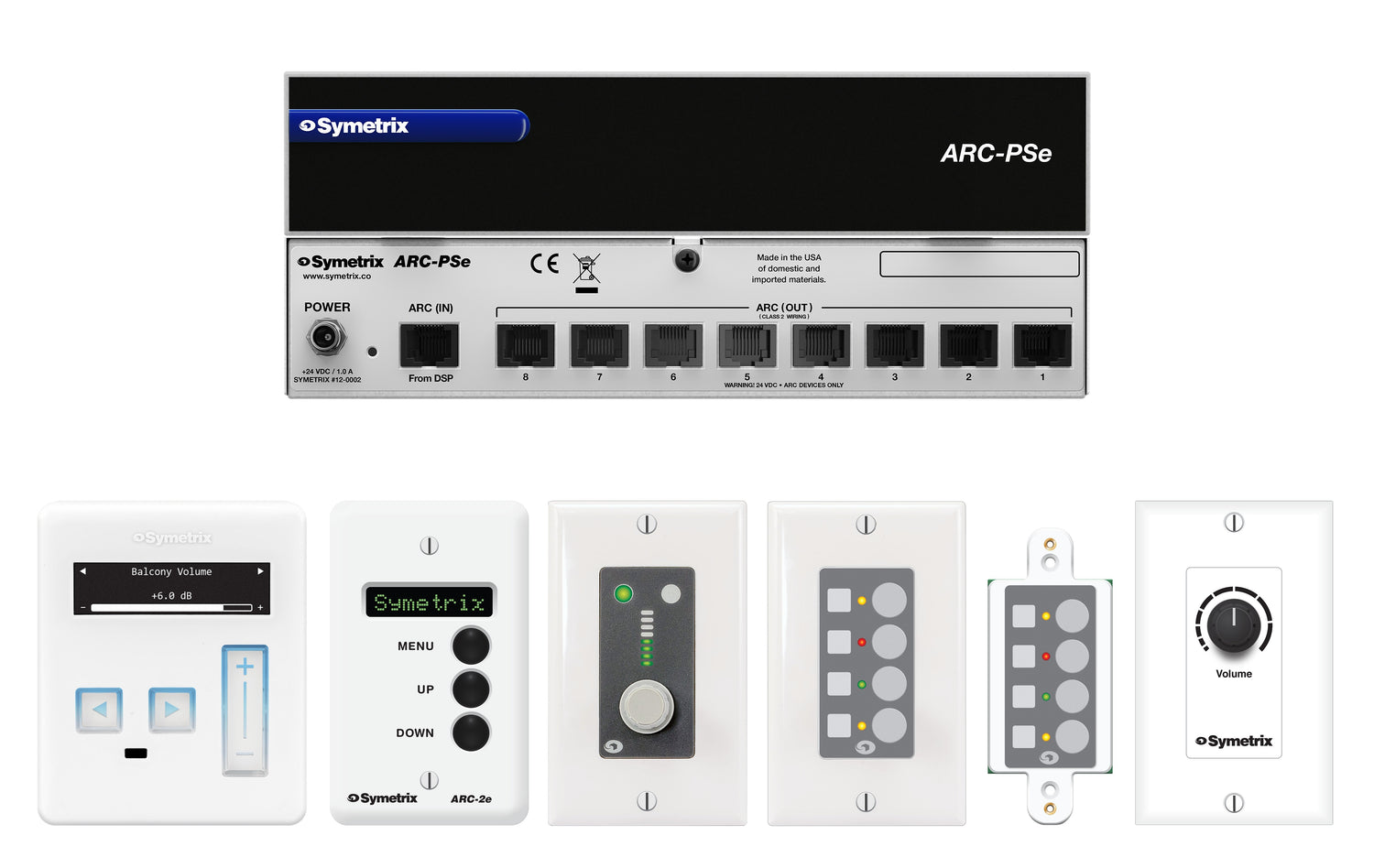

• Composer Programmable — Compatible with Jupiter, Zone Mix, Prism, EDGE, Radius NX.

Typical Applications

• Boardrooms and executive conference rooms requiring premium wall panel aesthetics
• Houses of worship with OLED display for clear reading at dim ambient light
• Government and corporate spaces specifying high-quality room controls
• Training rooms and classrooms with readable, clean wall panels

Technical Specifications

Frequently Asked Questions

What is the difference between the ARC-3 and the ARC-2e?

The ARC-3 has a 256×64 pixel OLED display versus the ARC-2e’s 8-character alphanumeric backlit display, and uses capacitive touch areas instead of physical buttons. The ARC-3 also includes a surface-mount enclosure option. Both connect via RS-485 and are programmed in Composer.
