Product Overview
The Symetrix 80-0079 ARC-SW4e is a four-button modular ARC wall panel in white for US single-gang electrical boxes. Each of its four buttons is independently programmable as momentary, latched, or radio button mode, making the ARC-SW4e suited for source selection, mute control, preset recall, and other discrete DSP parameter control at the wall. Corresponding tricolor LEDs on each button provide programmable visual feedback, independently or linked to button state. Like all modular ARC panels, it connects via RS-485.
Product Description

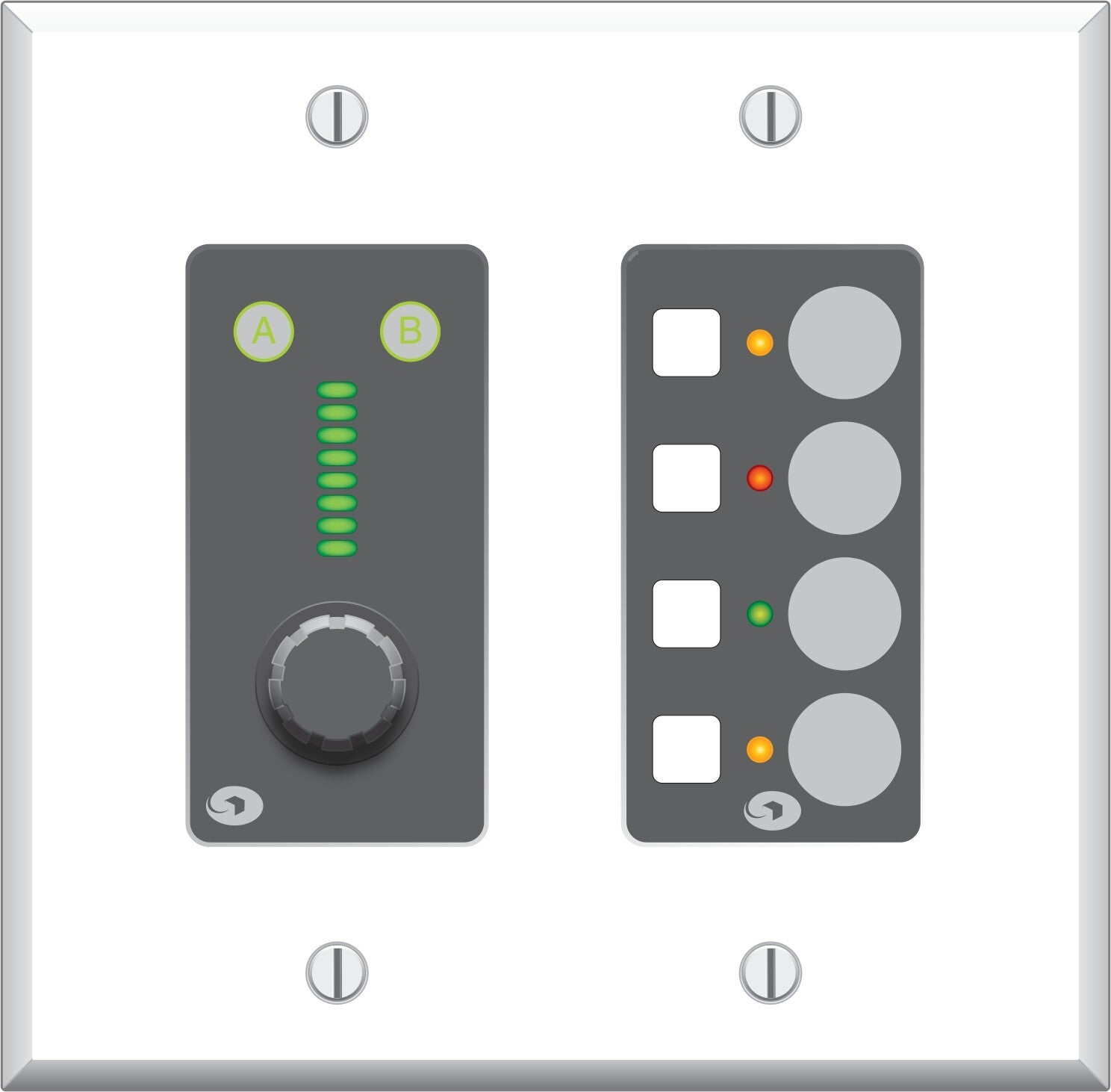

The ARC-SW4e’s four tricolor LED buttons can each be programmed in Composer for momentary (push-and-hold), latched (toggle), or radio button (exclusive selection) behavior. This makes it flexible for source selection banks, zone mute toggles, or preset groups. LEDs and buttons can be programmed independently for indicator-only or button-only functions. The ARC-SW4e can be combined with the ARC-K1e on an ARC-EX4e expander for combined encoder and button control. Compatible with all Symetrix ARC-capable DSPs; programmed in Symetrix Composer. Also available in black (80-0138).
Key Features
- 4 Programmable Buttons — Momentary, latched, or radio button mode per button.
- Tricolor LEDs — Programmable per button, independently or linked to button state.
- RS-485 via RJ45 — Standard ARC wiring; power over RJ45.
- US Single-Gang, White — Decora form factor; white finish.
- Composer Programmable — All Symetrix ARC-capable DSPs.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0079 |
| Buttons | 4 (momentary / latched / radio; tricolor LED each) |
| Communication | RS-485 via RJ45 |
| Form Factor | US single-gang Decora, white |
| Programming | Symetrix Composer |
