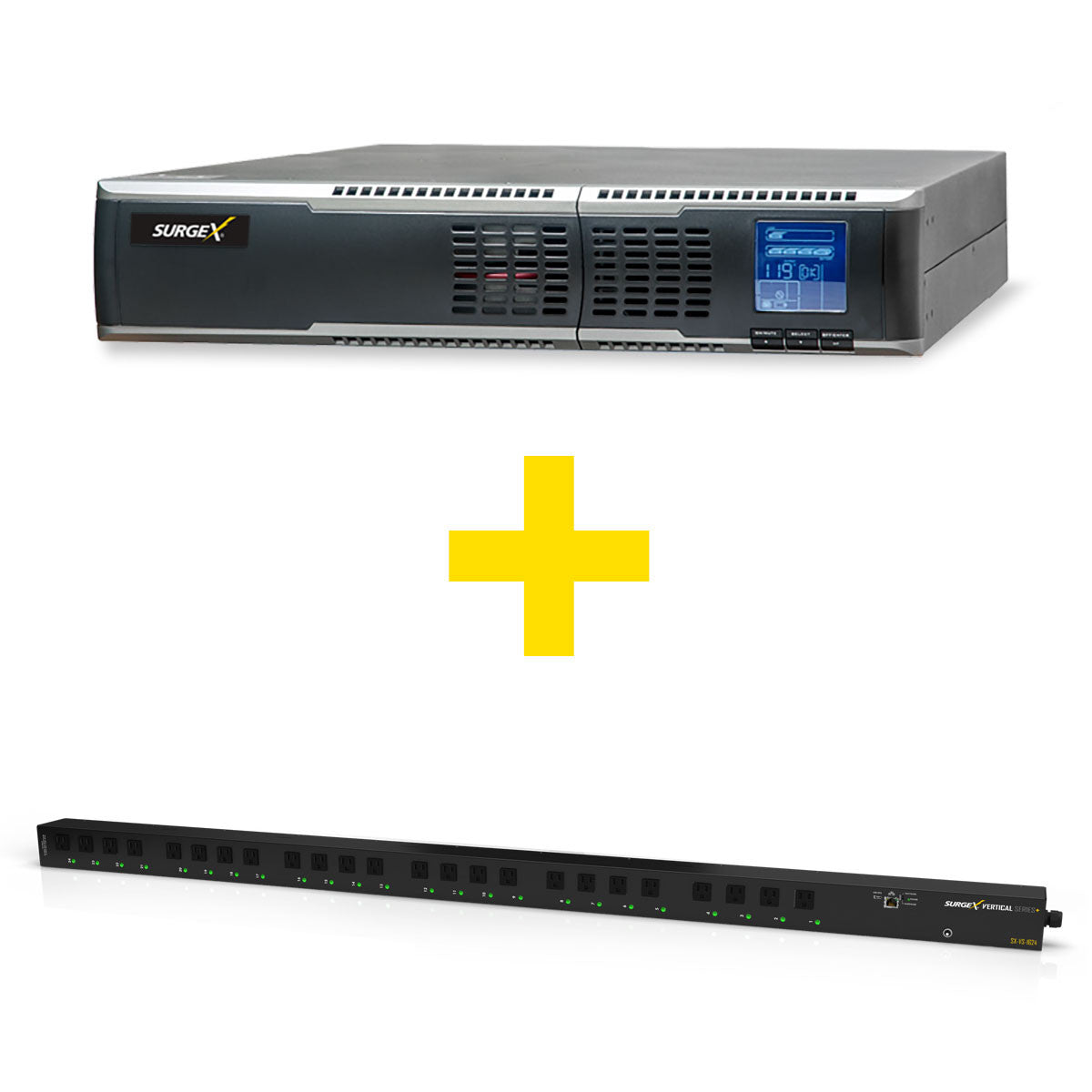

SurgeX SX-UPS2000VS24 – UPS-2000-OL + SX-VS-1624 UPS & PDU Bundle
SurgeX SX-UPS2000VS24 – UPS-2000-OL + SX-VS-1624 UPS & PDU Bundle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
SurgeX SX-UPS2000VS24 – UPS-2000-OL + SX-VS-1624 UPS & PDU Bundle
What is the SurgeX SX-UPS2000VS24?
The SurgeX SX-UPS2000VS24 is a factory bundle that pairs the SurgeX UPS-2000-OL online double conversion UPS with the SurgeX SX-VS-1624 Vertical Series+ IP-controlled vertical PDU. It is built for AV and IT racks that need battery backup and 24-outlet managed power distribution under one part number. Ordering the bundle keeps the UPS and the outlet-switching PDU matched and quoted on a single line.
How does the SurgeX SX-UPS2000VS24 work?
The UPS-2000-OL sits upstream and converts incoming AC to DC and back to AC so connected equipment never sees a transfer gap during an outage. Its output feeds the SX-VS-1624, a 0U Vertical Series+ PDU that mounts along the side rail and carries 24 individually switchable receptacles. Because the Vertical Series+ PDU is IP-controlled, each outlet can be turned on, off, or power-cycled remotely, scheduled, or sequenced, and the unit reports into SurgeX CONNECT and third-party control systems. For integrators, the bundle answers two rack questions at once: how long the rack rides through an outage, and how outlets get managed without spending rack units. The SX-VS-1624 is rated 120V/16A on the distribution side.
What are the key features of the SurgeX SX-UPS2000VS24?
- One part number — The UPS and the managed PDU ship and quote together.
- IP-controlled outlets — Every receptacle on the Vertical Series+ PDU can be switched or cycled over the network.
- 0U vertical mounting — The PDU rides the side rail, leaving rack units free for equipment.
- SurgeX CONNECT compatible — Power status and control report into SurgeX CONNECT and third-party control systems.
- Online double conversion — Zero transfer time keeps codecs, DSPs and switches running through an outage.
- Hot-swappable battery — Batteries can be replaced without powering down the rack.
Where is the SurgeX SX-UPS2000VS24 typically used?
- Conference room
- Boardroom
- Broadcast studio
- Government space
- Auditorium
Technical Specifications
| Model | SX-UPS2000VS24 |
| Includes | 1x UPS-2000-OL, 1x SX-VS-1624 |
| PDU rating | 120V/16A |
| PDU receptacles | 24 |
Frequently Asked Questions
What comes in the SurgeX SX-UPS2000VS24 bundle?
One UPS-2000-OL and one SX-VS-1624 Vertical Series+ vertical PDU.
Can the outlets on the SX-UPS2000VS24 be controlled remotely?
Yes. The Vertical Series+ PDU is IP-controlled, so outlets can be switched, cycled, scheduled or sequenced over the network.
Does Creation Networks install and configure SurgeX power systems?
Yes. We design, install and commission rack power as part of complete AV systems nationwide.
Browse the full SurgeX power protection lineup, or call Creation Networks at (888) 230-3661 or email sales@creationnetworks.net for design, quoting and installation.
