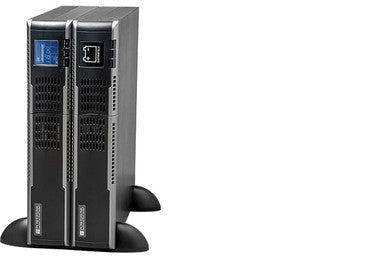

SurgeX 17302-60R – Sinergy III 3000VA Online UPS, 2U, 208/230V
What is the SurgeX 17302-60R?
The SurgeX 17302-60R (Powervar ACDEF3000-22) is a 3000VA Sinergy III online double conversion UPS in a 2U chassis for 208/230V circuits, with five receptacles. It gives larger AV racks, network closets and control systems on 208/230V power clean, continuous power with zero transfer time during an outage.
How does the SurgeX 17302-60R work?
Online double conversion means all incoming power is converted from AC to DC and back to AC, so the connected load is always running from the inverter. When utility power drops, the batteries are already feeding the DC bus and there is no switchover gap. The 3000VA capacity carries amplifier-heavy racks and multi-device equipment rooms. Runtime can be extended with the 17888-54R battery cabinet, and the 3000L-01 iSite PRO SNMP card adds network monitoring. For 120V racks, the SurgeX UPS-3000-OL covers the same size.
What are the key features of the SurgeX 17302-60R?
- Online double conversion — Zero transfer time for connected equipment.
- 3000VA capacity — For amplifier-heavy and multi-device racks.
- 208/230V operation — For higher-voltage equipment rooms and international sites.
- 2U rack chassis — Mounts in a standard 19-inch rack.
- SNMP ready — Optional iSite PRO card for network monitoring.
Where is the SurgeX 17302-60R typically used?
- Broadcast studio
- Auditorium
- Government space
- House of worship
Technical Specifications
| Model | 17302-60R |
| Powervar model | ACDEF3000-22 |
| Capacity | 3000VA |
| Topology | Online double conversion |
| Form factor | 2U |
| Electrical | 208/230V |
| Receptacles | 5 |
Frequently Asked Questions
What is the Powervar model for the SurgeX 17302-60R?
ACDEF3000-22.
Is the 17302-60R a 120V UPS?
No. It is a 208/230V unit. For 120V, use the UPS-3000-OL.
Can runtime be extended?
Yes, with the 17888-54R battery cabinet.
