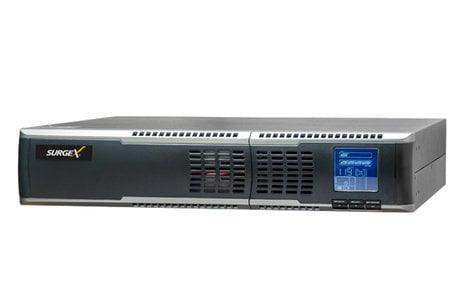

SurgeX UPS-3000-OL 3RU 30A 3000VA 5-Outlet Standalone Battery Backup

Product Overview

The SurgeX UPS-3000-OL is a 3000VA online double conversion UPS designed for mission-critical AV and IT installations where zero transfer time is required during a power event. Configured as a 3U rack-mount or tower unit, this commercial-grade battery backup delivers continuous true sine-wave power to sensitive audio video systems, data networks, and broadcast infrastructure by converting all incoming AC to DC and back to AC at all times. As a standalone online UPS for AV system integration, the UPS-3000-OL guarantees load continuity with absolutely no interruption when utility power fails, because the inverter is always active and the battery is always in the power path. With scalable runtime from 7 minutes on internal batteries up to 18 hours via external battery packs, the UPS-3000-OL serves commercial conference rooms, all-hands rooms, and broadcast studios with demanding power continuity requirements.

Product Description

The UPS-3000-OL uses online double conversion topology, which means all power delivered to connected equipment is generated by the internal inverter at all times. Incoming utility AC is rectified to DC, which charges the battery bank and simultaneously powers the inverter. Because the inverter is always on and the battery is always in the DC bus, there is zero transfer time when utility power fails. The load never experiences the brief interruption present in line interactive designs, making this topology the correct choice for AV signal processors, computer-based control systems, and servers that are sensitive to even momentary power interruptions.

The UPS-3000-OL handles a 30A input circuit and delivers 3000VA (2100W) of output power through five rear-panel outlets: one NEMA L5-30R and four NEMA 5-20R receptacles. The controllable receptacles allow individual outlet management for load sequencing or selective shutdown of non-critical loads during battery operation. This level of control is useful in large conference room AV racks where prioritizing uptime for critical signal paths over peripheral devices extends effective battery runtime.

Runtime scalability is a key advantage for large commercial deployments. The internal batteries provide 7 to 11 minutes at rated load. By connecting external battery packs (UPS-BPX-3000), runtime can be extended to 18 hours, enabling installations that require multi-hour power holdover for emergency broadcast, government facility continuity, or large auditorium AV systems. The hot-swappable battery trays allow field replacement without service shutdown. An intuitive LCD screen displays input and output voltage, frequency, battery capacity, and load level at a glance. An optional SNMP card adds network-based monitoring and automated shutdown capability for managed commercial AV deployments. The UPS-3000-OL ships with the UPSILON UPS monitoring software, horizontal rack brackets, and a 6-foot DB9 communications cable.

Key Features

• Online Double Conversion Topology — All power flows through the inverter continuously, providing zero transfer time when utility power fails and guaranteeing uninterrupted load operation.
• True Sine-Wave Output — Clean 120VAC sine-wave output is compatible with active PFC power supplies in professional AV equipment, servers, and broadcast gear.
• 3000VA / 2100W Capacity — Sufficient capacity for fully loaded 3U AV or IT rack installations including signal processors, control systems, switches, and peripherals.
• Controllable Receptacles — Individual outlet control allows load sequencing, selective shutdown, and priority-based power management during battery operation.
• Hot-Swappable Battery Trays — Batteries can be replaced in the field without powering down connected equipment, reducing maintenance downtime in commercial installations.
• Scalable Runtime up to 18 Hours — Internal batteries provide 7-11 minutes; external battery packs extend runtime to 18 hours for mission-critical applications.
• Configurable as Tower or 19-Inch Rack Mount — Ships with hardware for both 3U rack installation and tower orientation for flexible deployment.
• Intuitive LCD Screen — Displays input/output voltage and frequency, operating mode, battery capacity, and load level without requiring external software.
• Optional SNMP Card — Enables remote UPS monitoring and management via network, plus automated graceful shutdown for managed AV and IT environments.
• Input Power Factor Correction — Built-in input PFC reduces harmonic current draw on the building electrical system and improves compatibility with generator power.
• RS-232 and SNMP Communications — Standard RS-232 port included; SNMP card optional for network-based monitoring and enterprise UPS management integration.

Typical Applications

• Conference room AV and videoconferencing infrastructure
• Boardroom AV systems with multiple signal processors
• All-hands room and large meeting space AV racks
• Broadcast studio power protection
• Government facility AV and IT infrastructure
• Auditorium AV system power protection
• Training room AV racks
• Commercial meeting space rack installations

Technical Specifications

Frequently Asked Questions

What does online double conversion mean for AV system protection?

Online double conversion means the inverter is active at all times and all power to connected equipment is derived from the inverter, not directly from utility power. When utility power fails, there is zero transfer time because the load is already running from the inverter. This is the highest level of UPS protection and is appropriate for AV signal processors, control systems, and any equipment that cannot tolerate even a brief power interruption.

How does the UPS-3000-OL differ from a line interactive UPS?

A line interactive UPS passes utility power directly to the load under normal conditions and only switches to battery/inverter output when utility power falls outside acceptable limits, which introduces a brief transfer delay. The UPS-3000-OL’s double conversion design always runs the load through the inverter, eliminating this transfer gap. It also provides superior isolation from utility power quality issues including voltage fluctuations, frequency variations, and electrical noise.

Can the UPS-3000-OL be monitored and managed over a network?

Yes, with the optional SNMP card installed. The SNMP interface integrates with network management systems and supports automated graceful shutdown. The standard RS-232 port is included and works with the supplied UPSILON UPS monitoring software for local or serial-connected monitoring.

How much runtime does the UPS-3000-OL provide?

At rated load, the internal batteries provide approximately 7-11 minutes of runtime. By connecting external battery packs (UPS-BPX-3000), runtime can be extended to up to 18 hours. Actual runtime depends on connected load; lighter loads will yield longer runtimes from internal batteries.

Are the batteries field-replaceable without shutting down connected equipment?

Yes. The UPS-3000-OL uses hot-swappable battery trays that can be removed and replaced while the unit remains powered and connected equipment continues to operate. This is important for commercial installations where service shutdowns during business hours are disruptive.

What input plug does the UPS-3000-OL require?

The UPS-3000-OL ships with a NEMA L5-30P input plug, which requires a dedicated 30A 120VAC circuit. AV integrators should confirm that the installation site has a suitable circuit available before specifying this unit. The four NEMA 5-20R output receptacles and one NEMA L5-30R output are suitable for standard AV and IT equipment.

What is the warranty on the UPS-3000-OL?

The UPS-3000-OL carries a 3-year electronics warranty and a 1-year battery warranty from SurgeX. For purchasing, warranty support, and commercial AV integration assistance, contact Creation Networks at creationnetworks.net.
