Sound Control Technologies RC5+ – RemoteCam5+ 4K60 Camera Extension Platform

Product Overview

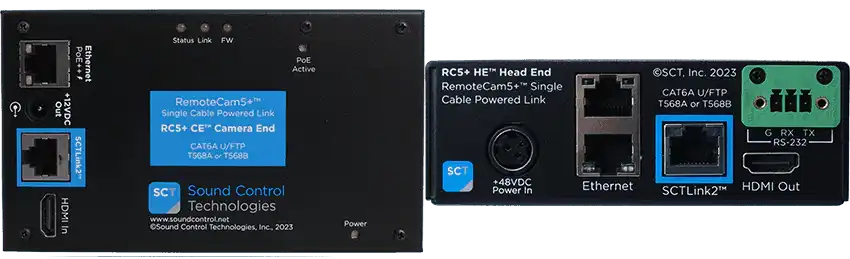

The Sound Control Technologies RC5+ is the RemoteCam5+ camera extension platform, carrying 66W PoE++ power, uncompressed 4K60 4:4:4 HDMI video, and IP/Ethernet camera control over a single CAT cable up to 100 meters. It is built for broadcast-quality production, live event, and high-end collaboration PTZ camera installations where the camera must be located far from the codec or production system. The platform pairs an RC5+ HE head-end module in the equipment rack with an RC5+ CE camera-end module at the camera position.

Product Description

The RC5+ platform uses Sound Control Technologies' SCTLink technology to consolidate video, power, and control onto one integrator-supplied CAT cable between 10m and 100m. The head end injects 66W PoE++ class power down the link, so the camera and camera-end module operate without a factory power supply or electrical outlet at the camera location. Video travels as uncompressed 4K60 4:4:4 HDMI, preserving full image quality for broadcast studios, auditoriums, and premium conference rooms. IP/Ethernet pass-through carries camera control, streaming, and manufacturer firmware updates from the codec or control system. Installation is plug and play with no programming, and camera-specific kits such as the RC5+UNI include all hardware-specific HDMI and UTP connection cables plus the WPS-48 power supply. Supported cameras include the Cisco Room Vision PTZ and PTZ 4K, Sony BRC and SRG series, Panasonic AW series, Canon CR-N series, Lumens, AVer, and PTZOptics models. Contact Creation Networks to configure the correct RC5+ kit for your camera and codec.

Key Features

• Single-Cable SCTLink Extension — Carries power, uncompressed video, and control over one CAT cable from 10m to 100m.
• Uncompressed 4K60 4:4:4 Video — Delivers full-bandwidth HDMI for broadcast and high-end collaboration spaces with no compression artifacts.
• 66W PoE++ Camera Power — Powers the camera and assembly over the link, removing the need for power at the camera position.
• IP/Ethernet Control Pass-Through — Supports Ethernet camera control and manufacturer firmware updates from codec to camera.
• Broad PTZ Camera Support — Compatible with Cisco, Sony, Panasonic, Canon, Lumens, AVer, PTZOptics, Marshall, Bolin, and BirdDog cameras.
• Plug-and-Play Deployment — No programming required; kits include all hardware-specific camera and head-end cables.

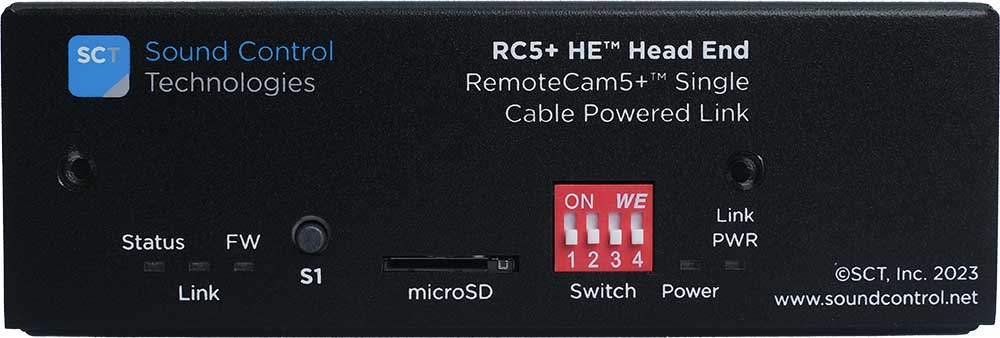

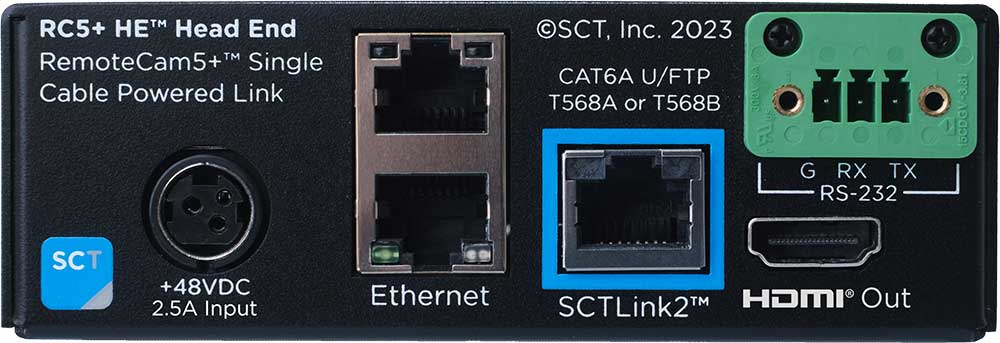

• Rack-Mount Ready — RC5+ HE head-end module mounts on Sound Control Technologies rack shelves for clean equipment-room integration.
• 3-Year Advance Replacement Warranty — Standard warranty with optional 2-year extension.

Typical Applications

• Boardroom
• Conference room
• Broadcast studio
• Auditorium
• All-hands room
• Training room
• House of worship
• Government space

Technical Specifications

Frequently Asked Questions

What is the difference between the RC5+ platform and a specific kit like the RC5+UNI?

RC5+ refers to the RemoteCam5+ extension platform; orderable kits such as the RC5+UNI bundle the RC5+ HE and CE modules with the WPS-48 power supply and the hardware-specific camera and head-end cables for your installation.

Which cameras work with the RC5+ platform?

Ethernet-controlled PTZ cameras from Cisco, Sony, Panasonic, Canon, Lumens, AVer, Marshall, Bolin, BirdDog, and PTZOptics are supported, including the Cisco Room Vision PTZ. Contact Creation Networks to verify your specific camera model.

How far can I extend the camera?

The SCTLink supports a single CAT cable run between 10m and 100m, terminated to T568A or T568B standards.

Does RC5+ require programming or configuration?

No. The platform is plug and play, and manufacturer firmware updates pass through from the codec to the camera over the link.

How is RC5+ different from RC5 Gen2?

RC5+ delivers uncompressed 4K60 4:4:4 video and 66W PoE++ power; RC5 Gen2 supports up to 4K30 with 12V camera power. RC5+ is the choice for broadcast-quality and higher-power camera deployments.

What warranty applies?

A 3-year standard advance replacement limited warranty is included, with an optional 2-year extension. Contact Creation Networks for support.
