Sound Control Technologies RC5+UNI – RemoteCam5+ 4K60 Camera Extension Kit

Product Overview

The Sound Control Technologies RC5+UNI is a RemoteCam5+ PTZ camera extension kit that delivers 66W PoE++ power, uncompressed 4K60 4:4:4 HDMI video, and IP/Ethernet camera control over a single CAT cable up to 100 meters. Designed for broadcast-quality production, live event, and high-end collaboration deployments, it lets integrators place a conference room or studio PTZ camera far from the codec or production rack without local power or signal degradation. The RC5+UNI is the universal kit in the RemoteCam5+ platform, supporting Ethernet-controlled cameras from Cisco, Sony, Panasonic, Canon, Lumens, AVer, PTZOptics, and more.

Product Description

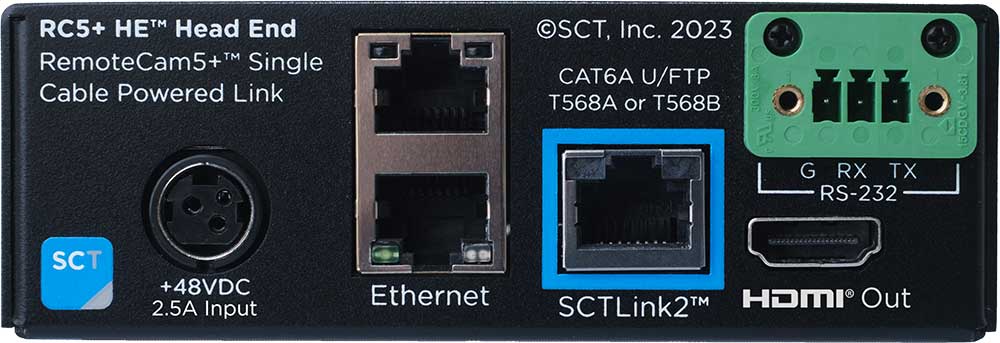

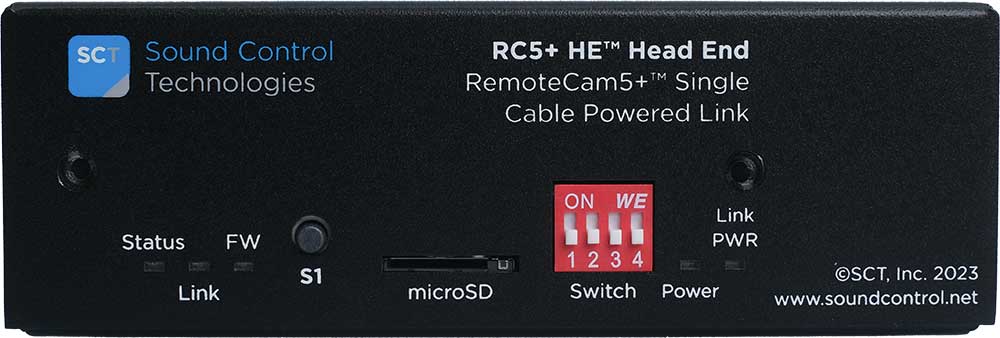

Traditional PTZ camera installations require separate runs for HDMI video, control, and a local power outlet at the camera position. The RC5+UNI replaces all of that with one integrator-supplied CAT cable (SCTLink) between the RC5+ HE head-end module at the rack and the RC5+ CE camera-end module at the camera. The head end injects 66W PoE++ class power down the link, so no factory camera power supply or electrical outlet is required at the camera location. Video is carried as uncompressed 4K60 4:4:4 HDMI, making the kit suitable for broadcast studios and high-end conference spaces where compression artifacts are unacceptable. IP/Ethernet pass-through provides camera control, streaming, and manufacturer firmware updates from the codec or control system to the camera. The kit is plug and play with no programming required, and it ships with the head-end and camera-end HDMI and UTP connection cables plus the WPS-48 power supply. It is an ideal extension solution for the Cisco Room Vision PTZ and Cisco PTZ 4K cameras as well as Sony BRC/SRG, Panasonic AW series, and Canon CR-N series cameras in commercial AV installations.

Key Features

• 100-Meter Single-Cable Extension — Carries power, uncompressed video, and control over one CAT cable between 10m and 100m.
• Uncompressed 4K60 4:4:4 Video — Preserves full HDMI image quality for broadcast, live event, and premium conference room applications.
• 66W PoE++ Camera Power — Powers the camera and assembly over the link, eliminating the need for an electrical outlet at the camera position.
• IP/Ethernet Camera Control — Passes Ethernet control and manufacturer firmware updates from the codec to the camera.
• Broad Camera Support — Works with Cisco Room Vision PTZ, Cisco PTZ 4K, Sony BRC/SRG, Panasonic AW, Canon CR-N, Lumens, AVer, PTZOptics, and other Ethernet-controlled PTZ cameras.
• Plug-and-Play Installation — No programming required; all hardware-specific camera and head-end cables are included.
• Complete Kit — Includes RC5+ HE module, RC5+ CE module, WPS-48 power supply, and HDMI/UTP camera and head-end cables.
• 3-Year Advance Replacement Warranty — Backed by Sound Control Technologies' standard advance replacement limited warranty.

Typical Applications

• Boardroom
• Conference room
• Broadcast studio
• Auditorium
• All-hands room
• Training room
• House of worship
• Government space

Technical Specifications

Frequently Asked Questions

Which cameras does the RC5+UNI support?

The RC5+UNI supports Ethernet-controlled PTZ cameras including the Cisco Room Vision PTZ and PTZ 4K, Sony BRC and SRG series, Panasonic AW series, Canon CR-N series, Lumens, AVer, Marshall, Bolin, BirdDog, and PTZOptics models. Check the Sound Control Technologies supported device list or contact Creation Networks to confirm your camera.

What cable do I need to run between the modules?

You supply a single CAT cable (SCTLink) between 10m and 100m, terminated to T568A or T568B. All camera-side and head-end HDMI and UTP patch cables are included in the kit.

Does the camera need a local power outlet?

No. The RC5+ head end delivers 66W PoE++ class power over the link cable, powering the camera and camera-end module without a factory camera power supply at the camera position.

How is the RC5+UNI different from the RC5 Gen2?

The RC5+ platform delivers uncompressed 4K60 4:4:4 video and 66W PoE++ power, while the RC5 Gen2 platform supports up to 4K30 video with 12V camera power. Choose the RC5+UNI for broadcast-quality and higher-power camera deployments.

Is programming required during installation?

No. The RC5+UNI is plug and play. Camera control and manufacturer firmware updates pass through from the codec or control system over the link with no configuration.

What warranty is included?

Sound Control Technologies includes a 3-year standard advance replacement limited warranty, with an optional 2-year extended advance replacement warranty available. Contact Creation Networks for warranty support.
