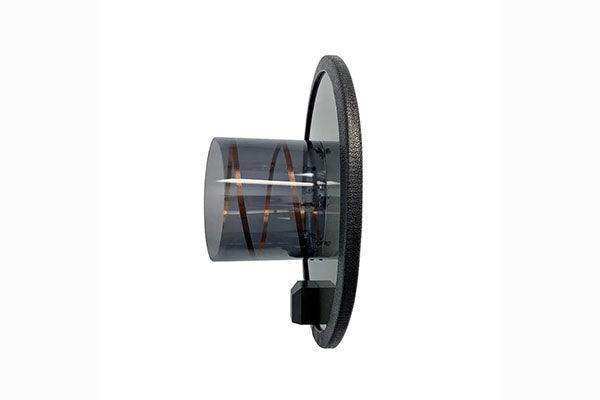

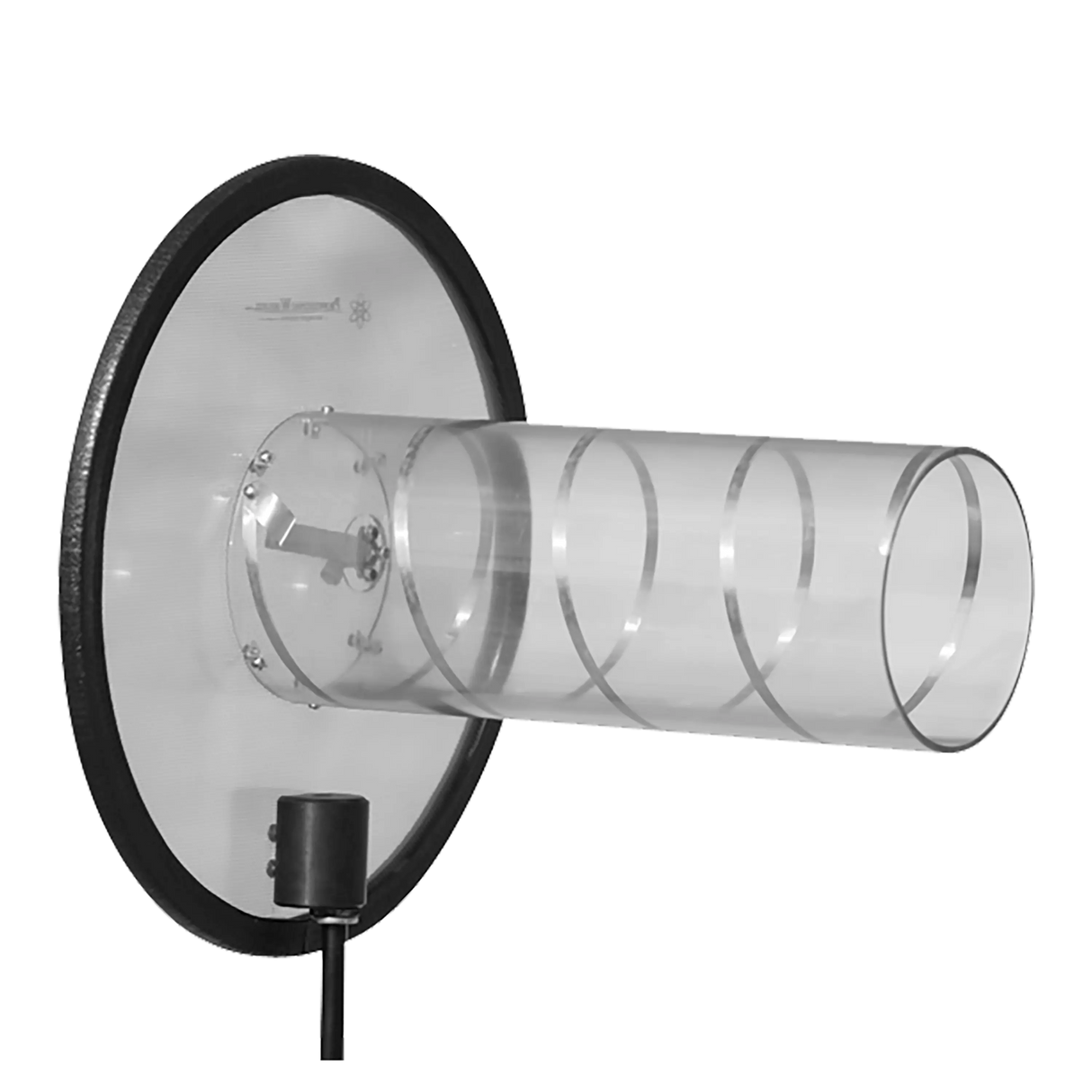

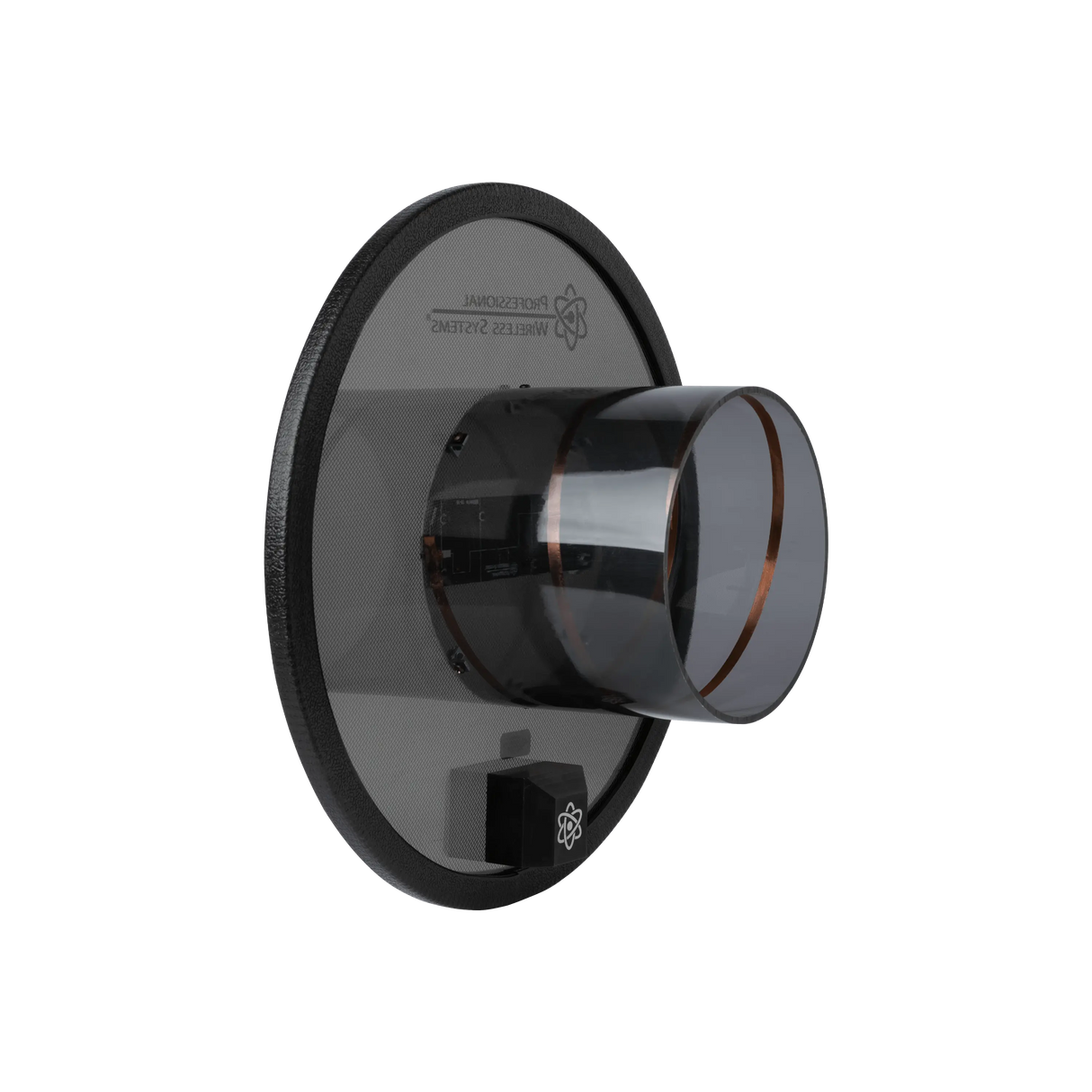

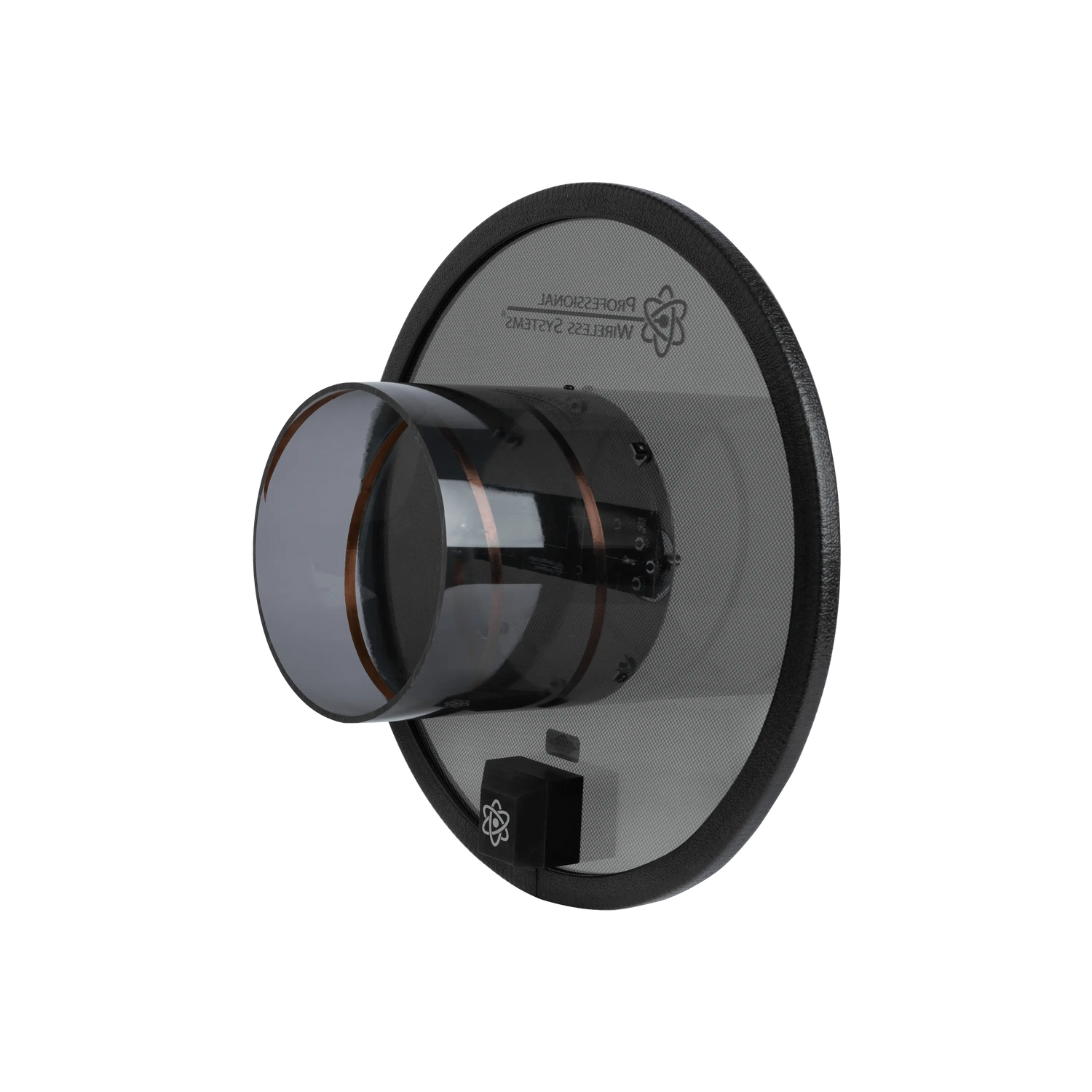

Shure Tour Grade Helical Antenna - HA-4540

Product Overview

The Shure HA-4540 helical antenna is a Tour Series (TS) directional antenna designed to deliver dropout-free RF performance for professional wireless microphone and in-ear monitoring systems. Its low-profile, compact form factor makes it well suited to touring productions and permanent installations where space and fast setup matter. As a directional antenna for wireless microphone systems, the HA-4540 focuses RF coverage to improve reception stability in demanding AV environments.

Product Description

The HA-4540 is built for AV integrators and RF coordinators who need reliable wireless performance in venues with crowded spectrum or long transmission distances. The helical design provides directional reception that concentrates RF energy toward the performance or coverage area, reducing multipath issues and dropouts compared with simple omnidirectional whip antennas. Its lower-profile housing is engineered for easy storage and transport, an advantage for production companies and rental fleets that move antennas between events. In fixed installations, the compact directional antenna integrates into wireless microphone and in-ear monitoring deployments in auditoriums, houses of worship, and broadcast facilities. The HA-4540 connects into standard Shure wireless system RF chains and antenna distribution, supporting consistent coverage across the room. For AV system designers, this low-profile directional antenna is a practical upgrade path when stock antennas cannot maintain reliable links. It pairs with receivers such as the Shure ULXD4 digital wireless receiver when matched to the correct frequency band.

Key Features

• Directional Helical Design — The helical antenna concentrates RF reception toward the coverage area, improving link stability over omnidirectional antennas in congested environments.
• Dropout-Free RF Performance — The Tour Series design is engineered to maintain reliable wireless links for microphone and in-ear monitoring systems during live and installed use.
• Low-Profile Form Factor — The compact housing stores and transports easily, making it practical for touring rigs and rental inventories.
• Wireless System Integration — The antenna connects into standard Shure UHF wireless RF chains and antenna distribution for both portable and rack-mount deployments.
• Installation Flexibility — The compact directional form supports placement on stands or mounting hardware in auditoriums, houses of worship, and broadcast facilities.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Government space
• All-hands room
• Conference room

Technical Specifications

Confirm the antenna's operating frequency band matches your wireless system before deployment. For complete RF specifications, refer to the manufacturer documentation at shure.com.

Frequently Asked Questions

• What is the HA-4540 used for? It is a directional helical antenna that provides focused RF reception for professional wireless microphone and in-ear monitoring systems, improving range and reducing dropouts in installed and touring AV applications.
• How does a directional antenna improve wireless coverage? The helical design concentrates RF energy toward the coverage area rather than radiating equally in all directions, which helps maintain stable links in venues with crowded RF spectrum or longer transmission distances.
• How is the HA-4540 mounted? Its low-profile, compact housing is designed for fast setup on stands or mounting hardware and for easy storage and transport between events.
• Will the HA-4540 work with my Shure wireless system? Confirm that the antenna's operating frequency band matches your wireless microphone or in-ear monitoring system before deployment, and integrate it into your existing RF chain or antenna distribution.
• Is support and warranty available? The HA-4540 is backed by Shure's manufacturer warranty, and Creation Networks provides commercial AV sales and integration support.
