Shure R189W-A White Mini-Shotgun Cartridge
Product Overview

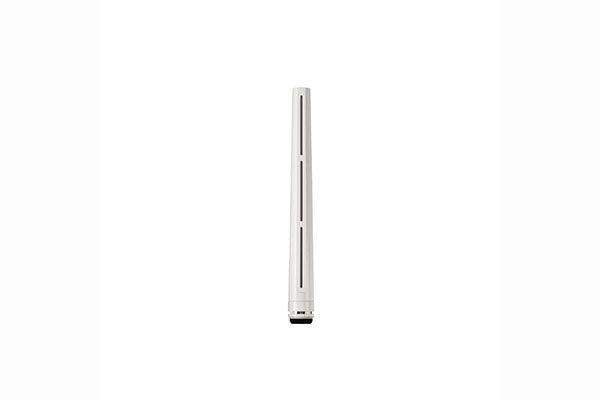

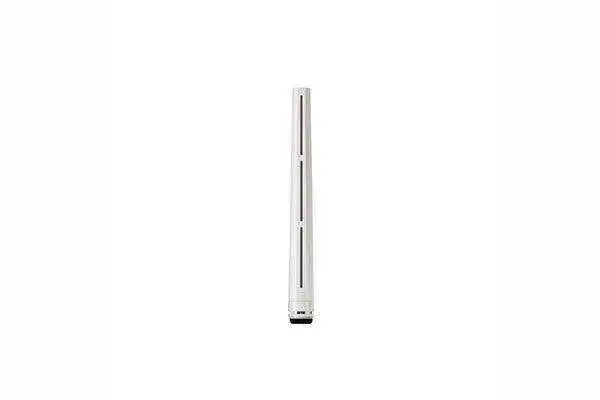

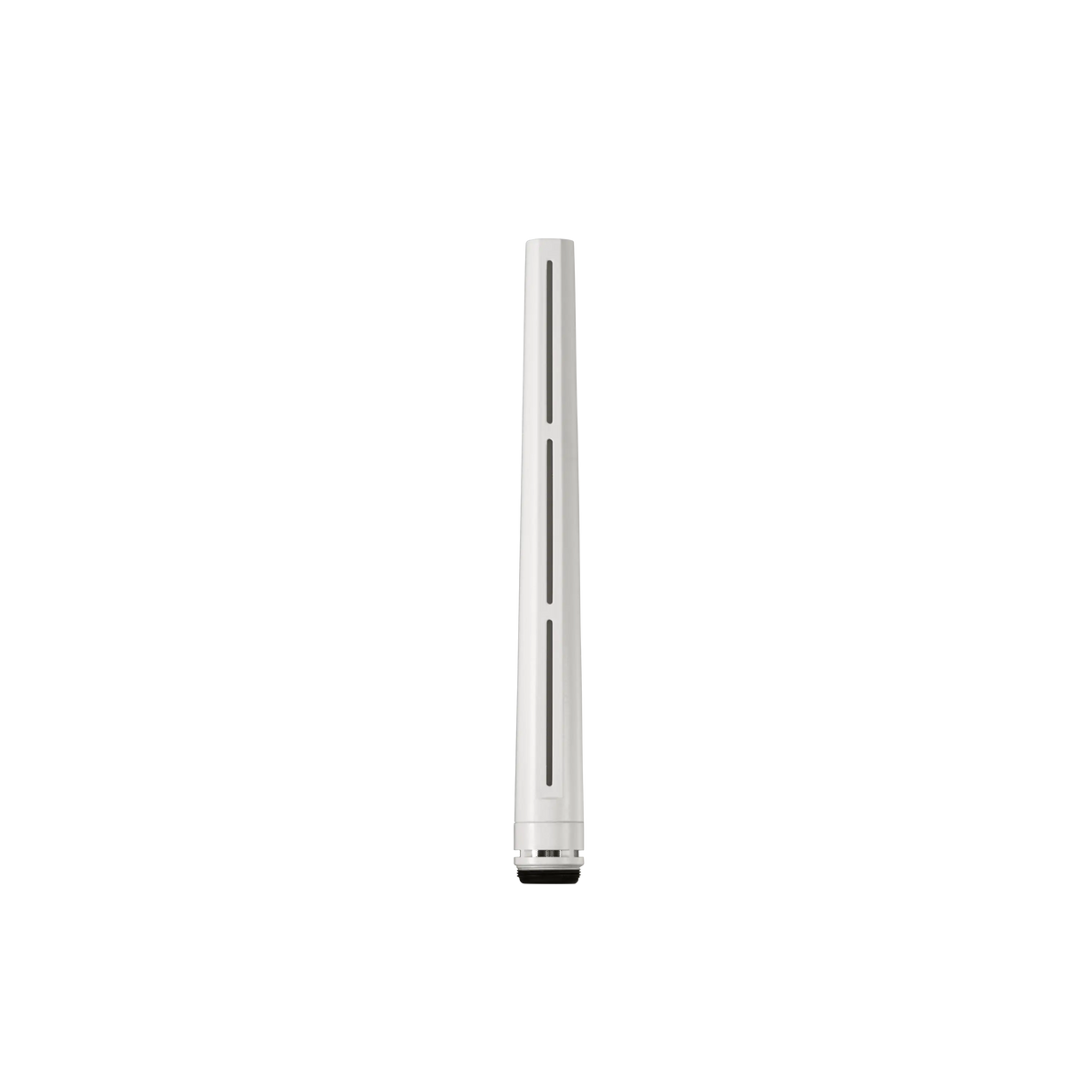

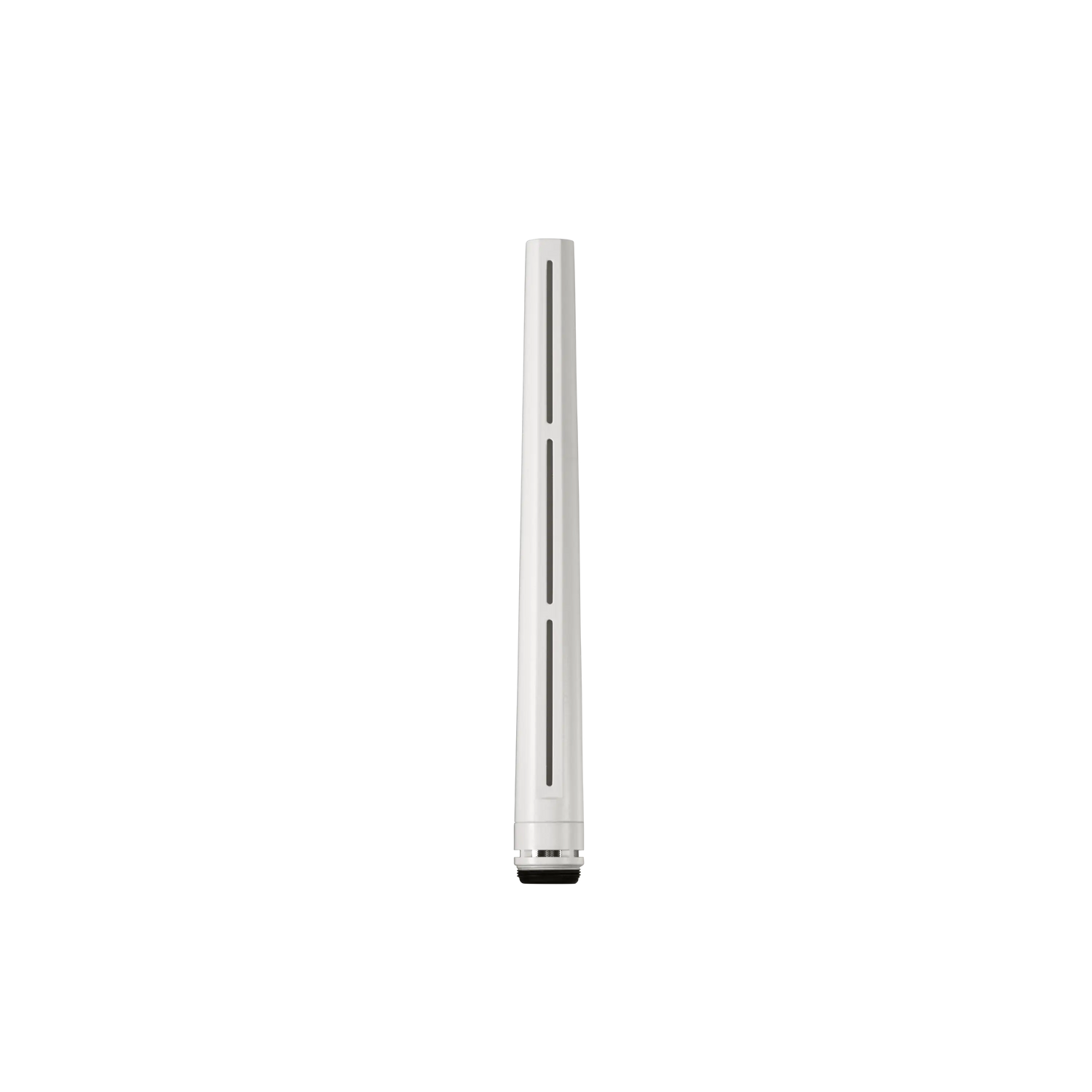

The Shure R189W-A is a lobar mini-shotgun condenser cartridge for Shure Microflex gooseneck and overhead microphones in bright white finish, including Microflex Wireless and Microflex Complete models. Its 100-degree pickup area provides highly directional capture with strong ambient noise rejection, and the bright white finish is designed for commercial installations where white Microflex hardware is specified — common in conference rooms, training facilities, and government spaces with white ceiling or surface finishes.
Product Description

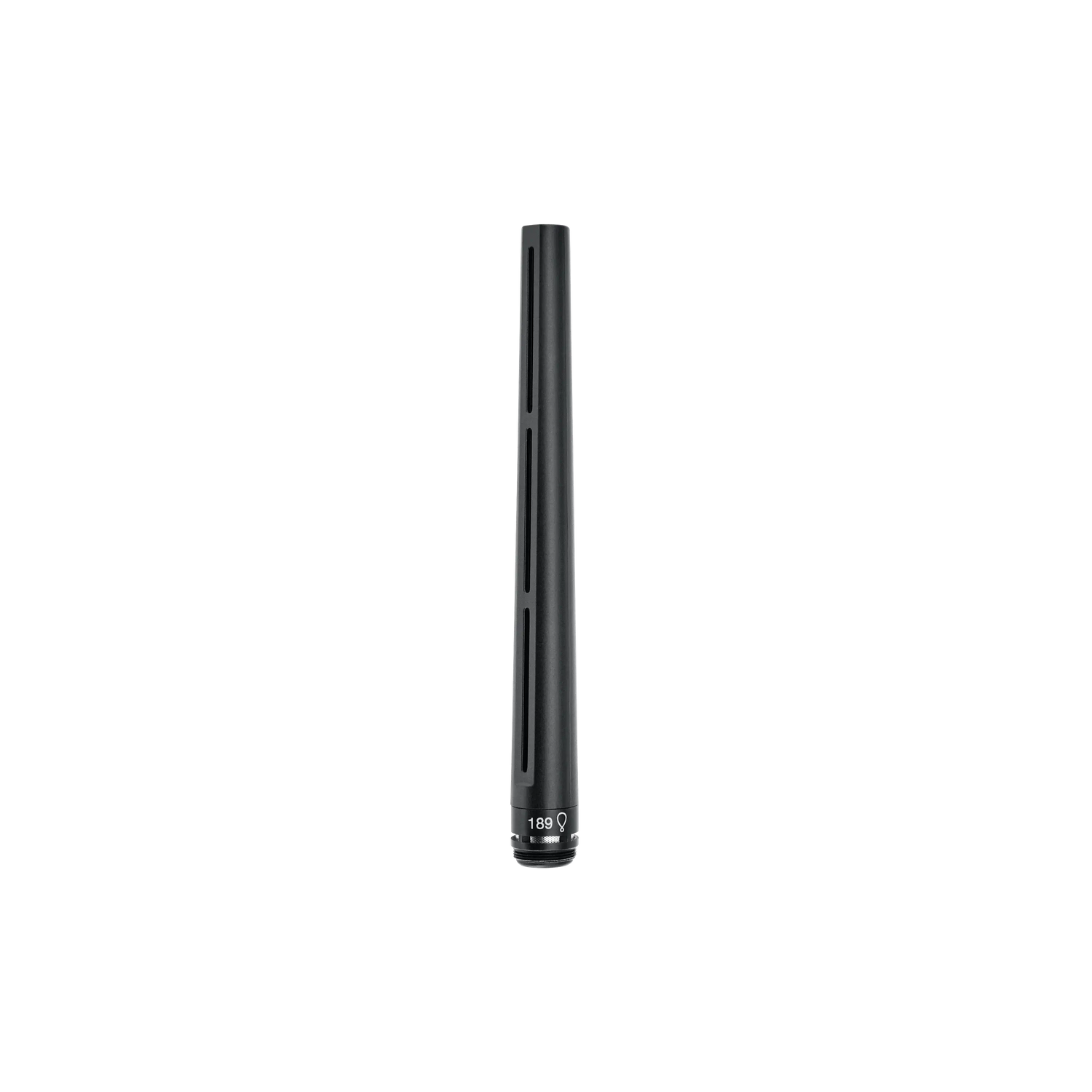

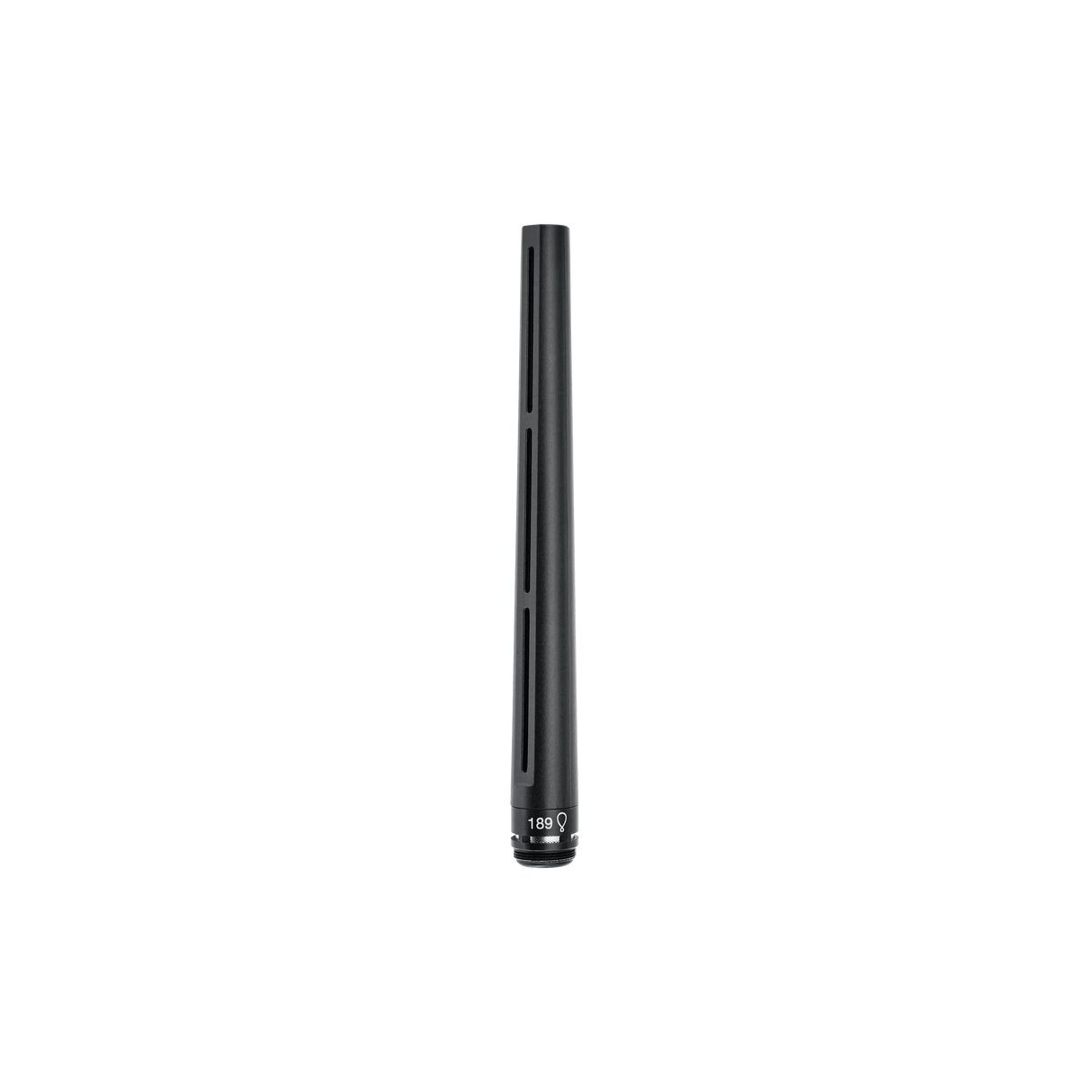

The R189W-A threads onto all compatible Microflex gooseneck and overhead microphone bodies with a tool-free cartridge swap, enabling fast field retrofit from cardioid or supercardioid to a more directional lobar pattern. The electret condenser element requires phantom power (48–52V DC at 8.0 mA) and delivers a sensitivity of -33 dBV/Pa at 1 kHz across a 50–17,000 Hz frequency response. CommShield technology provides immunity from cellular RF interference and digital bodypack transmitters. Optional foam windscreens are available (A189WWS white, A189BWS black). Also available in black: see the Shure R189B. For wider pickup options, see the Shure R184W-A supercardioid cartridge.
Key Features
- Lobar (Mini-Shotgun) Polar Pattern — 100-degree pickup area provides highly directional capture, narrower than supercardioid, for ambient noise rejection and feedback reduction in sound-reinforced commercial spaces.
- CommShield RF Protection — Guards against interference from cellular RF devices and digital bodypack transmitters in commercial meeting environments.
- Electret Condenser Transducer — 50 to 17,000 Hz frequency response for accurate voice reproduction across the speech range in installed AV systems.

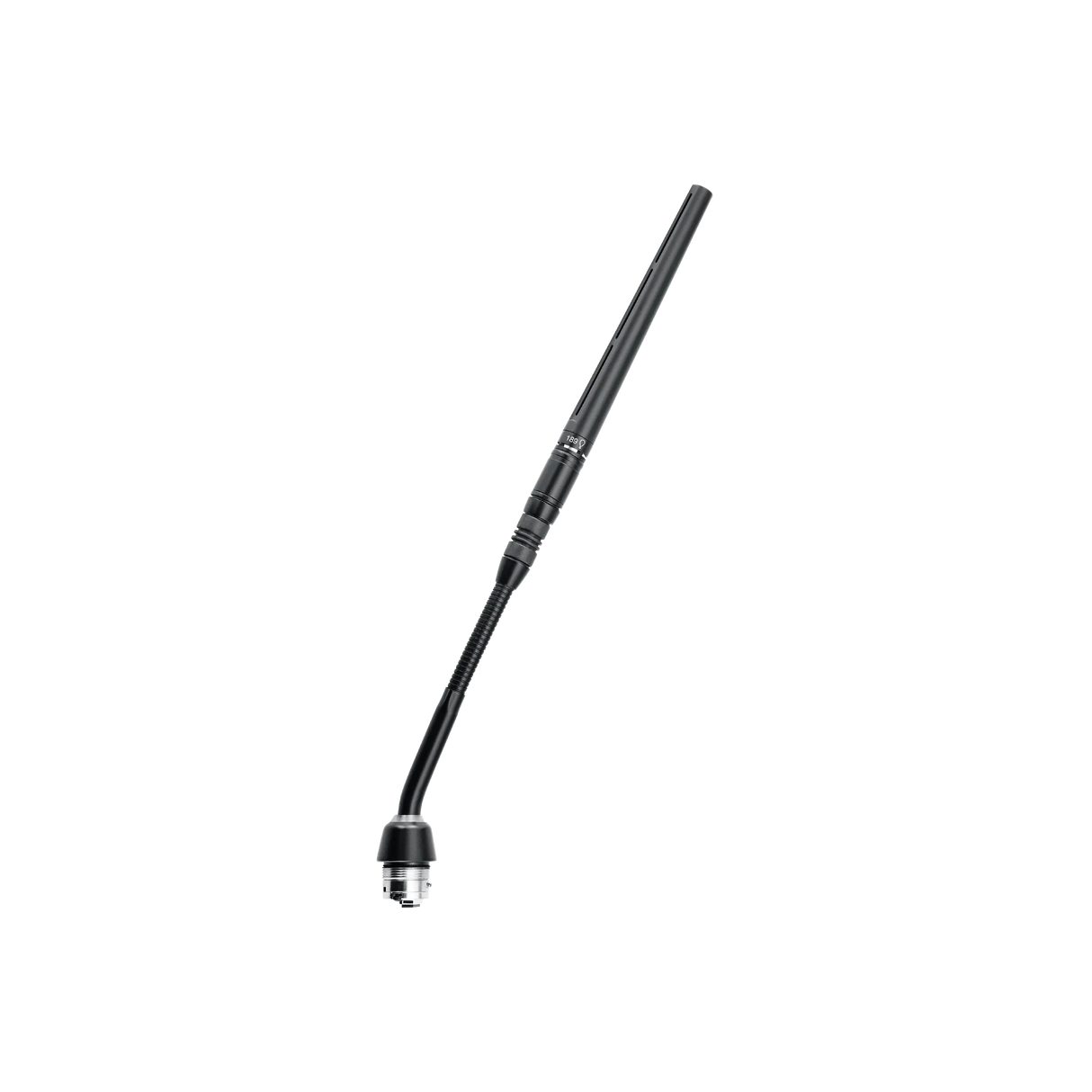

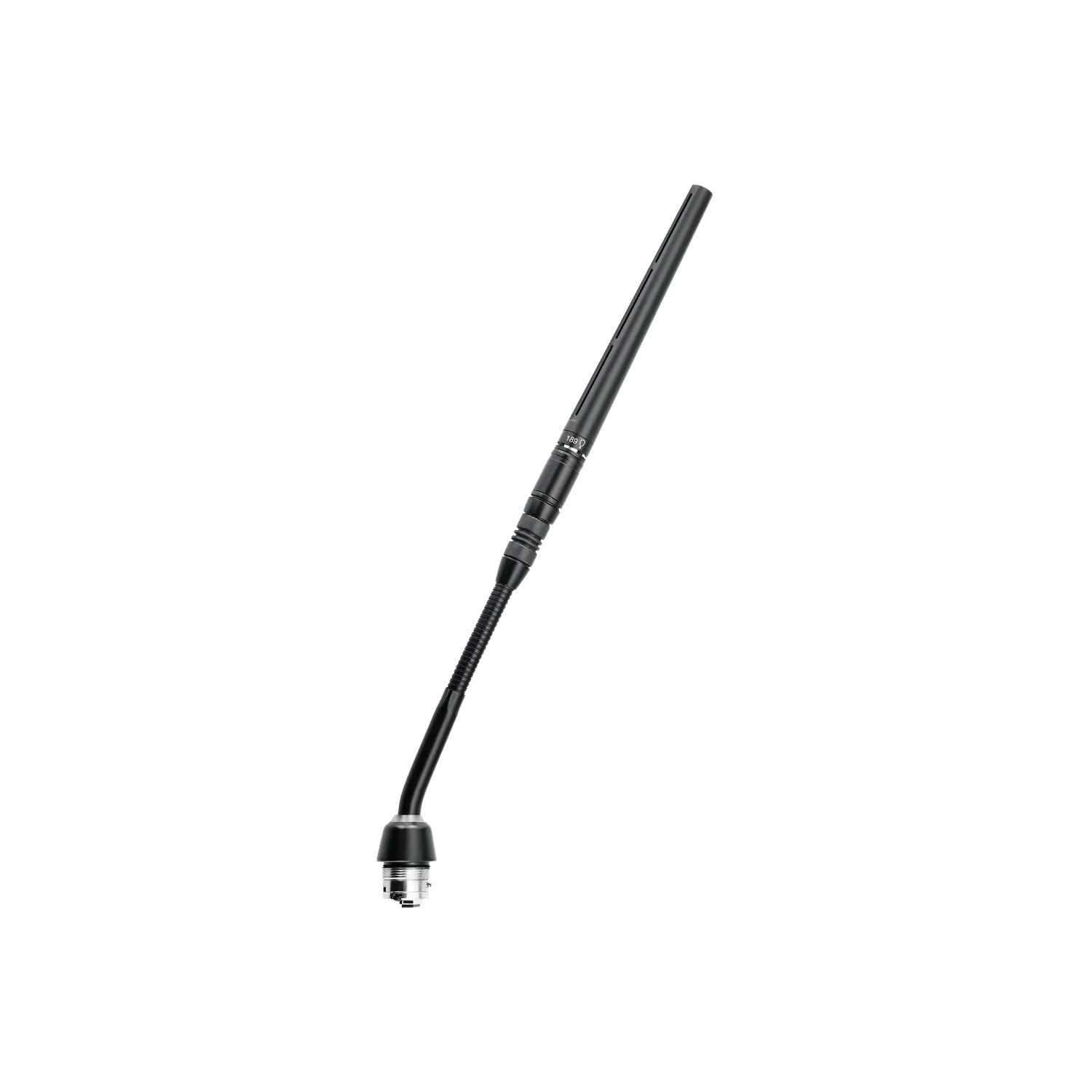

- Tool-Free Threaded Installation — Screws directly onto all Microflex gooseneck and overhead microphone bodies, including Microflex Wireless and Microflex Complete.
- Bright White Finish — Matches white Microflex hardware for a consistent appearance in commercial conference rooms and facilities where white fixtures are specified.
- Phantom Power Operation — Requires 48–52V DC at 8.0 mA, compatible with standard AV system preamplifiers and DSP processors.
Technical Specifications
| Part Number | R189W-A |
| Transducer Type | Electret Condenser |
| Polar Pattern | Lobar (Mini-Shotgun) |
| Pickup Area | 100° |
| Frequency Response | 50 to 17,000 Hz |
| Sensitivity (1 kHz, typical) | –33 dBV/Pa (22 mV) |
| Output Impedance | 170 Ω |
| Maximum SPL (1% THD) | 121 dB SPL |
| Signal-to-Noise Ratio | 68 dB |
| Dynamic Range | 95 dB SPL |
| Self Noise (A-weighted) | 36 dB |
| Power Requirements | Phantom Power, 48–52V DC, 8.0 mA |
| Operating Temperature | −18°C to 57°C (0°F to 135°F) |
| Color | Bright White |
| Compatible Series | All Shure Microflex gooseneck and overhead models, Microflex Wireless, Microflex Complete |
