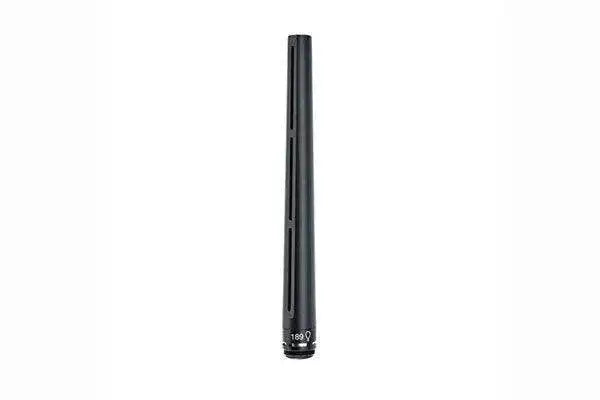

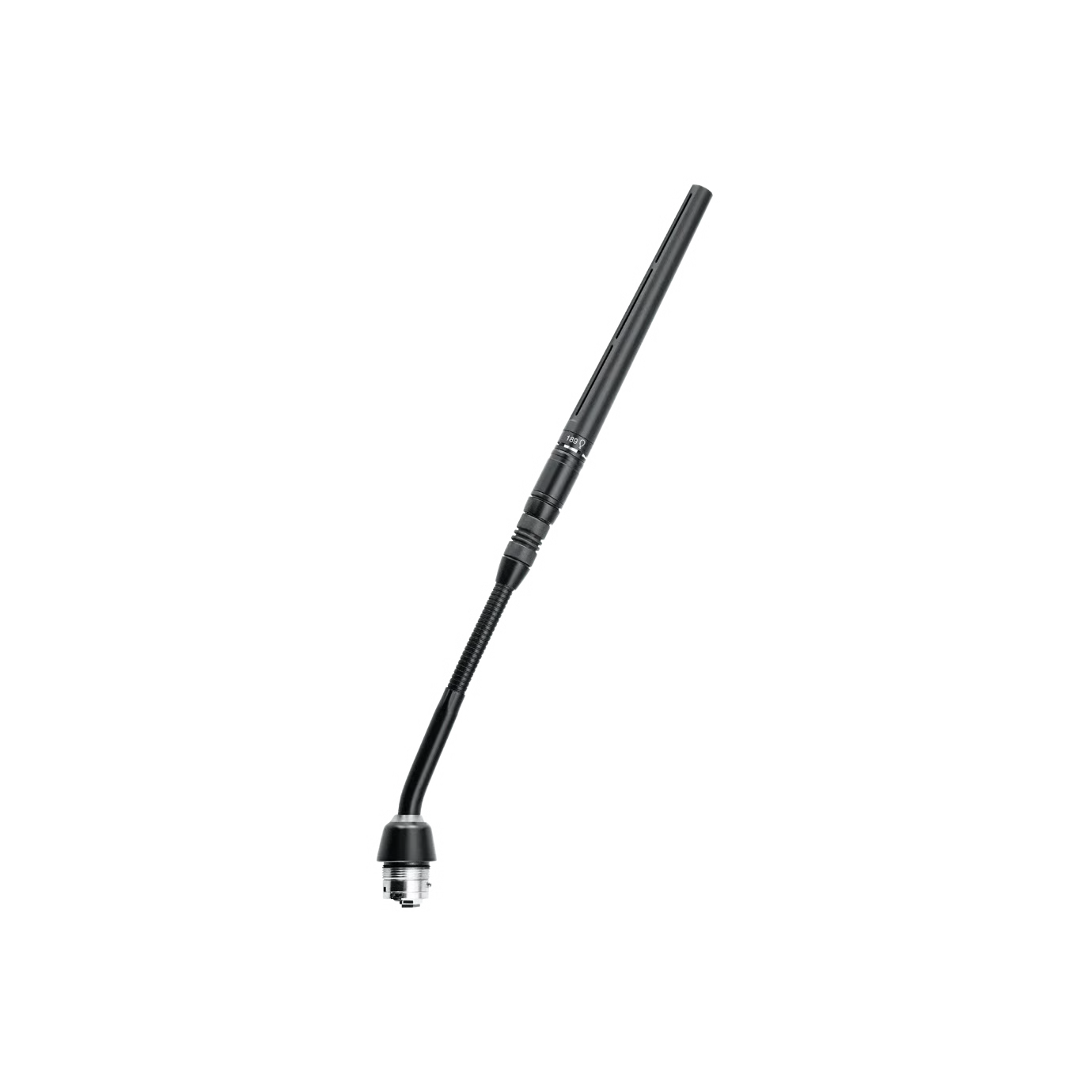

Shure R189B – Lobar Mini-Shotgun Cartridge for Microflex Gooseneck

Product Overview

The Shure R189B is a lobar mini-shotgun condenser cartridge for Shure Microflex gooseneck and overhead microphones, including Microflex Wireless and Microflex Complete models. Its 100-degree pickup area — narrower than supercardioid — provides highly directional capture that rejects ambient noise and reduces feedback risk in conference rooms and presentation spaces with active sound reinforcement systems. The black finish suits standard black Microflex hardware installations.

Product Description

The R189B threads onto all compatible Microflex gooseneck and overhead microphone bodies with a tool-free cartridge swap, making it a practical retrofit option for AV integrators upgrading installed systems from cardioid or supercardioid cartridges to a more directional lobar pattern. The electret condenser element requires phantom power (48–52V DC at 8.0 mA) and delivers a sensitivity of -33 dBV/Pa at 1 kHz across a frequency response of 50–17,000 Hz. CommShield technology provides immunity from cellular RF interference and digital bodypack transmitters, which is particularly relevant in commercial meeting environments where personal devices and wireless systems operate in close proximity to the microphone. Optional foam windscreens are available (A189BWS black, A189WWS white) for applications with significant air movement. Also available in bright white: see the Shure R189W-A. For wider pickup applications, see the Shure R184B supercardioid cartridge or Shure R185B cardioid cartridge.

Key Features

• Lobar (Mini-Shotgun) Polar Pattern — 100-degree pickup area provides highly directional capture, narrower than supercardioid, for strong ambient noise rejection and feedback reduction in sound-reinforced spaces.
• CommShield RF Protection — Guards against interference from cellular RF devices and digital bodypack transmitters in commercial meeting environments.
• Electret Condenser Transducer — Provides flat frequency response from 50 to 17,000 Hz for accurate voice reproduction across the speech range.
• Tool-Free Threaded Installation — Screws directly onto all Microflex gooseneck and overhead microphone bodies, including Microflex Wireless and Microflex Complete platforms.
• High Maximum SPL — Handles up to 121 dB SPL at 1% THD, suitable for demanding commercial AV environments.
• Phantom Power Operation — Requires 48–52V DC phantom power at 8.0 mA, compatible with standard AV system preamplifiers and audio DSPs.

Technical Specifications
