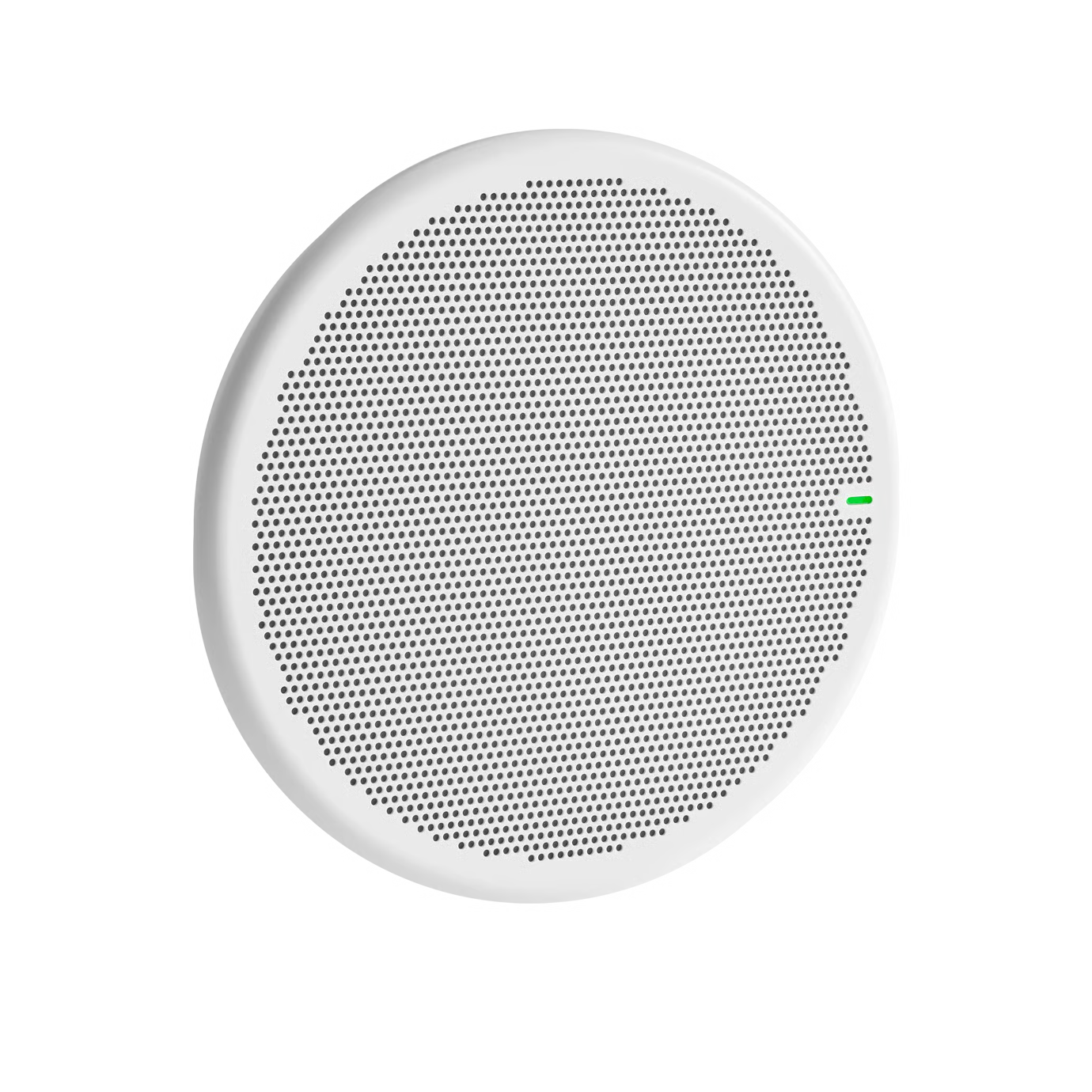

Shure MXA901W-R Microflex Advance Ceiling Microphone (White)

Product Overview

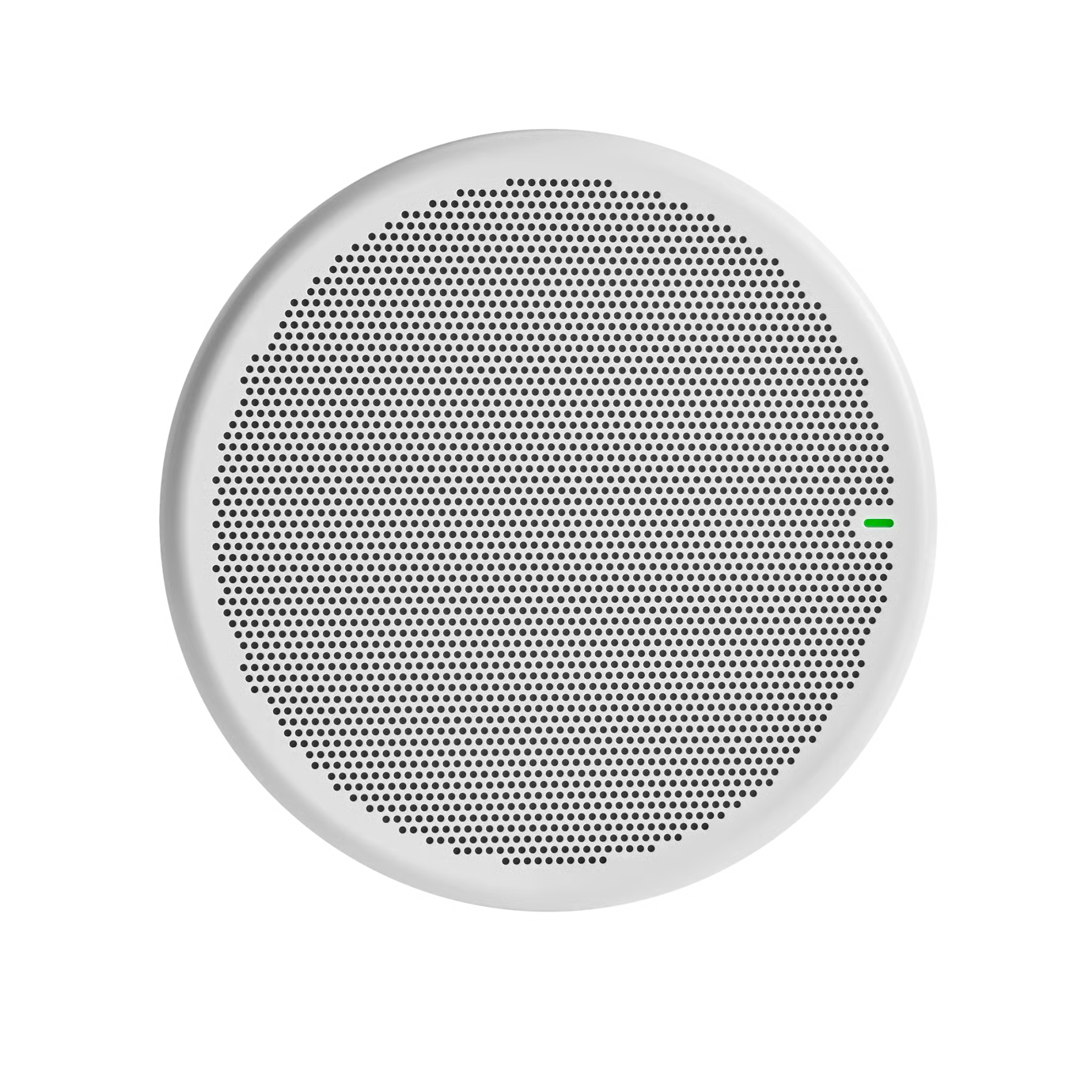

The Shure MXA901W-R is a Microflex Advance ceiling array microphone engineered for commercial conferencing environments requiring clean, hands-free audio pickup. Single-Zone Automatic Coverage technology captures all talkers across a 20 x 20-foot area without manual zone configuration, making it well-suited for boardrooms, conference rooms, training rooms, and government meeting spaces. Onboard IntelliMix DSP delivers acoustic echo cancellation, noise reduction, and automatic gain control over a single Dante/AES67 network connection. The round 13.5-inch form factor in white finish carries a UL2043 plenum rating and integrates cleanly into commercial ceiling tile installations.

Product Description

The Shure MXA901W-R ceiling array microphone deploys 85 MEMS elements to deliver 100 Hz–20 kHz frequency response and 24-bit/48 kHz audio over Dante or AES67. Power and signal run over a single Cat 5e (or better) Ethernet cable via PoE (Class 0, 10.1 W max), eliminating separate power runs and simplifying rack infrastructure. Configurable through Shure Designer software or the embedded web application, integrators can adjust coverage zones, tune IntelliMix DSP parameters, and manage firmware centrally across multi-room deployments. Microsoft Teams and Zoom Rooms certified, it connects directly to UC platforms via an ANIUSB-MATRIX or P300-IMX processor. This variant (SKU: MXA901W-R-PM-3/8-V) includes 3/8-inch threaded pole mount hardware for installation above drop ceilings or on structural mounting points. For an all-in-one ceiling microphone and loudspeaker solution, see the Shure MXA902W-S Integrated Ceiling Array. For linear array installations, see the Shure MXA710AL Linear Array Microphone.

Key Features

• Single-Zone Automatic Coverage — Captures talkers across a 20 x 20-foot (6.1 x 6.1 m) area with no manual zone programming, reducing setup time in standard conference room deployments.
• 85 MEMS Microphone Array — Next-generation array architecture provides natural speech pickup with enhanced directional response across a 100 Hz to 20 kHz frequency range.
• Onboard IntelliMix DSP — Full suite onboard including acoustic echo cancellation (AEC, up to 250 ms tail), noise reduction, automatic mixing, automatic gain control, compressor, parametric EQ (4-band), and delay — no external DSP required.
• Dante and AES67 Audio Networking — Delivers 24-bit/48 kHz digital audio at 33.5 ms latency over standard IP network infrastructure via a single Cat 5e or higher Ethernet cable.
• PoE Powered — Class 0 Power over Ethernet at 10.1 W max eliminates dedicated power runs and simplifies infrastructure in distributed commercial AV installations.

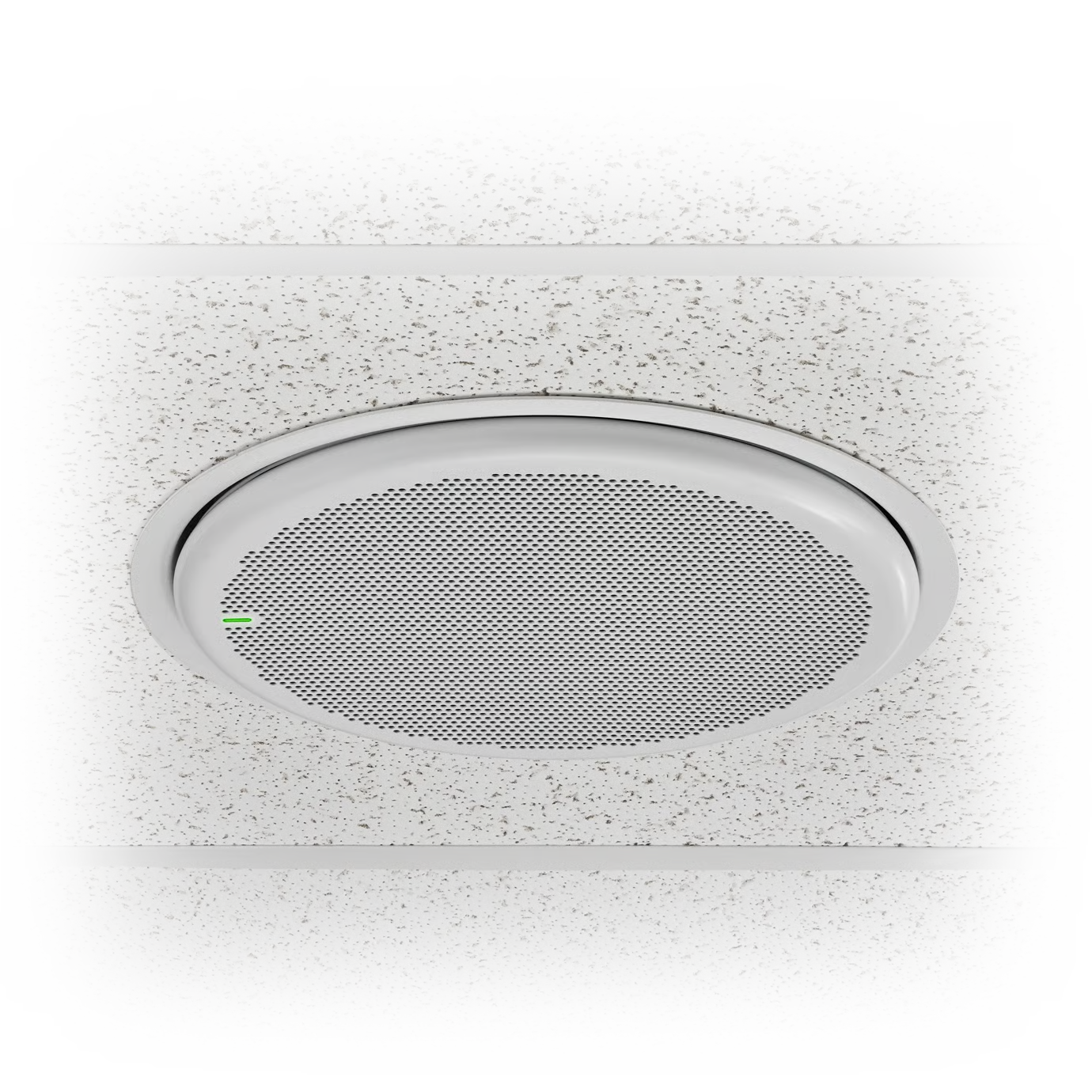

• UL2043 Plenum Rated — Qualified for air handling spaces per UL2043, meeting commercial building code requirements for in-ceiling installation (IEC 60529 IP5X dust protection).
• Microsoft Teams and Zoom Certified — Native integration with leading UC collaboration platforms for straightforward deployment in IT-managed enterprise environments.
• Enterprise Security — 802.1x network authentication, AES encryption for audio and control, and secure boot/storage support deployment in government and security-conscious enterprise spaces.

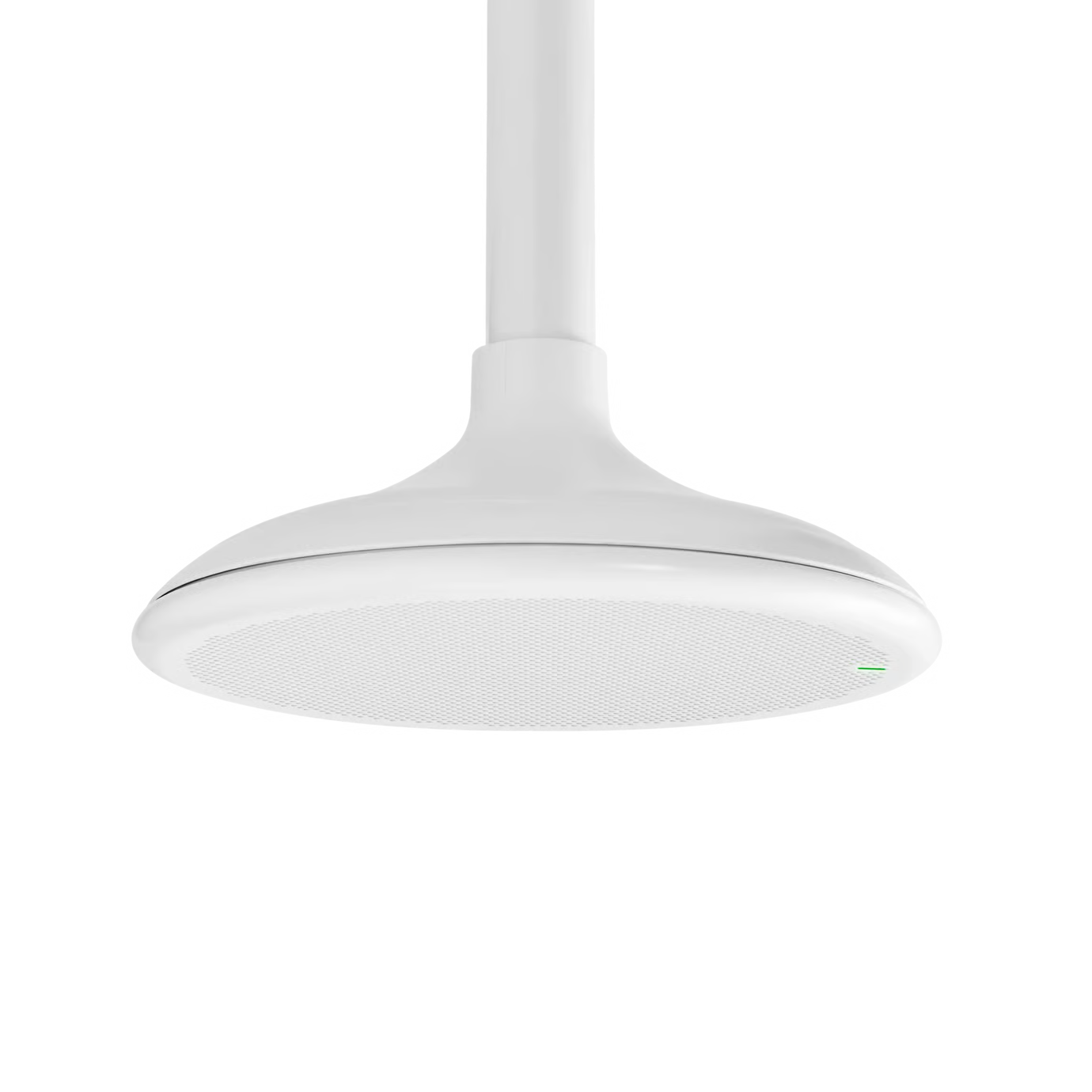

• 3/8-Inch Pole Mount Hardware Included — This SKU ships with 3/8-inch threaded pole mount accessories for above-ceiling or structural pendant installation.
• Shure Designer Software — Centralized multi-device configuration with auto-route audio, firmware management, and remote coverage adjustment across an entire facility.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Government space
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the MXA901W-R require an external DSP?
No. Onboard IntelliMix DSP includes AEC, noise reduction, automatic mixing, AGC, compressor, parametric EQ (4-band), and delay. For direct UC platform integration, an ANIUSB-MATRIX or P300-IMX provides USB/analog bridge connectivity, but the MXA901 processes all audio internally.

What network infrastructure is required for installation?
A PoE-capable switch (standard 802.3af, Class 0) and Cat 5e or higher Ethernet cabling. Shielded cable is recommended in high-interference environments. A single RJ45 connection carries power, audio, and control.

What is the maximum recommended mounting height?
Shure recommends a maximum ceiling height of 12 feet (3.7 m) for standard 20 × 20 ft coverage. Above that height, additional units or alternative microphone placement should be evaluated based on room acoustics.

Is this compatible with Microsoft Teams Rooms and Zoom Rooms?
Yes, the MXA901W-R is certified for both Microsoft Teams and Zoom Rooms. It integrates via ANIUSB-MATRIX or P300-IMX for USB or analog connectivity to the room PC or video codec.

Does this model support enterprise IT security requirements?
Yes. It supports 802.1x network authentication, AES encryption for audio and control data, and secure boot/storage — meeting IT security policy for government and enterprise deployments.

What mounting hardware does this SKU include?
This variant (MXA901W-R-PM-3/8-V) ships with 3/8-inch threaded pole mount hardware, suitable for above-ceiling structural mounting. Additional mounting options including in-ceiling flush mount and grid mount kits are available separately.
