Shure MXA902W-S Microflex Advance Ceiling Array Microphone and Loudspeaker (White)

Product Overview

The Shure MXA902W-S is a Microflex Advance Integrated Conferencing Ceiling Array that combines an advanced beamforming microphone array, a 2.5-inch wide-dispersion loudspeaker, and full IntelliMix DSP processing into a single PoE+-powered ceiling device. Designed for small- to medium-sized meeting spaces, it eliminates the separate microphone, speaker, and DSP components typically required in a conference room AV system. Single-Zone Automatic Coverage captures talkers across a 20 x 20-foot area with virtually no configuration, and the square 60cm form factor fits standard European ceiling tiles. This is the MXA902W-S-60CM white finish variant.

Product Description

The Shure MXA902W-S-60CM delivers premium microphone capture (125 Hz–20 kHz) and natural speech reproduction through its integrated 2.5-inch loudspeaker — both driven by onboard IntelliMix DSP that handles acoustic echo cancellation, noise reduction, automatic gain control, and parametric EQ without an external processor. Audio, power, and control all travel over a single Cat 5e Ethernet cable via PoE+ (IEEE 802.3at); a standard PoE port will power the device but the loudspeaker will not function unless PoE+ is present. Dante and AES67 audio networking enable integration into commercial AV signal chains, and the embedded web application or Shure Designer software allow remote configuration and firmware management. The frame and grille are field-paintable to match custom ceiling finishes, and VESA standardized mounting holes on the rear plate support a variety of installation configurations. For a dedicated ceiling array microphone without integrated loudspeaker, see the Shure MXA901W-R Ceiling Array Microphone. For a separate networked ceiling loudspeaker, see the Shure MXN5W-C Networked Ceiling Loudspeaker.

Key Features

• Integrated Microphone + Loudspeaker — Combines an advanced ceiling array microphone and a 2.5-inch wide-dispersion loudspeaker in one device, reducing installation complexity and ceiling penetrations in small/medium meeting rooms.
• Single-Zone Automatic Coverage — Covers a 20 x 20-foot (6.1 x 6.1 m) area for both microphone pickup and speech reproduction with minimal configuration, supporting standard conference room sizes.
• Onboard IntelliMix DSP — Full processing suite including acoustic echo cancellation, noise reduction, automatic gain control, compressor, delay, signal generator, and 4-band parametric EQ — no external DSP required in most room deployments.
• Dante and AES67 Networking — Digital audio over a single Cat 5e Ethernet cable at 48 kHz/Dante, with 6.3 ms latency (excl. Dante), integrates cleanly into commercial Dante AV infrastructure.
• PoE+ Powered — Requires IEEE 802.3at PoE+ for full operation (microphone and loudspeaker). Standard PoE (802.3af) powers the microphone only; PoE+ is required for loudspeaker functionality.

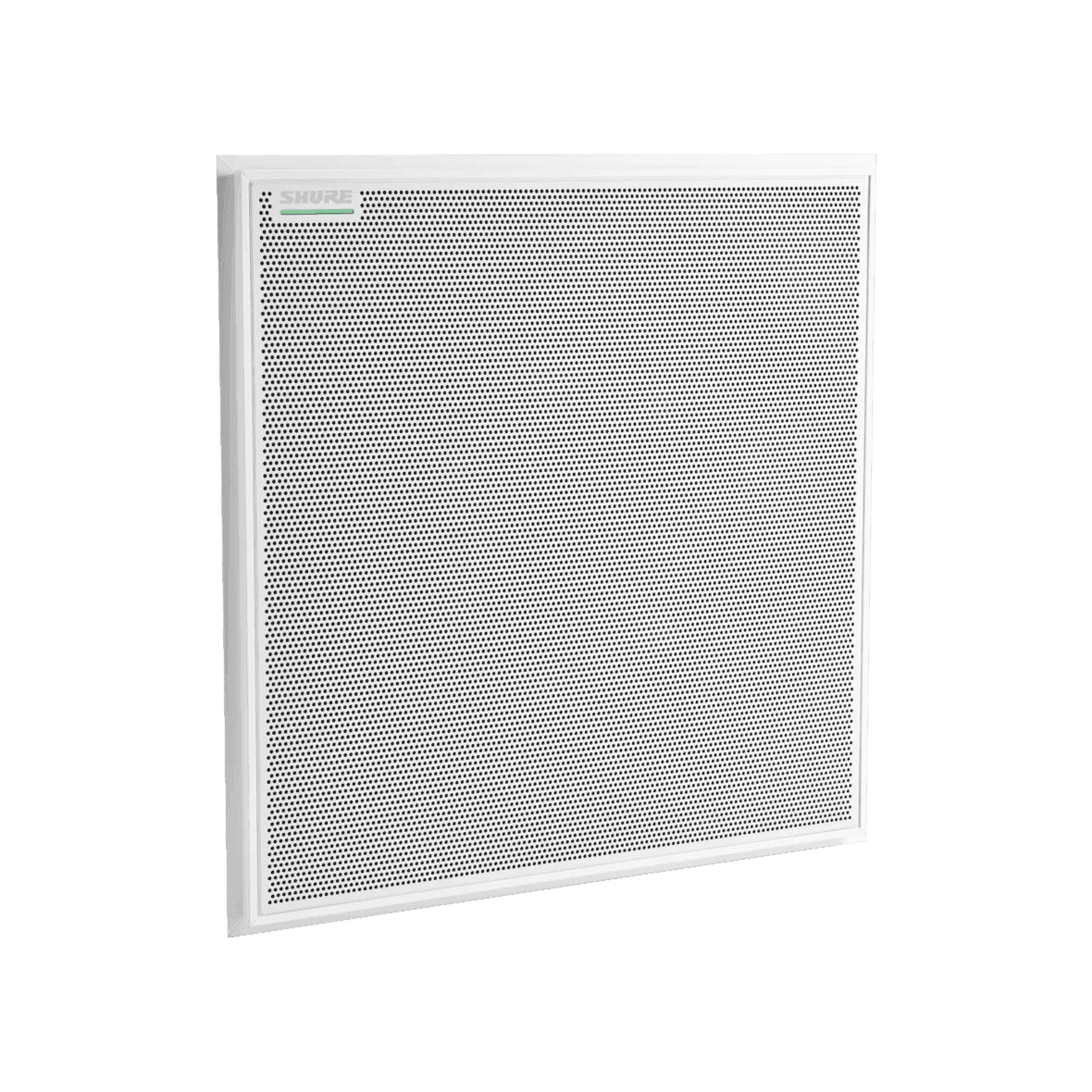

• 60cm Square Form Factor — Fits standard 60cm European ceiling tiles (23.38 in. edge to edge); the frame and grille are field-paintable to match custom ceiling finishes.

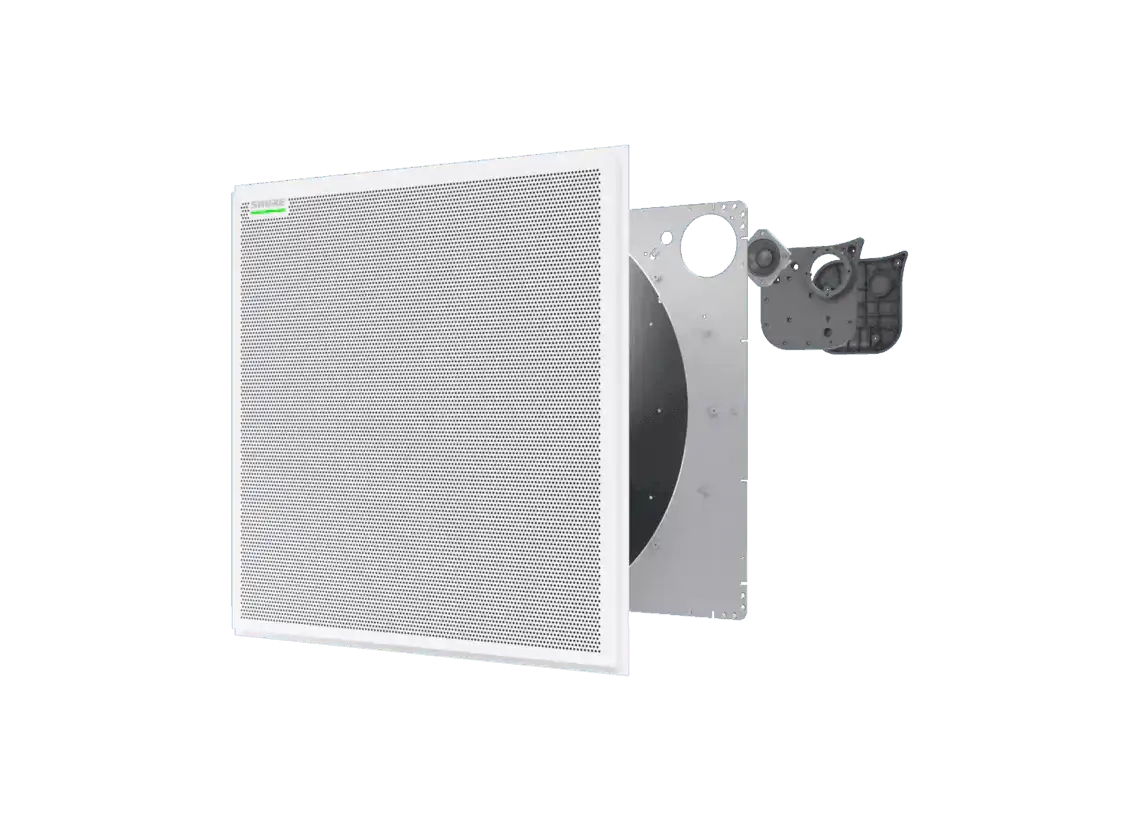

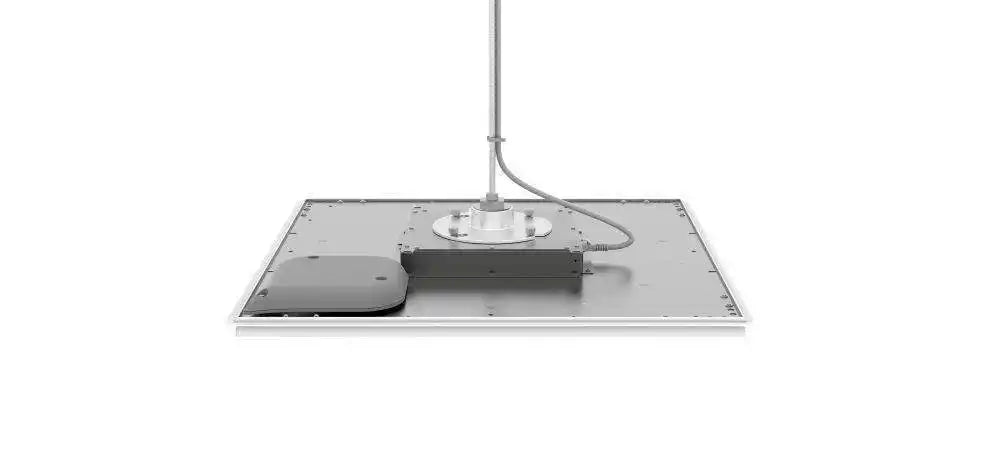

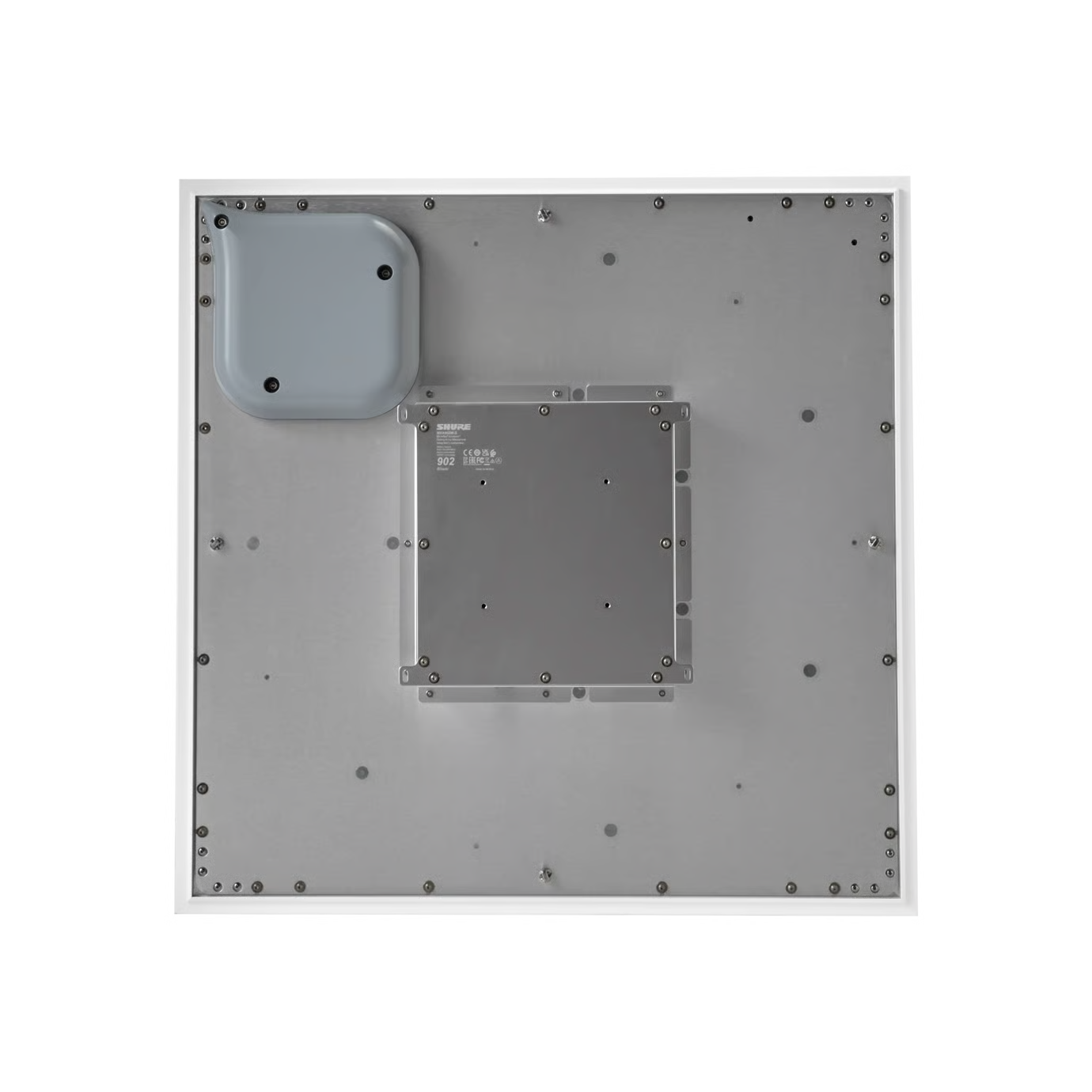

• VESA Standardized Mounting — Rear plate VESA MIS-D mounting holes support alternative installation configurations beyond standard ceiling grid drop-in.
• AES-256 Encryption — Supports AES-256 encrypted Dante audio for secure deployment in government, enterprise, and privacy-sensitive meeting spaces.
• Shure Designer Software — Centralized multi-room configuration with optimize workflow, mute sync, firmware management, and audio routing.
• Field-Paintable Finish — Frame and grille can be painted to match custom ceiling colors, supporting architectural finishes in high-specification commercial spaces.

Typical Applications

• Huddle room
• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Does the MXA902W-S require PoE or PoE+?
PoE+ (IEEE 802.3at) is required for full operation. A standard PoE (802.3af) switch port will power the device and the microphone will function, but the integrated loudspeaker will not operate. Verify your network switch supports PoE+ before installation.

Does the MXA902W-S require an external DSP or amplifier?
No. Onboard IntelliMix DSP handles AEC, noise reduction, AGC, compressor, EQ, and delay internally. The integrated 2.5-inch loudspeaker does not require a separate amplifier — the device is fully self-contained for small to medium room audio.

Will the MXA902W-S-60CM fit a standard North American 24-inch ceiling grid?
No. The 60cm model (MXA902W-S-60CM) is sized for the standard 60cm European ceiling tile format. It is not designed for installation in the 24-inch (610mm nominal) North American grid. A separate MXA902-S model sized for 24-inch grids is available.

How is the MXA902 configured and managed?
Via Shure Designer software (multi-room management, optimize workflow, auto-route) or the embedded web application accessible over the network. Both tools support DSP adjustment, coverage tuning, mute sync configuration, and firmware updates.

Is the frame paintable to match custom ceiling finishes?
Yes. The MXA902’s frame and grille are field-paintable. Shure provides instructions for removing, masking, painting, and reassembling the grille to match custom architectural ceiling colors.

What UC platforms is the MXA902 compatible with?
The MXA902 is compatible with Microsoft Teams, Zoom Rooms, and other leading UC platforms via connection through an ANIUSB-MATRIX audio network interface for USB output to the room PC or video codec.
