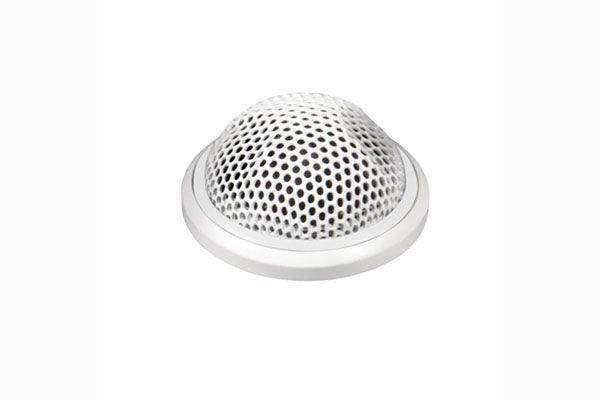

Shure MX395W/BI Microflex Low-Profile Figure-8 Boundary Microphone for Installs (White)
Shure MX395W/BI Microflex Low-Profile Figure-8 Boundary Microphone for Installs (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MX395W/BI Microflex Low-Profile Figure-8 Boundary Microphone ...
Product Overview
The Shure MX395W/BI is a low-profile figure-8 boundary microphone designed to capture two talkers facing each other across a table. Its bidirectional pattern picks up sound from the front and rear while rejecting sound from the sides, a practical layout for interview desks and two-person conference positions. The white housing blends into light tables and ceilings in commercial AV installations.
Product Description
Part of the Shure Microflex low-profile boundary family, the MX395W/BI figure-8 boundary microphone sits nearly flush to the surface and uses a bidirectional pattern to capture talkers positioned in front of and behind the microphone. This makes a single unit efficient for two participants seated opposite each other, such as an interview desk or a narrow conference table. An active-balanced output and 3-pin XLR connector integrate directly with installed mixers and DSP processors. With a wide 50 Hz to 17 kHz response and low susceptibility to RF and electromagnetic interference, it delivers accurate speech reproduction for conferencing and commercial meeting spaces. The white finish suits light-colored tables and bright interiors.
Key Features
- Figure-8 bidirectional pickup — Captures talkers in front of and behind the microphone while rejecting side noise, ideal for two facing participants.
- Low-profile boundary design — The near-flush housing keeps conference and interview tables visually uncluttered.
- Active-balanced 3-pin XLR output — Integrates directly with commercial mixers and DSP processors used in installed AV systems.
- Wide frequency response — A 50 Hz to 17 kHz range reproduces speech accurately for reinforcement and recording.
- White finish — Blends with light-colored tables and bright conference room interiors.
Technical Specifications
| Type | Electret condenser (boundary) |
| Polar pattern | Bidirectional (figure-8) |
| Frequency response | 50 Hz – 17 kHz |
| Sensitivity | –37 dBV/Pa (14 mV) |
| Output impedance | 150 Ω EIA rated (170 Ω actual) |
| Output configuration | Active balanced |
| Connector | 3-pin XLR |
| Finish | White |
| SKU | MX395W/BI |

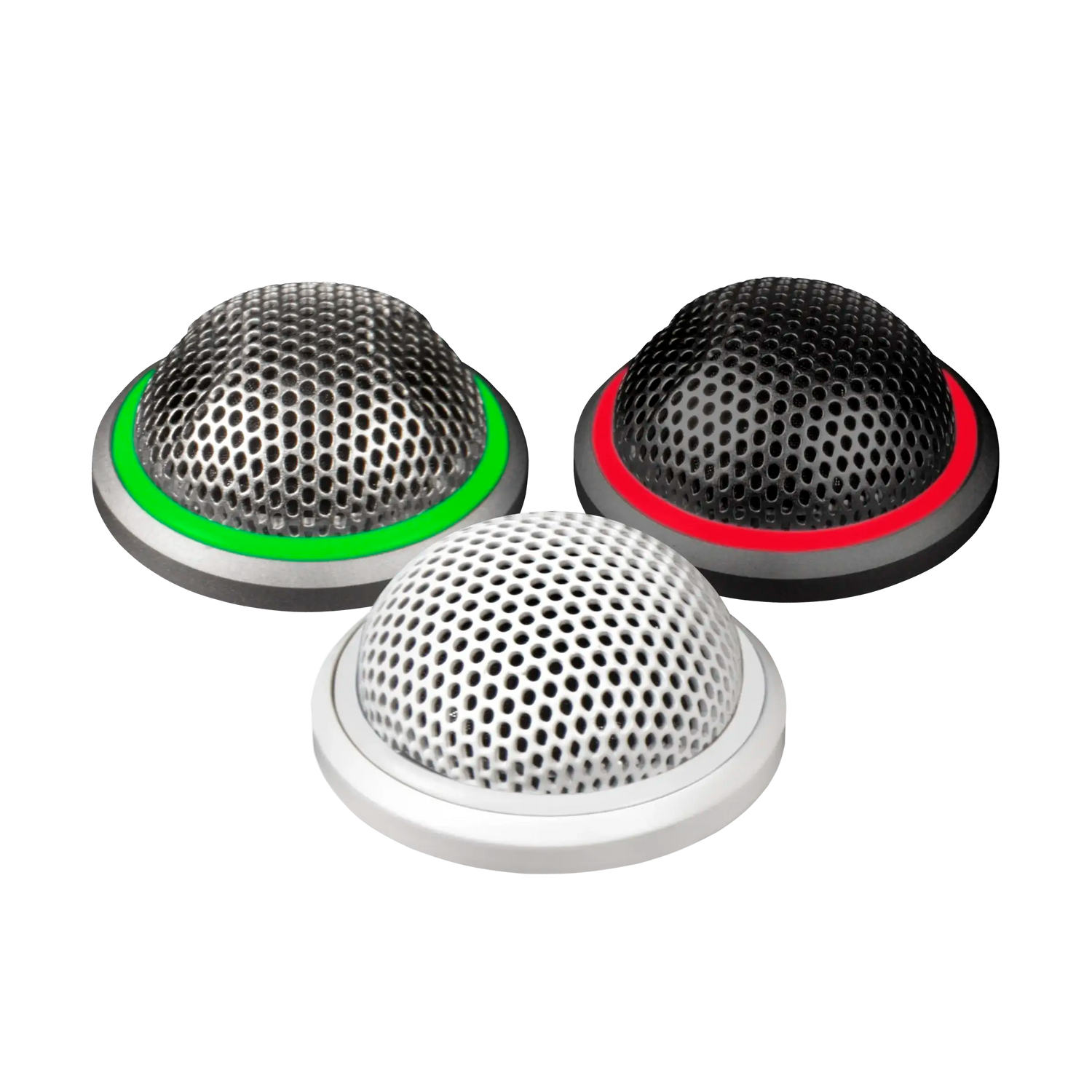

Comparable Microflex boundary options include the black MX395B/BI figure-8 and the MX395W/BI-LED with logic-control LED.
