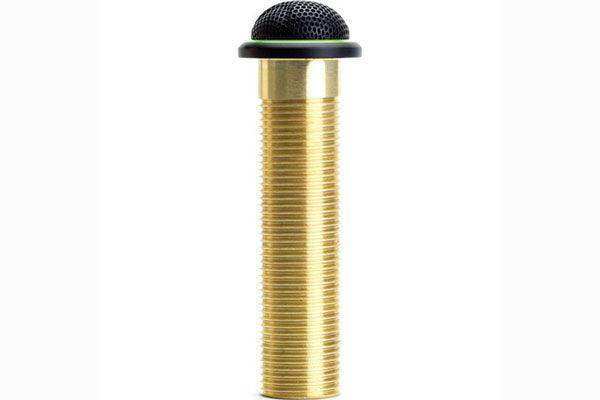

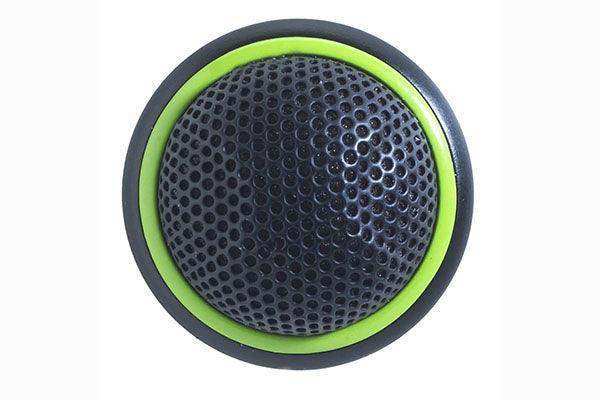

Shure MX395B/O-LED Microflex Low-Profile Omnidirectional Boundary Microphone with Logic-Control LED for Installs (Black)

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: MX395B/O-LED
No reviews
Price:
$223.00 $312.00

Description

This black Shure MX395-LED Microflex with Logic Control LED is an omnidirectional boundary microphone designed to capture high-quality speech and voice for sound-reinforcement and teleconferencing installations in governmental, institutional, religious, and business settings.

The MX395-LED can be permanently installed on conference tables, desks, or lecterns using the included mounting hardware. Its low-profile design is only 1" in diameter and extends just 0.8" above the mounting surface, ideal for boardrooms and other sites where minimal mic visibility is of high priority and aesthetics are important.

  • For Speech and Vocal Capture
  • Logic Control with Bi-Color Status LED
  • Low-Visibility Design
  • Omnidirectional Polar Pattern
  • Resists Cell Phone Interference
Microphone
Form Factor Boundary/Surface Mount
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
High-Pass Filter 150 Hz, 6 dB/Octave
Indicators 1 x Red/Green Ring LED (Status)
Performance
Frequency Range 50 Hz to 17 kHz
Maximum SPL 114 dB SPL
Off-Axis Rejection 45 dB
Impedance 170 Ohms
Sensitivity 42 mV
Dynamic Range 93 dB
Signal-to-Noise Ratio 75 dB
Equivalent Noise Level 21 dB A-Weighted
THD 1%
Connectivity
Output Connectors (Analog) 1 x XLR 5-Pin Female
Power
Operating Voltage 48 to 52 V (Phantom Power)
Operating Current Consumption 8 mA
Physical
Color Black
Mounting Surface-Mount (with Included Hardware)
Operating Temperature 0 to 135°F / -17.78 to 57.22°C
Operating Humidity 0 to 95%
Storage Temperature -20 to 165°F / -28 to 74°C
Dimensions ø: 1.26H: 4.02" / ø: 32H: 102 mm
Weight 0.3 lb / 136 g
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 9.9 x 4.8 x 3.2"
