Shure MX395AL/O-LED Microflex Low-Profile Omnidirectional Boundary Microphone with Logic-Control LED for Installs (Silver)
Shure MX395AL/O-LED Microflex Low-Profile Omnidirectional Boundary Microphone with Logic-Control LED for Installs (Silver) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MX395AL/O-LED Microflex Low-Profile Omnidirectional Boundary ...
Product Overview

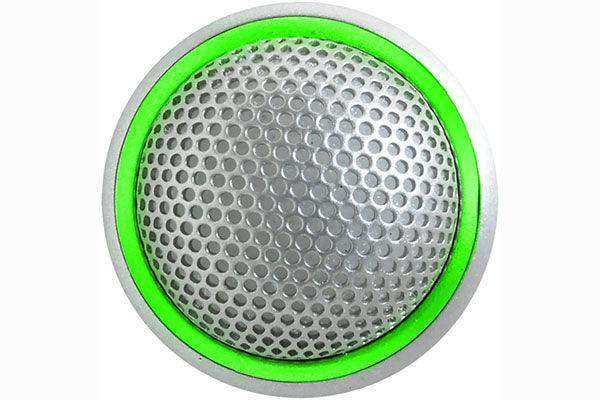

The Shure MX395AL/O-LED is a low-profile omnidirectional boundary microphone with a remote logic-control LED for clear mute and status indication. Its 360-degree pattern captures multiple talkers around a conference table while the LED gives participants visible feedback on microphone state. The brushed-aluminum housing stays discreet on tables in commercial AV installations.
Product Description
Part of the Shure Microflex low-profile boundary family, the MX395AL/O-LED omnidirectional boundary microphone adds a logic-controlled LED that an installed control system can drive to show mute or active status. The omnidirectional pattern captures speech evenly from all directions, suiting meeting tables where several participants share one microphone. A 5-pin XLR connector carries both audio and logic, and a female connector is included to simplify wiring into installed mixers, DSP processors, and control systems. With a wide 50 Hz to 17 kHz response and low susceptibility to RF and electromagnetic interference, it delivers accurate speech reproduction for conferencing and commercial meeting spaces. The silver brushed-aluminum finish complements modern boardroom interiors.
Key Features
- Logic-control LED — A remote-controllable LED gives meeting participants clear visual feedback on mute or active status.
- Omnidirectional pickup — The 360-degree pattern captures multiple talkers around a conference table from one microphone.
- 5-pin XLR with included female connector — Carries audio and logic together and simplifies wiring into control systems and DSP processors.
- Low-profile boundary design — The near-flush housing keeps conference tables visually uncluttered.
- Brushed-aluminum finish — The silver housing blends discreetly into modern boardroom and conference room interiors.
Technical Specifications
| Type | Electret condenser (boundary) |
| Polar pattern | Omnidirectional |
| Frequency response | 50 Hz – 17 kHz |
| Sensitivity | –28 dBV/Pa (42 mV) |
| Output impedance | 150 Ω EIA rated (170 Ω actual) |
| Output configuration | Active balanced |
| Connector | 5-pin XLR (female connector included) |
| Status indicator | Remote logic-control LED |
| Finish | Brushed aluminum (silver) |
| SKU | MX395AL/O-LED |

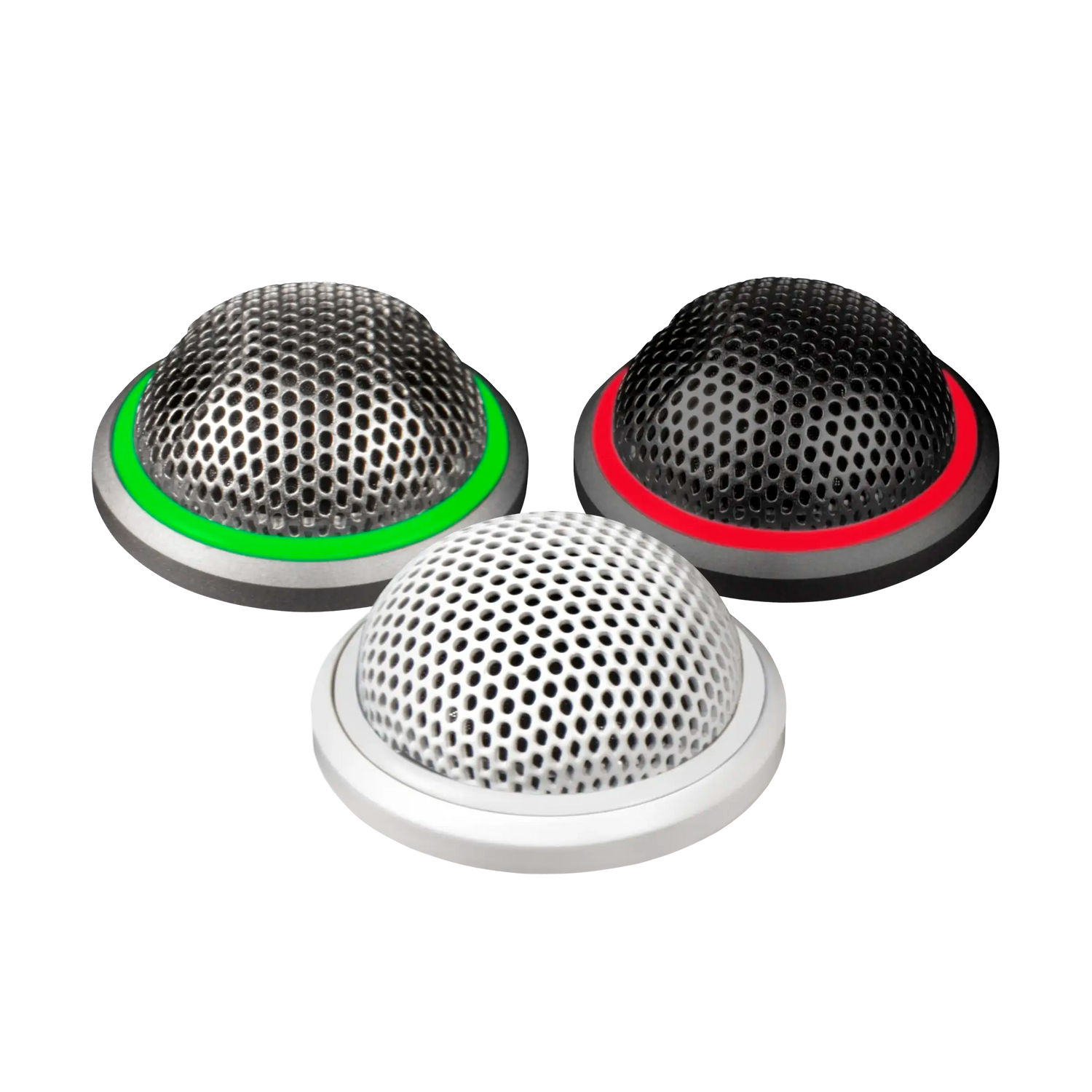

Comparable Microflex boundary options include the non-LED MX395AL/O omnidirectional and the cardioid MX395AL/C-LED.
