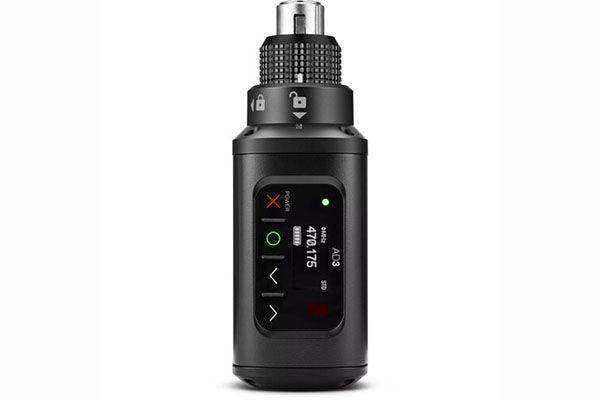

Shure AD3 – Axient Digital Plug-On Wireless Transmitter

Product Overview

The Shure AD3 is an Axient Digital plug-on wireless transmitter that converts any standard XLR microphone into a full Axient Digital wireless microphone, providing impeccable audio quality and RF performance for broadcast production, live events, and commercial AV deployments. Compatible with AD4D and AD4Q receivers in Standard or High Density (HD) mode, the AD3 supports wide-tuning across three frequency bands spanning 470–960 MHz. Built with AES encryption, it meets the security requirements of government facilities, broadcast studios, and corporate boardrooms handling sensitive audio.

Product Description

The AD3 Axient Digital plug-on transmitter attaches directly to any XLR microphone connector via its custom fast-connect design, instantly integrating existing wired microphone inventory into a scalable Axient Digital wireless system. Its rugged metal chassis is moisture and debris resistant, built for the physical demands of live production and on-location broadcast workflows. An OLED display delivers clear status readout—RF level, audio level, battery, and channel—in any lighting condition, while simple menu navigation supports fast adjustments without interrupting a live production. The transmitter supports AA alkaline batteries or the optional Shure SB900C lithium-ion rechargeable, which delivers up to 8 hours of continuous use with precision charge metering. When deployed with the Shure AD4DNP Two-Channel Receiver or Shure AD4Q-NP Four-Channel Receiver, the AD3 is managed remotely via Wireless Workbench 6 and the ShurePlus Channels iOS app.

Key Features

• Universal XLR Compatibility — Attaches to any standard XLR microphone via a custom fast-connect design, preserving existing microphone investments and simplifying wireless integration.
• Axient Digital AD Series Receiver Support — Compatible with AD4D and AD4Q receivers in Standard and High Density modes, supporting large multi-channel commercial deployments.
• Audio Encryption — Encrypted transmission supports secure audio workflows in government spaces, corporate boardrooms, and broadcast facilities.

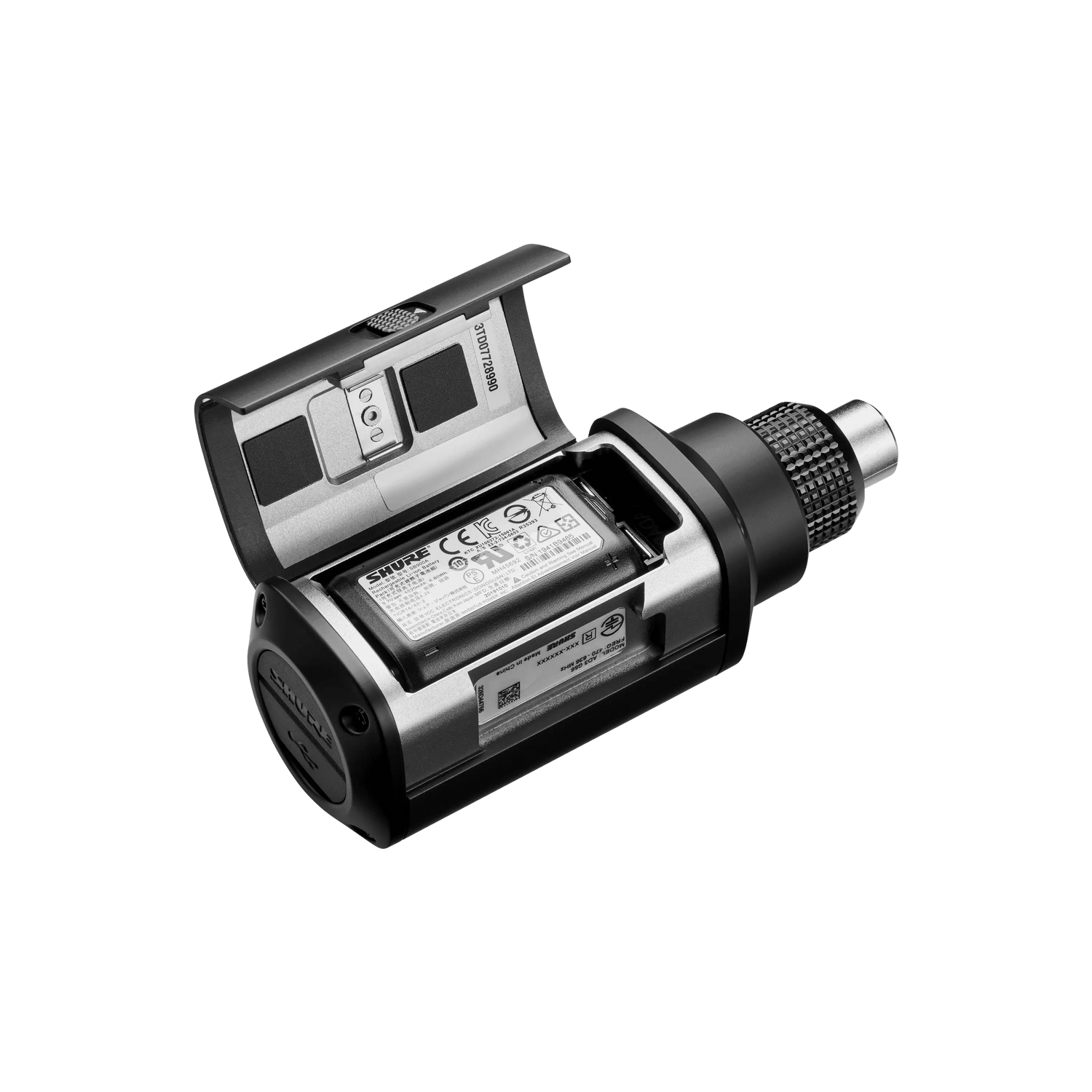

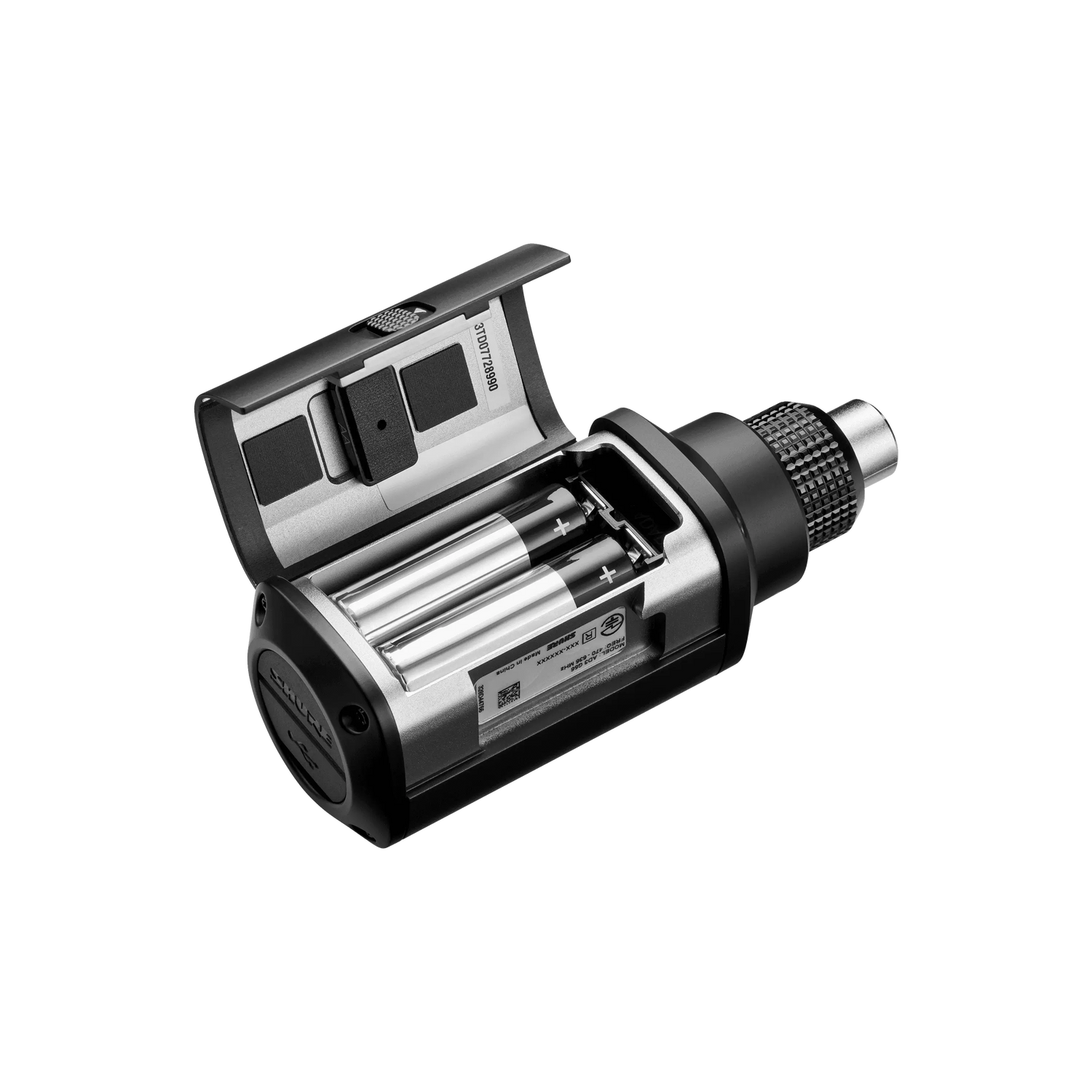

• Dual Battery Support — Runs on 2× AA alkaline batteries or the optional Shure SB900C lithium-ion rechargeable for up to 8 hours of continuous runtime with precision metering.

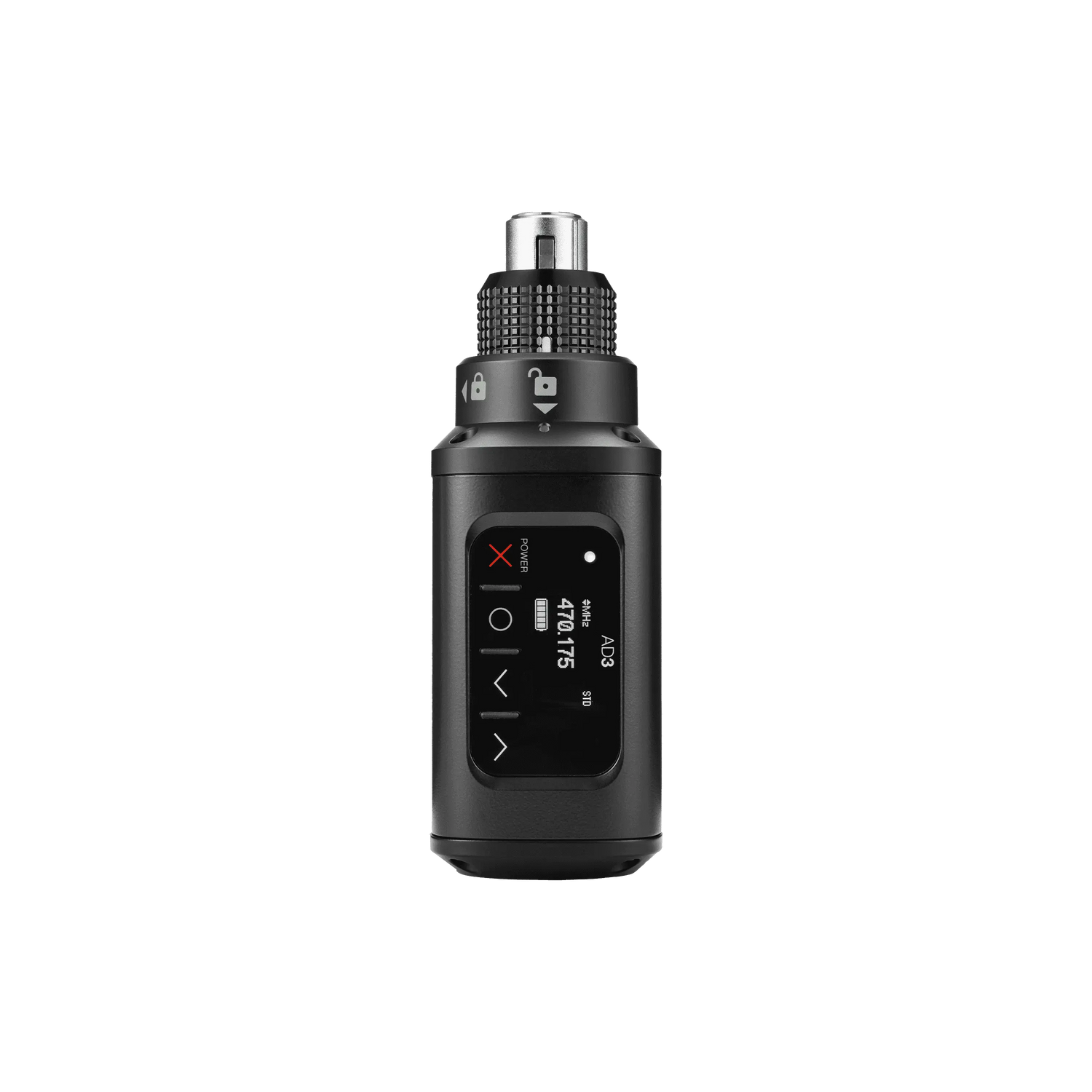

• OLED Display — Provides RF level, audio level, battery status, and channel information in a high-contrast display readable in dark production and bright stage environments.
• Wide-Tuning Frequency Range — Three available frequency bands (G57: 470–616 MHz, K54: 606–663 MHz, X55: 941–960 MHz) with wide-tuning capability for interference avoidance in dense RF environments.
• Rugged Metal Chassis — Lightweight yet durable construction resists sweat, moisture, and debris, built for broadcast field production and live commercial events.
• Wireless Workbench Integration — Remote monitoring, frequency coordination, and system management via Shure Wireless Workbench 6 and ShurePlus Channels iOS app.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Government space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

What receivers is the AD3 compatible with?
The AD3 is compatible with Shure Axient Digital AD4D and AD4Q receivers. Both Standard and High Density operating modes are supported.

Can the AD3 be managed remotely during a live production?
Yes. When used with the AD4D or AD4Q receiver and an AD610 ShowLink Access Point, the AD3 can be monitored and controlled remotely via Wireless Workbench 6 or the ShurePlus Channels iOS app without interrupting audio.

What battery options does the AD3 support?
The AD3 accepts standard AA alkaline batteries. The optional Shure SB900C lithium-ion rechargeable battery provides up to 8 hours of continuous use with precision charge metering and zero memory effect.

Is the AD3 compatible with all XLR microphones?
Yes. The AD3 uses a custom fast-connect XLR design compatible with standard XLR microphones. This allows commercial AV integrators to add wireless capability to existing wired microphone inventory.

What is High Density (HD) mode?
High Density mode is an operating mode available on Axient Digital systems that allows a greater number of simultaneous wireless channels within a given RF bandwidth, ideal for large-scale corporate events, broadcast productions, and multi-room commercial installations.
