Sennheiser TeamConnect Ceiling Medium Microphone with Flushmount Kit (White)

Product Overview

The Sennheiser TeamConnect Ceiling Medium (TCC M) with Flushmount Kit is a commercial-grade ceiling microphone array engineered for mid-sized meeting rooms, conference rooms, and collaboration spaces up to 40 m² (430 ft²). Using patented automatic dynamic beamforming and 15 SMD electret condenser capsules manufactured in Germany, the TCC M delivers full-room audio pickup without table-top microphones or cable runs to conference furniture. The flushmount variant (White) provides a low-profile, architecturally clean installation option that sits flush with the ceiling surface, available for rooms with standard ceiling tiles or drywall soffits.

Product Description

The TeamConnect Ceiling Medium brings the core technology of Sennheiser’s award-winning TCC 2 to a new segment of the commercial meeting space market. Fifteen SMD electret condenser capsules — made in Germany and already proven across Sennheiser’s professional microphone catalog — work in concert with the TruVoicelift algorithm and patented dynamic beamforming to track speakers automatically as they move through the room. Exclusion Zones and Priority Zone settings allow integrators to define pickup areas precisely, reducing HVAC noise, projector fan noise, and other fixed noise sources. The unit outputs analog audio via a 3-pin Phoenix terminal and Dante network audio via an RJ-45 port, making it compatible with both traditional analog AV systems and modern IP-based conference room architectures. A single RJ-45 port handles PoE power (IEEE 802.3af Class 3 or 802.3at Type 2 Class 4 when cascaded), Ethernet control, and Dante audio in single-cable mode, dramatically simplifying structured cabling in new construction and retrofit projects. The TCC M supports IEEE 802.1x authentication and TLS 1.2 encryption for enterprise network compliance. System management is handled through Sennheiser Control Cockpit software and is compatible with Q-SYS, Crestron, and other third-party AV control systems via module. The unit is certified for Microsoft Teams and Zoom environments, and the flushmount kit includes a front plate for clean integration into standard ceiling tiles or drywall.

Key Features

• Patented Dynamic Beamforming — Automatically tracks speakers anywhere within the 40 m² coverage area without manual beam steering or configuration.
• 15 SMD Electret Condenser Capsules — German-manufactured capsules deliver consistent, high-quality audio pickup across the full coverage zone.
• TruVoicelift — Proprietary algorithm enhances speech intelligibility for far-end participants in hybrid conferencing environments.
• Dante + Analog Outputs — Simultaneous Dante network audio (RJ-45) and analog 3-pin Phoenix terminal output supports mixed AV system architectures.
• Single-Cable PoE Installation — One RJ-45 connection carries power (PoE IEEE 802.3af/at), Ethernet control, and Dante audio, minimizing ceiling penetrations.
• Exclusion and Priority Zones — Integrator-configurable zones reduce noise pickup from HVAC, projectors, and other fixed sources.
• IEEE 802.1x + TLS 1.2 — Enterprise-grade network security supports IT compliance requirements in corporate and government deployments.
• Flushmount Installation (Included) — Low-profile white front plate integrates into ceiling tiles or drywall for an architecturally clean finish.
• Microsoft Teams & Zoom Certified — Verified compatibility with leading UC platforms for hybrid meeting room deployments.
• Talker Position Data for Camera Control — Outputs speaker location data for integration with auto-tracking camera systems.
• 5-Year Warranty — Sennheiser-backed five-year product warranty for commercial installations.

Typical Applications

• Conference room mid-size (up to 40 m² / 430 ft²) microphone systems
• Boardroom and executive meeting space audio
• Huddle room and collaboration space ceiling microphone
• Training room and multi-purpose room AV integration
• Government and corporate meeting space audio infrastructure
• House of worship small-to-mid meeting and classroom spaces

Technical Specifications

Frequently Asked Questions

What room size is the TeamConnect Ceiling Medium designed for?

The TCC M is engineered for mid-sized meeting rooms and collaboration spaces up to 40 m² (approximately 430 ft²). For larger spaces, Sennheiser’s TeamConnect Ceiling 2 covers up to 65 m².

Does the unit require initialization before first use?

Yes. The TeamConnect Ceiling Medium ships password-protected by default and must be initialized using Sennheiser Control Cockpit software before audio is passed.

What control systems are compatible with the TCC M?

The unit supports Q-SYS (with available module), Crestron (with available module), and any system with access to the published Sennheiser third-party API. Sennheiser Control Cockpit manages local setup and ongoing monitoring.

Can the TCC M output talker position data for auto-tracking cameras?

Yes. The TCC M outputs speaker position data via its network port, which integrators can use to drive PTZ camera tracking systems, including Crestron Automate VX and other compatible solutions.

What is the difference between the flushmount and surface-mount installation options?

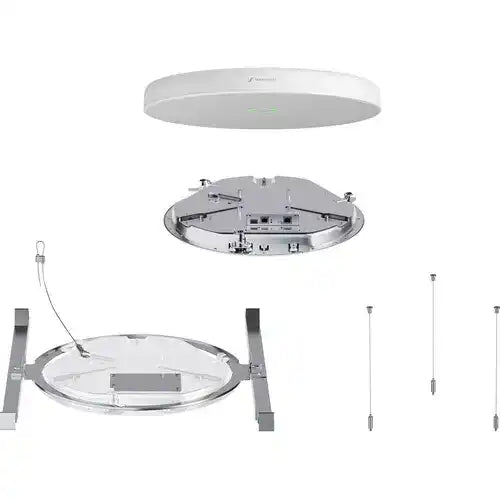

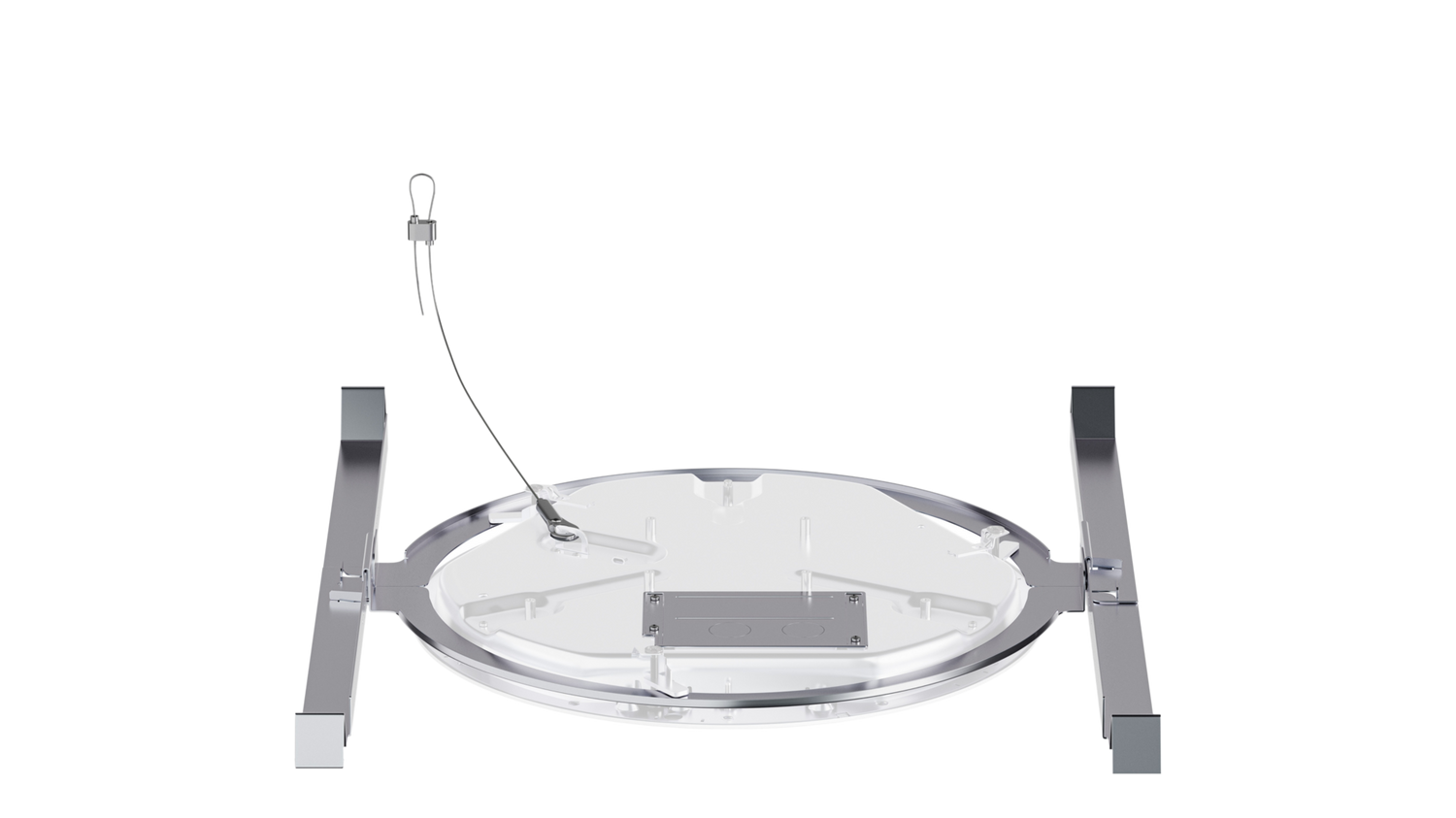

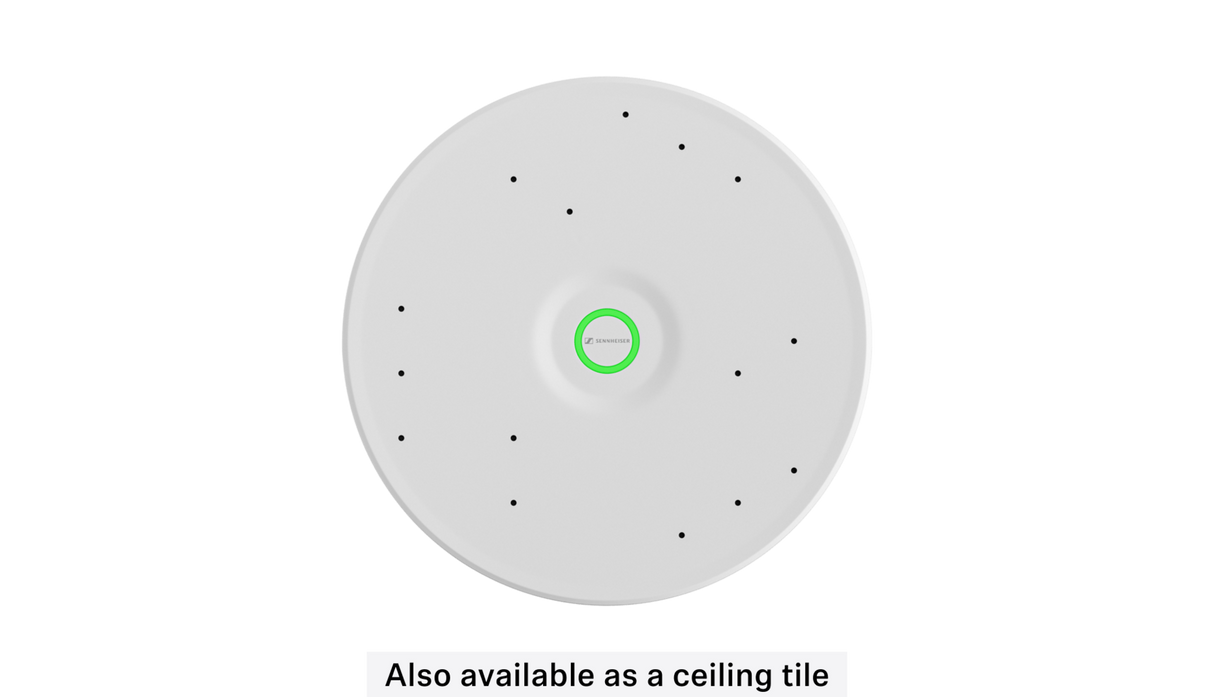

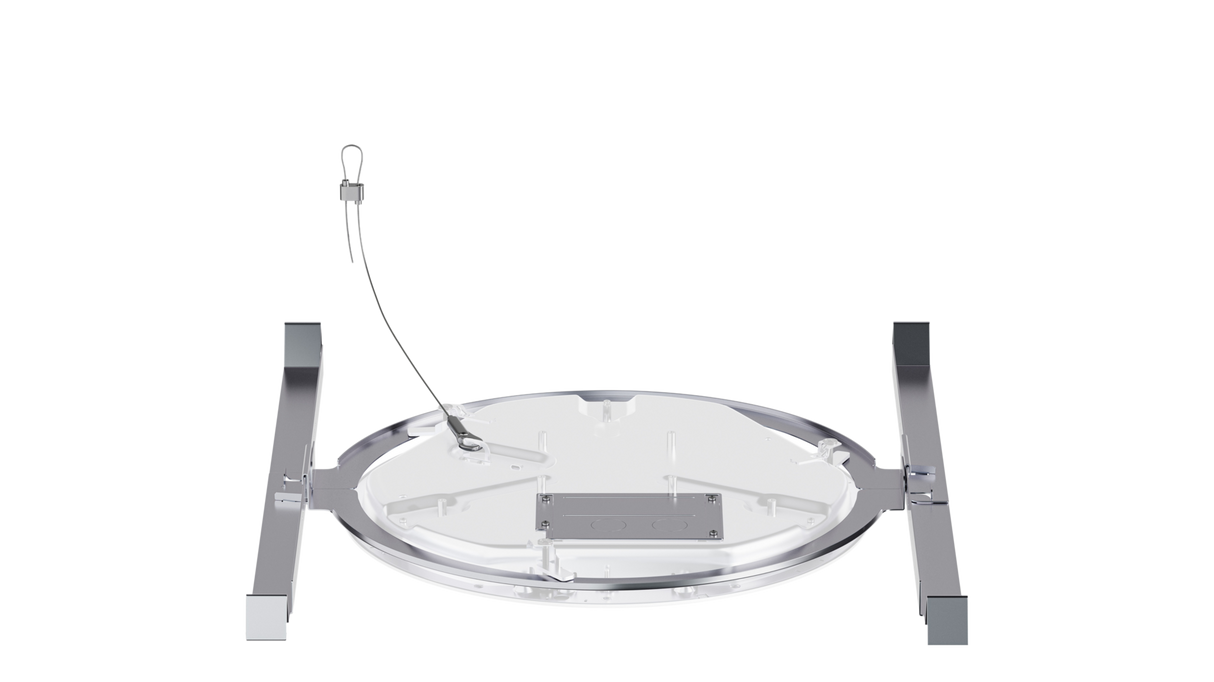

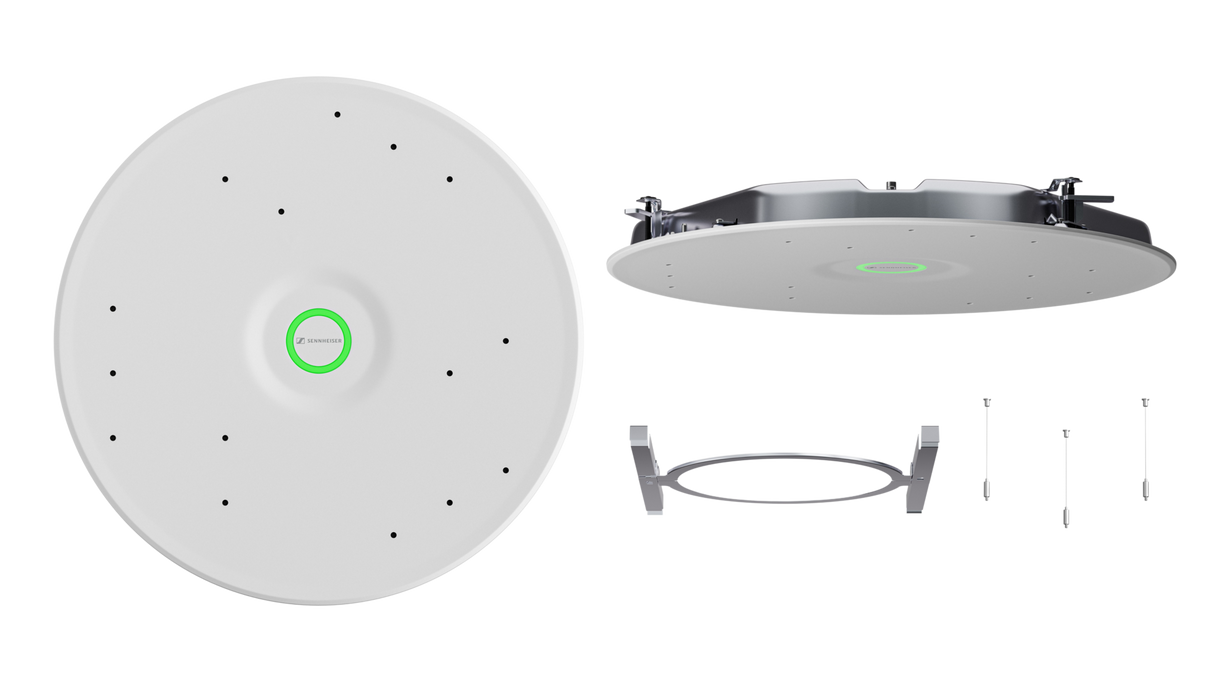

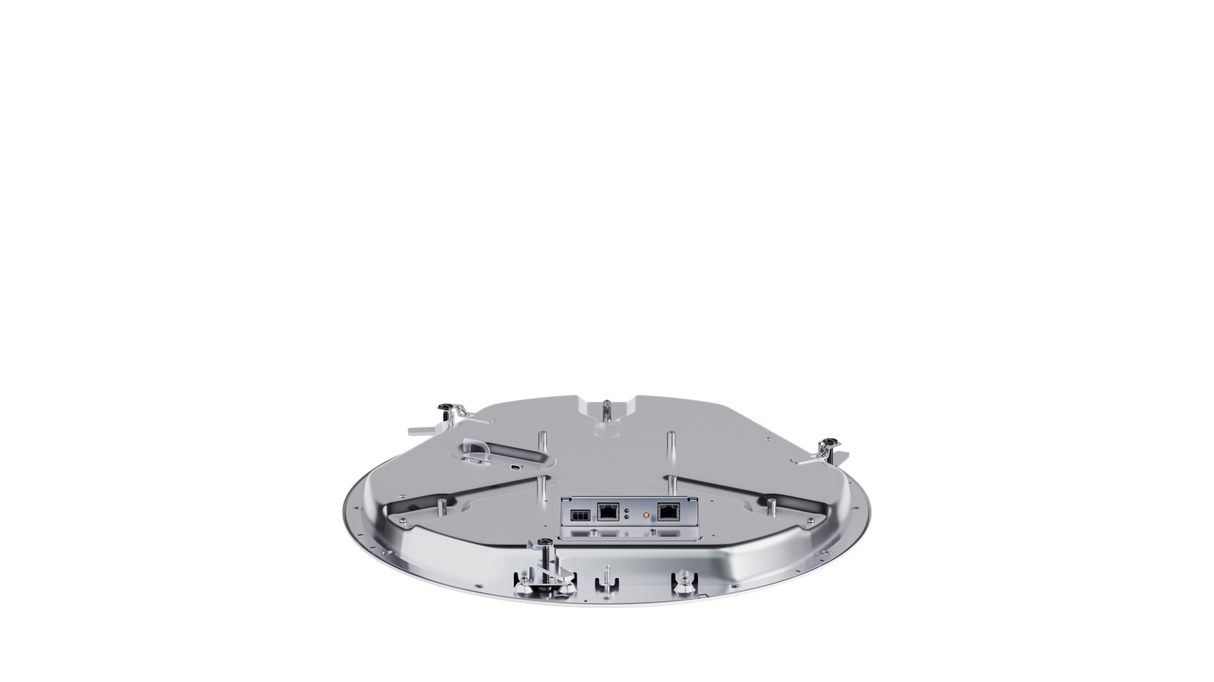

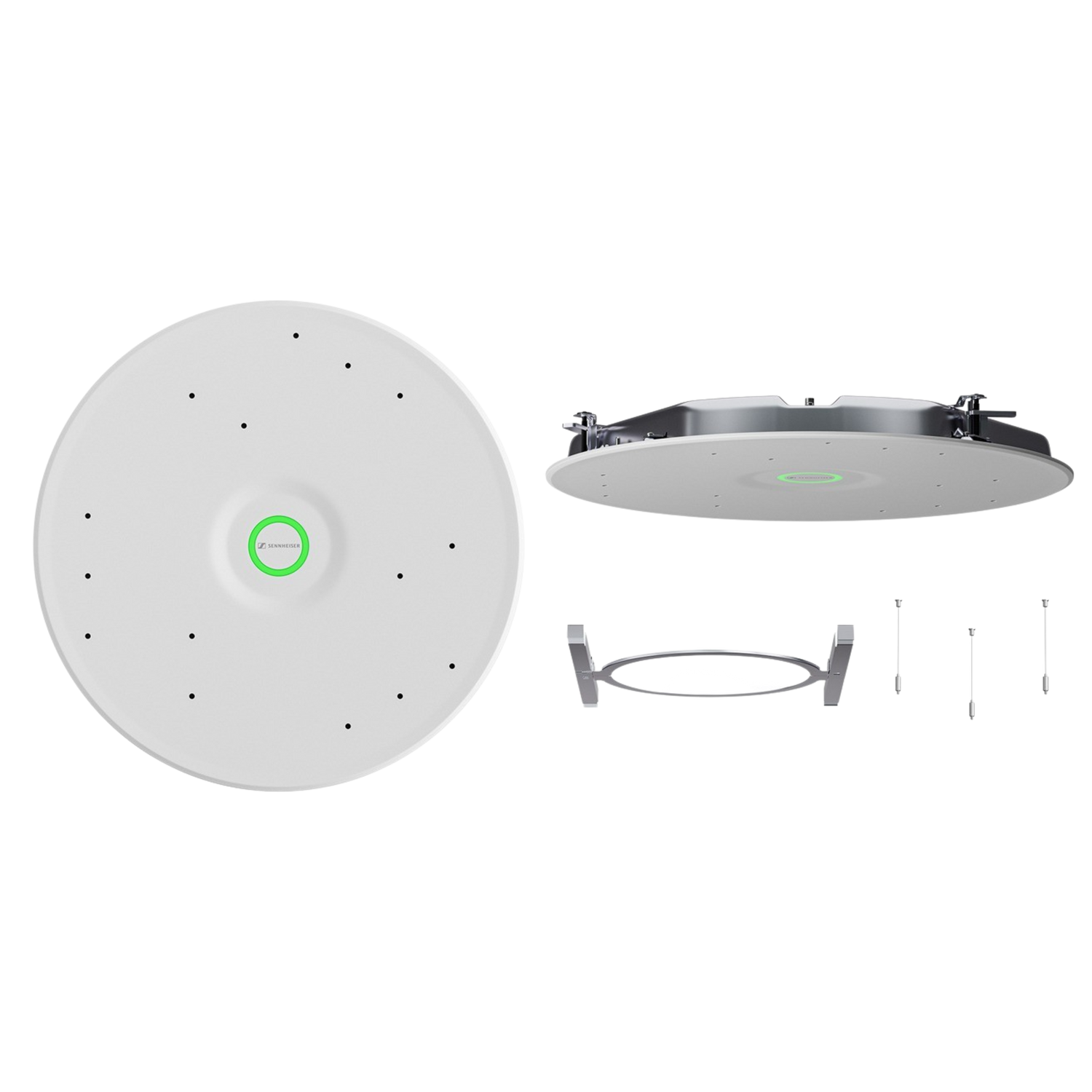

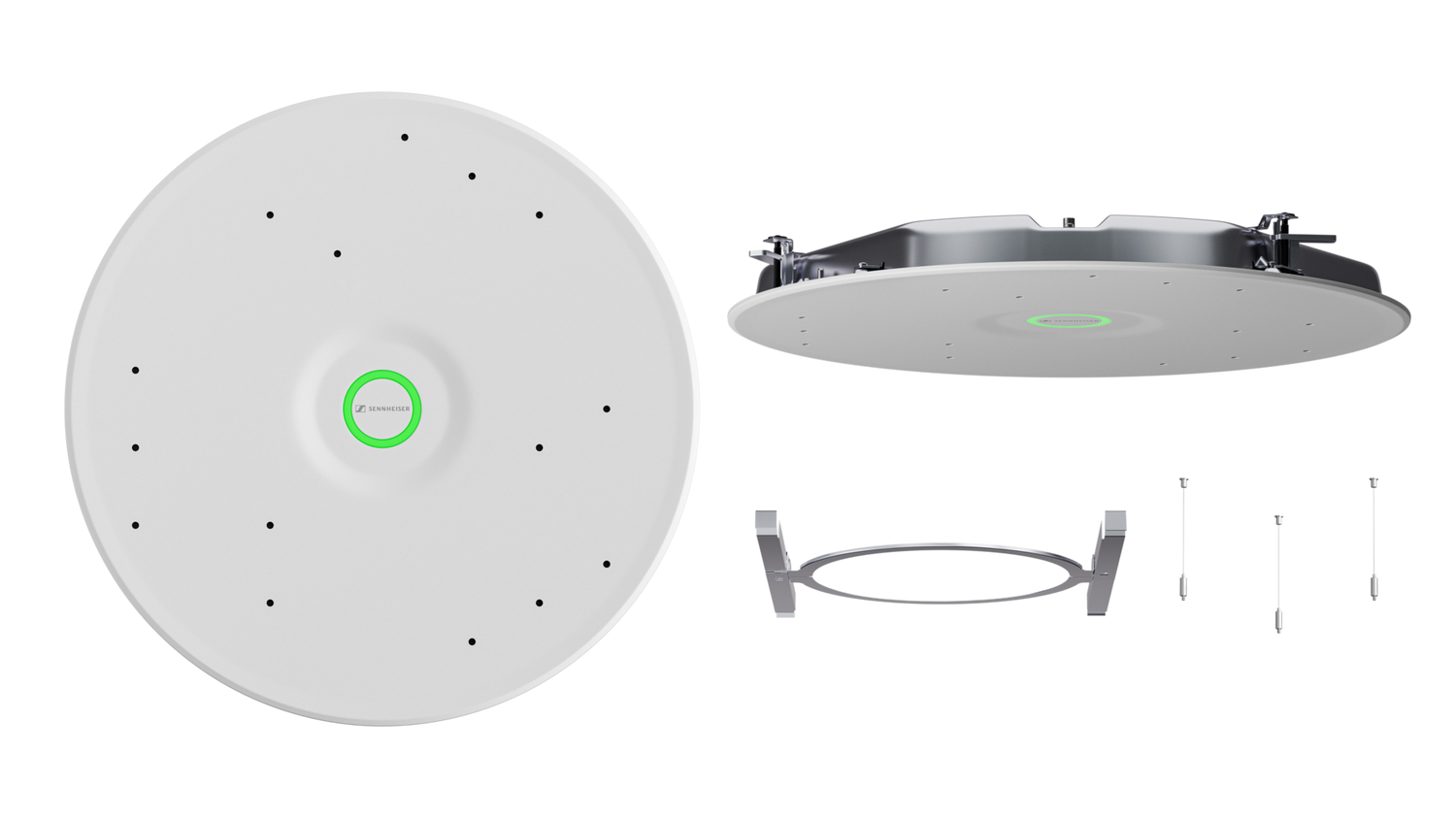

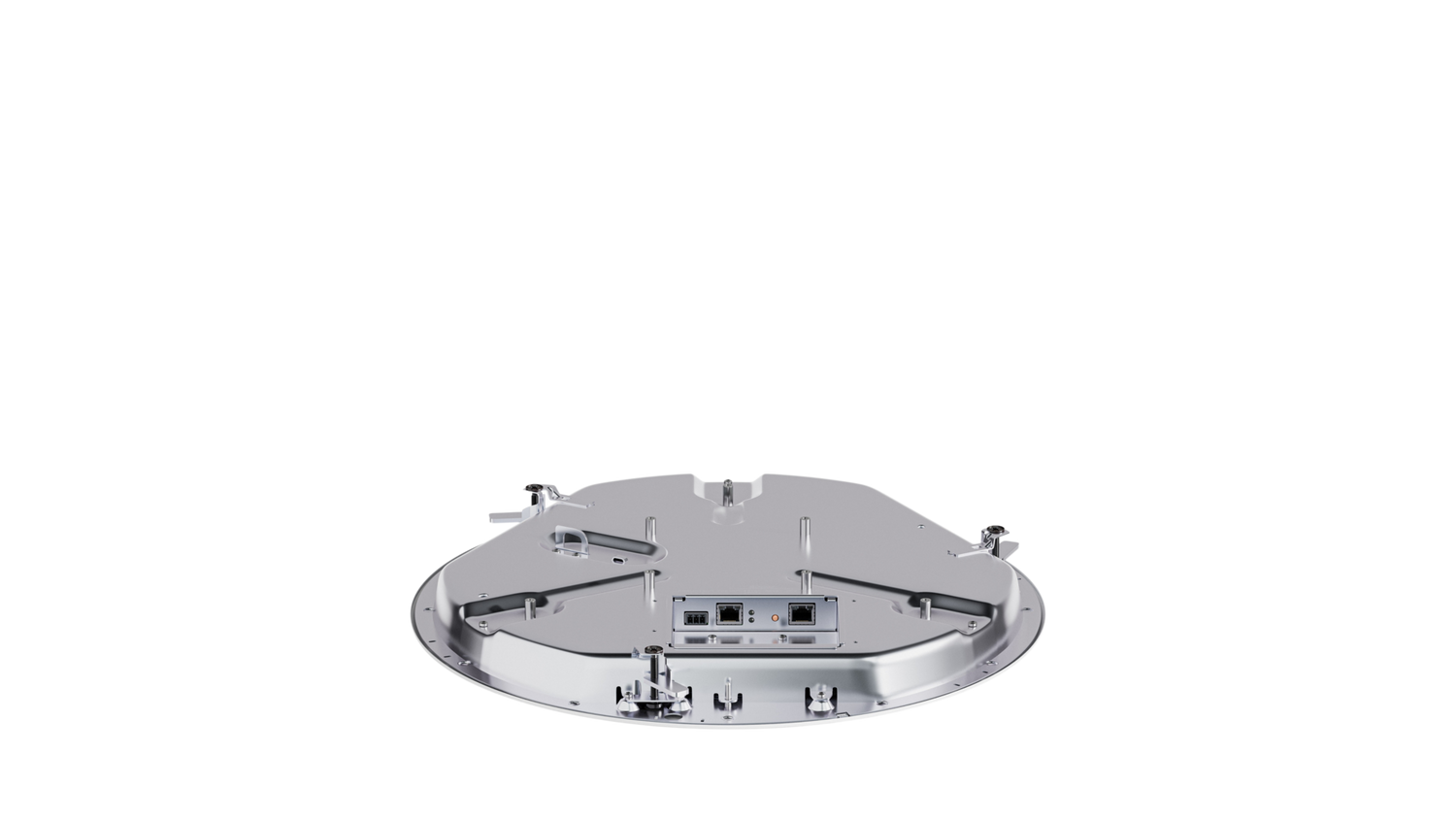

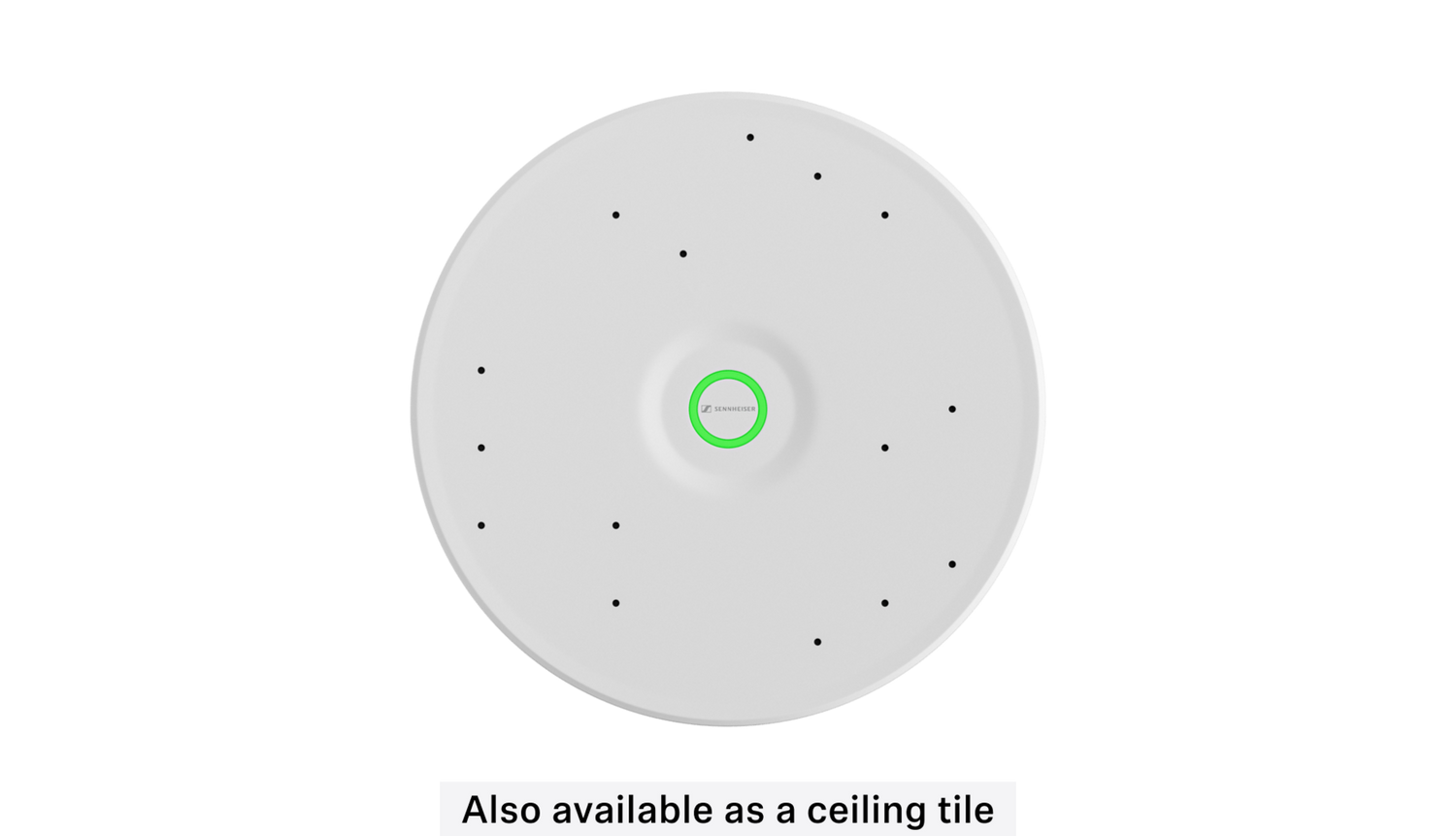

The flushmount kit (included with this SKU) positions the microphone body above the ceiling plane with only the front plate visible at ceiling level. Surface-mount places the entire body below the ceiling. Suspended and ceiling tile mount options are also available as separate accessories.

Does this product carry UL 2043 certification for plenum spaces?

Yes. The TCC M is certified to IEC/EN 62368-1, which includes UL 2043 testing for installation in plenum-rated air-handling spaces.

What is the warranty period?

Sennheiser provides a 5-year warranty on the TeamConnect Ceiling Medium, reflecting its commercial installation positioning.
