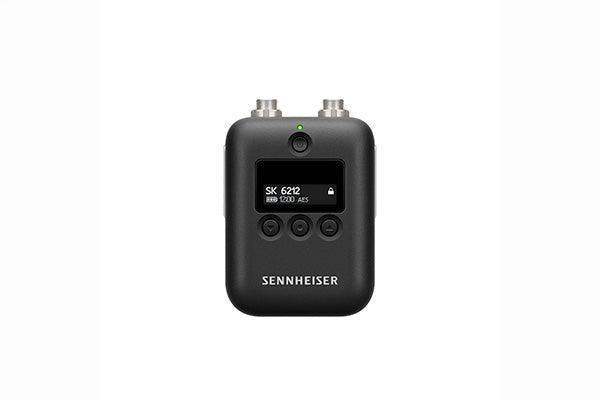

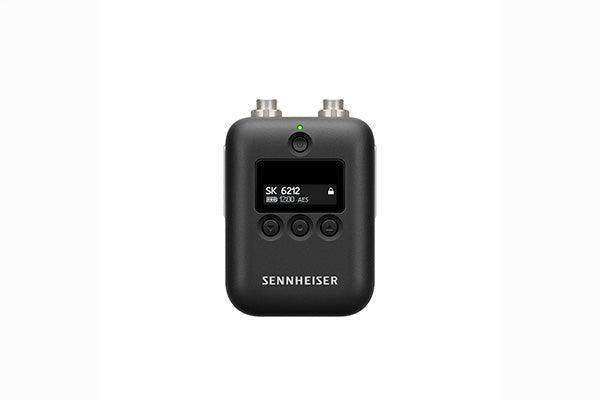

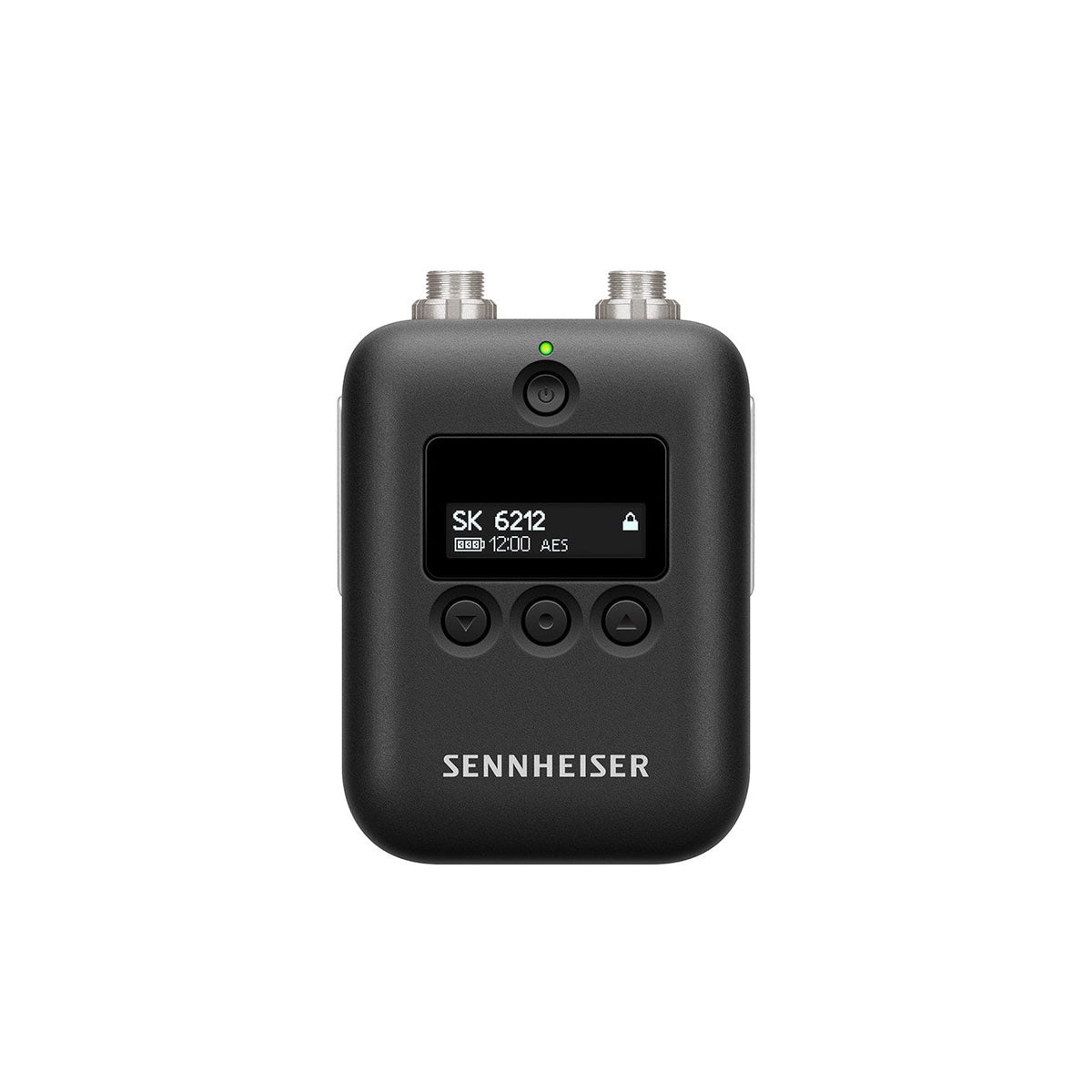

Sennheiser SK 6212 Mini bodypack transmitter, digital, LR mode, 3-pin SE plug, AES 256 encryption, black

Product Overview

The Sennheiser SK 6212 is the mini digital bodypack transmitter of the Digital 6000 series, stocked here in the A1-A4 (470.200–558.000 MHz) and A5-A8 (550.000–638.000 MHz) ranges. It carries Long Range mode, the Sennheiser Digital Audio Codec and AES 256 encryption in a body small enough to conceal in costume — the transmitter specified when the pack must be invisible but the RF still has to hold in a high channel count system.

Product Description

Concealment is the SK 6212's reason for existing. At 0.24 lb and roughly 63 × 47 × 20 mm it hides where a full-size bodypack cannot — in a wig, a waistband, or the small of a dancer's back — which is why it is a fixture in musical theatre, opera and film. What separates it from other miniature transmitters is that it gives up nothing on the RF side: the same Long Range mode and SeDAC codec as the SK 6000, the same Link Density mode with SePAC for up to five channels per MHz, and the same AES 256 encryption.

The lockable 3-pin SE input accepts the Sennheiser lavalier and headworn range — MKE 1, MKE 2, MKE 40, HSP 2, HSP 4 and SL Headmic. Vertical and horizontal clips are supplied so the pack can be oriented to whatever the costume allows, along with a band-matched antenna. Because the pack is worn under clothing, plan for spares: flexible and stiff replacement antennas and BA 62 rechargeable battery packs are stocked as separate line items.

Pair the transmitter with an EM 6000 two-channel digital receiver or the EM 6000 Dante version for networked audio; it is also compatible with EK 6042 and EM 9046 in Long Range mode. Standardise charging across the inventory with an L 6000 charging station, and where size is not a constraint the SK 6000 bodypack offers longer runtime from the BA 61 pack.

Key Features

• Miniature Housing — At 0.24 lb it conceals in costume, wigs and waistbands.
• Long Range Mode — Delivers full-size Digital 6000 RF performance from a miniature body.
• SeDAC and SePAC Codecs — Provide reference audio quality in LR mode and up to five channels per MHz in LD mode.
• AES 256 Encryption — Secures audio for corporate, government and broadcast use.

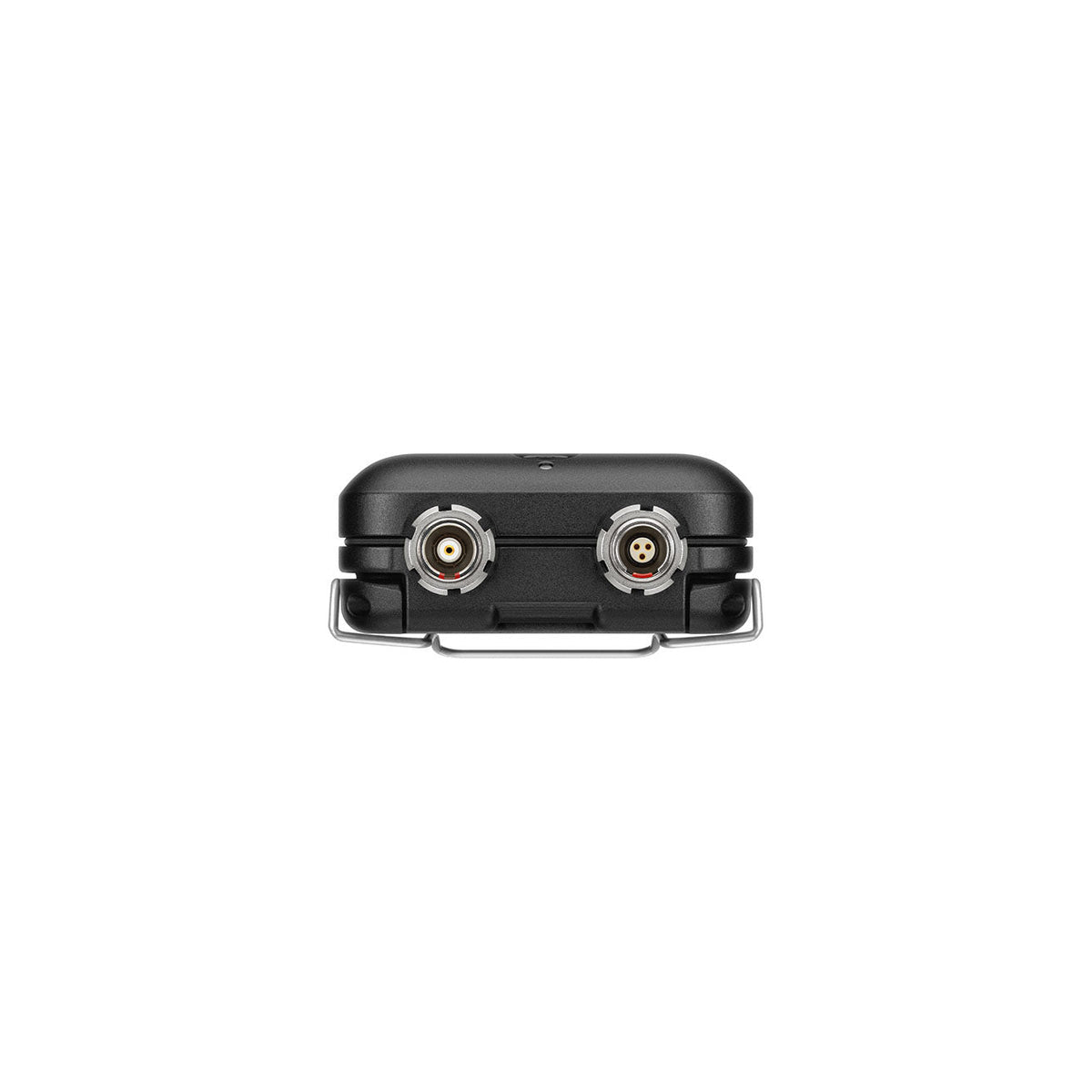

• Lockable 3-Pin SE Input — Accepts the Sennheiser MKE lavalier and HSP headworn range.

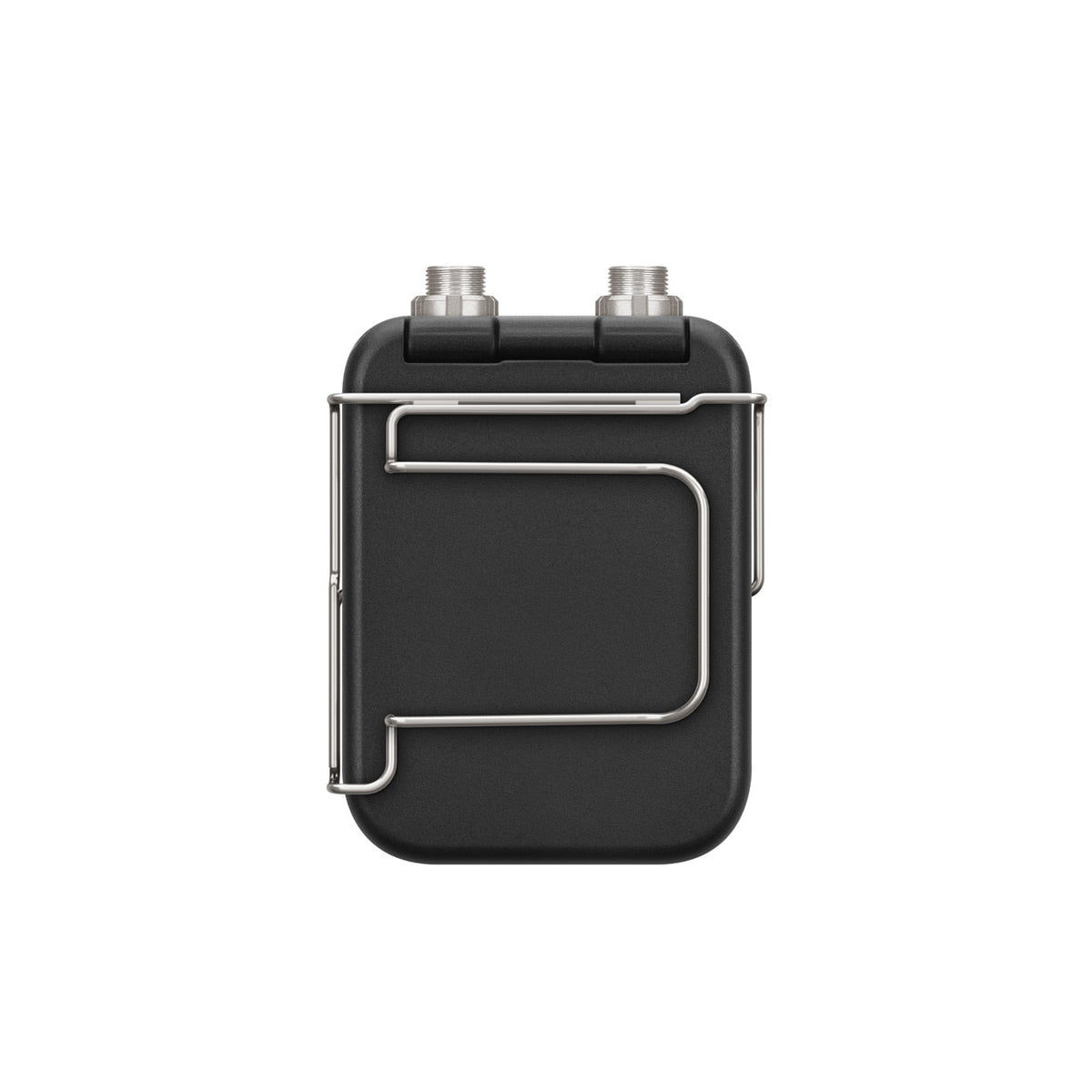

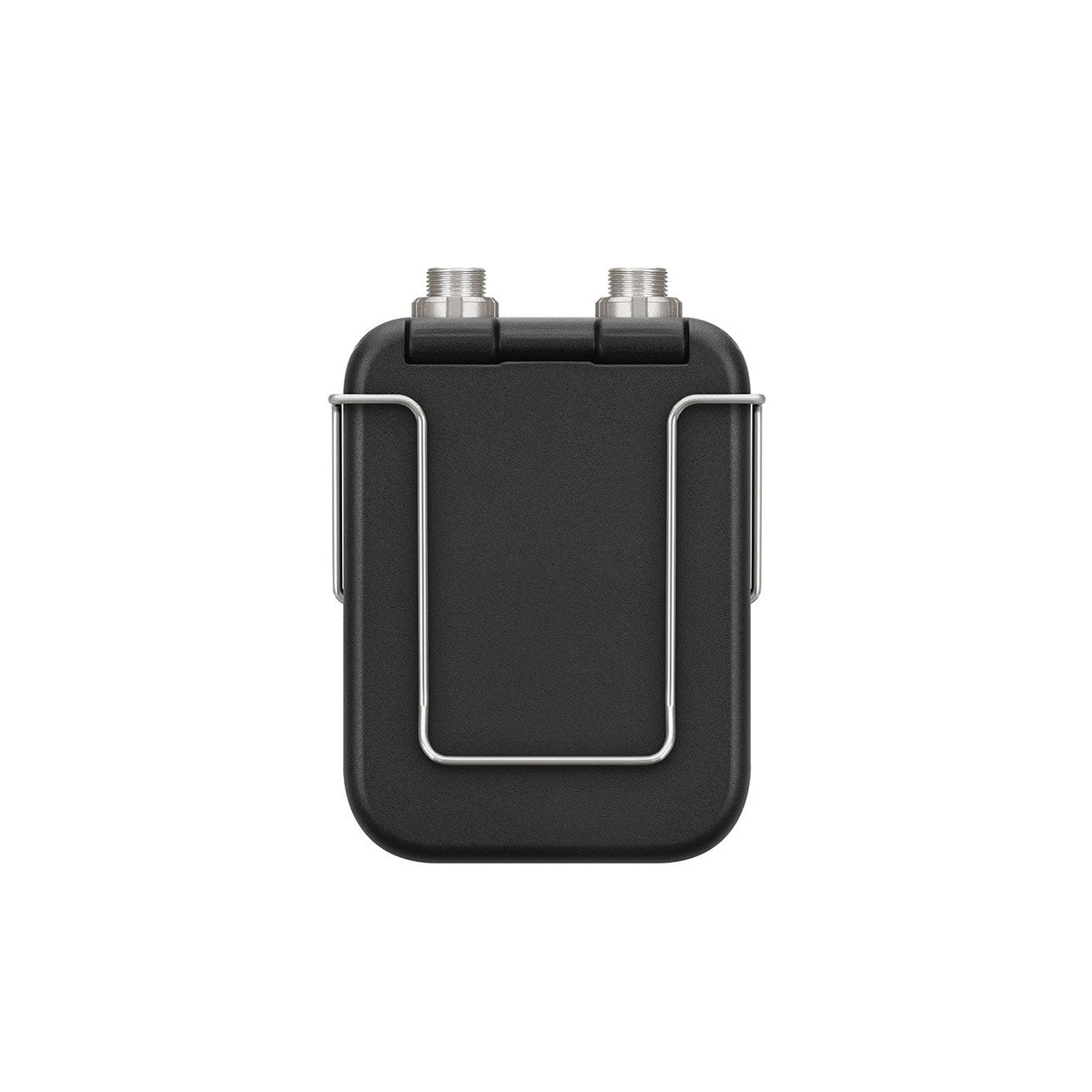

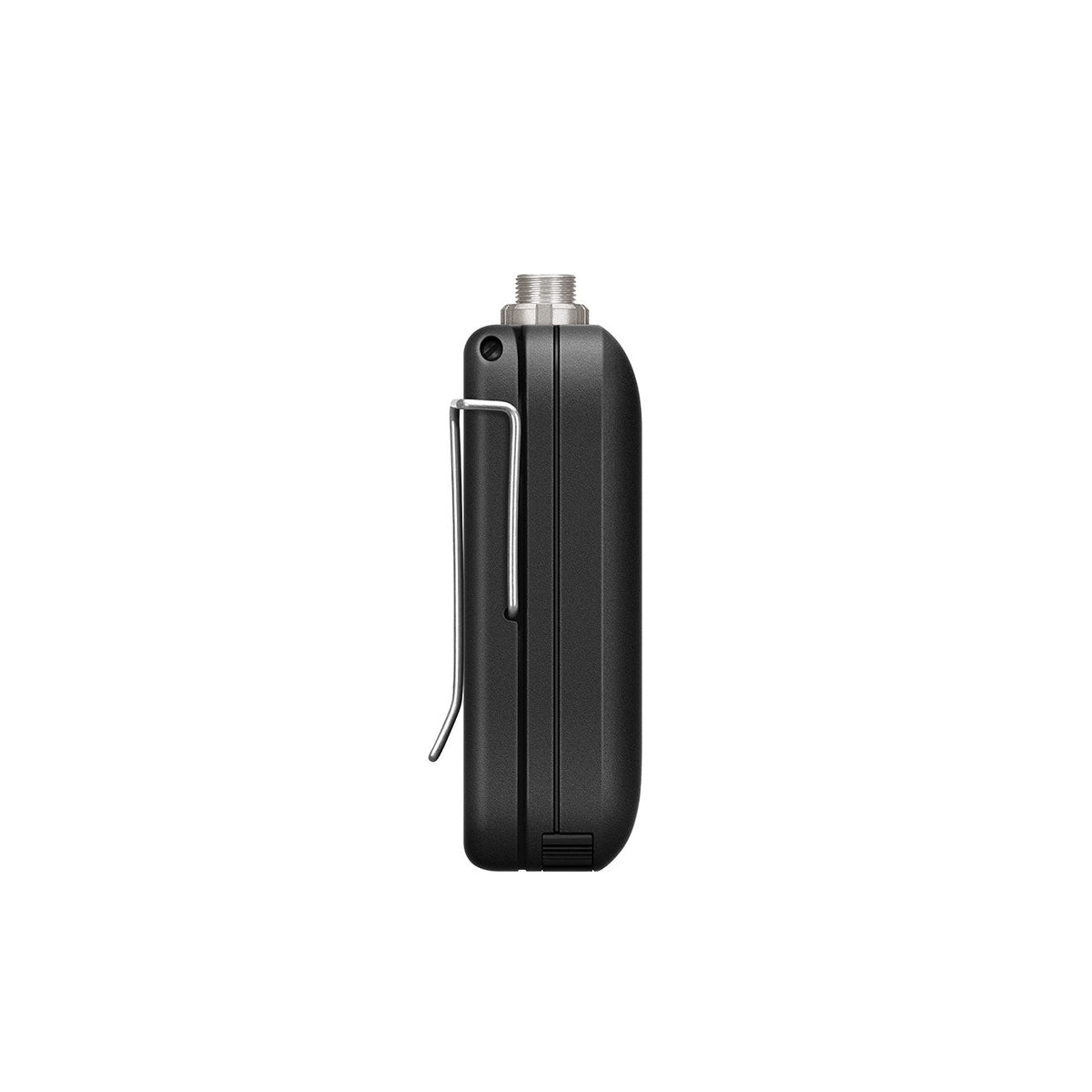

• Vertical and Horizontal Clips — Both orientations ship in the box for costume and harness mounting.
• Two Frequency Ranges — A1-A4 and A5-A8 variants cover 470–638 MHz across sites.

Typical Applications

• Theatres and auditoriums where transmitters must be concealed
• Broadcast studios and talent requiring an invisible pack
• Houses of worship with vested or costumed presenters
• All-hands rooms and large commercial meeting spaces
• Multi-purpose rooms and training rooms

Technical Specifications

What's in the Box

• (1) SK 6212 bodypack transmitter

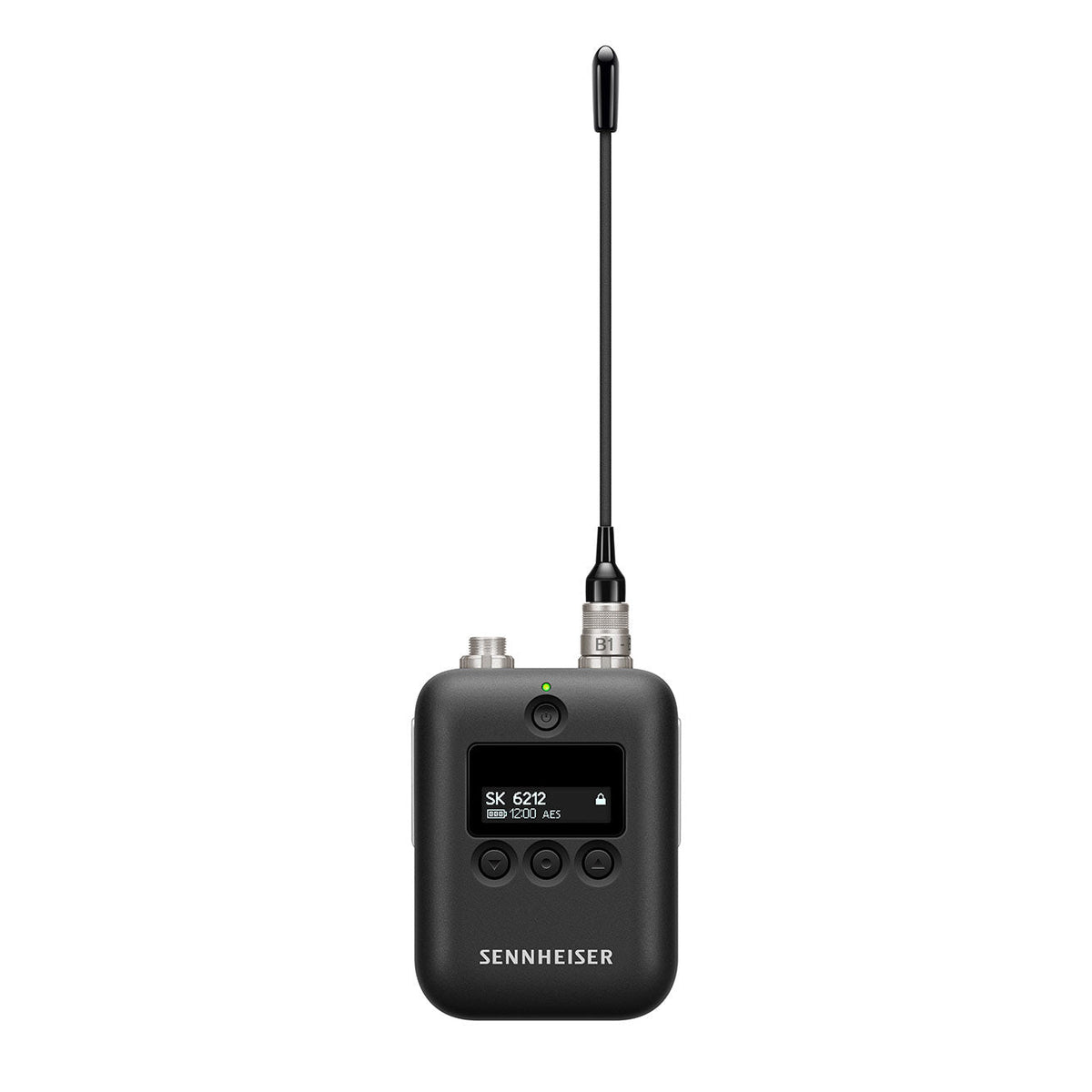

• (1) Antenna for SK 6212
• (1) Vertical clip
• (1) Horizontal clip
• (1) Quick guide
• (1) Safety guide
• (1) Manufacturer declaration sheet

Frequently Asked Questions

How does the SK 6212 differ from the SK 6000?

The SK 6212 is substantially smaller and lighter for concealment while carrying the same Long Range mode, SeDAC and SePAC codecs and AES 256 encryption. Specify the SK 6000 where size is not a constraint and longer runtime from the BA 61 pack matters more.

Which microphones can I connect?

The lockable 3-pin SE input accepts Sennheiser lavalier microphones (MKE 1, MKE 2, MKE 40) and headworn models (HSP 2, HSP 4, SL Headmic).

Which frequency range should I order?

A1-A4 covers 470.200–558.000 MHz and A5-A8 covers 550.000–638.000 MHz. Confirm the band is legal and clear in the deployment location, match it to the receivers on site, and coordinate frequencies against any co-located wireless systems before standardising on a band.

Which receivers does it pair with?

The EM 6000 and EM 6000 Dante two-channel Digital 6000 receivers, plus EK 6042 and EM 9046 in Long Range mode. The Dante version is the usual choice when the room is already on an audio network.

Are spare antennas and batteries available?

Yes. Flexible and stiff antennas and BA 62 rechargeable battery packs are stocked separately. Antennas are band-specific, so match the antenna to the transmitter's range.

How is a fleet of these charged and managed?

An L 6000 charging station standardises charging across Digital 6000 and 9000 transmitter packs, and Sennheiser control software handles frequency coordination and monitoring across the rack.

What warranty and support are available?

The SK 6212 carries Sennheiser's manufacturer warranty. Creation Networks supports integrators with frequency-coordination guidance, system design review and post-sale support.
