RGB Spectrum ZIO TCC-1002 – Standard Wireless Transportable Command Center

Product Overview

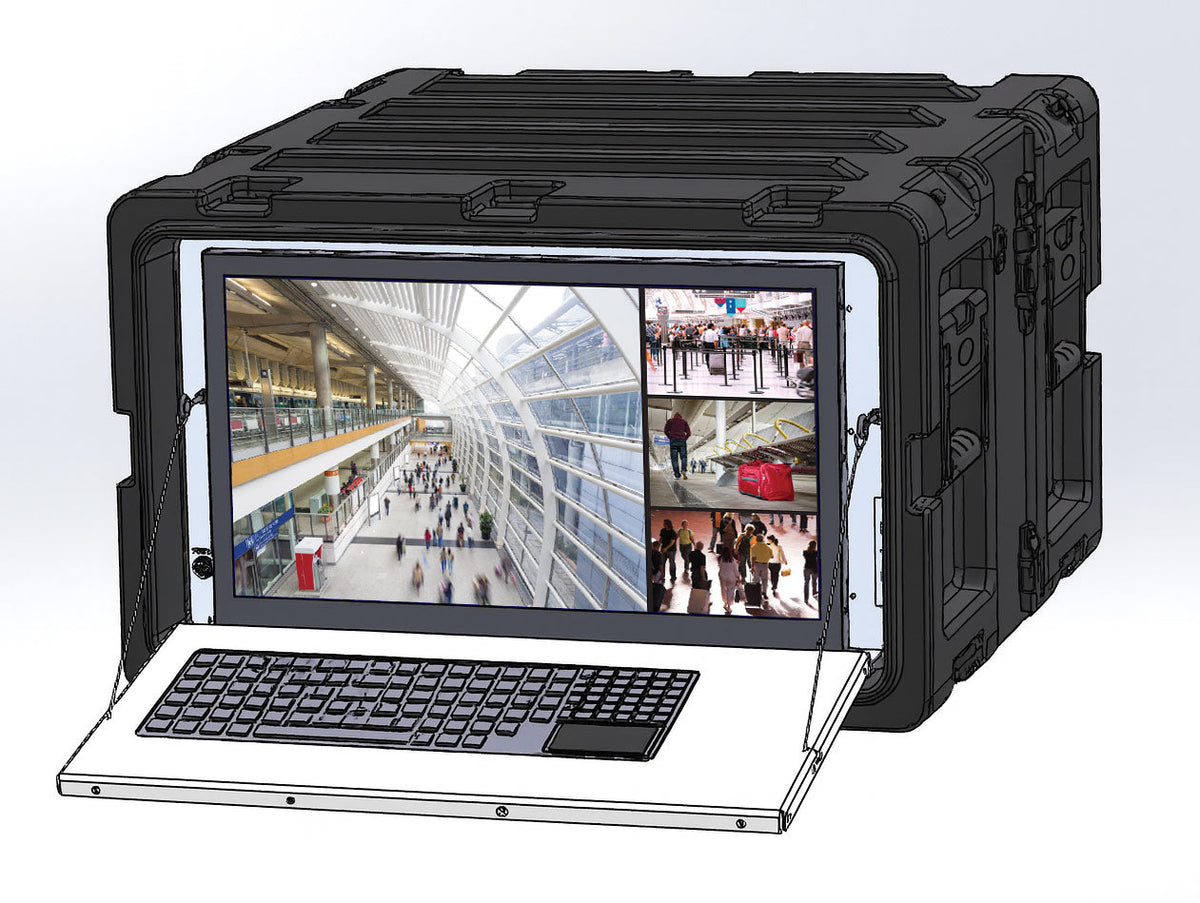

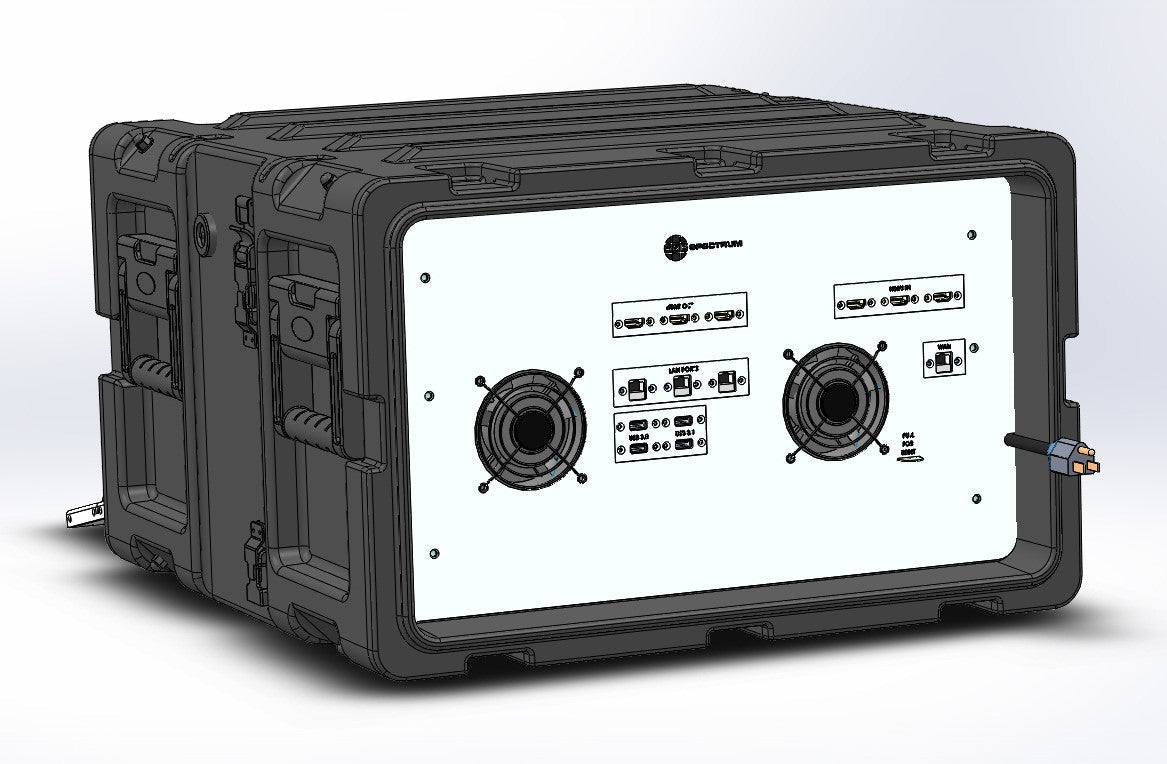

The RGB Spectrum ZIO TCC-1002 is a Zio Transportable Command Center supplied with standard wireless support and a Zio W4008 wall processor for mobile command. It is the standard-wireless configuration of the transportable command center, specified for deployable command center and emergency operations centre work where cellular or site connectivity is adequate without bonded backhaul. The system is built around a 5RU chassis with an integrated operator display, so a deployed team gets a complete operations position rather than a collection of loose equipment. It is chosen over a single-case fly away kit when the source and display count is higher.

Product Description

The TCC-1002 differs from the bonded-wireless part number in its wireless support: the price list specifies standard wireless here, where the ZIO TCC-1001 Transportable Command Center is specified with bonded, secure and resilient wireless. Both are supplied with a Zio W4008 wall processor chassis, which provides the multi-window layout control a command position needs across its displays. For a fixed installation using the same processing engine, the pre-configured Zio W4008-A with eight HDMI 2.0 outputs covers a conventional multi-display wall. Where the deployment is lighter and a single transit case is preferred, the ZIO FWK-1002 IPX Fly Away Kit provides standard cellular wireless with SuperView IPX multiviewing at 39 lbs, and the ZIO FWK-1001 is its bonded-wireless equivalent. When the deployed system works alongside a permanent Zio installation, local HDMI sources can be published to that network through encoder endpoints such as the Zio S2114 4K encoder endpoint, and the recorded operational picture can be retained on a Zio R4440 recorder back at the fixed facility. RGB Spectrum does not publish a specification table, datasheet or part number for the TCC-1002 designation, so input and output counts, encoding channels, networking, display and chassis figures must be confirmed in writing before the deployment is designed. Creation Networks obtains that confirmation from RGB Spectrum as part of specification and procurement support.

Key Features

• Standard wireless configuration — The price list specifies standard wireless support for this part number, suiting sites where bonded backhaul is not required.
• Zio W4008 wall processor included — The system ships with a Zio W4008 wall processor, so multi-window layout control across the deployed displays is built in.
• Transportable command position — The Zio Transportable Command Center is designed to establish a working command position at a site with no fixed AV infrastructure.
• Alternative to bonded wireless — It is the lower-cost wireless configuration alongside the bonded, secure and resilient TCC-1001.
• Part of the Zio platform — Because it is built on Zio, a deployed system can interoperate with the encoders, decoders and recorders of a permanent installation.
• Specification confirmed before order — RGB Spectrum publishes no datasheet against this part number, so Creation Networks confirms the build detail in writing before purchase.

Typical Applications

• Command center — A deployable command position is established at an incident or event site using the system's own processing and networking.
• Emergency operations center — It extends EOC capability into the field where standard cellular or site connectivity is sufficient.
• Control room — It acts as a transportable control position for exercises, planned events and temporary facilities.
• Government space — Agency programmes get a transportable command system with wall processing included in a single ordered item.
• Operations center — Deployed staff run a multi-display operational picture while coordinating with the permanent operations centre.

Technical Specifications

RGB Spectrum publishes no specification table, datasheet or part number for the TCC-1002 designation. The list below is limited to what RGB Spectrum states for it in the price list.

• Part number — ZIO TCC-1002
• Product type — Zio Transportable Command Center
• Wireless support — Standard wireless support
• Included processor — Zio W4008
• Intended use — Mobile command

RGB Spectrum does not publish a datasheet for this part number. Contact Creation Networks for confirmed specifications before ordering.

Part number, configuration and included items as published by RGB Spectrum in its price list.

Frequently Asked Questions

What does the TCC-1002 part number cover?
The RGB Spectrum price list describes it as a Zio Transportable Command Center with standard wireless support and a Zio W4008 for mobile command.

How does it differ from the TCC-1001?
The price list difference is wireless support: standard wireless on the TCC-1002 and bonded, secure and resilient wireless on the ZIO TCC-1001.

How many inputs, outputs and displays does it provide?
RGB Spectrum publishes no specification table against this part number. Request written confirmation of input and output counts, encoding channels and display specification from Creation Networks before ordering.

Is it supplied in a travel case or a rack?
RGB Spectrum does not publish a form factor for this part number. Confirm the chassis configuration, transport dimensions and weight with Creation Networks before planning transport.

What power and environmental limits apply?
None are published for this part number. Ask Creation Networks for written confirmation before planning vehicle, generator or shore power for a deployment.

Will it work with our existing Zio system?
It is a Zio platform product supplied with a Zio W4008, so it is intended to interoperate with Zio encoders such as the Zio S2114 and recorders such as the Zio R4440. Confirm the interoperability detail for your system before ordering.

When would a Fly Away Kit be the better choice?
Where one person must carry the system, the ZIO FWK-1002 is a 39 lb single-case kit with three HDMI inputs and SuperView IPX multiviewing.

What warranty and support apply?
The RGB Spectrum manufacturer warranty applies to this part number, and Creation Networks supports specification and procurement, including written confirmation of the current warranty terms before you place the order.
