RGB Spectrum ZIO TCC-1001 – Bonded Wireless Transportable Command Center

Product Overview

The RGB Spectrum ZIO TCC-1001 is a Zio Transportable Command Center supplied with bonded, secure and resilient wireless support and a Zio W4008 wall processor for mobile command. It packages seven HDMI 2.0 inputs, three 4K-capable HDMI outputs, encoding, networking and an operator display into a 5RU system available as a rugged shock-mounted travel case or a standard rack. Deployable command center and emergency operations center work is the primary use case, where a full operations position has to be established at a site with no fixed AV infrastructure. It is specified when a single-case fly away kit is too small for the number of sources and displays required.

Product Description

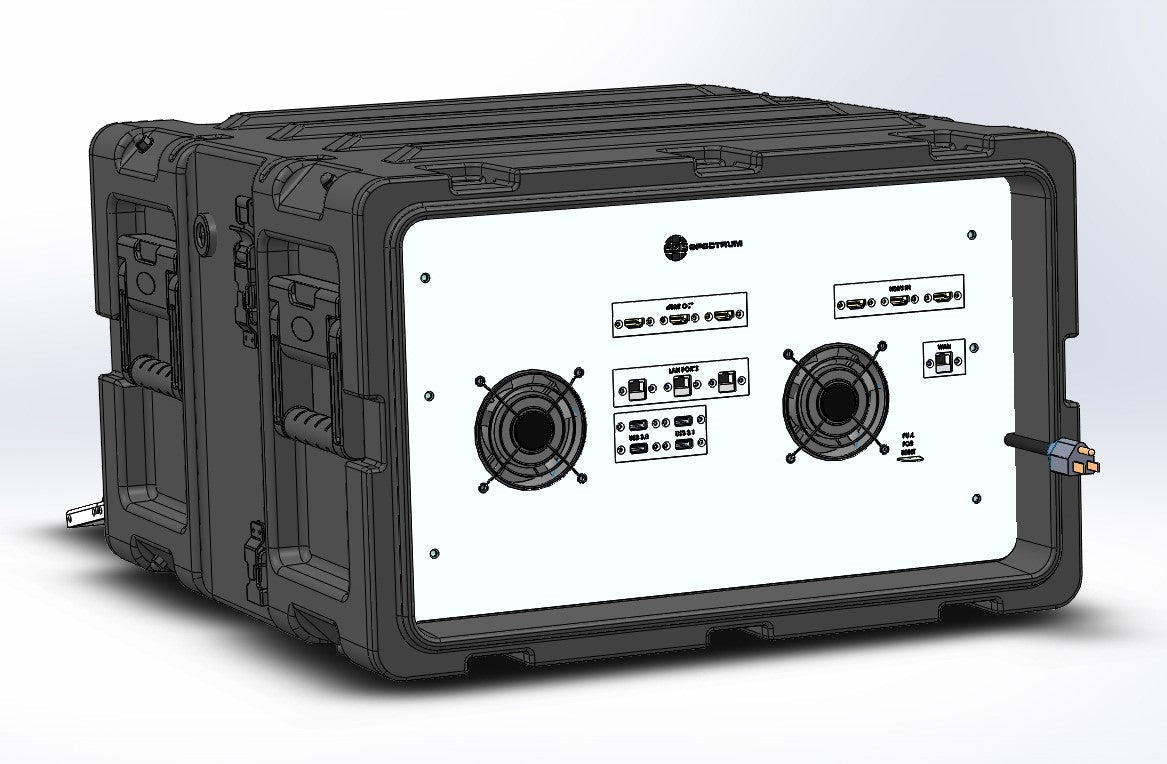

RGB Spectrum publishes the Zio Transportable Command Center in two 5RU form factors, a rugged shock-mounted travel case and a standard rack, with seven HDMI 2.0 inputs, three HDMI 2.0 outputs up to 3840x2160p60, four channels of input encoding and one channel of multi-signal output encoding. That encoding capability is what lets a deployed team send the local operational picture back to a permanent facility rather than only viewing it on site. Networking covers three 1GbE wired LAN ports, Wi-Fi 6, one 1GbE wired WAN and a wireless WAN configuration that RGB Spectrum publishes as standard optional bonded signal, dual-SIM card, cellular service and SAT, which matches the bonded, secure and resilient wireless support the price list states for this part number. An embedded Windows 10 Enterprise IoT LTSC PC with 128GB available storage runs local applications, and the operator sees an 18.5-inch 1920x1080 display rated at 300 cd/m2. Video wall processing is handled by the Zio W4008 wall processor chassis supplied with the system; where a fixed installation needs the same processing engine, the pre-configured Zio W4008-A with eight HDMI 2.0 outputs and Zio W4008-C with 4K60 IP inputs and an 8Kp60 output cover common output counts. The lighter alternative is the ZIO FWK-1001 IPX Fly Away Kit, a 39 lb single-case system with three HDMI inputs; the standard wireless version of this command center is the ZIO TCC-1002 Transportable Command Center. Local HDMI sources can be published to a fixed Zio network through encoder endpoints such as the Zio S2114 when the deployed system operates alongside a permanent installation. RGB Spectrum publishes no power or environmental specifications for the product, so confirm those with Creation Networks before planning vehicle or generator power.

Key Features

• Seven HDMI 2.0 inputs — Seven inputs accommodate the cameras, laptops, receivers and third-party systems a deployed command post collects on arrival.
• Three 4K HDMI outputs — Three HDMI 2.0 outputs up to 3840x2160p60 drive an operator display plus additional monitors or a small wall.
• Zio W4008 wall processor included — The system ships with a Zio W4008 wall processor, so multi-window layout control is built in rather than added later.
• Bonded, resilient wireless support — The price list specifies bonded, secure and resilient wireless for this part number, and RGB Spectrum publishes bonded dual-SIM cellular and SAT options for the line.
• Five channels of encoding — Four channels encode the video inputs and one encodes the multi-signal output, so the local picture can be sent back to a permanent facility.
• Two 5RU form factors — The same system is available as a rugged shock-mounted travel case or a standard rack, so it suits both deployment and fixed vehicle installation.
• Three wired LAN ports plus Wi-Fi 6 — On-board wired and wireless networking means the system brings its own local network to the site.
• Embedded Windows PC — A Windows 10 Enterprise IoT LTSC PC with 128GB available storage runs mission applications inside the chassis.

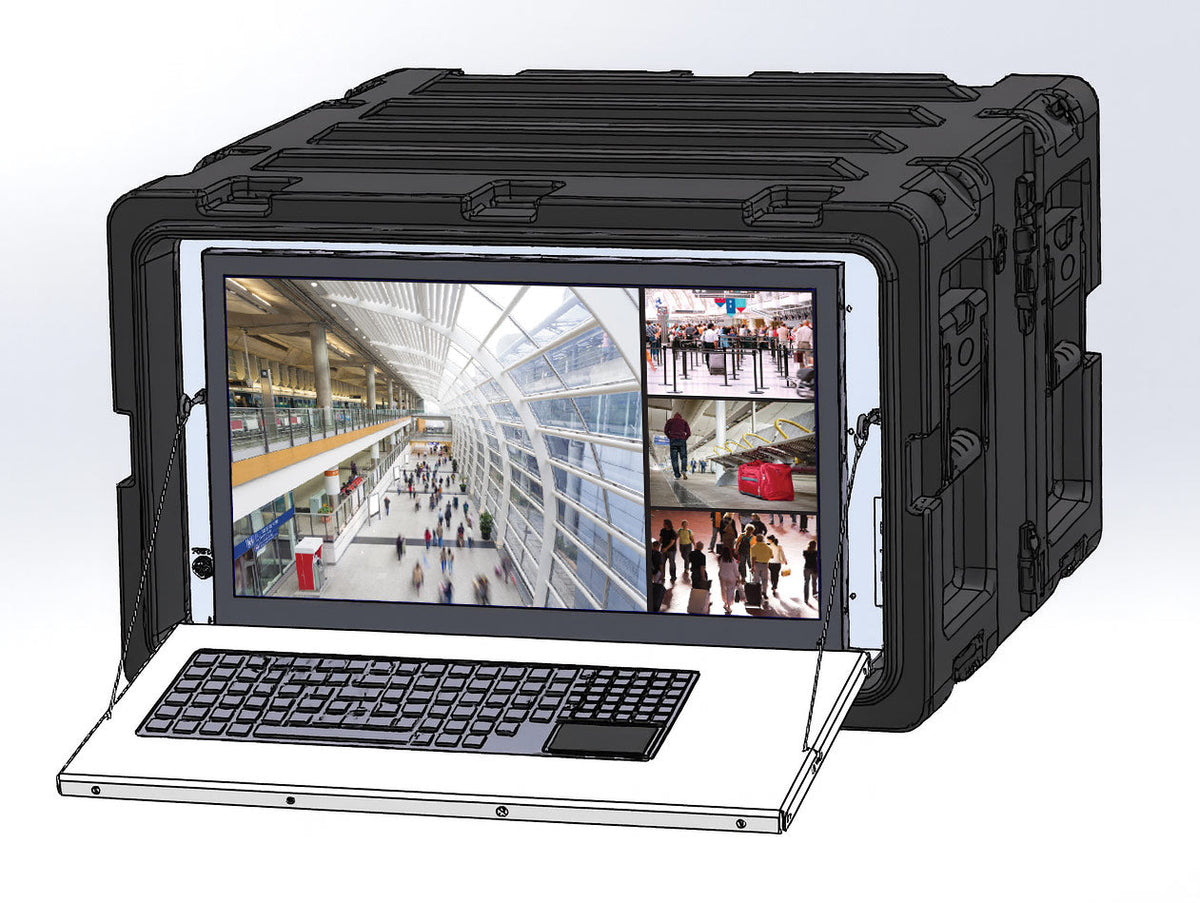

• Integrated operator display — An 18.5-inch 1920x1080 panel gives the deployed operator a working position without a separate monitor to transport.

Typical Applications

• Command center — A complete deployable command position with seven inputs, wall processing and encoding is established wherever the incident is.
• Emergency operations center — The system extends EOC capability to the field and encodes the local picture back to the permanent facility.
• Control room — It serves as a transportable control position for planned events, exercises and temporary sites.
• Government space — Agency programmes get a self-contained 5RU command system in either a rugged travel case or a standard rack.
• Operations center — Deployed staff aggregate field video onto multiple displays while remaining connected to the parent operations centre.

Technical Specifications

RGB Spectrum publishes these specifications for the Zio Transportable Command Center product line rather than against individual part numbers. No power or environmental specifications are published.

Specifications published by RGB Spectrum.

Frequently Asked Questions

What does the TCC-1001 part number include?
The RGB Spectrum price list describes it as a Zio Transportable Command Center with bonded, secure and resilient wireless support and a Zio W4008 for mobile command.

Which form factor is supplied?
RGB Spectrum publishes two 5RU configurations for the product line, a rugged shock-mounted travel case and a standard rack. Confirm which configuration this part number is built as with Creation Networks before ordering.

How many sources and displays does it support?
Published figures are seven HDMI 2.0 inputs and three HDMI 2.0 outputs up to 3840x2160p60, with four channels of input encoding and one channel of multi-signal output encoding.

How does it connect back to a permanent facility?
Published networking is three 1GbE wired LAN, Wi-Fi 6, one 1GbE wired WAN and a wireless WAN with standard optional bonded signal, dual-SIM cellular service and SAT.

What are the transport weight and dimensions?
RGB Spectrum publishes 120 to 130 lbs / 54.43 to 58.97 kg depending on configuration, with the transportable rack case at 15.25 x 24 x 31.5 inches and the standalone rack at 11 x 21 x 22 inches.

What power does it need?
RGB Spectrum publishes no power or environmental specifications for this product. Ask Creation Networks for written confirmation before planning vehicle, generator or shore power.

How does it differ from the Fly Away Kit?
The ZIO FWK-1001 is a 39 lb single-case system with three HDMI inputs and SuperView IPX; the TCC is a 5RU system with seven inputs, three outputs and a Zio W4008 wall processor.

What warranty and support apply?
The RGB Spectrum manufacturer warranty applies to this part number, and Creation Networks supports specification and procurement, including written confirmation of the current warranty terms before you place the order.
