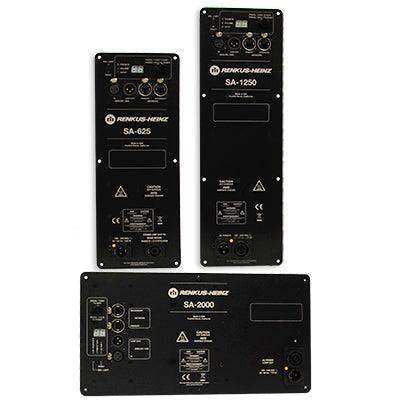

Renkus-Heinz SA1250-RN SA Series Amplifiers

Product Overview

The Renkus-Heinz SA1250-RN is an SA Series amplifier module with RHAON II network control, outputting 1000 W plus 250 W to power larger Renkus-Heinz C Series and T Series loudspeakers and subwoofers. This commercial-grade amplifier module adds networked control and monitoring to the higher-power SA1250 platform, with single Dante available, suiting auditoriums, houses of worship, and multi-purpose rooms that rely on centralized AV management.

Product Description

Designed and built in the USA, the SA1250-RN delivers 1000 W on the low-frequency channel and 250 W on the high-frequency channel for larger 12-inch and 15-inch loudspeakers and subwoofers. Native DSP provides delay, equalization, and nine preset memories, and RHAON II offers Ethernet-based control and monitoring across the system. The -RN configuration is built around RHAON network operation with analog and AES inputs standard and single Dante audio networking available. A proprietary Amplifier Mute engages on program pauses. The SA Series approach unifies Renkus-Heinz loudspeakers across connectivity and control platforms, allowing models to be freely combined within a networked design.

Key Features

• 1000 W + 250 W Output — Higher-power two-channel amplification for larger C and T Series loudspeakers and subwoofers.
• RHAON II Network Control — Standard Ethernet-based control and monitoring with single Dante audio networking available.
• Native DSP — Onboard delay, equalization, and nine preset memories tailor performance to each loudspeaker.
• Analog and AES Inputs — Flexible input options for analog and digital signal sources.
• Amplifier Mute — Proprietary muting engages during program pauses to keep the system quiet.
• Loudspeaker Unification — Enables Renkus-Heinz loudspeaker models to be freely combined across a system.
• Designed and Built in the USA — Engineered for clean, accurate output with complex program material.

Typical Applications

• Auditorium
• House of worship
• Commercial meeting space
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

How does the SA1250-RN compare to the SA1250-A and SA1250-RD?
All deliver 1000 W + 250 W with RHAON II control. The -A uses analog and AES inputs, the -RN adds RHAON networking with single Dante, and the -RD adds dual-redundant Dante.

Which loudspeakers does it power?
It suits larger Renkus-Heinz C Series and T Series loudspeakers and subwoofers that require more power than the SA625.

What processing is built in?
Native DSP provides delay, equalization, and nine preset memories, configured through RHAON II software over Ethernet.

Is Dante audio supported?
Single Dante audio networking is available on the -RN configuration; the -RD model provides dual-redundant Dante.

What warranty and support are available?
Warranty terms vary by configuration. Contact Creation Networks for current Renkus-Heinz warranty details and system support.
