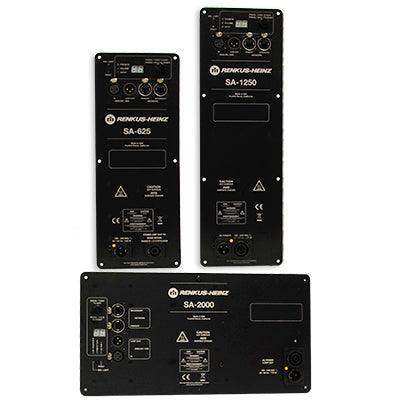

Renkus-Heinz SA1250-A SA Series Amplifiers

Product Overview

The Renkus-Heinz SA1250-A is an SA Series amplifier module that outputs 1000 W plus 250 W, providing the higher power needed for larger Renkus-Heinz C Series and T Series loudspeakers and subwoofers. This commercial-grade amplifier module pairs native DSP with standard RHAON II network control, and the -A configuration offers analog and AES inputs for straightforward integration into install AV systems in auditoriums, houses of worship, and multi-purpose rooms.

Product Description

Designed and built in the USA, the SA1250-A delivers 1000 W on the low-frequency channel and 250 W on the high-frequency channel, doubling the output of the SA625 to support larger 12-inch and 15-inch loudspeakers and subwoofers. Native DSP includes delay, equalization, and nine available preset memories, while RHAON II provides Ethernet-based control and monitoring as standard. Inputs are analog and AES, with single or redundant Dante and fiber-optic options available on higher configurations. A proprietary Amplifier Mute engages whenever program audio pauses. As part of the SA Series, the SA1250-A helps unify Renkus-Heinz loudspeakers across connectivity and control platforms so models can be freely combined.

Key Features

• 1000 W + 250 W Output — Higher-power two-channel amplification for larger C and T Series loudspeakers and subwoofers.
• Native DSP — Onboard delay, equalization, and nine preset memories tailor performance to each loudspeaker and room.
• RHAON II Control — Standard Ethernet-based control and monitoring integrate the module into networked AV systems.
• Analog and AES Inputs — Flexible input options for analog and digital signal sources.
• Amplifier Mute — Proprietary muting engages during program pauses to keep the system quiet between cues.
• Loudspeaker Unification — Enables Renkus-Heinz loudspeaker models to be freely combined across a system.
• Designed and Built in the USA — Engineered for clean, accurate output with complex program material.

Typical Applications

• Auditorium
• House of worship
• Commercial meeting space
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

How does the SA1250-A differ from the SA625-A?
The SA1250-A doubles the output to 1000 W + 250 W (versus 500 W + 125 W on the SA625), supporting larger loudspeakers and subwoofers that require more power.

What are the SA1250-RN and SA1250-RD versions?
All share 1000 W + 250 W amplification and RHAON II control. The -RN adds RHAON networking with single Dante, and the -RD adds dual-redundant Dante for critical systems.

What processing is built in?
Native DSP provides delay, equalization, and nine preset memories, configured through RHAON II software over Ethernet.

Which loudspeakers should I pair with it?
It suits larger C Series and T Series loudspeakers and subwoofers. Contact Creation Networks to confirm the right module for your specific loudspeakers.

What warranty and support are available?
Warranty terms vary by configuration. Contact Creation Networks for current Renkus-Heinz warranty details and system support.
