Renkus-Heinz SA112‐RN Self‐Powered with RHAON, SA2000‐RN

Product Overview

The Renkus-Heinz SA112-RN is a compact self-powered 12-inch subwoofer with RHAON II network control, built for indoor commercial installations that need tight low frequency without an external amplifier. The integrated SA2000-RN amplifier module provides up to 2000 W with onboard DSP, analog and AES inputs, and RHAON II monitoring over standard Ethernet. The ultra-compact ported design delivers low-turbulence bass from 37 Hz, making it an easy-to-integrate install subwoofer for conference centers, houses of worship, and multi-purpose rooms.

Product Description

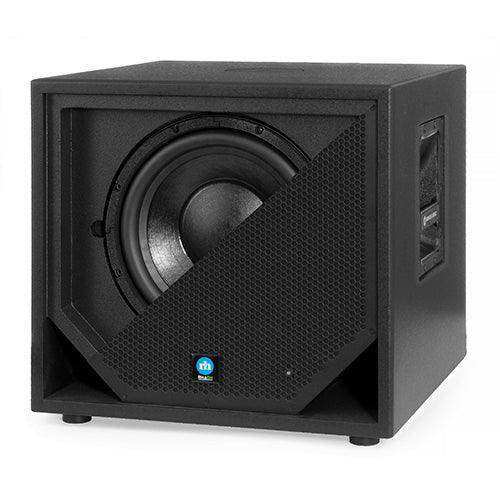

The SA112-RN mounts a single SSL12-11 12-inch woofer in an ultra-compact 19 mm Lite Ply enclosure with large, low-turbulence ports. The integrated SA2000-RN amplifier module supplies 2000 W at 8 ohms with optimal woofer damping and factory-tuned multi-band limiting, removing the rack space and speaker cabling of an external amplifier. The RN module provides analog and AES inputs on looping XLR-3 connectors plus RHAON II control over a looping Ethernet network, so DSP and presets can be managed from a Windows workstation.

Onboard DSP includes eight fully parametric EQ filters, high and low shelving, high- and low-pass filters, and up to 340 ms of delay with a 100 Hz active crossover. Sixteen M10 universal mounting points and an M20 pole socket support flown and pole-mounted use. For redundant Dante and a weather-resistant cabinet, choose the SA112-RD-WR; for greater output, step up to the SA118-RD-WR. Browse the full Renkus-Heinz loudspeaker range for matching tops.

Key Features

• Compact self-powered 12-inch subwoofer — A single high-excursion SSL12-11 woofer in an ultra-compact ported cabinet delivers tight low frequency where space is limited.
• SA2000-RN amplifier module — An onboard 2000 W amplifier with optimal damping and multi-band limiting removes external amplifier cost, rack space, and speaker cabling.
• RHAON II networked control — Configure DSP, recall presets, and monitor status over standard looping Ethernet from a Windows workstation.
• Analog and AES inputs — Looping XLR-3 connectors accept analog and AES signal for flexible distribution in mixed systems.
• Onboard multi-channel DSP — Eight parametric EQ bands, shelving, high/low-pass filters, and up to 340 ms delay with a 100 Hz active crossover.
• Flexible mounting — Sixteen M10 universal points and an M20 pole socket support flown, ground-stacked, and pole-mounted use.

Typical Applications

• Conference room — Adds discreet, controlled low frequency for AV playback in larger conferencing spaces.
• House of worship — Delivers tight sub-bass for music and program audio with a compact footprint.
• Multi-purpose room — Supports flexible music and AV playback in convertible event spaces.
• Commercial meeting space — Reinforces program audio in boardrooms and presentation environments.
• Government space — Reinforces speech and program audio in civic meeting rooms.

Technical Specifications

Competitor Comparison

Verify current competitor specifications with each manufacturer; comparison reflects general product positioning, not measured test data.

Frequently Asked Questions

What does the RN designation mean?
RN indicates the SA2000-RN amplifier with analog and AES inputs plus RHAON II control and monitoring over Ethernet. For redundant Dante, choose an RD model such as the SA112-RD-WR.

Is this model weather-resistant?
The standard SA112-RN is intended for indoor installation. For covered outdoor or high-humidity sites, specify the weather-resistant SA112-RD-WR.

Does it need an external amplifier or processor?
No. The SA2000-RN amplifier and DSP are built in, so the subwoofer needs only power and a signal feed (analog or AES).

How does it integrate with a networked AV system?
Manage DSP, presets, and monitoring over RHAON II from a Windows workstation. It combines with Renkus-Heinz tops on the same network for unified control.

What warranty and support are included?
Covered by the Renkus-Heinz manufacturer warranty. Contact the Creation Networks team for current warranty terms, system design, and post-installation support.
