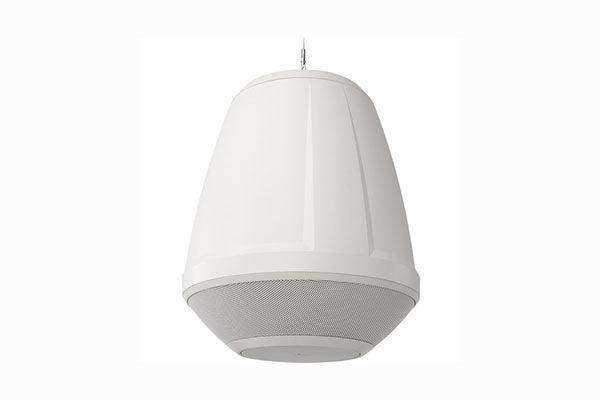

QSC AD-P.HALO – AcousticDesign 6.5-Inch Integrated SUB-SAT Pendant System (White)

Product Overview

The QSC AD-P.HALO (white) is an integrated SUB-SAT pendant loudspeaker system that delivers full-range, music-forward sound for open-ceiling commercial spaces. Combining a 6.5-inch subwoofer and four 2.75-inch satellite transducers in a single pendant enclosure, this AcousticDesign Series pendant loudspeaker arrives ready to hang with no assembly. With a 200 W RMS rating and 70/100V transformer, it is a high-performance business-music pendant speaker for retail, hospitality, and multi-purpose rooms.

Product Description

The AD-P.HALO pairs a 165 mm (6.5-inch) dual-voice-coil subwoofer with four 69.85 mm (2.75-inch) full-range satellite transducers in one injection-molded ABS enclosure, crossed over at 250 Hz for coherent, full-range output with 110-degree conical coverage. The 200 W RMS rating provides dynamic headroom well beyond traditional two-way pendants, making it suited to high-end retail and hospitality where music drives the atmosphere, as well as multi-purpose and commercial meeting spaces. Low-saturation 70/100V transformers with a 6-ohm bypass offer taps of 12.5 W, 25 W, 50 W, and 100 W for distributed systems. The IP-54-rated, UL1480A- and CE-compliant design includes a sealable input cover and a locking 4-pole Euroblock connector that accepts four 18 AWG pairs, eliminating star-topology termination hassles. Two quick-link cable assemblies and slip-lock fasteners speed installation, and Intrinsic Correction voicings are available through the Q-SYS Ecosystem and QSC processing amplifiers. Finished in white (RAL 9010); also available in black.

Key Features

• Integrated SUB-SAT Design — One 6.5-inch subwoofer and four 2.75-inch satellites in a single enclosure deliver full-range sound with no assembly.
• 200 W RMS Output — High power handling provides dynamic headroom beyond conventional two-way pendant loudspeakers.
• 70/100V or Low-Impedance — Low-saturation transformers with a 6-ohm bypass offer 12.5/25/50/100 W taps for distributed audio lines.
• 110-Degree Conical Coverage — A 250 Hz crossover and conical pattern provide even coverage across open-ceiling areas.
• Fast Installation — Quick-link cable assemblies, slip-lock fasteners, and a locking 4-pole pass-through Euroblock simplify hanging and wiring.
• IP-54 Rated — A rugged ABS enclosure with sealable input cover is UL1480A and CE compliant for demanding environments.
• Intrinsic Correction Voicing — QSC-approved voicings deploy through the Q-SYS Ecosystem and QSC processing amplifiers.

Typical Applications

• House of worship lobbies and gathering areas
• Multi-purpose rooms
• Commercial meeting spaces and open-ceiling areas

Technical Specifications

Frequently Asked Questions

What makes the AD-P.HALO different from a standard pendant speaker? It integrates a 6.5-inch subwoofer and four satellite drivers in one enclosure for full-range, music-forward output with more headroom than traditional two-way pendants.

Does it require assembly? No. The system is a single fully integrated pendant that hangs out of the box, with included suspension hardware, quick-link cables, and slip-lock fasteners.

Can it run on a 70V or 100V line? Yes. Low-saturation transformers provide 70/100V taps (12.5–100 W) with a 6-ohm bypass for direct low-impedance use.

How does it integrate with a QSC system? Intrinsic Correction voicings deploy through the Q-SYS Ecosystem and QSC processing amplifiers for QSC-approved tuning.

What about warranty and support? The AD-P.HALO is covered under QSC warranty terms; contact Creation Networks support for system design and AV integration assistance.
