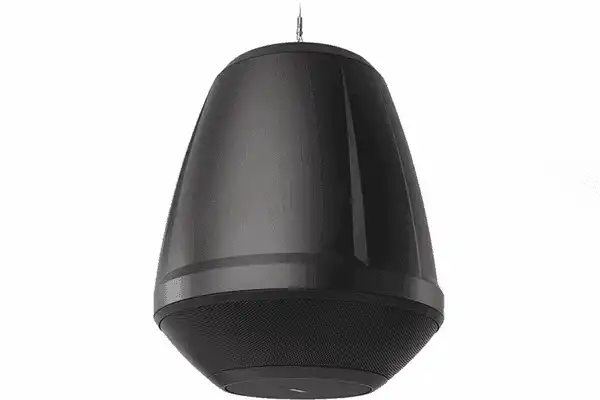

QSC AD-P.HALO – AcousticDesign 6.5-Inch Integrated SUB-SAT Pendant System (Black)

Product Overview

The QSC AD-P.HALO is an integrated SUB/SAT pendant loudspeaker system in the AcousticDesign Series, combining a subwoofer and satellite array in a single open-ceiling enclosure. It is engineered to deliver full-range background music with greater dynamic headroom than a conventional two-way pendant, making it well suited to exposed-ceiling commercial spaces. Rated at 200 watts RMS with a 40 Hz to 20 kHz range, the AD-P.HALO provides depth and clarity from one hanging fixture rather than separate sub and satellite units. Available in black.

Product Description

The AD-P.HALO integrates a 6.5-inch subwoofer with four 2.75-inch satellite transducers in a single pendant enclosure, producing a coherent full-range source from one suspension point. A 250 Hz crossover blends the subwoofer and satellites for even tonal balance and 110-degree conical coverage. This integrated SUB/SAT approach simplifies design and installation in spaces with open or very high ceilings, such as houses of worship, atria, and multi-purpose halls, where running separate subwoofer and satellite fixtures would add cost and visual clutter. As part of the AcousticDesign Series, the AD-P.HALO shares the family's consistent tonal character, allowing it to blend with other AcousticDesign ceiling, surface, and pendant models across a facility. For low-frequency-focused designs, it can be complemented by the dedicated AD-P.SUB pendant subwoofer. Intrinsic Correction voicings for AcousticDesign loudspeakers are available through the Q-SYS Platform and QSC amplifier processing.

Key Features

• Integrated SUB/SAT design — Combines a 6.5-inch subwoofer and four 2.75-inch satellite drivers in one ready-to-install pendant enclosure.
• 200 W RMS rating — Offers significant dynamic headroom beyond a traditional two-way pendant for background music.
• Full-range response — Covers 40 Hz to 20 kHz with a 250 Hz internal crossover for coherent output from a single source.
• 70V/100V with 6 ohm bypass — Low-saturation transformers offer 100 W, 50 W, 25 W, and 12.5 W taps for distributed audio, plus a 6 ohm low-impedance bypass.
• Single-point suspension — Delivers full-range audio from one hanging fixture with quick-link cable assemblies and slip-lock fasteners.
• Simplified wiring — A locking 4-pole Euroblock connector accepts four 18 AWG pairs, eliminating star-topology termination hassles.
• IP-54 rated — Resists dust and water ingress for demanding indoor environments.
• Intrinsic Correction ready — Optimized voicings available via the Q-SYS Platform and QSC amplifier processing.

Typical Applications

• House of worship — Full-range background and foreground music in open-ceiling sanctuaries.
• Commercial meeting space — Single-fixture program audio in exposed-ceiling areas.
• Multi-purpose room — Coherent full-range coverage where ceiling mounting is impractical.
• Auditorium — Pendant program audio for high-ceiling assembly spaces.

Technical Specifications

Specifications sourced from QSC. Refer to the official AD-P.HALO specification sheet for complete details.

Frequently Asked Questions

What makes the AD-P.HALO different from a standard pendant speaker?
It integrates a 6.5-inch subwoofer and four 2.75-inch satellite transducers in a single enclosure, providing full-range 40 Hz to 20 kHz output and greater dynamic headroom than a typical two-way pendant.

Where is it typically used?
In open-ceiling or high-ceiling commercial spaces such as houses of worship, atria, and multi-purpose halls, where a single full-range hanging fixture is preferred over separate sub and satellite units.

Does it support 70V/100V distributed audio?
Yes. Low-saturation transformers provide 100 W, 50 W, 25 W, and 12.5 W taps for 70V/100V systems, with a 6 ohm bypass for low-impedance operation.

Does it match other AcousticDesign speakers?
Yes. It shares the AcousticDesign Series tonal character and blends with the family's ceiling, surface, and pendant models, and supports Intrinsic Correction voicings via the Q-SYS Platform.

What about warranty and support?
Refer to QSC warranty terms for coverage. For system design and purchasing questions, contact Creation Networks support.
