QSC RS-CB-TM – RoomSuite Table Microphone for Collaboration Bar

Product Overview

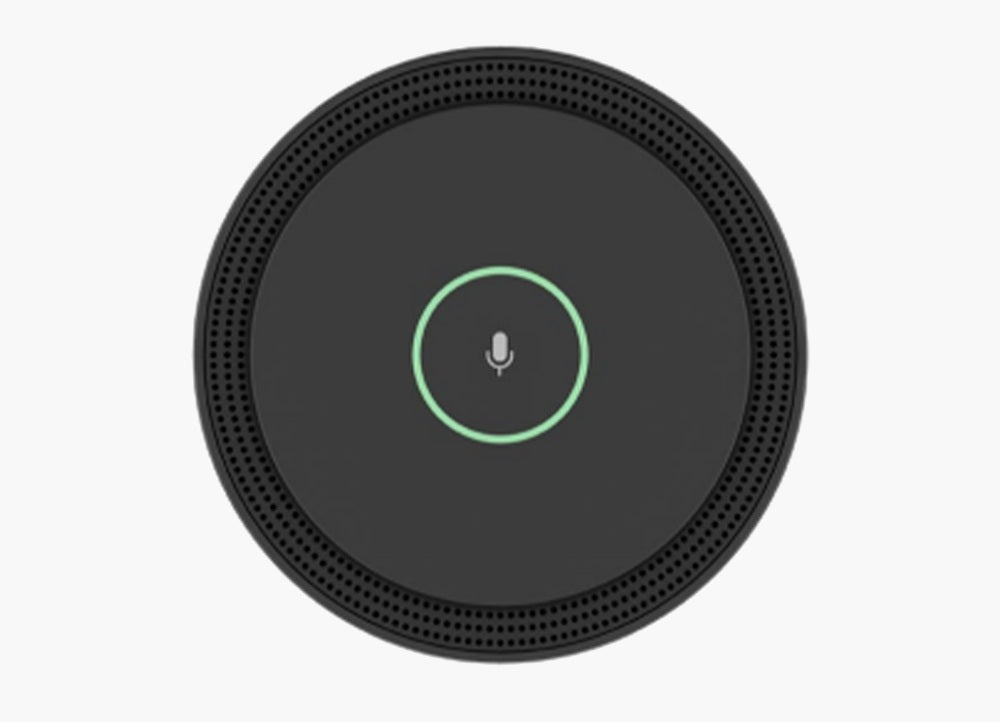

The QSC RS-CB-TM is the Q-SYS RoomSuite Table Microphone, an optional expansion microphone for the Q-SYS RoomSuite Collaboration Bar (RS-CB-MTRW-B). Using adaptive beamforming across 8x MEMS microphone elements, it extends audio pickup in conference rooms where supplemental coverage is needed beyond the bar’s 16-element built-in array. Up to four RS-CB-TM units daisy-chain via PoE directly from the bar’s dedicated microphone port, with each unit covering up to 10 ft (3 m) radius. The illuminated mute button synchronizes mute status across all connected table microphones in the system.

Product Description

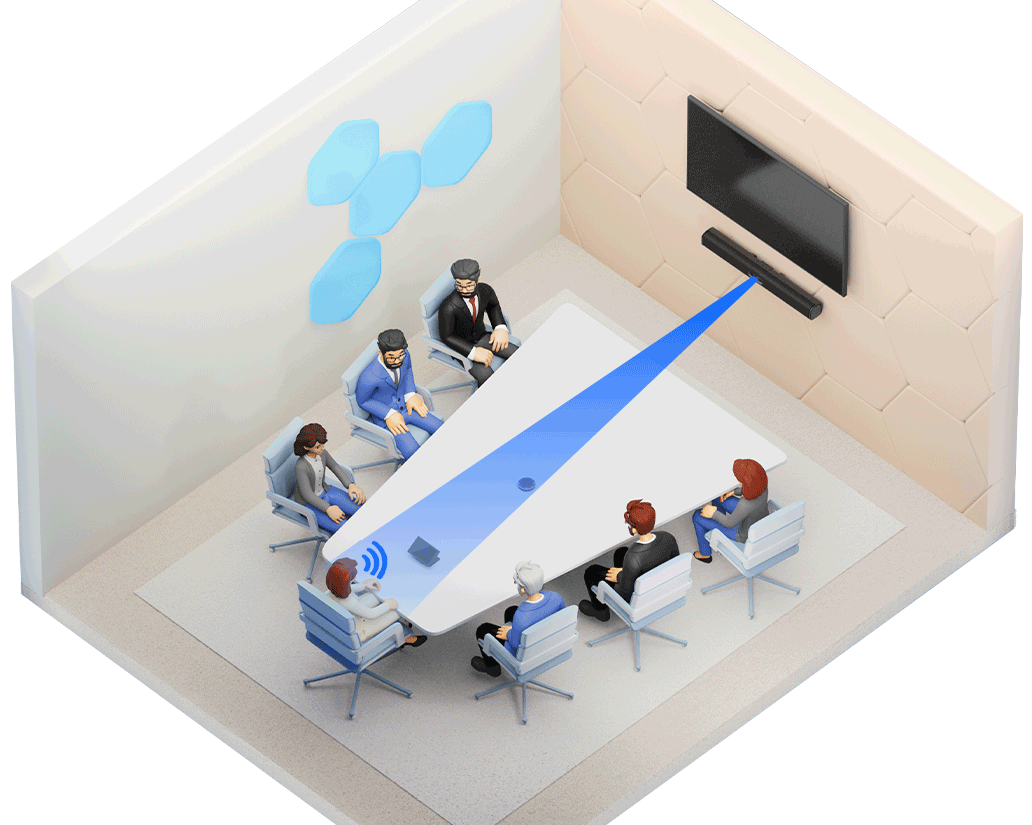

The RS-CB-TM connects to the Q-SYS RoomSuite Collaboration Bar via Ethernet, receiving power via PoE Type 1 Class 2 and passing that power downstream to subsequent units without any additional switches or injectors. Each unit covers a 10 ft (3 m) radius using adaptive beamforming across 8x MEMS elements, with 100 Hz–10 kHz frequency response at 48 kHz sampling. The 128 dB maximum SPL, 99 dB dynamic range, and 65 dB(A) signal-to-noise ratio confirm commercial-grade voice capture performance. Two RJ-45 connectors — one in, one out — enable clean daisy-chain wiring with the included 10 ft CAT6 cable. A thru-table mounting stem is available as a separate accessory for installations where the microphone routes through conference furniture. The RS-CB-TM is exclusively compatible with the Q-SYS RoomSuite Collaboration Bar and cannot be used with Q-SYS Core processors or other Q-SYS microphone products including the NM-T1 series. For conference rooms deploying the RS-CB-MTRW-B bundle, the RS-CB-TM provides targeted table-level audio coverage to complement the bar’s overhead microphone array.

Key Features

• Adaptive Beamforming — 8x MEMS microphone array with adaptive beamforming provides up to 10 ft (3 m) radius audio pickup for conference table coverage.
• Up to 4 Units per System — Daisy-chain up to four RS-CB-TM microphones from a single RoomSuite Collaboration Bar for complete room audio coverage.
• PoE Daisy-Chain Connectivity — PoE Type 1 Class 2 input and output; powered from the bar and passes power to the next unit, no additional infrastructure required.
• Dual RJ-45 Connectors — In and out Ethernet ports for clean daisy-chain wiring between units using standard CAT6 cable.
• Illuminated Mute Button — LED ring indicator displays mute status with system-wide mute sync across all connected table microphones.
• Commercial-Grade Audio Performance — 128 dB max SPL, 99 dB dynamic range, and 65 dB(A) SNR for voice capture in commercial meeting environments.
• CAT6 Cable Included — Each unit ships with a 10 ft (3 m) CAT6 Ethernet cable for immediate installation without additional accessories.
• Optional Thru-Table Mount — Compatible with an optional thru-table mounting stem for below-surface cable routing through conference furniture.

Typical Applications

• Conference room
• Boardroom
• Training room
• All-hands room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

Is the RS-CB-TM compatible with Q-SYS Core processors or the NM-T1?
No. The RS-CB-TM is exclusively compatible with the Q-SYS RoomSuite Collaboration Bar (RS-CB-MTRW / RS-CB-MTRW-B). It cannot be used with a Q-SYS Core processor, NM-T1, or any other Q-SYS microphone product.

How many RS-CB-TM units can connect to one Collaboration Bar?
Up to four RS-CB-TM table microphones per Collaboration Bar via PoE daisy-chain from the bar’s dedicated microphone RJ-45 port.

How does the daisy-chain work?
The first RS-CB-TM connects to the bar’s microphone port. Each subsequent unit connects from the output RJ-45 of the prior unit. PoE power passes through the chain; no additional switches or injectors are required.

What cable is needed between units?
Standard CAT6 Ethernet cable. Each RS-CB-TM includes a 10 ft (3 m) CAT6 cable. Longer CAT6 runs are supported within standard PoE distance limits.

Can the RS-CB-TM be mounted through a conference table?
An optional thru-table mounting stem accessory is available for below-surface cable routing. This accessory is sold separately and is not included with the RS-CB-TM.

What is the warranty on this product?
QSC provides a standard limited warranty on this product. Contact Creation Networks for warranty and support details.
