QSC RS-CB-MTRW-B – RoomSuite Collaboration Bar Bundle for Microsoft Teams Rooms

Product Overview

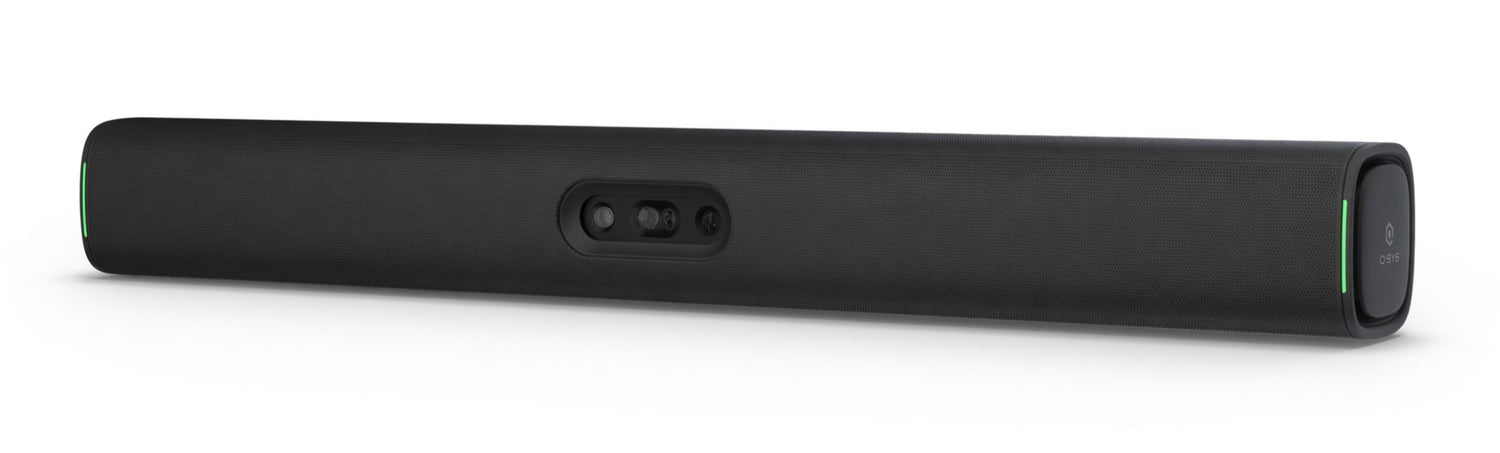

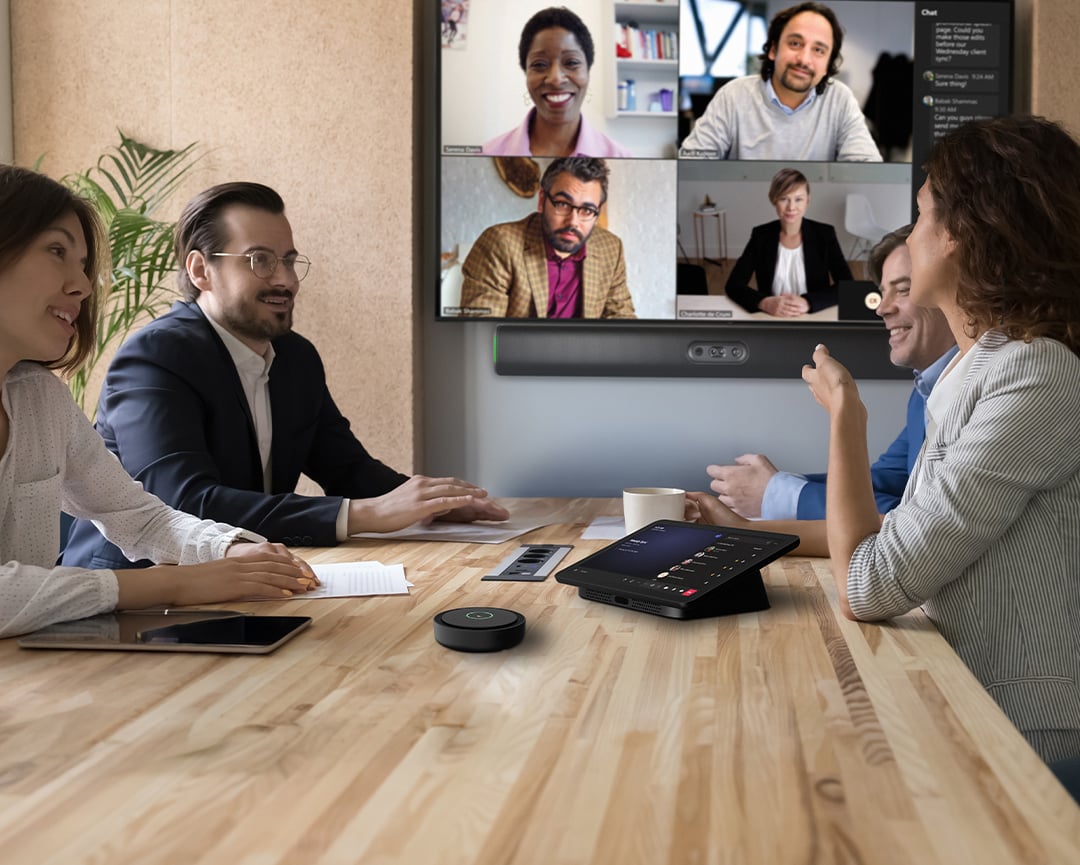

The QSC RS-CB-MTRW-B is the Q-SYS RoomSuite Collaboration Bar Bundle — a Windows-based all-in-one AV system for Microsoft Teams Rooms that integrates four 50 MP cameras, a 16-element microphone array, dual 20W loudspeakers, and an Intel i5 compute into a single bar-form-factor device. Designed for straightforward deployment in standard conference rooms without Q-SYS Designer Software, the bundle includes the RoomSuite Collaboration Bar (RS-CB-MTRW) and a 10.9-inch touchscreen controller (RS-CB-CTL11). AI-driven features including Active Speaker Framing, Tile View, and Video Fence run onboard with no external compute required. The system natively connects to Q-SYS Reflect for cloud-based remote monitoring and management alongside other Q-SYS systems in the facility.

Product Description

The RS-CB-MTRW-B delivers a complete, certified Microsoft Teams Rooms experience from a single hardware package that installs in minutes. Four 50 MP image sensors — two wide-angle (125° FoV) and two telephoto (42° FoV) — provide 8x hybrid zoom and AI-driven framing without a dedicated PTZ camera or external video processor. The 16-element microphone array captures audio up to 33 ft (10 m), with adaptive noise control, acoustic echo cancellation, automatic gain control, and Audio Fence processing applied onboard. Dual 20W loudspeakers deliver room-fill audio across 80 Hz–20 kHz for standard small-to-large meeting spaces.

Four RJ-45 ports provide flexible connectivity: one for internet, one for BYOD wired connection, one PoE+ port for auxiliary control, and one PoE port for daisy-chaining up to four optional RS-CB-TM table microphones. The HDMI input supports 4K60 content ingest, with up to three HDMI outputs (two active) at 4K60 for display connection. The included RS-CB-CTL11 controller features a 10.95-in 1920×1080 capacitive touchscreen powered by PoE+ from the bar, with a USB-C port for BYOD AV bridging. For IT teams managing multi-room deployments, Q-SYS Reflect and Q-SYS Reflect Plus provide cloud monitoring and Microsoft Teams Rooms Pro Management integration — all without a Q-SYS Core processor for this standalone deployment. The controller wall mount is included; a 180° swivel mount is available separately.

Key Features

• Certified Microsoft Teams Rooms — Runs Windows 11 IoT Enterprise with Microsoft Teams Rooms on an Intel i5 1340P compute, fully certified for MTR deployment.
• Four 50 MP Cameras — 2x wide-angle (125° FoV) and 2x telephoto (42° FoV) sensors with 8x hybrid zoom; no external PTZ camera required.
• AI-Driven Camera Features — Active Speaker Framing, Tile View, Active Speaker Tiling, and Video Fence operate onboard with no external compute.
• 16-Element Microphone Array — Covers up to 33 ft (10 m) with adaptive noise control, AEC, automatic gain control, and Audio Fence processing.
• Dual 20W Integrated Loudspeakers — Stereo room-fill audio from 80 Hz–20 kHz eliminates separate speaker installation in standard conference rooms.
• Up to 4 Optional Table Microphones — Supports up to four RS-CB-TM table microphones (sold separately) via PoE daisy-chain for extended room audio coverage.

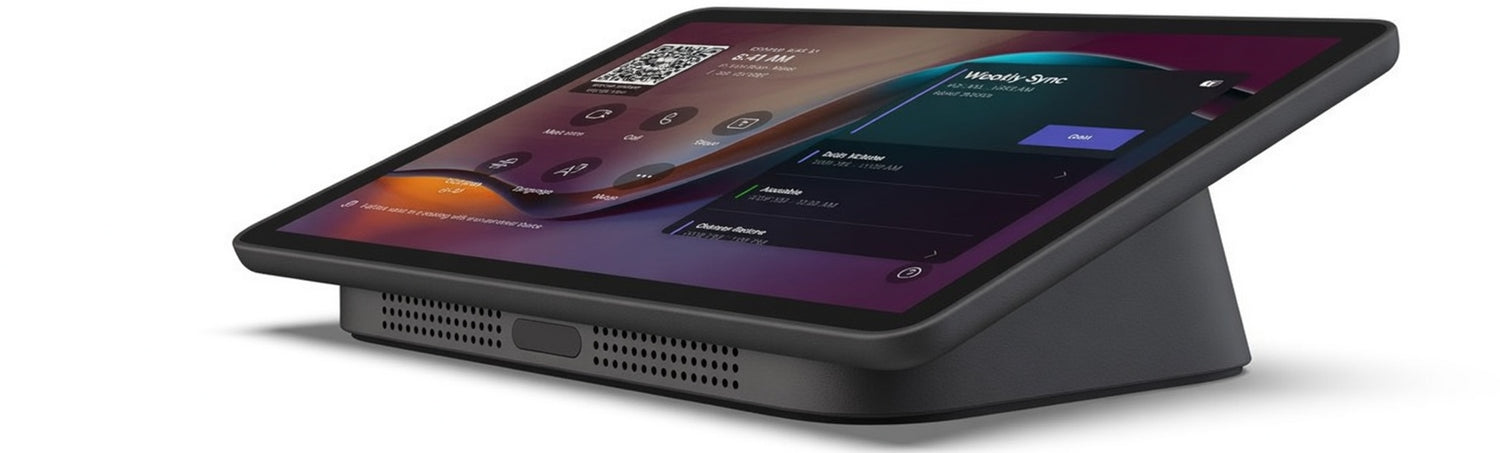

• 10.9-Inch Touchscreen Controller Included — RS-CB-CTL11 provides Teams meeting control, BYOD AV bridging via USB-C, and PIR auto wake-up.
• Q-SYS Reflect Integration — Native cloud monitoring and management alongside existing Q-SYS systems; no Core processor required for standalone operation.
• Plug-and-Play Deployment — Web-based configuration tool and QR code setup; operational in minutes without Q-SYS Designer Software.
• Wi-Fi 6 and Quad-Port Gigabit Ethernet — Wi-Fi 6 (2.4/5 GHz, 2×2 MIMO) plus 4x 1Gbps RJ-45 ports including PoE+ and PoE outputs for peripherals.
• HDMI Multi-Display Output — 3x HDMI outputs (2x active) at 4K60 with CEC support for dual-display conference room configurations.
• Scalable Multi-Room Management — Q-SYS Reflect Plus presets enable rapid same-configuration deployment across multiple rooms at scale.

Typical Applications

• Conference room
• Boardroom
• All-hands room
• Training room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

Does the RS-CB-MTRW-B require a Q-SYS Core processor?
No. The bar has a built-in Intel i5 1340P compute running Windows 11 IoT Enterprise with Microsoft Teams Rooms. A Q-SYS Core processor is not required for standalone operation. An external Core can be added for expanded room control integration.

What table microphones are compatible?
The RS-CB-MTRW-B supports up to four RS-CB-TM Q-SYS RoomSuite Table Microphones (sold separately). These daisy-chain via PoE from the bar’s dedicated microphone RJ-45 port. The RS-CB-TM is not compatible with other Q-SYS microphones such as the NM-T1.

Can the controller be wall-mounted or positioned on a table?
The included wall mount supports standard wall installation. A 180° swivel mount is available separately for flexible tabletop or angled positioning.

How many displays does the system support?
The RS-CB-MTRW has 3x HDMI outputs (2x active) at 4K60 with CEC, supporting simultaneous dual-display conference room configurations.

Does the system support BYOD?
Yes. Wired BYOD connects via the dedicated BYOD RJ-45 port on the bar and the USB-C port on the controller (1080p30 AV bridging). Wireless BYOD uses Proximity Join via Bluetooth 5.2.

How is the system managed across multiple rooms?
Q-SYS Reflect provides native cloud monitoring and management. Q-SYS Reflect Plus adds preset-based configuration deployment for multi-room rollouts. The system is also supported in Microsoft Teams Rooms Pro Management portal.

What is the warranty on this product?
QSC provides a standard limited warranty. Contact Creation Networks for warranty details and support options.
