QSC QIO-ML2x2 – Q-SYS 2-In / 2-Out Mic/Line Network I/O Expander

Product Overview

The QSC QIO-ML2x2 is a Q-SYS network mic/line I/O expander that combines two configurable inputs and two line outputs in one compact endpoint. As a Q-SYS network audio I/O expander, it lets integrators add both microphone/line capture and analog output at the room edge and carry that audio over a single Ethernet cable as Q-LAN, removing long analog runs back to the Core. Each input is remotely configurable for mic or line level and natively managed in Q-SYS Designer Software, making the ML2x2 an efficient choice for conference rooms, boardrooms, and multi-purpose rooms in commercial AV deployment.

Product Description

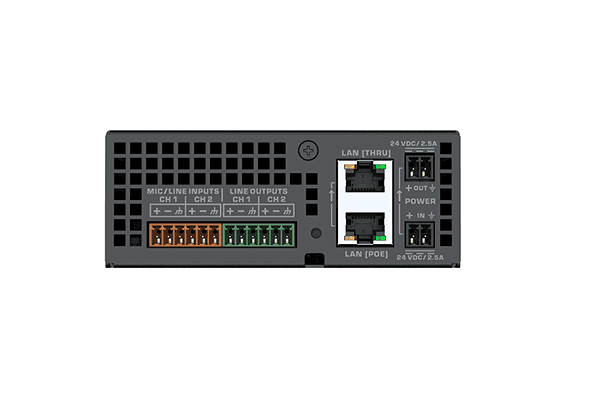

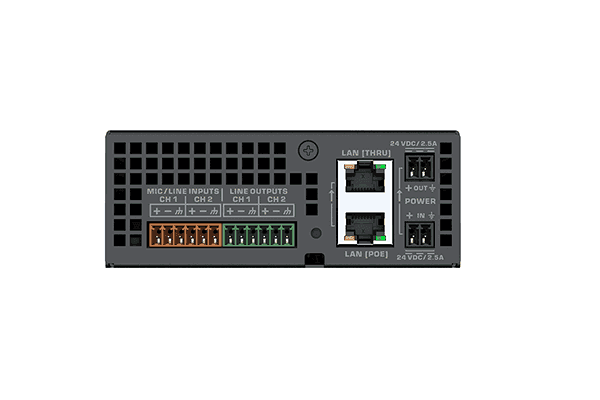

The QIO-ML2x2 provides two channels of balanced mic/line input and two channels of balanced line output, each on individual 6-pin Euroblock connectors, transporting Q-LAN networked audio to and from the system processor over standard gigabit Ethernet. The inputs are remotely configurable for microphone or line level and supply +48 VDC phantom power (10 mA maximum per input) for condenser microphones. Like the rest of the QIO platform, it uses DiffServ QoS, IGMP, and IEEE 1588 (PTPv2) synchronization for 3.167 ms end-to-end system latency, including across Layer-3 routed networks. The unit operates on PoE or 24 VDC with daisy-chainable power and pass-through Ethernet, so up to four QIO peripherals can share a single switch port when DC power is supplied. A quarter-rack-width, sub-1U chassis includes reversible steel brackets for under-table or on-wall mounting and supports an optional 19-inch rack tray. It complements the input-only QIO-ML4i and output-only QIO-L4o, and mounts with the QIO-RMK rack tray.

Key Features

• Two Configurable Inputs Plus Two Outputs — Two balanced mic/line inputs and two balanced line outputs handle both capture and playback in a single endpoint.
• 48 V Phantom Power — Each input supplies +48 VDC phantom power (10 mA maximum) for condenser microphones.
• Native Q-SYS Integration — The expander appears in Q-SYS Designer Software for discovery, configuration, control, monitoring, and Q-LAN audio routing.
• Standard Gigabit Ethernet Transport — Q-LAN audio runs on standard network infrastructure with DiffServ QoS, IGMP, and IEEE 1588 PTPv2, at 3.167 ms system latency including Layer-3 routed paths.
• Flexible Power and Daisy-Chaining — PoE or 24 VDC operation with daisy-chainable power and pass-through Ethernet lets up to four units share one switch port.
• Versatile Mounting — A quarter-rack-width, sub-1U chassis includes reversible steel brackets for under-table or on-wall mounting and supports an optional 19-inch rack tray.

Typical Applications

• Conference room and boardroom combined mic input and zone output
• Huddle rooms and multi-purpose rooms
• House of worship lectern input with local output feeds
• Government and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

Which Q-SYS Cores does the QIO-ML2x2 work with? The QIO-ML2x2 is a native Q-SYS peripheral managed in Q-SYS Designer Software and operates with current Q-SYS Core processors over a standard gigabit network. Confirm peripheral counts for your Core when planning larger designs.

Does it provide phantom power? Yes. Each input supplies +48 VDC phantom power (10 mA maximum per input) for condenser microphones, and inputs are configurable for mic or line level.

How is it powered? The unit runs on PoE or 24 VDC, and DC power can be daisy-chained so up to four QIO units share a single access-switch port.

How does it mount? It is quarter-rack-width and under 1U tall, with included reversible steel brackets for under-table or on-wall mounting; an optional rack tray holds up to four units in a 19-inch 1U space.

What about warranty and support? The QIO-ML2x2 is covered under QSC warranty terms; contact Creation Networks support for Q-SYS design and AV integration assistance.
