QSC QIO-ML4i – Q-SYS 4-Channel Mic/Line Input Expander

Product Overview

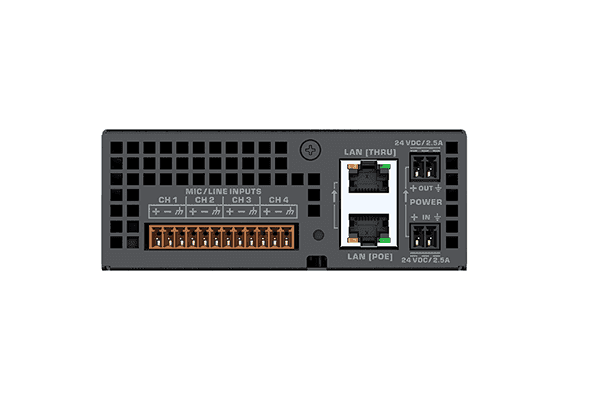

The QSC QIO-ML4i is a Q-SYS network mic/line input expander that adds four channels of analog input to a Q-SYS system at the room edge. As a Q-SYS network audio I/O expander, it lets integrators place microphone and line connectivity in a conference room, boardroom, or house of worship and transport that audio over a single Ethernet cable as Q-LAN, eliminating long analog runs back to the Core. Each input is remotely configurable for mic or line level and is natively managed in Q-SYS Designer Software, making it a clean way to scale input capacity for commercial AV deployment.

Product Description

The QIO-ML4i provides four channels of analog audio input that are remotely configurable for microphone or line-level signals, with configurable impedance measurement that can detect connected devices and drive logic or scripted programming. It transports up to four channels of Q-LAN networked audio to the system processor over standard gigabit Ethernet, using DiffServ QoS, IGMP, and IEEE 1588 (PTPv2) for synchronization, with end-to-end system latency of 3.167 ms even across Layer-3 routed networks. The unit operates on PoE or 24 VDC and offers daisy-chainable power and Ethernet, so up to four QIO peripherals can share a single switch port when DC power is supplied. A quarter-rack-width, sub-1U chassis includes reversible steel brackets for under-table or on-wall surface mounting, and an optional rack tray fits up to four devices into a standard 19-inch 1U space. The QIO-ML4i is natively integrated into Q-SYS Designer Software for discovery, configuration, gain, metering, and routing. It pairs naturally with the line-output QIO-L4o and the mixed-I/O QIO-ML2x2, and mounts with the QIO-RMK rack tray.

Key Features

• Four Configurable Mic/Line Inputs — Each of four balanced inputs is remotely set for microphone or line level, with 48 V phantom power for condenser microphones.
• Native Q-SYS Integration — The expander appears in Q-SYS Designer Software for discovery, configuration, control, monitoring, and Q-LAN audio routing.
• Impedance Sensing — Configurable impedance measurement detects connected devices and can drive programmable logic or scripting.
• Standard Gigabit Ethernet Transport — Q-LAN audio runs on standard network infrastructure with DiffServ QoS, IGMP, and IEEE 1588 PTPv2, at 3.167 ms system latency including Layer-3 routed paths.
• Flexible Power and Daisy-Chaining — PoE (Type 1 Class 3) or 24 VDC operation with daisy-chainable power and pass-through Ethernet lets up to four units share one switch port.
• Versatile Mounting — A quarter-rack-width, sub-1U chassis includes reversible steel brackets for under-table or on-wall mounting and supports an optional 19-inch rack tray.

Typical Applications

• Conference room and boardroom distributed microphone connectivity
• House of worship stage and lectern mic inputs
• Training rooms and multi-purpose rooms
• Government and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

Which Q-SYS Cores is the QIO-ML4i compatible with? The QIO-ML4i is a native Q-SYS peripheral managed in Q-SYS Designer Software and works with current Q-SYS Core processors over a standard gigabit network. Confirm peripheral counts for your specific Core when planning large designs.

How is it powered? The unit runs on PoE (Type 1 Class 3) or 24 VDC, and DC power can be daisy-chained so up to four QIO units share a single access-switch port.

How does it mount? It is quarter-rack-width and under 1U tall, with included reversible steel brackets for under-table or on-wall mounting; an optional rack tray holds up to four units in a 19-inch 1U space.

Can I mix it with other QIO expanders? Yes. The QIO-ML4i operates alongside other QIO peripherals such as the QIO-L4o and QIO-ML2x2 within the same Q-SYS design.

What about warranty and support? The QIO-ML4i is covered under QSC warranty terms; contact Creation Networks support for Q-SYS design and AV integration assistance.
