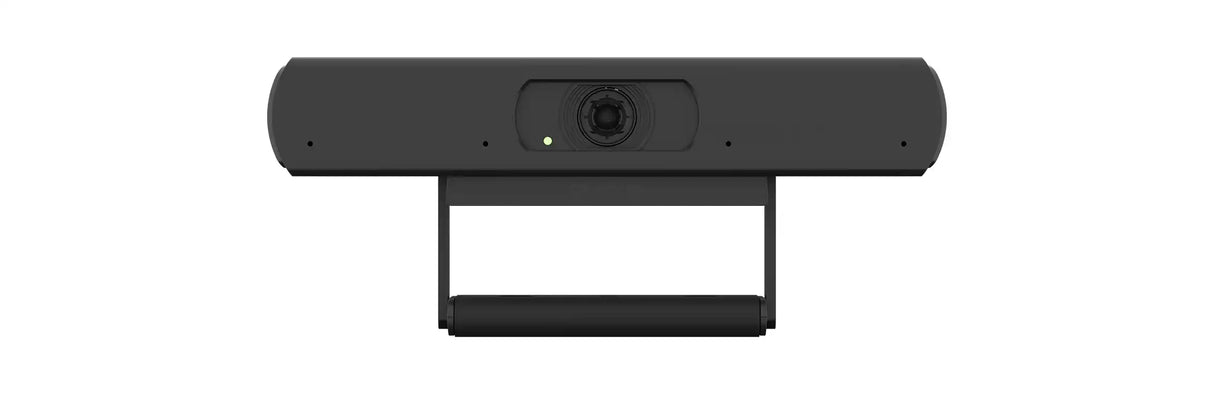

QSC NC-90-G2 – Q-SYS Network ePTZ Camera (Gen 2)

Product Overview

The QSC NC-90-G2 is a next-generation Q-SYS network ePTZ camera that combines onboard AI with enhanced optics to automate the collaboration experience in smaller, wider meeting spaces. With a 90° horizontal field of view, a 20 MP image sensor, and AI-driven Active Speaker Framing, the NC-90-G2 locates and digitally frames the active talker without manual operation. As a native Q-SYS device driven by the Q-SYS Full Stack AV Platform, it routes video anywhere on the network without a video matrix and delivers feeds to any modern video conferencing application through a Q-SYS AV bridging peripheral.

Product Description

The NC-90-G2 uses electronic pan, tilt, and zoom (5x digital, 3x lossless) with a fixed wide-angle lens and a 20 MP sensor for high-quality optics in compact and wide rooms. Active Speaker Framing applies AI-driven predictive positioning triggered by onboard positioning microphones, while full-body recognition keeps talkers in frame even when they turn away from the camera. Tile View composes up to nine framed shots from a single camera to improve the experience for remote attendees. A single network cable carries video, power (PoE), and control into Q-SYS, which delivers a single UVC/UAC stream to the UC compute device of choice. Image rotation control supports inverted mounting, and a lens cover is included for privacy. For larger spaces or optical zoom, compare the NC-12x80, and pair with the VSA-100 AI Accelerator for system-wide VisionSuite automation.

Key Features

• Fixed-lens ePTZ — Electronic pan, tilt, zoom with a 90° horizontal field of view and 5x digital zoom (3x lossless).
• 20 MP image sensor — High-resolution 1/1.8" low-noise CMOS for high-quality optics.
• Active Speaker Framing — AI-driven dynamic positioning triggered by onboard positioning microphones to frame the active talker.
• Full-body recognition — Keeps talkers framed even when they turn away from the camera.
• Tile View — Multi-view composition of up to nine framed shots from a single camera.
• Native Q-SYS routing — Route the feed anywhere on the network and deliver a single UVC/UAC stream via Q-SYS AV bridging.
• PoE-powered — Single-cable Power over Ethernet (Type 1, Class 3) for video, power, and control.
• Flexible install — Image rotation for inverted mounting, built-in mounting hardware, and an included lens cover for privacy.

Typical Applications

• Huddle room
• Conference room
• Boardroom
• Training room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

What rooms is the NC-90-G2 designed for?
Its 90° wide field of view and ePTZ framing suit smaller, wider spaces such as huddle rooms, small conference rooms, and compact boardrooms where a single wide camera can cover the room.

How does Active Speaker Framing work?
Onboard positioning microphones trigger AI-driven predictive camera positioning to locate and digitally frame the active talker, and full-body recognition keeps talkers framed even when they turn away from the camera.

Does the NC-90-G2 have HDMI or SDI outputs?
No. The NC-90-G2 delivers video over the network into Q-SYS; it does not provide HDMI or SDI outputs. Video reaches the UC application as a single UVC/UAC stream through a Q-SYS AV bridging peripheral.

Can it be mounted inverted?
Yes. Image rotation control supports inverted mounting, and built-in mounting hardware plus an included lens cover simplify installation and privacy.

What warranty and support apply?
The NC-90-G2 is covered under QSC's warranty terms. For current warranty details and integration support, contact Creation Networks.
