QSC VSA-100 – Q-SYS VisionSuite AI Accelerator

Product Overview

The QSC VSA-100 is a Q-SYS VisionSuite AI accelerator that automates camera tracking, active-speaker framing, and presenter tracking for video-enabled meeting and presentation spaces. By combining computer-vision scene analysis with Q-SYS audio-based camera switching, the VSA-100 delivers natural, inclusive video for both in-room and remote participants without manual camera operation or fixed presets. As a native Q-SYS device, it adds intelligent camera automation and holistic room control to corporate conferencing, higher-education lecture halls, and house-of-worship environments. This 1RU appliance is designed for integrators deploying multi-camera Q-SYS VisionSuite tracking at scale.

Product Description

The VSA-100 connects to the Q-SYS network over a single Ethernet connection and processes camera analytics without inserting itself into the video signal chain, preserving image quality and latency. Its Speaker Spotlight technology uses the active talker's voice to drive camera framing while voice-activity detection guards against false triggers, and its Presenter Spotlight technology applies computer-vision full-body tracking to follow a moving presenter. A single accelerator supports up to 16 Q-SYS cameras (two channels of Presenter Spotlight or room automation plus 14 channels of Speaker Spotlight), and is designed to work with Q-SYS NC Series network cameras such as the NC-12x80 and NC-20x60. The entire system is designed, configured, and commissioned within VisionSuite Designer, a native tool inside Q-SYS Designer Software, so camera automation is managed in the same environment as the rest of the Q-SYS deployment.

Key Features

• Speaker Spotlight technology — The active talker's voice drives camera framing without preset positions, while voice-activity detection protects against false audio triggers.
• Presenter Spotlight technology — Advanced computer vision provides full-body presenter tracking that follows movement across the room.
• Computer-vision room analytics — Models analyze full-body characteristics to create unique digital identifiers that enable full room automation.
• Non-intrusive integration — Connects to Q-SYS over Ethernet without inserting into or affecting the video signal chain.
• Native VisionSuite Designer workflow — Design, configure, calibrate, and commission within Q-SYS Designer Software using the VisionSuite Designer tool.
• Supports up to 16 Q-SYS cameras — Two channels for Presenter Spotlight or room automation plus 14 channels of Speaker Spotlight per accelerator.
• NC Series camera support — Presenter and Speaker Spotlight with NC-12x80 and NC-20x60; Speaker Spotlight also supports the NC-110; any Q-SYS camera can serve as a static view.

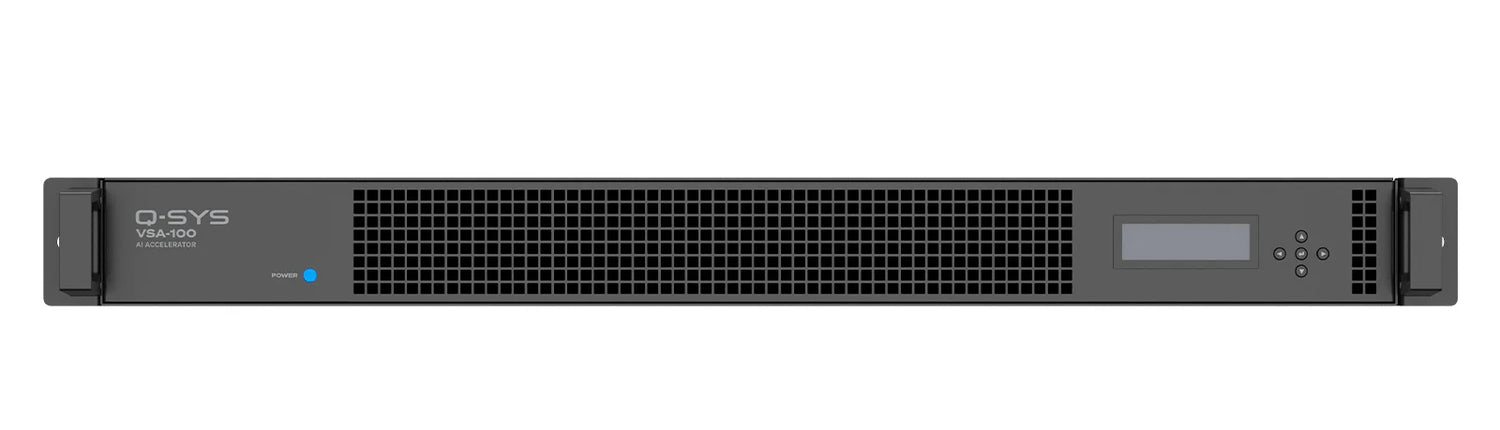

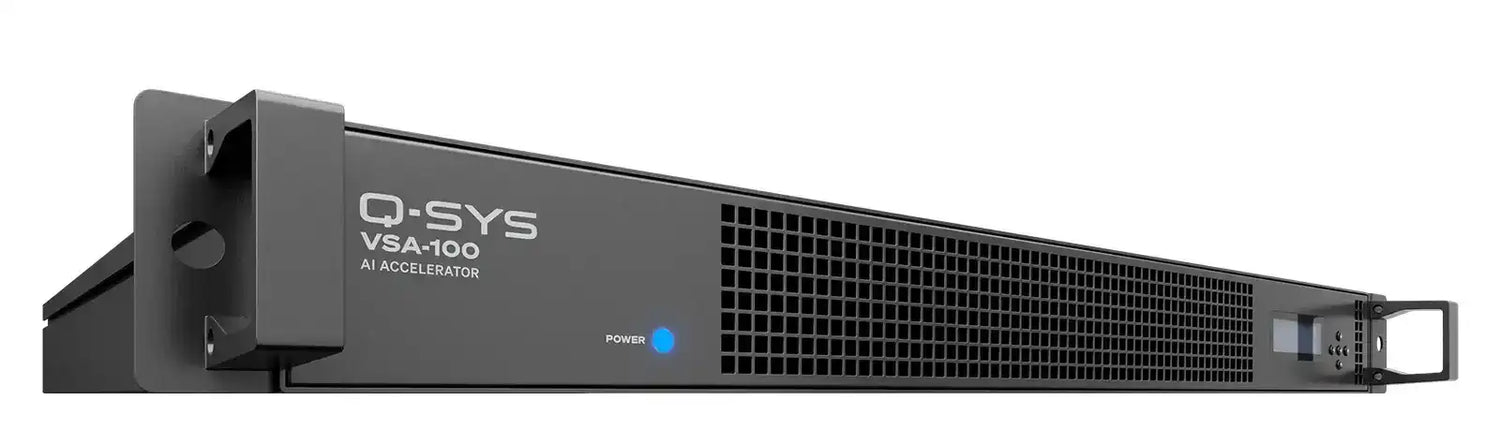

• Compact 1RU form factor — Rack-mountable appliance for centralized AV equipment racks.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Training room
• All-hands room
• Auditorium
• Broadcast studio

Technical Specifications

Frequently Asked Questions

How many cameras can one VSA-100 support?
A single VSA-100 supports up to 16 Q-SYS cameras: two channels dedicated to Presenter Spotlight or room automation and 14 channels of Speaker Spotlight. Static views can use any Q-SYS camera without consuming an analytics channel.

Which Q-SYS cameras work with the VSA-100?
Presenter Spotlight and Speaker Spotlight are supported on the NC-12x80 and NC-20x60. Speaker Spotlight additionally supports the NC-110. Any Q-SYS camera can be used as a static view.

Does the VSA-100 affect video quality or latency?
No. The VSA-100 connects to Q-SYS over Ethernet and performs its analytics without inserting itself into the video signal chain, so it does not alter the video feed delivered to the conferencing application.

How is the VSA-100 configured?
Design, configuration, calibration, and commissioning are handled in VisionSuite Designer, a native tool within Q-SYS Designer Software, so camera automation lives in the same project as the rest of your Q-SYS system.

What warranty and support apply?
The VSA-100 is covered under QSC's warranty terms. For current warranty details, configuration assistance, and post-sale support, contact Creation Networks.
