QSC NC-Pro15x – Q-SYS 15x Optical Zoom Professional PTZ Camera (White)

Product Overview

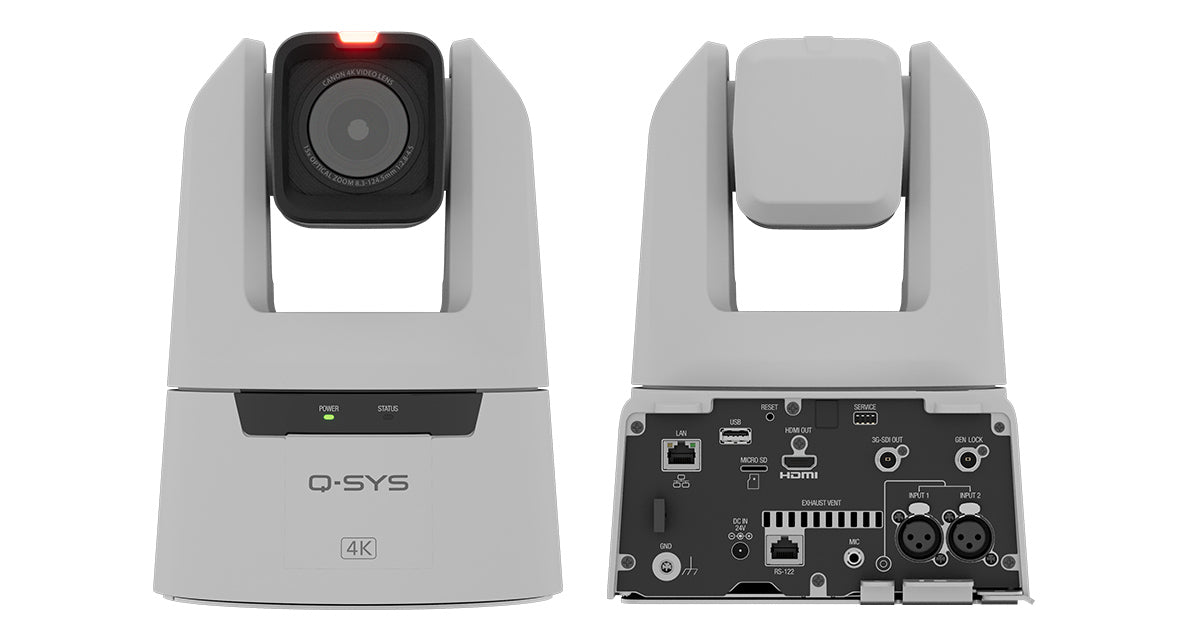

The QSC NC-Pro15x is a Q-SYS network PTZ camera, built by Canon, that brings broadcast-quality video to high-impact spaces requiring production-grade image quality. With 15x optical zoom, a 1-inch 4K UHD CMOS sensor, and Canon image processing, it delivers smooth, responsive pan/tilt/zoom and enhances the Q-SYS VisionSuite Presenter Spotlight experience. As a native Q-SYS device driven by the Q-SYS Full Stack AV Platform, the NC-Pro15x routes its video anywhere on the network without video matrix hardware or complex programming, and delivers feeds to video conferencing applications through any Q-SYS AV bridging peripheral. This is the white model.

Product Description

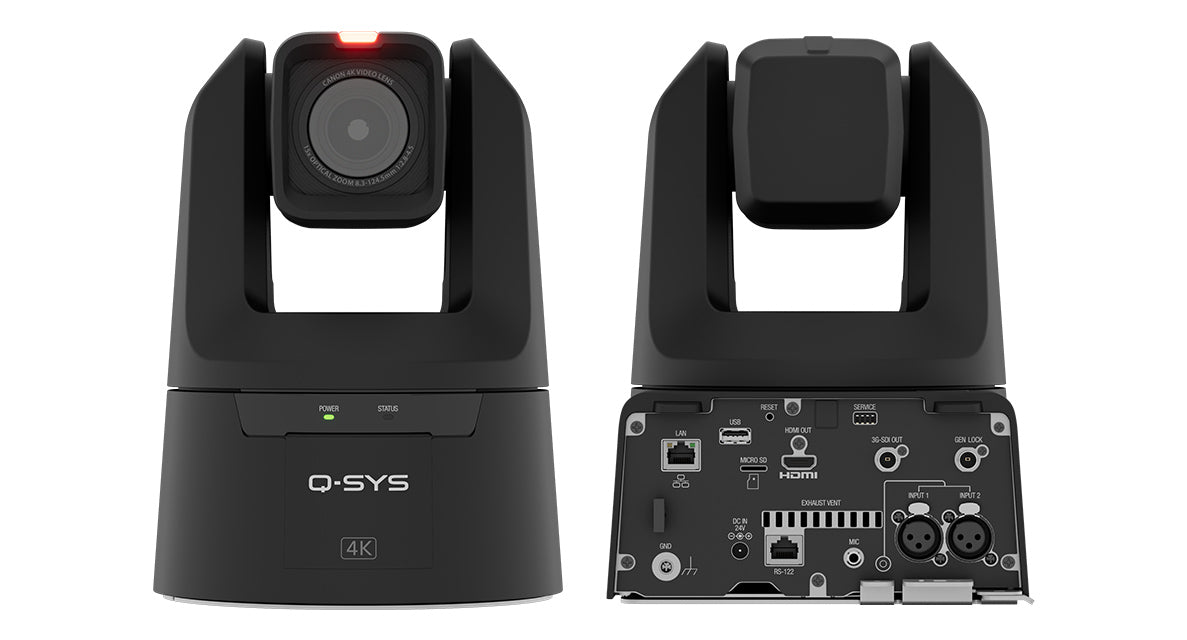

The NC-Pro15x extends broadcast-quality Q-SYS video to large rooms, auditoriums, and houses of worship that demand elevated production elements. Its 1-inch single-plate CMOS sensor with Dual Pixel Autofocus, built-in neutral-density filter, and integrated tally light support professional capture, while simultaneous 3G-SDI, HDMI, and IP output (with optional NDI) provides flexible signal distribution. Using the network, a single cable carries video, power (PoE+), and control data into Q-SYS, which then delivers a single UVC/UAC stream to the UC compute device of choice — so integrators can add as many NC Series cameras as a space requires. Pair the NC-Pro15x with the Q-SYS VSA-100 VisionSuite AI Accelerator for automated presenter tracking, and compare it with the NC-20x60 for longer-throw applications. A black model is also available.

Key Features

• Network PTZ built by Canon — Canon optics and image processing for advanced performance and high image quality.
• 15x optical zoom — 15x optical (20x digital) with a 73° horizontal field of view.
• 1-inch 4K UHD CMOS sensor — Large sensor with Dual Pixel Autofocus for sharp, responsive focus.
• Built-in ND filter and tally light — Neutral-density filter for exposure control plus an integrated tally indicator.
• Simultaneous SDI, HDMI, and IP output — 3G-SDI, HDMI, and IP feeds at once; optional HDMI, SDI, and NDI outputs.
• Native Q-SYS routing — Route camera feeds anywhere on the network without a video matrix or complex programming.
• Single-cable PoE — Power over Ethernet (PoE+, Type 2) carries video, power, and control on one cable.
• VisionSuite ready — Enhances the VisionSuite Presenter Spotlight experience; compatible with Canon PTZ camera controllers.

Typical Applications

• Boardroom
• Auditorium
• House of worship
• Broadcast studio
• All-hands room
• Training room
• Government space

Technical Specifications

Frequently Asked Questions

How does the NC-Pro15x connect to a Q-SYS system?
A single network cable carries video, PoE+ power, and control data into Q-SYS. Q-SYS then routes the feed across the network and delivers a single UVC/UAC stream to the UC compute device via any Q-SYS AV bridging peripheral.

What outputs does it provide?
The NC-Pro15x supports simultaneous 3G-SDI, HDMI, and IP output, with optional HDMI, SDI, and NDI outputs for flexible production and distribution workflows.

Does it work with Q-SYS VisionSuite?
Yes. The NC-Pro15x enhances the VisionSuite Presenter Spotlight experience. Pair it with the VSA-100 AI Accelerator for automated presenter tracking.

Can it be ceiling mounted?
Yes, using a ceiling-mount accessory available through Canon, with image considerations for inverted installation.

What warranty and support apply?
The NC-Pro15x is covered under QSC's warranty terms. For current warranty details and integration support, contact Creation Networks.
