QSC SC-2150 – 3-Way 2x15-Inch Cinema Screen Channel Loudspeaker

Product Overview

The QSC SC-2150 is a three-way screen channel loudspeaker from the DCS Digital Cinema Series, developed for professional motion-picture playback in smaller cinemas up to 55 feet (16.6 m) in length. It offers high power handling, excellent sensitivity, and extended bass response in a compact enclosure.

Configurable as a selectable passive full-range or bi-amplified system, the SC-2150 pairs a horn-loaded midrange and compression driver with dual 15-inch low-frequency drivers for articulate dialogue and solid low end.

Product Description

The SC-2150 comprises two main units: a mid-high frequency system and a dual-15-inch low-frequency enclosure. The components assemble on-site via a pan-and-tilt bracket that mounts the mid-high section atop the LF enclosure, and QSC's patented CineSight simplifies aiming the horns for proper audience coverage.

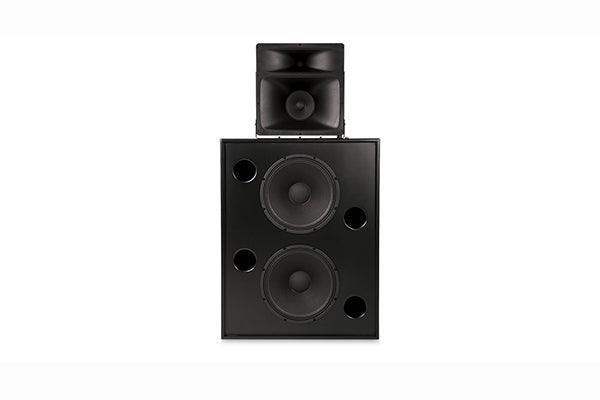

The mid-high system features a high-output, horn-loaded 6.5-inch midrange cone driver and a 1.4-inch (35.6 mm) diaphragm compression driver. The heavily braced MDF low-frequency enclosure provides extended bass response, while a shallow 14.5-inch (368 mm) depth reduces the space required behind the screen.

Advanced crossover circuitry protects the HF and MF drivers from overpowering and excessive low-frequency program material. As part of the QSC DCS ecosystem, the SC-2150 integrates with QSC cinema subwoofers, surrounds, and cinema amplifiers and processors.

Key Features

• Three-way selectable passive or bi-amp — Operates as a full passive system or bi-amplified for flexible system design.
• Optimized for smaller cinemas — Engineered for auditoriums up to 55 feet (16.6 m) in length.
• Horn-loaded 6.5-inch midrange — Provides highly articulate dialogue reproduction in the critical midrange band.
• Dual 15-inch LF enclosure — A heavily braced MDF low-frequency enclosure delivers extended bass response.
• CineSight horn aiming — QSC's patented CineSight simplifies aiming the horns for accurate audience coverage.
• Shallow 14.5-inch depth — Reduces the space required behind the screen for compact installations.
• Protective crossover circuitry — Advanced crossover circuitry protects the HF and MF drivers from overpowering and excessive low-frequency content.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Can the SC-2150 be bi-amplified?
Yes. It is a three-way selectable system that can run as a full passive loudspeaker or in a bi-amplified configuration.

What is CineSight?
CineSight is QSC's patented horn-aiming feature that simplifies pointing the mid-high horns for proper audience coverage during installation.

How is the speaker assembled on-site?
The mid-high system mounts to the top of the LF enclosure using an included pan-and-tilt bracket, allowing field assembly and aiming.

What warranty and support come with this loudspeaker?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
