DCS SR-1000 – 10-Inch 2-Way Cinema Surround Loudspeaker (Pair)
DCS SR-1000 – 10-Inch 2-Way Cinema Surround Loudspeaker (Pair) is backordered and will ship as soon as it is back in stock.
What is the DCS SR-1000 cinema surround loudspeaker?

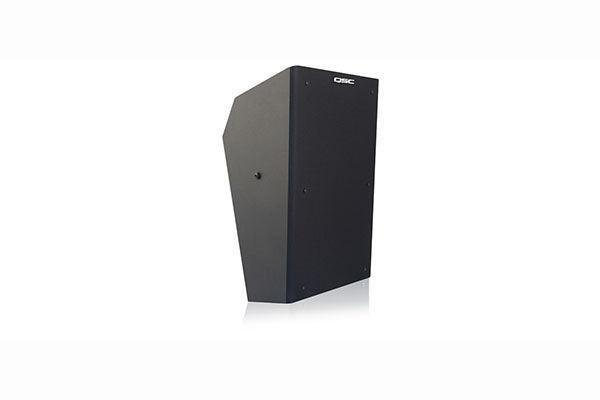

The DCS SR-1000 is a 10-inch 2-way cinema surround loudspeaker with 90-degree conical coverage and 94 dB sensitivity. It is built for the side and rear surround arrays of commercial cinema auditoriums and screening rooms. It is priced individually and sold only in pairs.
How does the DCS SR-1000 work?

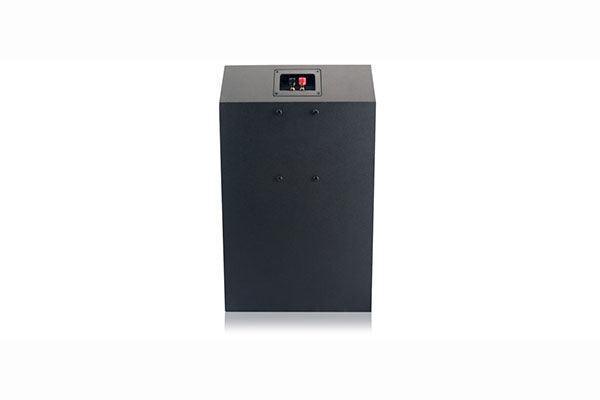

The SR-1000 pairs a 10-inch (254 mm) low-frequency transducer with a 1-inch (25 mm) compression driver behind a passive crossover, rated for 150 watts continuous. The 90-degree conical pattern spreads surround effects evenly across the seating area so each seat hears the array, not just the nearest speaker. The cabinet is 12 mm MDF with internal bracing, and the rear panel has four threaded insert mounting points that accept the standard bolt pattern used by most third-party brackets. Pre-installed speaker-side hardware supports fast single-installer wall mounting on the QM-SW (15-degree down angle) or QM-BW (23-degree down angle) brackets, ordered separately, and a YM-300 yoke bracket is also available. In larger rooms, the SR-1020 and higher output SR-1030 are companion surround models, and the compact SR-800 suits smaller rooms. Pair the surround array with DCS screen channels such as the SC-1120 and a subwoofer such as the SB-1180 for a complete DCS system. DCS (formerly part of the QSC DCS line) is now sold by Moving iMage Technologies (MiT order code A011100-001).
What are the key features of the DCS SR-1000?
- 10-inch 2-way design — A 10-inch woofer and 1-inch compression driver cover the full surround channel range.
- 90-degree conical coverage — The symmetrical pattern spreads surround effects evenly across the seating area.
- 94 dB sensitivity — It produces strong surround output from modest amplifier power.
- 150 W continuous rating — The power rating and crossover give dependable performance in daily cinema use.
- Braced 12 mm MDF cabinet — Internal bracing keeps the enclosure rigid for wall mounting.
- Flexible mounting — Pre-installed QM hardware fits QM-SW or QM-BW brackets, and a YM-300 yoke is also available.
- Sold in pairs — It is priced individually and supplied in pairs for balanced surround arrays.
Where is the DCS SR-1000 typically used?
- Auditorium (commercial cinema auditoriums and screening rooms)
- Multi-purpose room with cinema playback
- House of worship with film or media playback
Technical Specifications
| Configuration | 2-way passive |
|---|---|
| Low-frequency driver | 10 in (254 mm) |
| High-frequency driver | 1 in (25 mm) compression driver |
| Coverage | 90 degree conical |
| Sensitivity | 94 dB |
| Power rating | 150 W continuous |
| Enclosure | 12 mm MDF with internal bracing |
| Mounting | 4 rear threaded inserts; QM-SW (15 deg), QM-BW (23 deg), YM-300 yoke, ordered separately |
| Sales unit | Priced individually, sold only in pairs |
| MiT order code | A011100-001 |
Frequently Asked Questions
Which brackets fit the DCS SR-1000?
DCS lists the QM-SW (15-degree down angle) and QM-BW (23-degree down angle) wall brackets and the YM-300 yoke bracket. All are ordered separately.
Can I buy a single SR-1000?
No. The SR-1000 is priced individually but sold only in pairs, which keeps surround arrays matched.
How does the SR-1000 compare with the SR-1020?
Both are 10-inch 2-way DCS surround loudspeakers. The SR-1020 uses a 90 by 90 degree pattern; Creation Networks can help you choose the right model for your room size and seating layout.
Will the SR-1000 work with my existing cinema processor and amplifiers?
Yes. It is a passive loudspeaker that connects to a standard surround amplifier channel, so it integrates with common cinema processors and DSP-based systems. Creation Networks can check amplifier loading for your array.
Who installs and commissions it?
Creation Networks designs, installs and commissions DCS cinema sound systems nationwide, including surround array layout, mounting and system tuning.
What warranty applies?
Warranty terms are set by Moving iMage Technologies for DCS products. Contact Creation Networks at 888-230-3661 for current terms and support.
