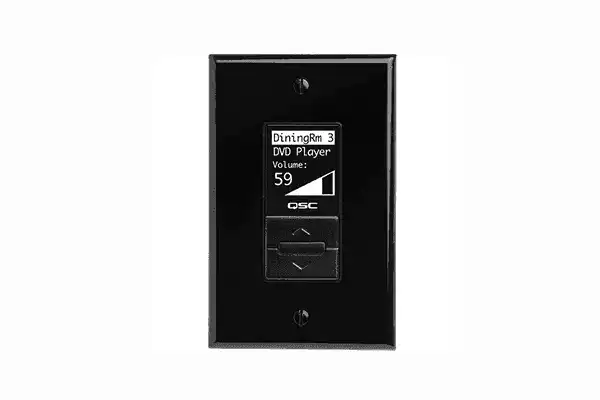

The black QSC MP-MFC is an elegant, Decora-style wall mount controller for use with MP-M Series music and paging mixers. Its intuitive system control allows designers to configure with as much or as little control over the system as needed.
Setup is simple with the use of the free MP Install app for Android/iOS, Mac, and Windows computers. Control source selection and volume for a zone as well as recalling scenes. The MP-MFC controller features three large buttons (increment, decrement, select) as well as a crisp 1.1 x 1" monochrome graphic display, which clearly labels selectable functions and options.
The MP-M Series mixer has two ports for MP-MFC connectivity, each of which can accommodate four daisy-chained MP-MFC controllers with a maximum total cable length of 820 ft per port. Up to eight MP-MFC controllers may be connected to a single MP-M Series mixer using standard Cat 5 (RJ45) cabling
Features
- For use with the MP-M paging and music mixer/processor only
- Zone select, source select, scene recall, volume control
- Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
- Ability to daisy chain up to four MP-MFC controllers
- Up to 250 m cable length (CAT5)
- Up to eight MP-MFC controllers per MP-M Series mixer
- Available in black or white
- Available in NA and EU sizes
• Configure as much or as little control as needed
• Control zone source selection, zone output level, input level selection and scene recall
• Three buttons (increment, decrement, select)
• Crisp 27 mm x 26 mm monochrome graphic display
• Daisy chain up to four MP-MFC controllers per line

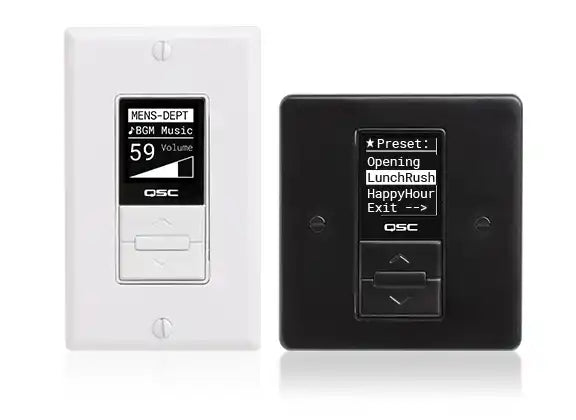

• Available in black or white
• Available in NA and EU sizes
Specs
| Model | MP-MFC |
| Controls | Three buttons (increment, decrement, and select) |
| Connectors | 2× RJ45 |
| Display | 128 × 128 pixels, 27 (L) × 26 (W) mm viewing area |
| Available Colors | Black, white |
| Connection Max | Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length Total: Up to 8 controllers per MP-M Series mixer |
| Versions | MP-MFC-NA-BK – North American version, black MP-MFC-NA-WH – North American version, white MP-MFC-EU-BK – European version, black MP-MFC-EU-WH – European version, white |
|
Dimensions (H×W×D) North American versions |
114 × 7 × 35 mm 4.5 × 2.75 × 1.4 in |
|
Dimensions (H×W×D) European versions |
89 × 89 × 36 mm 3.5 × 3.5 × 1.4 in |
| Net Weight | All Versions: 0.1 kg / 0.2 lb |
