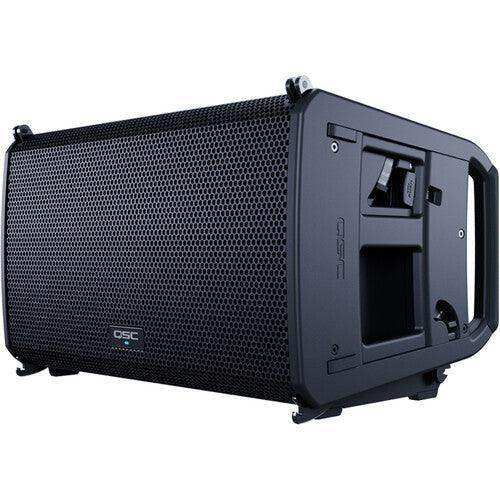

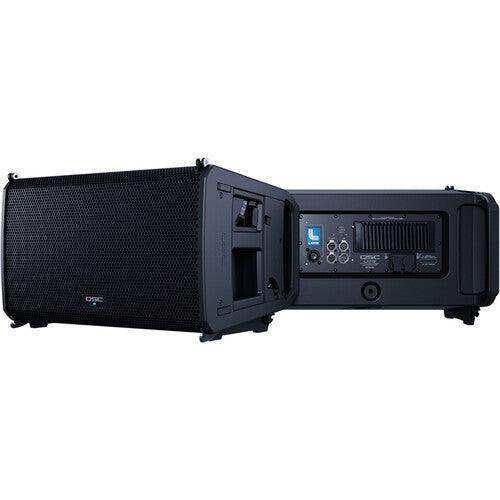

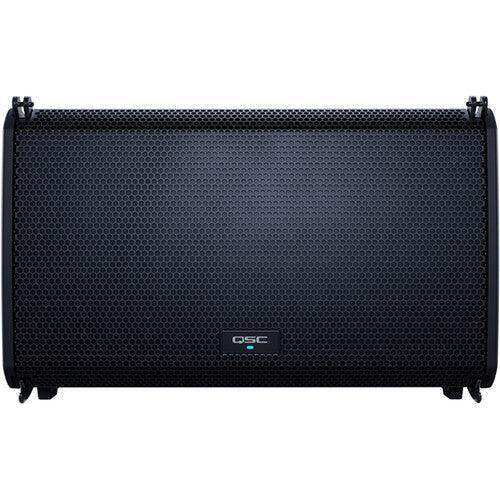

QSC LA112 – 2400W 12-Inch Active Line Array Loudspeaker

Product Overview

The QSC LA112 is a 12-inch two-way active line array loudspeaker for high-output sound reinforcement in larger venues and touring systems. A 2400 W peak Class D amplifier drives a neodymium 12-inch woofer and dual 1.75-inch compression drivers to a 136 dB peak SPL, and the QSC LEAF waveguide delivers defined 90-degree-by-15-degree coverage with strong throw. Onboard QSC AWARE array recognition, QSC SysNav control, and Dante audio-over-IP make the LA112 a networked line array suited to performing arts centers, houses of worship, and convention spaces.

Product Description

The LA112 combines a lightweight 12-inch woofer and dual 1.75-inch compression drivers with system intelligence for fast, single-operator deployment. The 2400 W Class D module (1600 W LF / 800 W HF) uses power factor correction for low AC draw, and QSC RapidDeploy rigging provides tool-free splay-angle setup. Onboard QSC AWARE reports array configuration through the 2.4-inch full-color Rear User Interface or the QSC SysNav app, including AIM array-coverage modeling, while dual etherCON ports carry Dante audio and SysNav control into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.

The LA112 can be flown in arrays of up to six with the dedicated array frame, ground-stacked up to three over a single LS118 subwoofer, or pole-mounted up to two. For smaller rooms or as down-fill, see the QSC LA108 8-inch line array, extend low end with the QSC LS118 powered subwoofer, or add the LA112 array frame for flown systems.

Key Features

• 2400 W peak Class D amplifier — LF 1600 W / HF 800 W with power factor correction for clean, efficient output.
• Neodymium transducers — 12-inch woofer and dual 1.75-inch compression drivers for consistent clarity at high SPL.
• QSC LEAF waveguide — Defined 90-degree-by-15-degree coverage with coherent wavefronts and extended throw.
• QSC AWARE array recognition — Auto-detects array configuration via the Rear User Interface or SysNav app.
• QSC RapidDeploy rigging — Tool-free, single-operator splay-angle adjustment.
• Dante and Q-SYS integration — Dual etherCON ports for Dante audio-over-IP and SysNav control within the Q-SYS Ecosystem.
• Flexible deployment — Fly up to six with the array frame, ground-stack up to three over an LS118, or pole-mount up to two.
• Impact-resistant ABS enclosure — Tour-grade cabinet with PowerCON TRUE1 and XLR connectors for portable or fixed use.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

How does the LA112 compare to the LA108? The LA112 uses a larger 12-inch woofer and dual compression drivers for higher output (136 dB peak) and a 90-degree horizontal pattern, suited to larger venues; the LA108 is an 8-inch model with a 100-degree pattern for smaller spaces.

Can the LA112 be ground-stacked? Yes. Up to three LA112 can be ground-stacked over a single LS118 subwoofer, or up to two can be pole-mounted.

Does it integrate with Dante and Q-SYS? Yes. Dual etherCON ports carry Dante audio-over-IP and QSC SysNav control, with integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.

What warranty applies? QSC provides a 6-year warranty when the product is registered within 30 days of purchase, subject to QSC warranty terms. For details or system design help, contact Creation Networks support.
