QSC LA108 – 1300W 8-Inch Active Line Array Loudspeaker

Product Overview

The QSC LA108 is an 8-inch two-way active line array loudspeaker built for portable and installed sound reinforcement where uniform coverage and fast deployment matter. A 1300 W peak Class D amplifier drives a neodymium 8-inch woofer and 1.75-inch compression driver to a 134 dB peak SPL, while the QSC LEAF waveguide sets a defined 100-degree-by-15-degree pattern with strong throw. With onboard QSC AWARE array recognition, QSC SysNav control software, and Dante audio-over-IP, the LA108 is a networked line array that fits auditoriums, houses of worship, and touring or rental systems.

Product Description

The LA108 combines premium transducers with system intelligence so a single technician can design, deploy, and tune an array quickly. The 1300 W Class D module (1000 W LF / 300 W HF) includes power factor correction for low AC draw, and convection cooling keeps operation silent. QSC RapidDeploy rigging provides tool-free splay-angle setup, and onboard QSC AWARE communicates array configuration through the 2.4-inch full-color Rear User Interface or the QSC SysNav app, which also offers AIM array-coverage modeling. Dual etherCON ports carry Dante audio and SysNav control, integrating the loudspeaker into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.

The LA108 can be flown in arrays of up to six with the dedicated array frame, ground-stacked up to four over a single LS118 subwoofer, or pole-mounted up to three. For larger venues, step up to the QSC LA112 12-inch line array, pair it with the QSC LS118 powered subwoofer for low-frequency extension, or add the LA108 array frame for flown deployments.

Key Features

• 1300 W peak Class D amplifier — Power factor correction and low AC consumption for clean output across an array.
• Neodymium transducers — 8-inch woofer and 1.75-inch compression driver with polyimide diaphragm for low-distortion output at high SPL.
• QSC LEAF waveguide — Defined 100-degree-by-15-degree coverage with coherent wavefronts and extended throw.
• QSC AWARE array recognition — Auto-detects array configuration and reports setup data via the Rear User Interface or SysNav app.

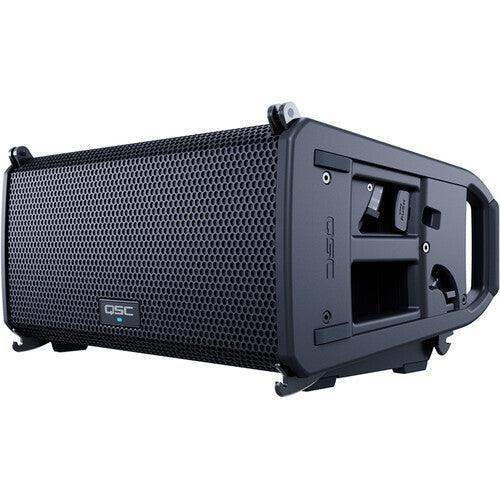

• QSC RapidDeploy rigging — Tool-free, single-operator splay-angle adjustment for fast setup.
• Dante and Q-SYS integration — Dual etherCON ports for Dante audio-over-IP and SysNav control within the Q-SYS Ecosystem.
• Flexible deployment — Fly up to six with the array frame, ground-stack up to four over an LS118, or pole-mount up to three.
• Impact-resistant ABS enclosure — Lightweight 30.1 lb cabinet with a powder-coated steel grille for portable and installed use.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

How many LA108 units can be flown in one array? Up to six LA108 loudspeakers can be flown with the dedicated array frame, ground-stacked up to four over a single LS118, or pole-mounted up to three.

Does the LA108 support Dante and Q-SYS? Yes. Dual etherCON ports carry Dante audio-over-IP and QSC SysNav control, and the loudspeaker integrates into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.

What subwoofer pairs with the LA108? The QSC LS118 powered subwoofer is designed to extend low-frequency output, and the LA108 can be ground-stacked over it.

What warranty applies? QSC provides a 6-year warranty when the product is registered within 30 days of purchase, subject to QSC warranty terms. For details or system design help, contact Creation Networks support.
