QSC CIML4-HP – Q-SYS Core 510i HP Mic/Line Input Card
Product Overview

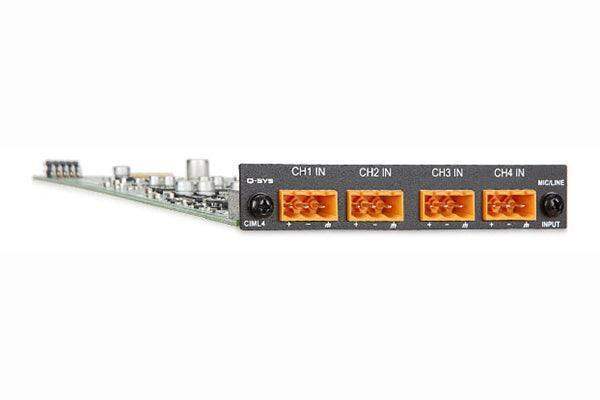

The QSC CIML4-HP is a high-performance Q-SYS Type-II I/O card providing four channels of switchable microphone and line-level analog input with 48V phantom power for the Core 510i processor. It pairs high-quality preamplification and analog-to-digital conversion to deliver premium audio capture for installations where input fidelity matters — such as performance venues, broadcast, and high-end conferencing. The card accepts microphones, mixers, and line-level playback sources.
Product Description
The CIML4-HP is the high-performance counterpart to the standard CIML4 input card. Its upgraded preamps and A/D conversion stage provide lower noise and greater headroom for critical sources, making it the choice when input quality is a priority within a Q-SYS design. It installs in any Type-II slot of the Core 510i and can be combined with other Type-II cards, so a single chassis can mix high-performance inputs with standard inputs, outputs, and digital cards. For standard-grade four-channel input, see the QSC CIML4.
Key Features
- Four switchable mic/line inputs with 48V phantom power — Accepts microphones, mixers, and line-level sources.
- High-quality preamplification — Premium preamps for critical audio capture.
- High-performance A/D conversion — Low-noise, high-headroom digitization into Q-SYS.
- Type-II Q-SYS I/O card — Compatible with the Core 510i; combine with other Type-II cards in any slot.
Typical Applications
- Broadcast studio
- Auditorium
- Boardroom
- House of worship
Technical Specifications
| Type | Q-SYS Type-II I/O card (high performance) |
| Channels | 4 switchable mic/line inputs |
| Phantom power | 48 V |
| Signal path | High-quality preamplification and A/D conversion |
| Host processor | Q-SYS Core 510i (Type-II slot) |
Frequently Asked Questions
How does the CIML4-HP differ from the CIML4? The HP version adds higher-quality preamplification and A/D conversion for lower noise and greater headroom on critical inputs.
Does it support condenser microphones? Yes — it provides 48V phantom power on its switchable mic/line inputs.
Can it be mixed with other I/O cards? Yes. It installs in any Core 510i Type-II slot and combines with standard input, output, and digital cards.
What about warranty and support? Coverage follows QSC's published warranty terms. Contact Creation Networks support for configuration help.
