QSC CIML4 – Q-SYS Core 510i 4-Channel Mic/Line Input Card
Product Overview

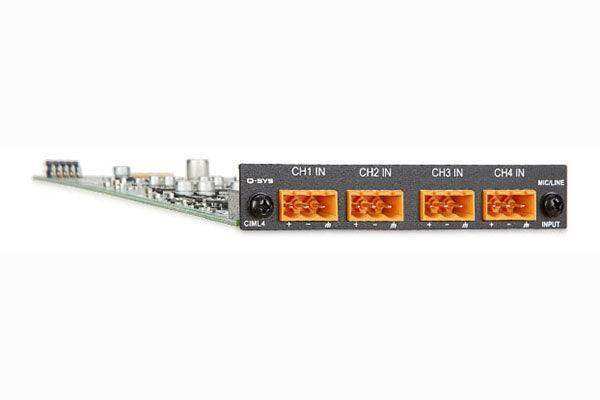

The QSC CIML4 is a Q-SYS Type-II I/O card that provides four channels of balanced mic/line analog audio input with 48V phantom power for the Core 510i processor. It accepts condenser and dynamic microphones, line-level sources, and balanced analog signals from any professional audio device, bringing them directly into Q-SYS signal routing. Because each Core 510i chassis takes up to eight Type-II cards in any combination, the CIML4 lets integrators build exactly the analog input count an installation requires.
Product Description
The CIML4 installs in any Type-II slot of the Core 510i and can be mixed freely with output and digital cards to match the room. Its 48V phantom power supports condenser microphones for conferencing and presentation, while the line-level capability handles playback devices, mixers, and other balanced sources. For analog outputs in the same chassis, pair it with the COL4 line output card. Integrators who need higher-grade preamps should consider the high-performance CIML4-HP variant.
Key Features
- Four balanced mic/line inputs with 48V phantom power — Accepts condenser and dynamic microphones and line-level sources.
- Type-II Q-SYS I/O card — Compatible with the Core 510i; combine with COL4, CDN64, CIAES16, CODP4, and other Type-II cards in any slot.
- Up to eight cards per Core 510i — Scale analog input as the installation requires.
- Direct Q-SYS routing — Inputs appear natively in Q-SYS Designer for processing and distribution.
Typical Applications
- Boardroom
- Conference room
- House of worship
- Auditorium
Technical Specifications
| Type | Q-SYS Type-II I/O card |
| Channels | 4 balanced mic/line inputs |
| Phantom power | 48 V |
| Host processor | Q-SYS Core 510i (up to 8 Type-II cards) |
| Source compatibility | Condenser/dynamic microphones, line-level sources |
Frequently Asked Questions
Which processor does the CIML4 work with? The Q-SYS Core 510i. It installs in any of the eight Type-II card slots.
Can it power condenser microphones? Yes — it supplies 48V phantom power on its mic/line inputs.
Can I mix it with other I/O cards? Yes. Combine it freely with COL4, CDN64, CIAES16, CODP4, and other Type-II cards in any slot configuration.
What about warranty and support? Coverage follows QSC's published warranty terms. Contact Creation Networks support for configuration help.
