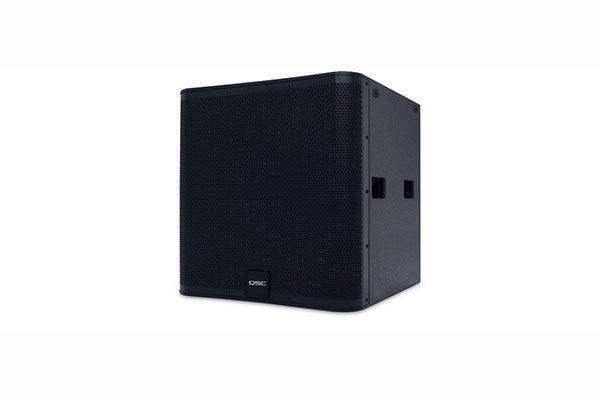

QSC SB-118F – Flyable Cinema Subwoofer (Single 18-Inch, 800W)

Product Overview

The QSC SB-118F is a flyable single-18-inch cinema subwoofer from the DCS Digital Cinema Series, designed for low-frequency enhancement of cinema surround channels using bass-management techniques. It is commonly suspended from the ceiling near wall-mounted surround loudspeakers to extend their low-frequency content.

Built for safe overhead suspension with eight M10 fly points and tour-grade plywood, the SB-118F covers 37 Hz to 230 Hz with a high-output, cinema-specific 18-inch transducer.

Product Description

The SB-118F uses a custom 800 W, 18-inch transducer developed specifically for cinema use, with a large 4-inch (101 mm) voice coil and a multi-vented pole piece that keeps the motor cool at high power levels for longer transducer life and reduced power compression. The system covers 37 Hz to 230 Hz for surround bass management.

Heavily braced, tour-grade 15 mm plywood construction provides strength while keeping weight low, and eight built-in M10 fly points allow safe, straightforward overhead suspension. A 4-ohm impedance draws power efficiently from multi-channel cinema amplifiers.

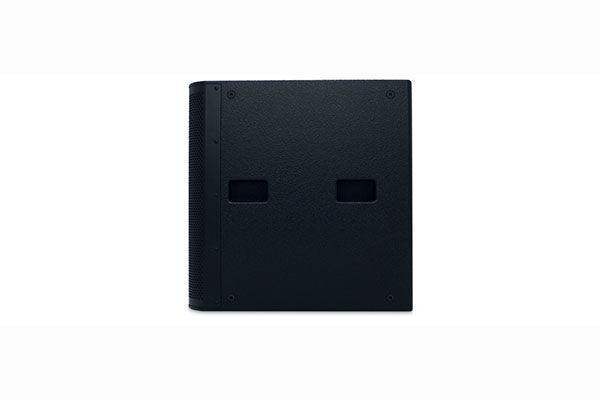

Side-mounted hand holds ease handling during installation, a foam-lined perforated-steel grille protects the driver, and both barrier-strip and Neutrik speakON connectors are provided. For higher output, see the dual-18-inch QSC SB-218F.

Key Features

• Flyable single-18-inch design — Eight built-in M10 fly points enable safe overhead suspension near surround loudspeakers.
• Custom 800 W cinema transducer — An 18-inch driver with a 4-inch (101 mm) voice coil and multi-vented pole piece runs cool at high power for long life and low power compression.
• Surround bass-management range — Covers 37 Hz to 230 Hz to extend the low-frequency content of surround channels.
• Tour-grade plywood construction — Heavily braced 15 mm plywood provides strength with minimal weight.
• 4-ohm impedance — Draws power efficiently from multi-channel cinema amplifiers.
• Install-friendly hardware — Side-mounted hand holds, a foam-lined perforated-steel grille, and barrier-strip plus Neutrik speakON connectors.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What is the SB-118F used for?
It provides low-frequency enhancement for cinema surround channels via bass management, typically suspended from the ceiling near wall-mounted surrounds.

How is it suspended?
Eight built-in M10 fly points allow safe overhead suspension using installer-provided rigging hardware rated for the load.

How does it differ from the SB-218F?
The SB-118F is a single-18-inch enclosure; the SB-218F uses two 18-inch transducers for higher output and sensitivity.

What warranty and support come with this subwoofer?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
