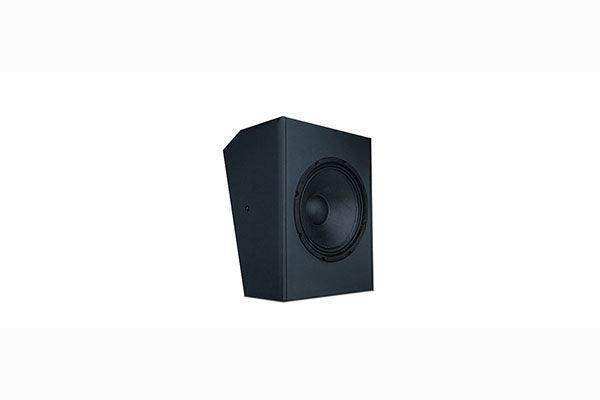

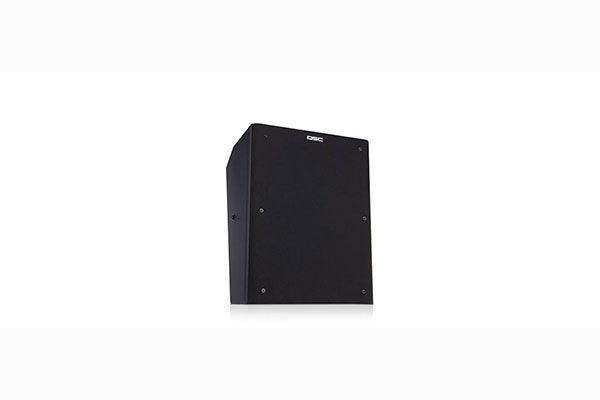

QSC SR-1290 – 12-Inch 2-Way Coaxial Cinema Surround Loudspeaker

Product Overview

The QSC SR-1290 is a 12-inch two-way coaxial cinema surround loudspeaker, priced and sold individually, developed for immersive, object-based audio formats in larger auditoriums. Part of the QSC Cinema Surround range, it pairs high power handling with a low 4-ohm impedance for efficient multi-channel amplification.

Its coaxially mounted high-frequency driver creates a point-source radiation pattern for accurate, even surround coverage, while a compact enclosure blends into theatre decor.

Product Description

The SR-1290 features a 12-inch (305 mm) woofer with a 2.5-inch (63 mm) voice coil and a coaxially mounted high-frequency driver with a 1.75-inch (44 mm) voice coil. Coaxial alignment produces a point-source characteristic that keeps frequencies aligned through the crossover region for accurate reproduction.

A low 4-ohm impedance lets the loudspeaker draw more power from the amplifier than an 8-ohm design, so object-based immersive formats that require a dedicated channel per surround can deliver maximum output from lower-powered, lower-cost multi-channel amplifiers. Very high power handling meets the demands of immersive audio.

Pre-installed speaker-side mounting hardware allows fast, secure single-installer wall mounting; the QM-SW and QM-BW brackets (sold separately) provide down-angle options. For a very-high-output 15-inch coaxial surround, see the QSC SR-1590.

Key Features

• 12-inch coaxial two-way — A 12-inch (305 mm) woofer with a coaxially mounted HF driver delivers point-source reproduction.
• Point-source coaxial alignment — Keeps frequencies aligned through the crossover for accurate imaging, with a conical dispersion pattern unaffected by enclosure rotation.
• 4-ohm low impedance — Draws more power from the amplifier, enabling lower-powered, less costly multi-channel amplifiers for immersive formats.
• Very high power handling — Meets the demands of object-based immersive audio formats.
• Fast single-installer mounting — Pre-installed speaker-side hardware works with QM-SW or QM-BW wall-mount brackets (sold separately).

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Why a coaxial driver for surrounds?
Coaxial alignment creates a point source so all frequencies stay aligned through the crossover, and its conical dispersion is unaffected by rotating the enclosure, simplifying aiming.

Why is the SR-1290 rated at 4 ohms?
A 4-ohm load draws more power from each amplifier channel, so immersive formats that dedicate a channel per surround can reach maximum output from lower-powered, lower-cost amplifiers.

Is it sold individually?
Yes. The SR-1290 is priced and sold individually so you can order the exact channel count your design requires.

What warranty and support come with this loudspeaker?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
