Microsoft Teams Room AV Audio Bundle – QSC Q-SYS & Sennheiser Ceiling Mic Solution

Certified, Scalable Audio System for Microsoft Teams Rooms

Enhance the Microsoft Teams Room experience with a professionally engineered AV audio bundle featuring certified hardware from QSC and Sennheiser. Designed for flexible deployment across meeting environments of all sizes, this solution delivers superior sound clarity, simplified integration, and consistent user experiences—powered by the Q-SYS ecosystem and Sennheiser’s advanced ceiling microphone technology.

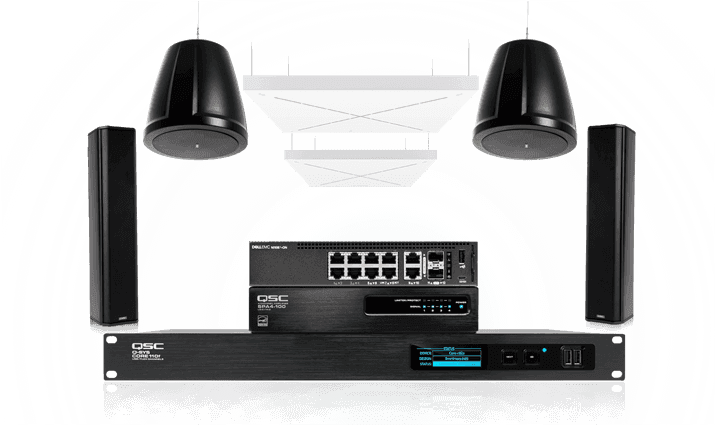

This bundle includes all the essential components to create a streamlined Microsoft Teams Room setup: the Q-SYS Core processor, directional QSC loudspeakers, Sennheiser TeamConnect Ceiling 2 microphones, and a preconfigured QSC network switch. It’s ideal for organizations seeking to standardize and scale their conferencing technology with ease.

Key Features

• Microsoft Teams Room Certification: Hardware certified to deliver optimal performance and seamless Teams Room integration.
• Q-SYS Core 110f Processor: Provides scalable DSP processing and full room control without requiring additional control hardware.
• Sennheiser Ceiling Mics: TeamConnect Ceiling 2 with beamforming adapts dynamically to speaker location for intelligible, hands-free audio capture.
• Directional QSC Loudspeakers: Combines column and pendant speaker types for even audio coverage and natural voice reproduction.
• Streamlined Connectivity: A single USB connection handles audio between the Q-SYS Core and conferencing PC for simplified setup.
• Preconfigured QSC Network Switch: Expedites deployment and optimizes performance of all AV peripherals.
• Enterprise-Grade Audio Processing: Includes AEC, Noise Reduction, and Intrinsic Correction™ for speaker performance tuning.

Ideal Applications

• Boardrooms
• Conference rooms
• Houses of worship
• Government collaboration spaces
• Corporate training rooms
• Multi-purpose and divisible meeting spaces
• All-hands and town hall rooms
• Hybrid video conferencing environments

Technical Specifications

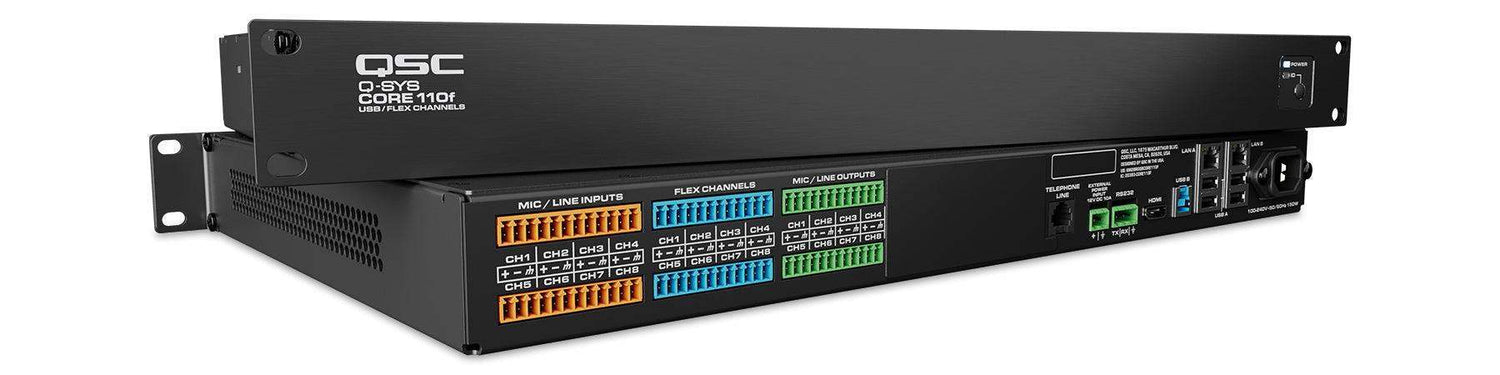

• Processor: QSC Q-SYS Core 110f
• Amplifier: QSC SPA4-100
• Speakers:

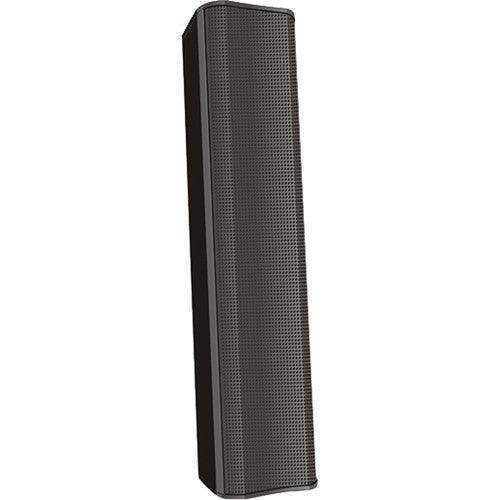

  • (2) QSC AD-S802T column loudspeakers

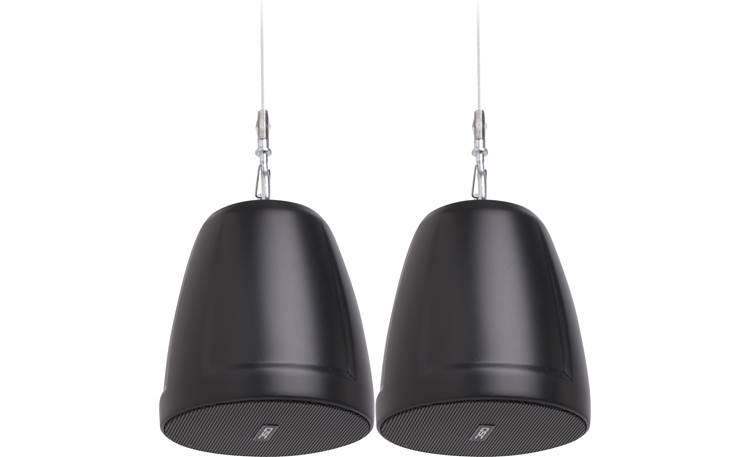

  • (2) QSC AD-P6t pendant loudspeakers
• Microphones:

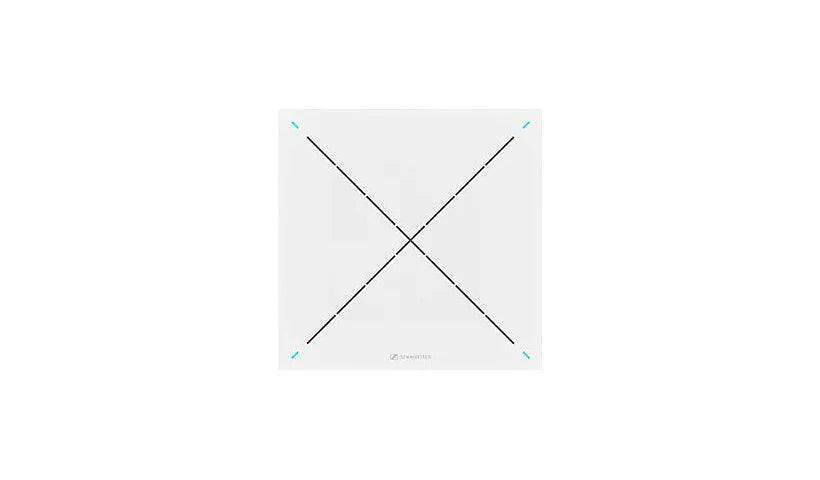

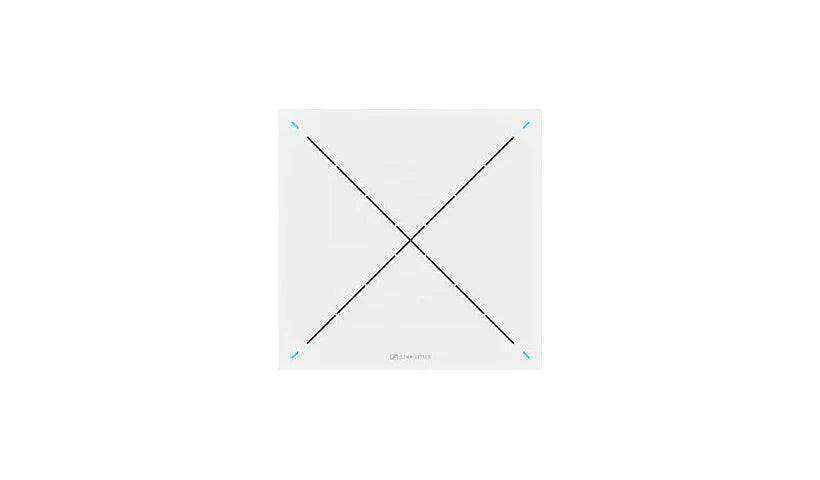

  • (2) Sennheiser TeamConnect Ceiling 2
  • (2) Sennheiser SL CM SK suspension kits
• Networking: QSC NS1108P preconfigured network switch
• Cables:
  • 7' Cat 6 Ethernet cable
  • (2) 35' Cat 5e plenum Ethernet cables
  • (2) 50' Cat 5e plenum Ethernet cables
  • USB 2.0 A male to B male cable
  • 150' 16 AWG 2-conductor plenum speaker cable
• Connectivity: USB, Ethernet
• Warranty: 3-Year limited manufacturer hardware warranty

Audio Performance Features

• Teams-certified audio configurations for plug-and-play performance
• Advanced Acoustic Echo Cancellation (AEC) eliminates far-end echo
• Noise Reduction minimizes steady-state background sounds
• QSC Intrinsic Correction™ for optimal speaker tuning and clarity
• Front-mounted column loudspeakers improve voice localization
• Pendant delay loudspeakers ensure coverage in large spaces
• Dynamic beamforming mic technology requires no manual adjustment
• HID support: LED mute sync with Teams console and mic controls

How This Bundle Outperforms Standard Solutions

• True Teams Certification: Full compliance ensures native integration and reliable performance across Teams environments.
• Hands-Free Operation: Beamforming ceiling mics capture voices clearly without the clutter of table microphones.
• Simplified Connectivity: One USB audio connection replaces complex wiring or multiple endpoints.
• Optimized Deployment: QSC’s preconfigured network switch saves time and supports plug-and-play AV devices.
• Room Scalability: Easily expand or reconfigure rooms without the need for multiple DSPs or third-party hardware.

Product Comparison Table

Get Started with Creation Networks

Standardize your Microsoft Teams Rooms with this scalable AV bundle from QSC and Sennheiser. Contact Creation Networks to discuss your space requirements and receive a custom integration quote from our AV design team.
