QSC SPA4-100 – 4-Channel 100W EnergyStar Commercial Power Amplifier

Product Overview

The QSC SPA4-100 is a four-channel commercial power amplifier delivering 100 watts per channel, built for small to medium multi-zone distributed audio installations that need more headroom than the 60-watt model. Its convection-cooled, fanless design and half-rack 1U chassis suit rack-constrained, noise-sensitive spaces. Each channel supports Low-Z (4 Ω/8 Ω) and 70 V/100 V distributed loads, and outputs can be bridged for higher power. ENERGY STAR qualified, the SPA4-100 accepts standard analog line input from a zone mixer or DSP.

Product Description

The SPA Series uses an advanced Class-D design with a universal switchmode power supply, efficient enough to run without active cooling. ENERGY STAR auto-ramp circuitry provides quiet startup from standby and a seamless power-down after 25 minutes of inactivity. The SPA4-100 delivers 100 watts RMS per channel into 4 Ω and 8 Ω; bridging a channel pair yields up to 200 watts into low impedance and up to 175 watts into 70 V or 100 V, with an 80 Hz high-pass filter available in bridged distributed modes. Per-channel controls select 4 Ω/8 Ω or 70 V/100 V operation, and rms and thermal limiting plus over-current and short-circuit protection allow confident deployment. The included mounting kit supports rack mounting alone or paired in 1RU, plus under-table and wall mounting, and an optional Plenum Kit allows plenum installation. For lower per-channel power at lower cost, see the SPA4-60.

Key Features

• Four channels at 100 W — 100 watts per channel into 4 Ω and 8 Ω for foreground music and paging zones.
• Low-Z and 70V/100V support — Per-channel selection of low-impedance or distributed operation.
• Bridgeable outputs — Up to 200 W into low impedance and 175 W into 70V/100V per bridged pair.
• ENERGY STAR, convection-cooled — Efficient Class-D design runs fanless with no mechanical noise.
• Auto-ramp standby — Quiet startup and seamless power-down after 25 minutes of inactivity.
• Comprehensive protection — RMS and thermal limiting plus over-current and short-circuit protection.

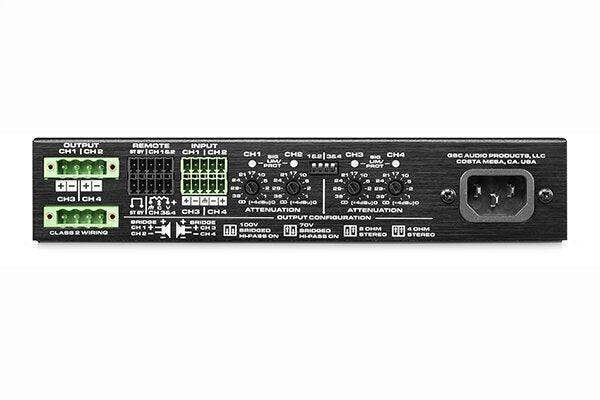

• Flexible mounting — Half-rack 1U chassis for rack, under-table, wall, or (with kit) plenum installation.

Typical Applications

• Commercial meeting space — Four higher-output zones from one chassis.
• Conference room — Fanless amplification where mechanical noise must be avoided.
• Multi-purpose room — Mixed low-impedance and distributed speaker drive.
• Training room — Energy-efficient zone amplification with extra headroom.
• House of worship — Foreground music and paging across multiple zones.

Technical Specifications

Frequently Asked Questions

Is the SPA4-100 a Q-SYS amplifier?
No. It is a non-networked amplifier that accepts standard analog line-level input from a zone mixer or DSP.

Does it need active cooling?
No. Its efficient Class-D design is convection cooled and fanless, eliminating fan noise.

Can the outputs be bridged?
Yes. A bridged channel pair delivers up to 200 W into low impedance and up to 175 W into 70 V or 100 V.

How does it compare with the SPA4-60?
The SPA4-100 provides 100 watts per channel versus 60 watts, offering more headroom for foreground music or higher-SPL zones in the same chassis.

What about warranty and support?
Refer to QSC warranty terms for coverage. For configuration and purchasing questions, contact Creation Networks support.
