QSC DPM-300 – Digital Cinema Processor / Monitor / Crossover

Product Overview

The QSC DPM-300 is a 10-channel digital cinema processor that combines all signal processing and monitoring functions for digital cinema sound in a single integrated unit — booth monitor, loudspeaker crossovers, and screen-channel amplification management. Building on the legacy of QSC’s DCM and DCP products, it is designed to work with QSC Digital Cinema Amplifiers (DCA) and features Intrinsic Correction™ tunings for QSC Digital Cinema Speakers (DCS). The DPM-300 optimizes loudspeaker performance while simplifying cinema sound system wiring and configuration, and is configurable for passive, bi-amp, tri-amp, and quad-amp operation with 2 or 4 surround channels (5.1 or 7.1).

Product Description

The DPM-300 provides ten digital inputs for 5.1 and 7.1 soundtracks plus HI/VI, analog inputs for film processors and non-sync and mic/line sources, master volume, and full 1/3-octave graphic EQ on every channel except the subwoofer. Its digital loudspeaker crossovers support three passive, bi-, tri-, or quad-amp screen channels, and a built-in booth monitor loudspeaker and headphone jack support engineering and QC listening. Control and monitoring are handled over Ethernet, including full SNMP support, with serial automation control via RS-232. A bypass mode routes audio around failed components to keep the show running, and Intrinsic Correction™ for DCS loudspeakers delivers optimal out-of-box performance and reduced setup time. The DPM-300 is compatible with QSC’s installed base of DCA cinema amplifiers and pairs with QSC cinema loudspeakers such as the SC-1150 screen channel. For an HDMI-equipped variant with Dolby Digital Plus and DTS-HD decoding, see the DPM-300H.

Key Features

• Ten digital inputs (5.1 / 7.1 + HI/VI) — Accepts standard digital cinema soundtrack formats plus hearing- and visually-impaired channels.
• Three screen-channel digital crossovers — Configurable for passive, bi-amp, tri-amp, or quad-amp screen channels.
• 2 or 4 surround channels — Supports 5.1 and 7.1 cinema surround formats.
• Intrinsic Correction™ for DCS loudspeakers — Factory tunings optimize QSC Digital Cinema Speaker performance and reduce setup time.
• Booth monitor and headphone output — Built-in monitor loudspeaker and headphone jack for in-booth listening.
• 1/3-octave graphic EQ and master volume — Full graphic EQ on all channels except the subwoofer.
• Ethernet control with SNMP, plus RS-232 — Network control and monitoring with full SNMP support and serial automation control.
• Bypass mode — Routes audio around failed components so the show continues.
• DCA amplifier compatibility — Works with QSC’s installed base of DCA-equipped screens for full network monitoring and control.

Typical Applications

• Auditorium (cinema / screening room)

Technical Specifications

Frequently Asked Questions

What is the difference between the DPM-300 and DPM-300H?

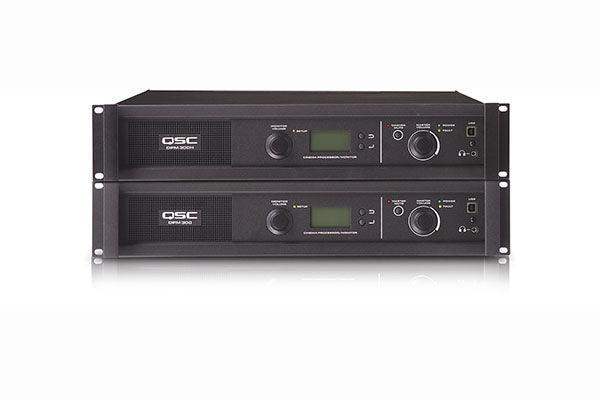

The DPM-300H adds HDMI input/output for non-sync sources along with Dolby Digital Plus and DTS-HD decoding. The standard DPM-300 provides the same cinema processing, crossover, monitoring, and control features without the HDMI and Dolby/DTS decoding. See the DPM-300H if HDMI sources or those codecs are required.

Which amplifiers and loudspeakers does the DPM-300 work with?
It is designed for QSC Digital Cinema Amplifiers (DCA) and includes Intrinsic Correction™ tunings for QSC Digital Cinema Speakers (DCS). It is compatible with thousands of existing DCA-equipped screens for full network monitoring and control.

How is the DPM-300 controlled and monitored?
Control and monitoring are available over Ethernet with full SNMP support, plus serial automation control via RS-232.

What warranty applies?
The DPM-300 is covered under QSC’s standard limited warranty terms. For current warranty details and cinema system design support, contact Creation Networks.
