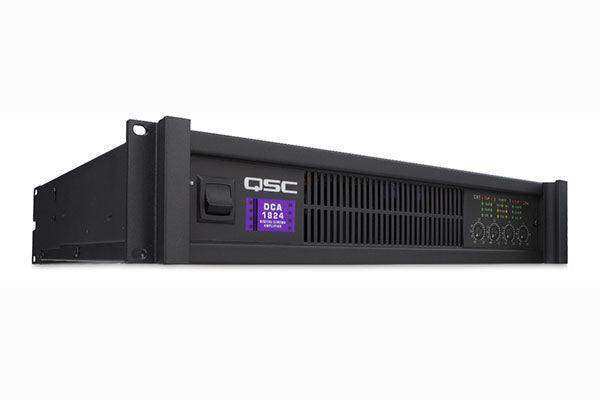

QSC DCA1824 – 4-Channel 170W Digital Cinema Amplifier
Product Overview
The QSC DCA1824 is a four-channel digital cinema amplifier designed to power surround arrays and screen channels in Q-SYS-enabled and traditional cinema auditoriums. From a single 2U chassis it delivers 170 watts per channel at 8 ohms, 250 watts at 4 ohms, and 450 watts at 2 ohms — a low-impedance capability that makes it well suited to driving parallel-wired surround loudspeaker arrays. As a DataPort cinema amplifier, the DCA1824 connects to QSC DCP cinema processors, DCM monitors, or a Q-SYS Core via the CODP4 DataPort output card.
Product Description
The DCA1824's four channels and 2-ohm stability make it the QSC cinema amplifier of choice for surround zones, where multiple loudspeakers are commonly wired in parallel for low per-channel impedance. QSC's PowerLight switch-mode power supply keeps the chassis compact and efficient, while Output Averaging short-circuit protection and Active Inrush Limiting safeguard the amplifier and connected loudspeakers. Neutrik Speakon and barrier-strip output terminals provide secure installed-system connections, and variable-speed fan cooling with back-to-front airflow suits enclosed booth racks. For higher screen-channel power use the QSC DCA1644; for Q-SYS integration add the CODP4 DataPort output card.
Key Features
- Four channels, 170 W per channel at 8Ω — 250 W at 4Ω and 450 W at 2Ω for flexible cinema loudspeaker loading.
- 2-ohm stable — Ideal for powering parallel-wired surround arrays from a single channel.
- DataPort connectivity — Integrates with QSC DCP cinema processors, DCM monitors, and Q-SYS Cores via the CODP4 card.
- PowerLight switch-mode supply — Efficient, low-distortion power in a 2U footprint.
- Output Averaging short-circuit protection — Patented QSC protection for amplifier and loudspeaker safety.
- Active Inrush Limiting — Prevents breaker trips at power-up in large amplifier racks.
- Variable-speed fan cooling — Back-to-front airflow for stable operation in enclosed racks.
Typical Applications
- Auditorium and cinema screening rooms (surround channels)
- House of worship
- Multi-purpose room
Technical Specifications
| Configuration | 4-channel power amplifier |
| Output power (8Ω) | 170 W per channel |
| Output power (4Ω) | 250 W per channel |
| Output power (2Ω) | 450 W per channel |
| Power supply | PowerLight switch-mode |
| Inputs | QSC DataPort and analog |

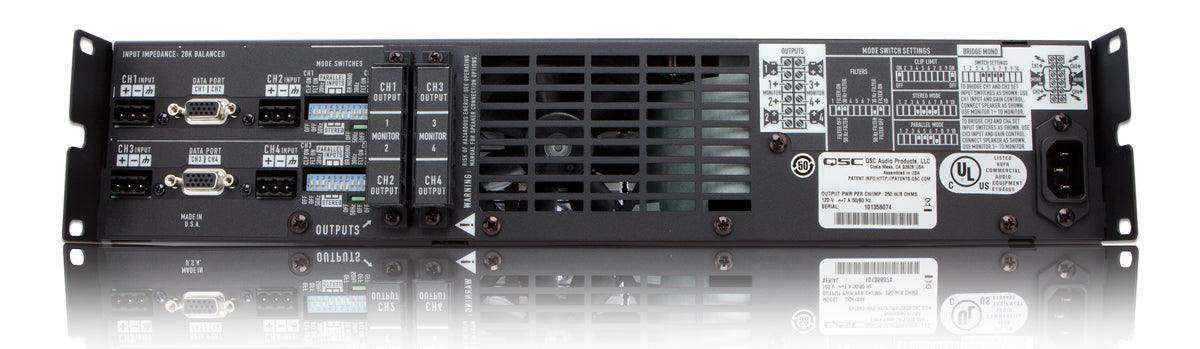

| Output connectors | Neutrik Speakon and safety-shrouded barrier strip |
| Protection | Output Averaging short-circuit, Active Inrush Limiting, DC and thermal |
| Cooling | Variable-speed fan, back-to-front airflow |
| Rack size | 2U |
Frequently Asked Questions
Why choose the DCA1824 over the DCA1644? The DCA1824 is rated for 2-ohm loads (450 W per channel), making it better suited to parallel-wired surround arrays, while the DCA1644 offers higher 8-ohm power for screen channels.
Is it a networked Q-SYS amplifier? No. It is a DataPort/analog amplifier; connect it to a Q-SYS Core through the CODP4 DataPort output card.
What sources and processors are compatible? QSC DCP cinema processors, DCM monitors, Q-SYS Cores via CODP4, and standard analog line-level sources.
What about warranty and support? Coverage follows QSC's published warranty terms. Contact Creation Networks support for configuration or warranty assistance.
