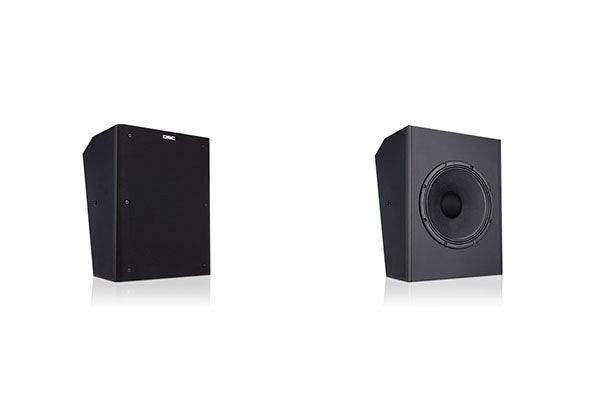

QSC SR-1590 – Very High Output 15-Inch 2-Way Coaxial Cinema Surround Loudspeaker

Product Overview

The QSC SR-1590 is a very-high-output 15-inch two-way coaxial cinema surround loudspeaker, priced and sold individually, built for object-based immersive audio formats in large auditoriums. It combines a long-throw 15-inch woofer with a coaxially mounted titanium-diaphragm compression driver.

A low 4-ohm impedance and 500 W continuous power rating let each surround channel reach maximum output from lower-powered multi-channel amplifiers, while coaxial alignment delivers point-source accuracy.

Product Description

The SR-1590 features a high-power, long-throw 15-inch (380 mm) low-frequency transducer with a coaxially mounted titanium-diaphragm compression driver on a 3-inch (76 mm) voice coil. The coaxial layout occupies less baffle area than over-under designs, reducing cabinet size while maximizing output, and creates a point-source radiation pattern so all frequencies are aligned through the crossover region for better sound quality.

Because the coaxial driver produces a conical dispersion pattern, the enclosure can be rotated without affecting coverage. The 4-ohm impedance draws more power from the amplifier than an 8-ohm loudspeaker, so object-based immersive formats that dedicate a channel per surround can deliver more power to each loudspeaker from lower-powered multi-channel amplifiers. A 500 W continuous rating and protective crossover circuitry ensure reliability.

Pre-installed speaker-side mounting hardware enables fast, secure single-installer wall mounting with QM-SW or QM-BW brackets (sold separately). For a 12-inch coaxial surround, see the QSC SR-1290.

Key Features

• 15-inch coaxial two-way — A long-throw 15-inch (380 mm) woofer with a coaxially mounted titanium HF driver delivers very high output.
• Point-source coaxial alignment — Aligns all frequencies through the crossover and occupies less baffle area for a smaller cabinet.
• Rotation-independent coverage — The conical dispersion pattern is unaffected by rotating the enclosure, simplifying aiming.
• 4-ohm low impedance — Draws more power per channel for immersive formats from lower-powered multi-channel amplifiers.
• 500 W continuous power — High power handling with protective crossover circuitry for reliable operation; 98 dB sensitivity.
• Fast single-installer mounting — Pre-installed hardware works with QM-SW or QM-BW wall-mount brackets (sold separately).

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What makes the SR-1590 suited to immersive audio?
Its very high output, 4-ohm impedance, and point-source coaxial design let each dedicated surround channel deliver maximum output for object-based formats, even from lower-powered multi-channel amplifiers.

Does enclosure orientation affect coverage?
No. The coaxial driver produces a conical dispersion pattern, so the enclosure can be rotated without changing the coverage pattern.

Is it sold individually?
Yes. The SR-1590 is priced and sold individually to match the channel count your immersive design requires.

What warranty and support come with this loudspeaker?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
